Mitsubishi Forklift FGC15K FGC18K FGC20K FGC20K HO FGC25K FGC25K HO FGC30K Service Manual PDF
$32.95
Mitsubishi Forklift Truck FGC15K FGC18K FGC20K FGC20K HO FGC25K FGC25K HO FGC30K Service Manual P.NO.99719 -70150 – PDF DOWNLOAD
- FGC15K AF81C-00011-up
AF81D-00011-up
AF81E-00011-up
FGC18K AF81C-00011-up
AF81D-00011-up
AF81E-00011-up
FGC20K AF82C-00011-up
AF82D-00011-up
AF82E-00011-up
FGC20K HO AF82C-90011-up
AF82D-90011-up
AF82E-90011-up
FGC25K AF82C-00011-up
AF82D-00011-up
AF82E-00011-up
FGC25K HO AF82C-90011-up
AF82D-90011-up
AF82E-90011-up
FGC30K AF83C-00011-up
AF83D-00011-up
AF83E-00011-up
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Mitsubishi Forklift Truck FGC15K FGC18K FGC20K FGC20K HO FGC25K FGC25K HO FGC30K Service Manual P.NO.99719 -70150 – PDF DOWNLOAD
FILE DETAILS:
Mitsubishi Forklift Truck FGC15K FGC18K FGC20K FGC20K HO FGC25K FGC25K HO FGC30K Service Manual P.NO.99719 -70150 – PDF DOWNLOAD
Language : English
Pages : 770
Downloadable : Yes
File Type : PDF

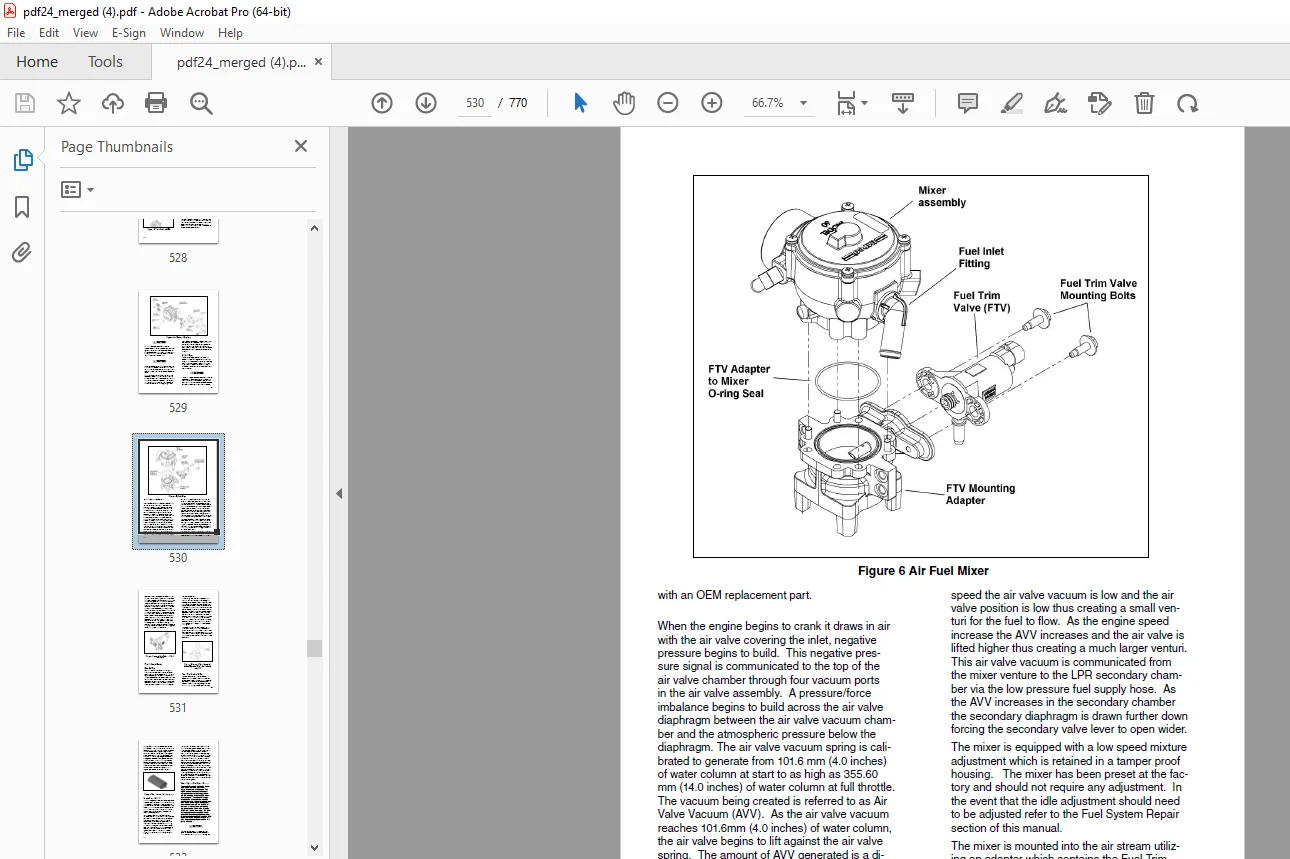

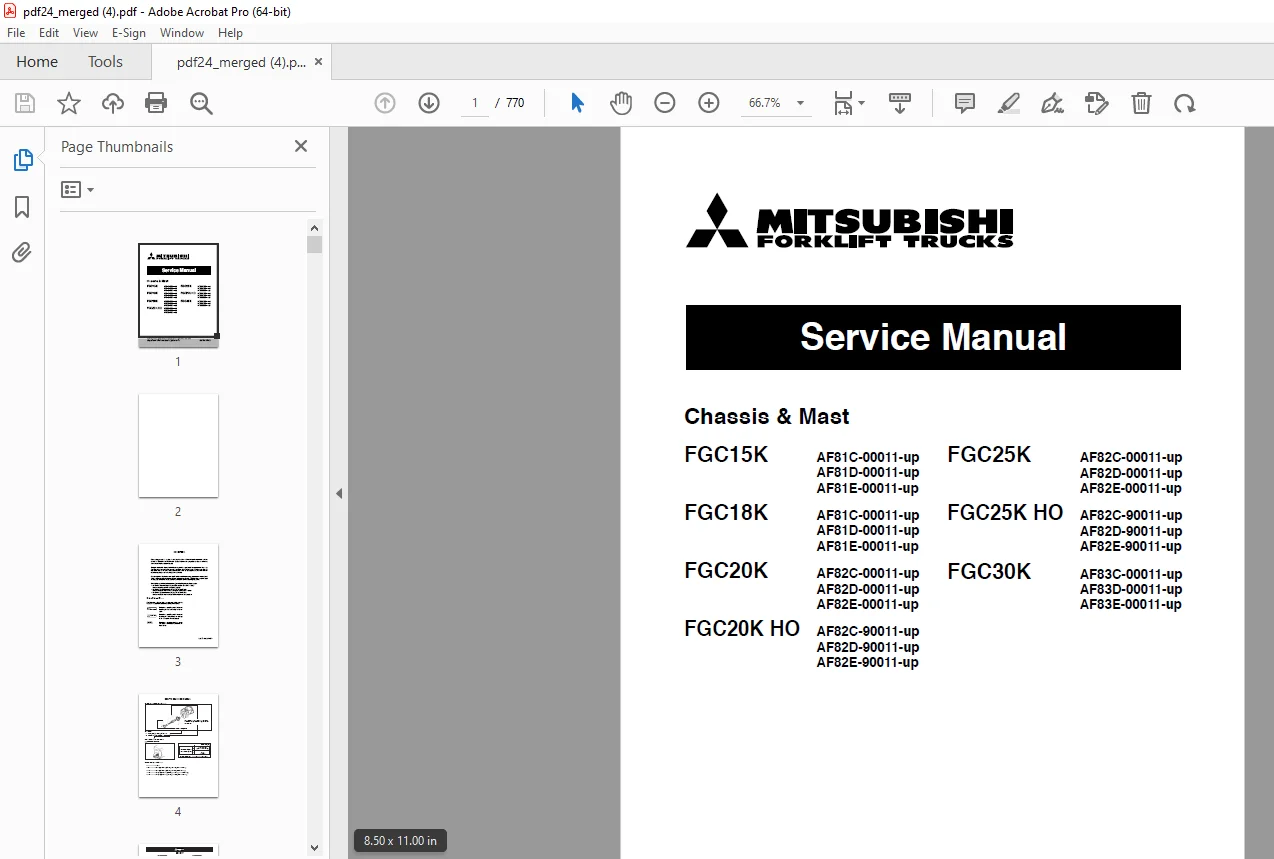

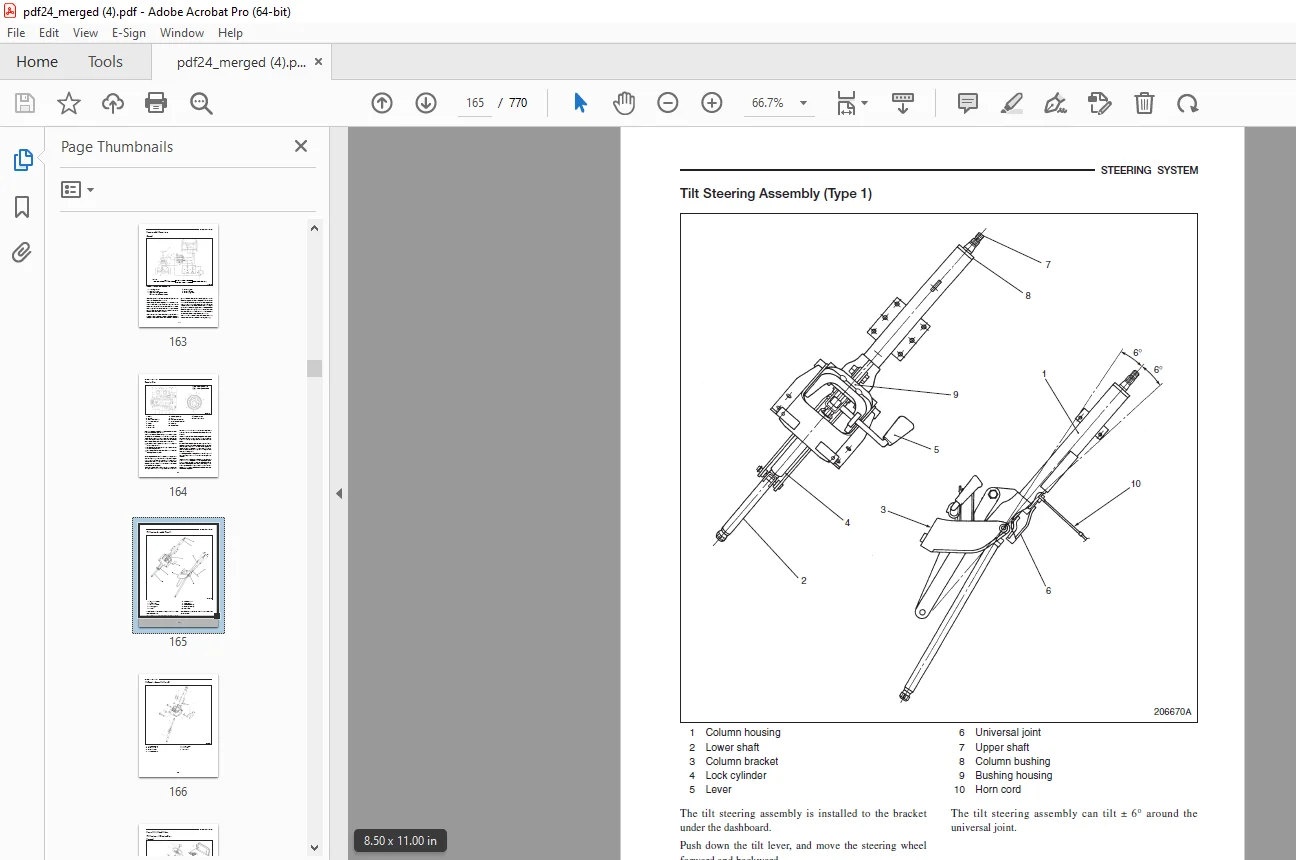

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Mitsubishi Forklift Truck FGC15K FGC18K FGC20K FGC20K HO FGC25K FGC25K HO FGC30K Service Manual PN 99719 -70150 – PDF DOWNLOAD
- FGC15K AF81C-00011-up
AF81D-00011-up
AF81E-00011-up
FGC18K AF81C-00011-up
AF81D-00011-up
AF81E-00011-up
FGC20K AF82C-00011-up
AF82D-00011-up
AF82E-00011-up
FGC20K HO AF82C-90011-up
AF82D-90011-up
AF82E-90011-up
FGC25K AF82C-00011-up
AF82D-00011-up
AF82E-00011-up
FGC25K HO AF82C-90011-up
AF82D-90011-up
AF82E-90011-up
FGC30K AF83C-00011-up
AF83D-00011-up
AF83E-00011-up
GENERAL INFORMATION:
Vehicle Exterior, Models, Serial Number Locations, Dimensions, Technical
Data (Standard Models)
COOLING SYSTEM
Data (Standard Models)
COOLING SYSTEM
Structure and Function, Removal and Installation, Inspection and Adjustment
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
Console Box – Disassembly and Reassembly, Major Electrical Components,
Battery Maintenance, Lamp Bulb Specifications, Troubleshooting, Electrical
Schematic
POWER TRAIN
Battery Maintenance, Lamp Bulb Specifications, Troubleshooting, Electrical
Schematic
POWER TRAIN
Removal and Installation
POWERSHIFT TRANSMISSION
POWERSHIFT TRANSMISSION
Structure and Function, Removal and Installation, Disassembly and
Reassembly, Inspection and Adjustment, Troubleshooting, Service Data
FRONT AXLE AND
REDUCTION DIFFERENTIAL
Reassembly, Inspection and Adjustment, Troubleshooting, Service Data
FRONT AXLE AND
REDUCTION DIFFERENTIAL
Structure and Function, Removal and Installation, Disassembly and
Reassembly, Inspection and Adjustment, Troubleshooting, Service Data
REAR AXLE
Reassembly, Inspection and Adjustment, Troubleshooting, Service Data
REAR AXLE
Structure and Function, Removal and Installation, Rear Axle Assembly,
Steering Cylinder, Adjustment, Troubleshooting, Service Data
BRAKE SYSTEM
Steering Cylinder, Adjustment, Troubleshooting, Service Data
BRAKE SYSTEM
Structure and Functions, Disassembly and Reassembly, Inspection and
Adjustment, Troubleshooting, Service Data
STEERING SYSTEM
Adjustment, Troubleshooting, Service Data
STEERING SYSTEM
Structure and Functions, Removal and Installation, Streering Gear,
Troubleshooting, Service Data
FUEL SYSTEM
Troubleshooting, Service Data
FUEL SYSTEM
Vehicle Exterior, Models, Serial Number Locations, Dimensions, Technical
Data (Standard Models)
Outline of Dual Fuel Type
HYDRAULIC SYSTEM
HYDRAULIC SYSTEM
Hydraulic Tank, Hydraulic Pump, Control Valve, Lift Cylinder, Tilt Cylinder,
Structure and Functions, Removal and Installation, Disassembly and
Reassembly, Inspection and Adjustment, Troubleshooting, Service Data
MAST AND FORKS
Structure and Functions, Removal and Installation, Disassembly and
Reassembly, Inspection and Adjustment, Troubleshooting, Service Data
MAST AND FORKS
Mast Systems, Structure, Removal and Installation, Disassembly and
Reassembly, Inspection and Adjustment, Troubleshooting, Service Data
SERVICE DATA
Maintenance Chart, Tightening Torques for Standard Bolts and Nuts, Planned
Replacement Parts, Lubrication Chart, Weight of Major Components, Special
Service Tools, Inspection Guide
DESCRIPTION:
Reassembly, Inspection and Adjustment, Troubleshooting, Service Data
SERVICE DATA
Maintenance Chart, Tightening Torques for Standard Bolts and Nuts, Planned
Replacement Parts, Lubrication Chart, Weight of Major Components, Special
Service Tools, Inspection Guide
DESCRIPTION:
Mitsubishi Forklift Truck FGC15K FGC18K FGC20K FGC20K HO FGC25K FGC25K HO FGC30K Service Manual P.NO.99719 -70150 – PDF DOWNLOAD
FOREWORD:
- This service manual is a guide to servicing the 1-ton to 3-ton internal combustion cushion models of Mitsubishi Forklift Trucks. The instructions are grouped by systems to serve the convenience of your ready reference.
- Long productive life of your forklift trucks depends to a great extent on correct servicing – the servicing consistent with what you will learn from this service manual. We hope you read the respective sections of this manual carefully and know all the components you will work on before attempting to start a test, repair or rebuild job.
- The descriptions, illustrations and specifications contained in this manual were of the trucks of serial numbers in effect at the time it was approved for printing. Mitsubishi reserves the right to change specifications or design without notice and without incurring obligation.
SAFETY:
1. Read and understand all warning plates and decals on the truck before operating, lubricating or repairing the product.
2. Always wear protective glasses and protective shoes when working around trucks. In particular, wear protective glasses when pounding on any part of the truck or its attachments with a hammer or sledge. Use welders gloves, hood/goggles, apron and other protective clothing appropriate to the welding job being performed. Do not wear loose-fitting or torn clothing. Remove all rings from fingers when working on machinery.
3. Do not work on any truck that is supported only by lift jacks or a hoist. Always use blocks or jack stands to support the truck before performing any disassembly
G.B 28/01/25
