Mitsubishi Forklift TB45 Gasoline Engine 111219-up Service Manual – PDF DOWNLOAD

Description

Mitsubishi Forklift TB45 Gasoline Engine 111219-up Service Manual – PDF DOWNLOAD

FILE DETAILS:

Mitsubishi Forklift TB45 Gasoline Engine 111219-up Service Manual – PDF DOWNLOAD

DESCRIPTION:

Mitsubishi Forklift TB45 Gasoline Engine 111219-up Service Manual – PDF DOWNLOAD

For use with FG40N/NF-FG55N/NF Chassis Service Manual.

Pub.NO :99739-11100

PRECAUTIONS FOR SAFETY AND QUALITY

Description:
• The following precautions must be carefully observed for safe and appropriate service work.
• Only the qualified and designated personnel must perform inspections, repairs and adjustments.
• Always keep the workplace clean, and store the tools neatly in the specified places.
Safe Operation:
• Do not run an engine inside the workshop without proper ventilation (ex. no ventilation ducts).
• Keep the workshop well ventilated and free of any flammable materials. Special care should be taken when flammable or poisonous materials such as gasoline are handled.
• Discard waste oil after oil changes or parts treatment in accordance with local laws and regulations.
• Be careful of burns and injury when working on hightemperature parts, rotating parts, or sliding portions.
• Ensure that adequate ventilation is provided for discharging any hazardous emissions when working in a pit or enclosed area.
• Do not work underneath a vehicle supported only by a jack. Always use safety stands at the prescribed points to support the vehicle.
• Support it at the prescribed points and lock it in position with safety devices before lifting the vehicle.
• Be careful that the vehicle body does not become off balance and fall when removing a heavy component such as the engine.
• Do not smoke during service work.
• Do not wear any rings and necklaces when working. These objects may cause electric short.
• Before starting repair work that requires no battery power, always turn OFF the ignition switch, and disconnect the negative battery cable.
• Do not disconnect battery cable at negative terminal while engine is running.
• Do not touch any metal portions immediately after the engine is stopped. Otherwise the heated metals may cause burns. Do not attempt to remove any cooling system parts such as the radiator cap while the engine is hot.
• To perform repair work safely and efficiently, always use appropriate tools wherever required.
• Do not continue filling the fuel if automatic valve of refilling nozzle is closed when fuel tank is filled. The fuel can overflow and splash, and it can cause a fire.

TABLE OF CONTENTS:

Mitsubishi Forklift TB45 Gasoline Engine 111219-up Service Manual – PDF DOWNLOAD

• EG ENGINE GENERAL
• ET ENGINETUNE-UP
• EM ENGINE MECHANICAL
• LU ENGINE LUBRICATION
• CO ENGINE COOLING SYSTEM
• EC ENGINE CONTROL
• FL ENGINE FUEL SYSTEM
• EL ENGINE ELECTRICAL SYSTEM

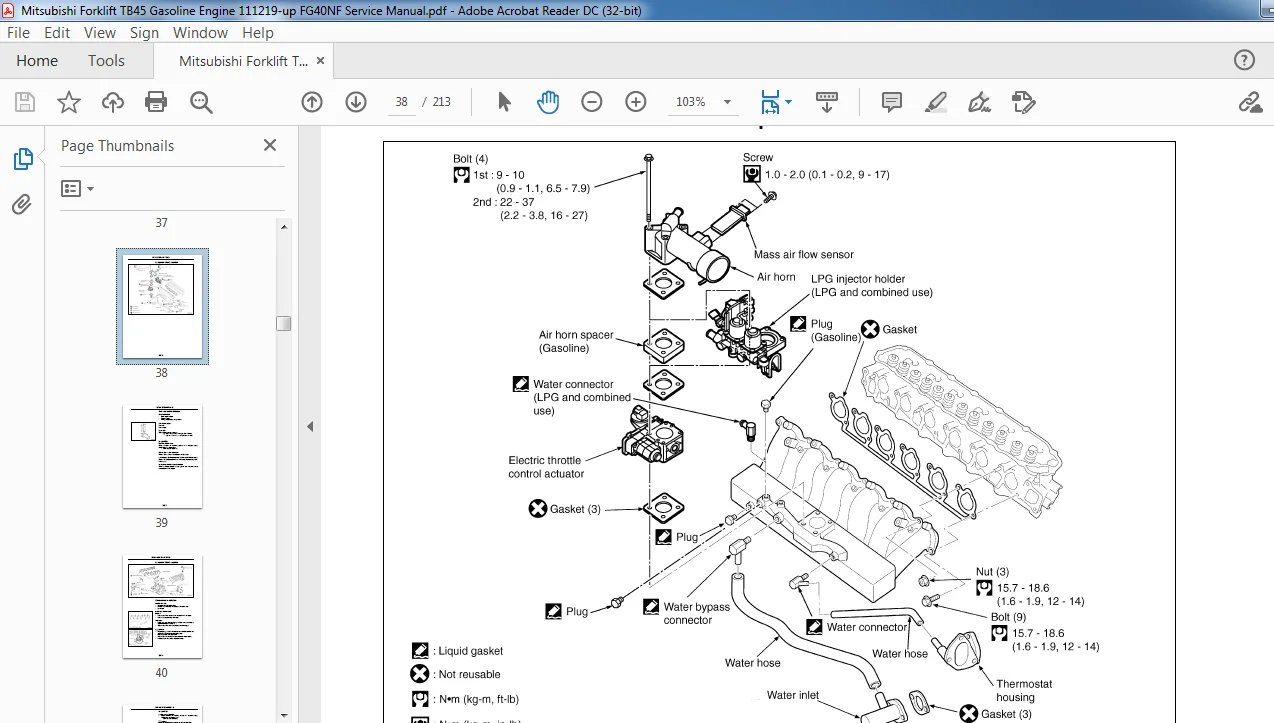

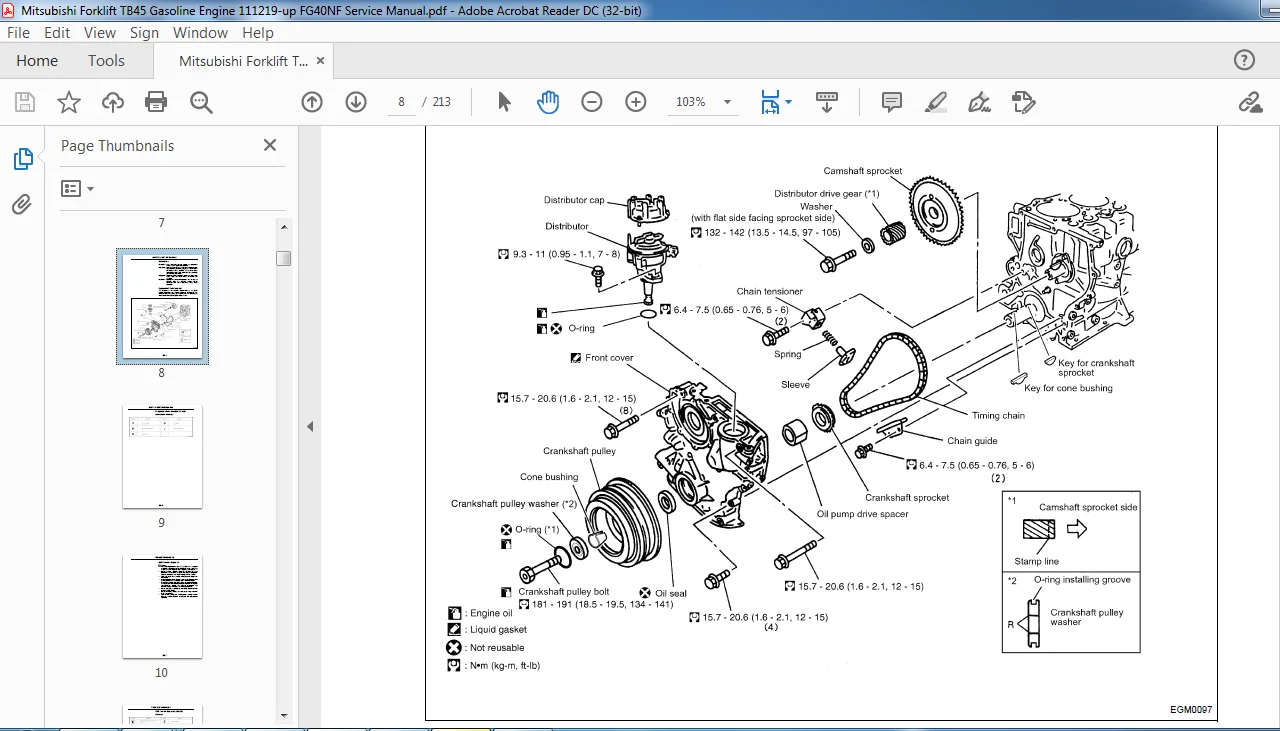

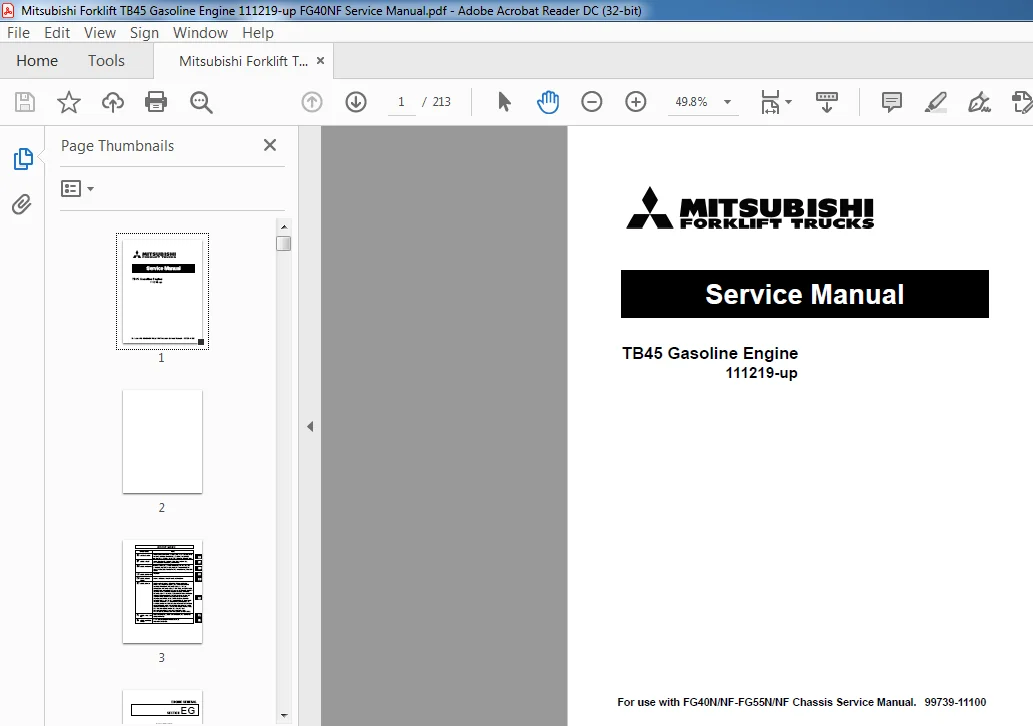

IMAGES PREVIEW OF THE MANUAL:

MITSUBISHI FORKLIFT TB45 GASOLINE ENGINE 111219-UP SERVICE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
