Motorola EP450 Portable Two-Way Radio Service Manual PDF

Description

Motorola EP450 Portable Two-Way Radio Service Manual VHF UHF Detailed Repair PDF DOWNLOAD

DESCRIPTION

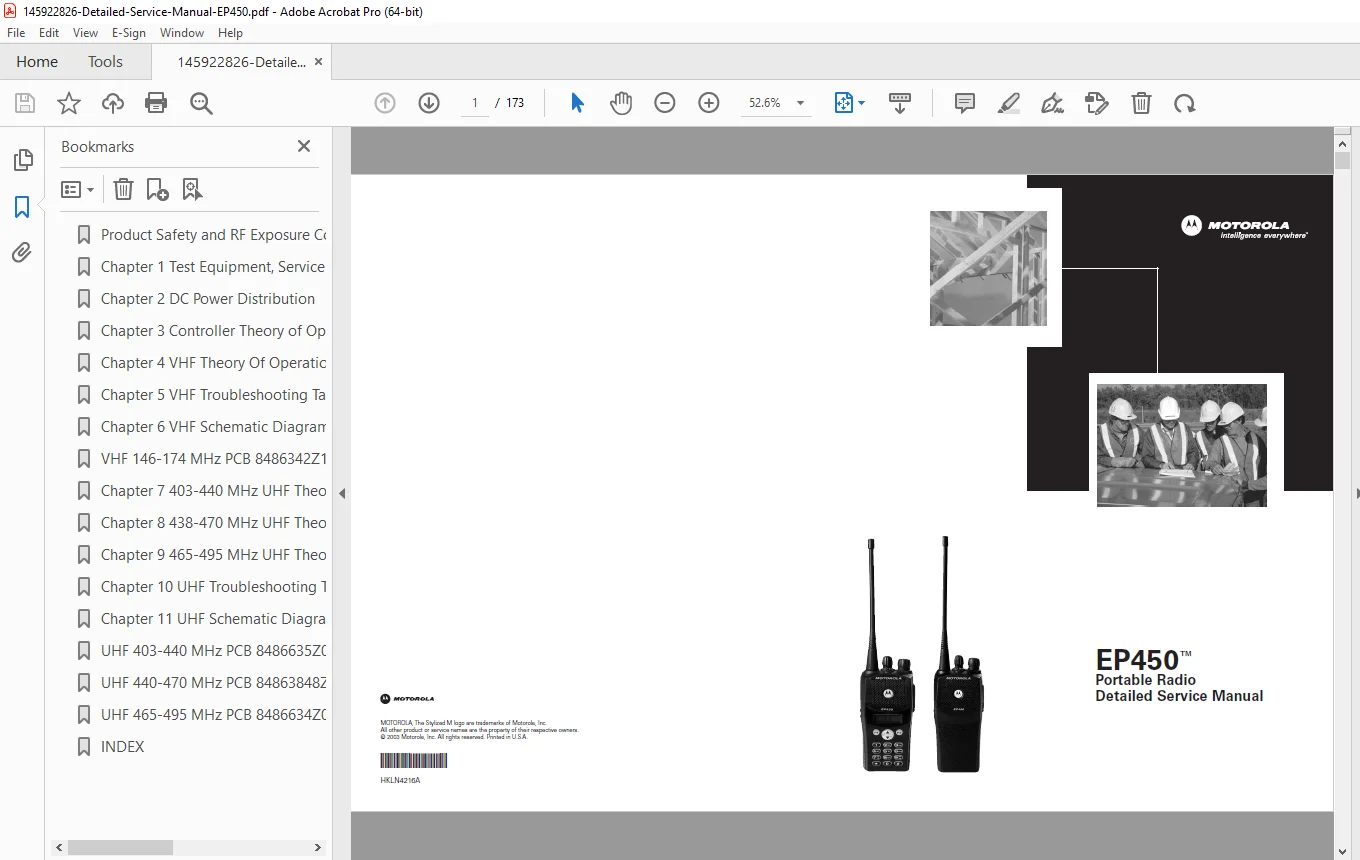

Motorola EP450 Portable Two-Way Radio – Detailed Service Manual

This comprehensive Motorola EP450 detailed service manual provides complete technical documentation for servicing EP450 portable two-way radios across all frequency bands. Essential reference for professional radio technicians, land mobile radio (LMR) service engineers, and communications equipment specialists.

📋 FILE DETAILS

• Manual Name: EP450™ Portable Radio Detailed Service Manual
• Equipment Type: Professional Two-Way Portable Radio
• Manufacturer: Motorola, Inc.
• Document Number: HKLN4216A
• Publication Date: November 24, 2003
• Models/Frequency Bands Covered:
  • VHF 146-174 MHz
  • UHF 403-440 MHz
  • UHF 438-470 MHz
  • UHF 465-495 MHz
• Pages: 173 pages
• PDF Quality: High-quality factory original documentation
• File Size: 5.7 MB
• Copyright: 2003 Motorola, Inc. (Printed in U.S.A.)

LONG DESCRIPTION

Motorola EP450 Portable Radio – Detailed Service Manual

This comprehensive Motorola EP450 detailed service manual provides complete technical documentation for servicing EP450 portable two-way radios across all frequency bands. Essential reference for professional two-way radio technicians, communications equipment service specialists, and field service engineers.

📋 FILE DETAILS

• Manual Name: EP450™ Portable Radio Detailed Service Manual
• Document Number: HKLN4216A
• Manufacturer: Motorola, Inc.
• Radio Type: Portable Two-Way Radio
• Frequency Bands Covered:
  • VHF 146-174 MHz
  • UHF 403-440 MHz
  • UHF 438-470 MHz
  • UHF 465-495 MHz
• Publication Date: November 24, 2003
• Pages: 173 pages
• PDF Quality: High-quality factory original documentation
• File Size: 5.7 MB
• Part Number: HKLN4216A

📻 EQUIPMENT OVERVIEW

Motorola EP450 Portable Two-Way Radio Professional-grade commercial portable radio designed for occupational/business use with advanced features including VOX operation, programmable channels, and multiple frequency band support.

Frequency Bands Covered:

• VHF: 146-174 MHz
• UHF: 403-440 MHz
• UHF: 438-470 MHz
• UHF: 465-495 MHz

📋 FILE DETAILS

• Manual Name: EP450 Portable Radio Detailed Service Manual
• Equipment Type: Professional Two-Way Portable Radio
• Manufacturer: Motorola, Inc.
• Model: EP450™
• Document Number: HKLN4216A
• Publication Date: November 24, 2003
• Location: Motorola, Inc., 1301 E. Algonquin Road, Schaumburg, IL 60196
• Pages: 173 pages
• PDF Quality: High-quality factory original documentation
• File Size: 5.7 MB

📻 FREQUENCY BANDS COVERED

VHF Band:

• 146-174 MHz

UHF Bands:

• 403-440 MHz
• 438-470 MHz
• 465-495 MHz

🔧 MANUAL STRUCTURE & CONTENTS

MODULE 1: VHF 146-174 MHz

Chapter 1: Test Equipment, Service Aids, and Service Tools

• Required test equipment specifications
• Service aids and specialized tools
• Recommended test setup configurations

Chapter 2: DC Power Distribution

• DC regulation and distribution circuitry
• Power management systems
• Battery gauge operation
• Power-up and power-down routines

Chapter 3: Controller Theory of Operation

• 3.1 Controller Circuitry
  • 3.1.1 Microprocessor Circuitry
    • Memory usage and architecture
    • Control and indicator interface
    • Serial bus control of circuit blocks
    • RSS (Radio Service Software) programming interface
    • Customer-specific information storage (EEPROM)
    • External accessory detection and sensing
    • Power-up, power-down, and reset routines
    • Boot mode control
    • 7.3975 MHz microprocessor clock
    • Battery gauge circuitry
  • 3.1.2 Audio Circuitry
    • Transmit and receive low-level audio circuitry
    • Audio power amplifier
    • Internal microphone audio voice path
    • PTT (Push-to-Talk) circuits
    • VOX (Voice-Operated Transmit) operation
    • Programming and flashing through microphone jack

Chapter 4: VHF Theory of Operation

• VHF receiver front-end and back-end
• VHF transmitter (power amplifier, antenna switch, harmonic filter, antenna matching network, power control)
• VHF frequency generation circuitry (fractional-N synthesizer, VCO)
• Keypad operation

Chapter 5: VHF Troubleshooting Tables

• Receiver troubleshooting
• Synthesizer troubleshooting
• Transmitter troubleshooting
• Board and IC signal troubleshooting

Chapter 6: VHF Schematic Diagrams, Overlays, and Parts Lists

• Six-layer circuit board documentation
• Complete schematic diagrams for all circuits
• Component side and solder side views
• Comprehensive parts lists with part numbers

MODULE 2: UHF 403-440, 438-470, 465-495 MHz

Chapter 7: 403-440 MHz UHF Theory of Operation Chapter 8: 438-470 MHz UHF Theory of Operation Chapter 9: 465-495 MHz UHF Theory of Operation

Each UHF module covers:

• Receiver front-end and back-end design
• Transmitter power amplifier and RF chain
• Antenna switch and harmonic filtering
• Frequency generation (fractional-N synthesizer, VCO)
• Keypad integration

Chapter 10: UHF Troubleshooting Tables

• Frequency-band-specific diagnostic procedures
• Receiver, transmitter, and synthesizer troubleshooting
• Signal tracing and fault isolation

Chapter 11: UHF Schematic Diagrams, Overlays, and Parts Lists

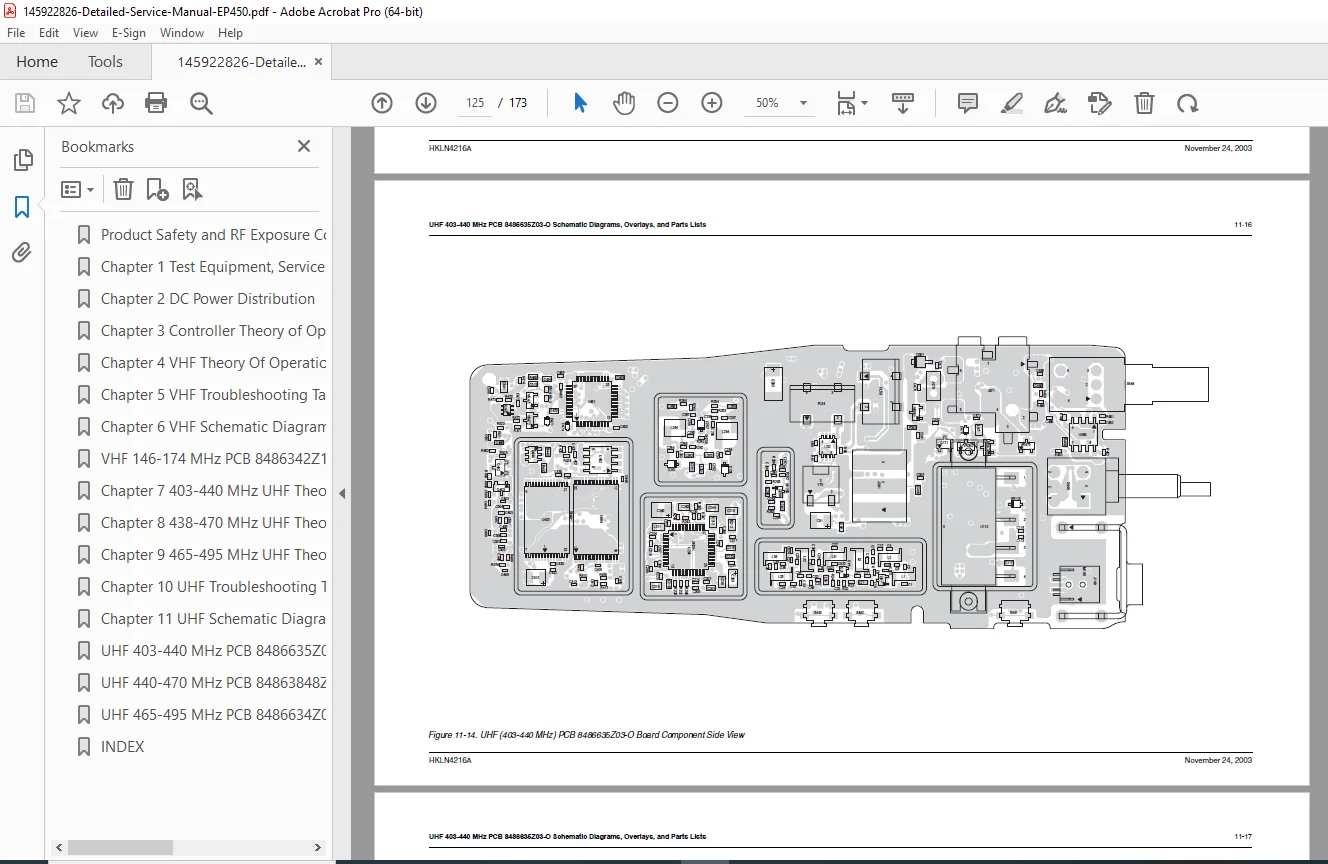

• Separate PCB documentation for each frequency range:
  • 403-440 MHz (PCB 8486635Z03-O)
  • 438-470 MHz (PCB 84863848Z13-C)
  • 465-495 MHz (PCB 8486634Z02)
• Complete schematics, component layouts, and parts lists

⚙️ KEY TECHNICAL SYSTEMS

Microprocessor & Control:

• Complete microprocessor circuitry with 7.3975 MHz clock
• Memory usage and programming interface
• RSS (Radio Service Software) programming via PC
• Serial bus control of circuit blocks
• Boot mode control and reset routines
• Battery gauge monitoring
• Customer-specific information storage
• External accessory sensing

Audio Systems:

• Low-level transmit and receive audio circuitry
• Audio power amplifier design
• Internal microphone voice path
• PTT (Push-To-Talk) circuits
• VOX (Voice-Operated Transmit) capability
• Programming and flashing through microphone jack

RF Design:

• Fractional-N frequency synthesizer technology
• Voltage Controlled Oscillator (VCO) circuits
• Receiver front-end with RF filtering
• Receiver back-end with IF processing
• Power amplifier stages with control circuitry
• Harmonic filtering for FCC compliance
• Antenna matching networks optimized per band

Power Management:

• DC regulation and distribution
• Battery-efficient power control
• Transmit power control circuitry

🎯 IDEAL FOR

• Two-way radio service technicians
• Commercial radio communications specialists
• Public safety radio maintenance teams
• Industrial radio system technicians
• Motorola-authorized service centers
• Independent two-way radio repair shops
• Security and law enforcement radio technicians
• Corporate/enterprise radio fleet managers
• Government agency radio maintenance departments
• Event communications equipment technicians

📡 RADIO SPECIFICATIONS & APPLICATIONS

Occupational Use: This radio is FCC-restricted to occupational use only to satisfy RF energy exposure requirements. Ideal for:

• Public safety (police, fire, EMS)
• Security operations
• Industrial facilities
• Construction sites
• Event coordination
• Hospitality and retail
• Manufacturing facilities
• Transportation and logistics

Frequency Coverage: Complete service documentation for all five frequency bands allows technicians to service entire EP450 fleets regardless of frequency allocation.

🔧 SERVICE FEATURES

✓ Test equipment specifications for proper bench setup
✓ Service aids and required tools listing
✓ Theory of operation for understanding circuit function
✓ Symptom-based troubleshooting tables for rapid diagnosis
✓ Complete schematic diagrams with signal traces
✓ Component-level parts lists with Motorola part numbers
✓ Board overlays showing component locations
✓ Six-layer PCB documentation for complex board repair
✓ Voltage and signal measurements at test points
✓ RSS programming interface documentation

⚠️ SAFETY & COMPLIANCE

RF Exposure Compliance: Manual includes critical information about FCC RF energy exposure requirements and proper handling procedures (references Motorola Publication 68P81068810).

Approved Accessories: Documentation includes reference to Motorola-approved antennas, batteries, and accessories for compliance.

Copyright Protection: Manual includes detailed information about software copyright restrictions and proper licensing.

💡 WHY THIS MANUAL IS ESSENTIAL

The Motorola EP450 is a professional-grade portable two-way radio requiring precise alignment and component-level troubleshooting knowledge. This detailed service manual provides:

Complete RF Coverage: Unlike basic service guides, this manual covers all five frequency bands with band-specific troubleshooting and schematics.

Professional Depth: Factory-level theory of operation, not just assembly/disassembly instructions.

Diagnostic Tools: Symptom-based troubleshooting tables speed repair diagnosis and reduce guesswork.

Parts Integration: Every schematic includes corresponding parts lists, eliminating part number lookup delays.

🚀 Download instantly and service any EP450 radio! Stop struggling with incomplete documentation or generic repair procedures. This factory-authorized detailed service manual provides everything needed for professional-level Motorola EP450 repair across all frequency bands. Service with confidence using the exact technical information Motorola technicians rely on.

Pricing rationale:

• 173 pages of comprehensive technical content
• Covers five different frequency band models in one manual
• Motorola factory-authorized documentation (2003 edition)
• Detailed theory of operation and troubleshooting tables
• Complete schematic diagrams and parts lists for all bands
• Professional two-way radio service audience
• Essential for servicing $300-500 commercial radios
• Includes specialized RSS programming interface documentation
• Six-layer PCB documentation for complex repairs
• Still widely deployed in public safety and commercial fleets
