MTU Diesel Engine 12V 2000 G65 Parts Manual 12V2000G65-00DE PDF DOWNLOAD
$29.95
MTU Diesel Engine 12V 2000 G65 Parts Manual 12V2000G65-00DE PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
MTU Diesel Engine 12V 2000 G65 Parts Manual 12V2000G65-00DE PDF DOWNLOAD
FILE DETAILS:
MTU Diesel Engine 12V 2000 G65 Parts Manual 12V2000G65-00DE PDF DOWNLOAD
Language : English
Pages : 440
Downloadable : Yes
File Type : PDF

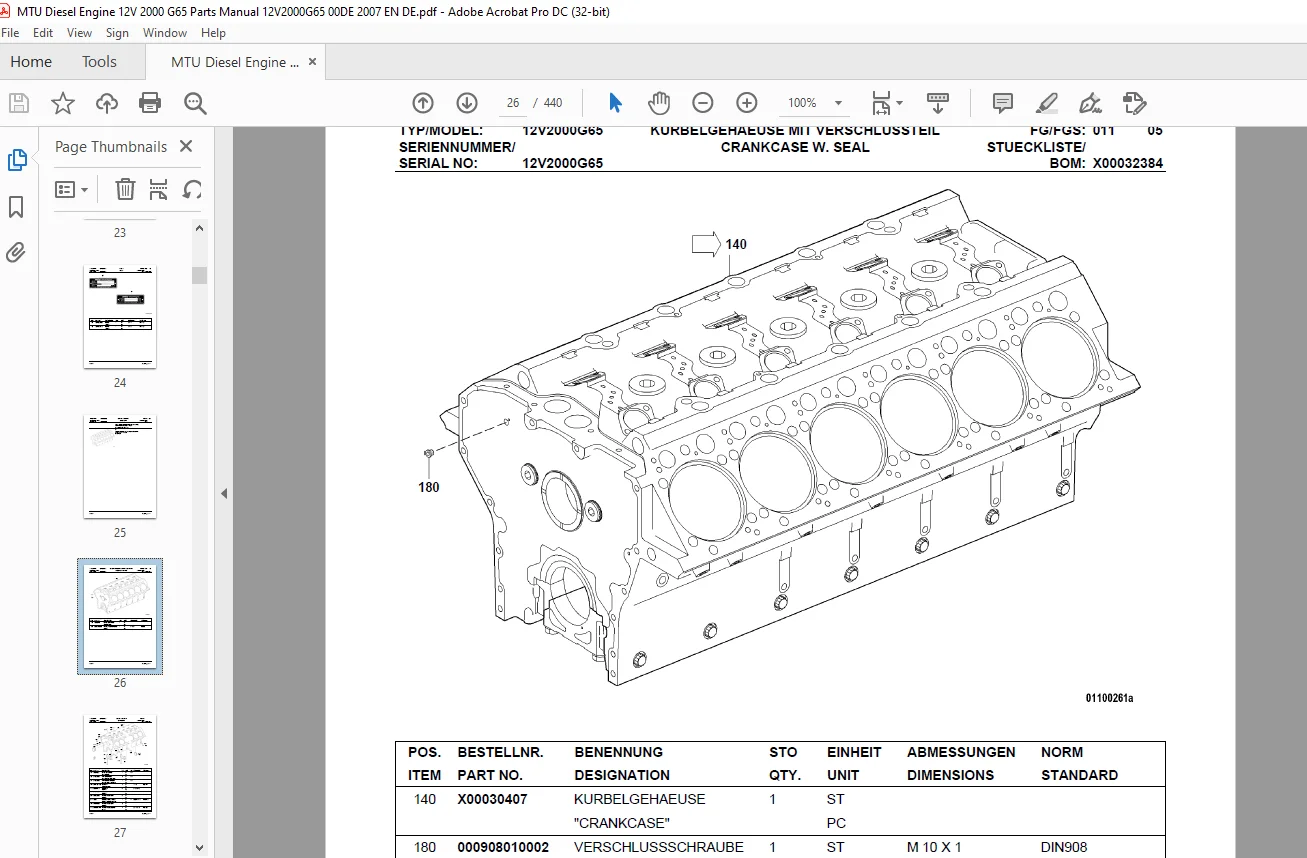

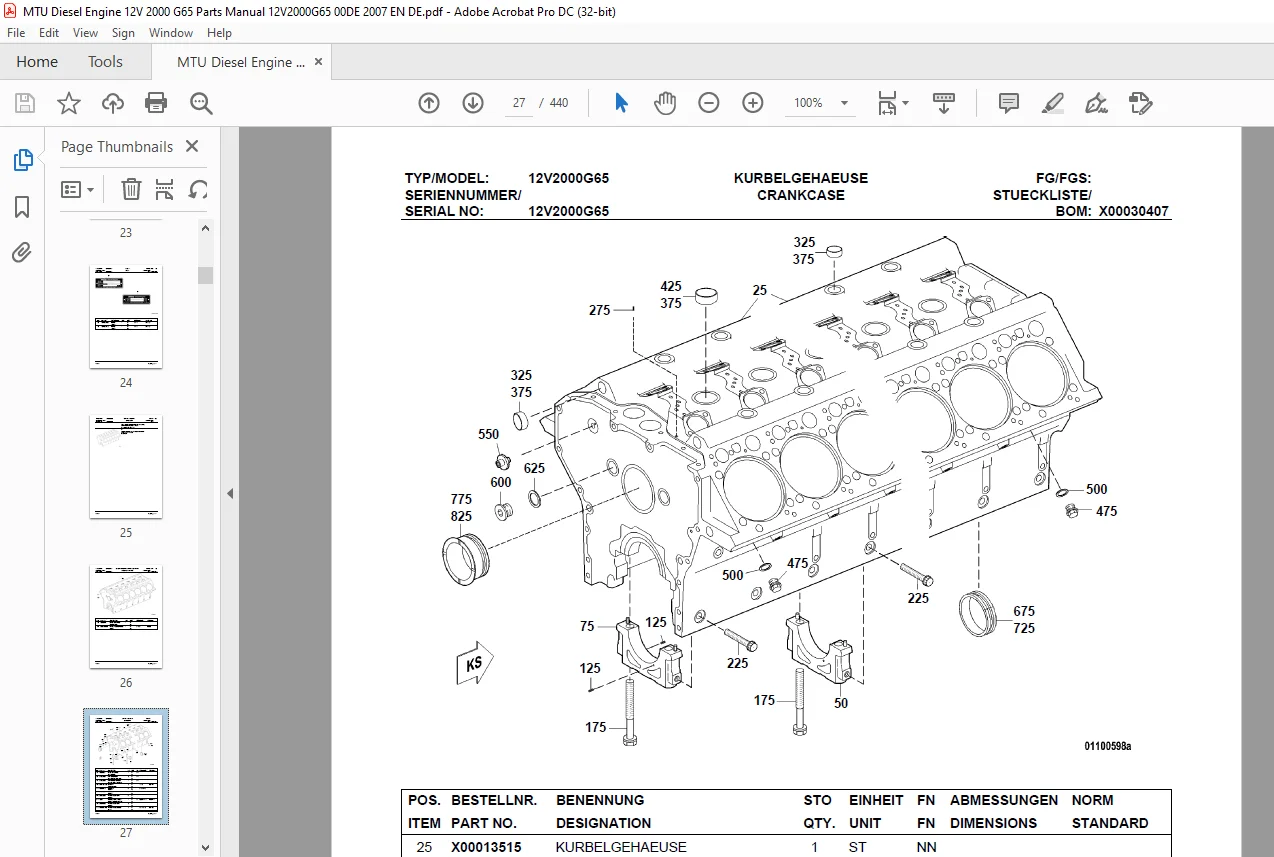

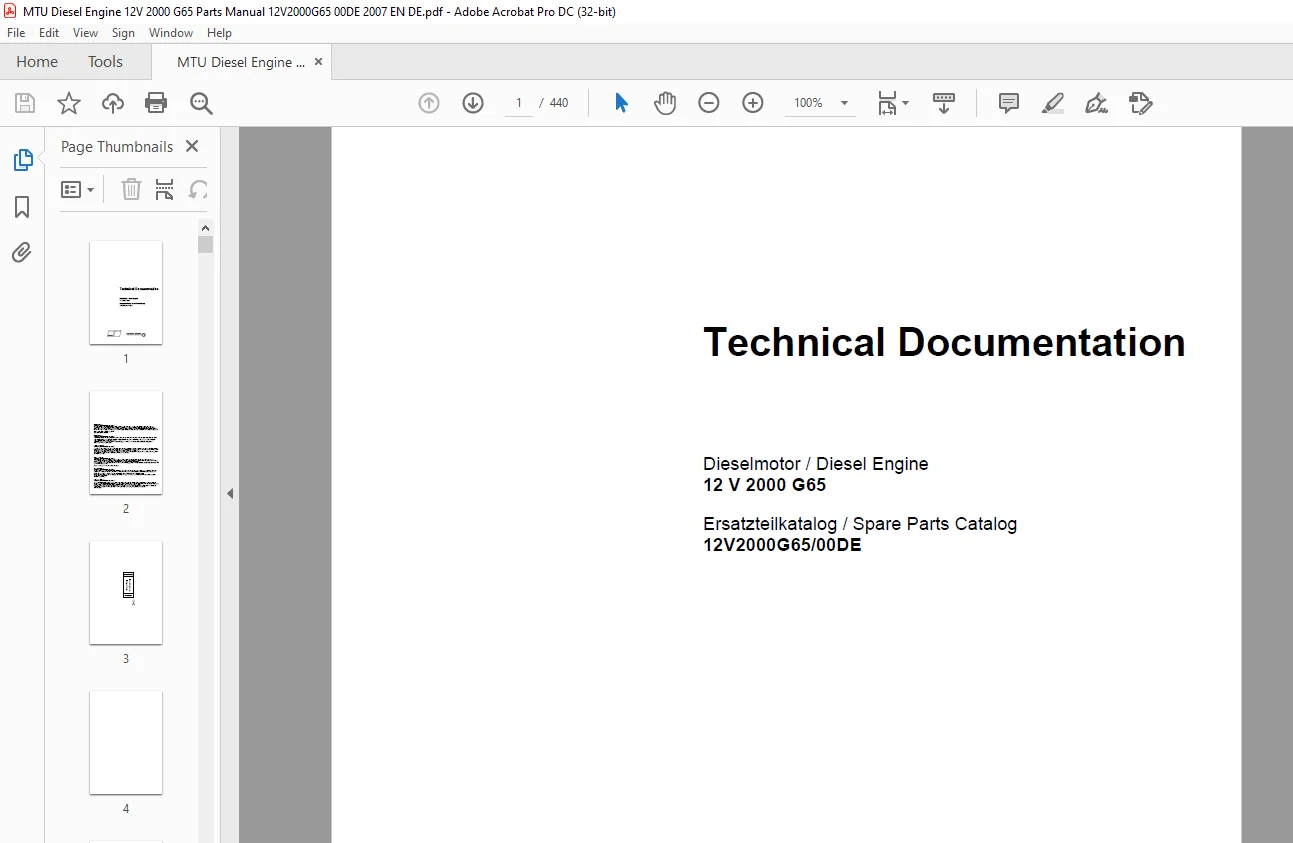

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
MTU Diesel Engine 12V 2000 G65 Parts Manual 12V2000G65-00DE PDF DOWNLOAD
Titel / Title.................................................................................................................... 1 Vorbemerkung..................................................................................................................... 5 Preface.......................................................................................................................... 11 Werk- und Verbrauchsmaterial..................................................................................................... 17 Miscellaneous Materials.......................................................................................................... 19 FG-Benennung / FG-Designation.................................................................................................... 21 004 - Schilder, Hilfsstoffe / Labels and auxiliary materials..................................................................... 23 011 - Kurbelgehäuse / Crankcase.................................................................................................. 25 013 - Zylinderlaufbuchse / Cylinder Liner....................................................................................... 29 014 - Kurbelgehäuse Unterteil / Oil pan.......................................................................................... 31 015 - Motor-, Triebwerksaufhängung / Engine mounting............................................................................. 35 016 - Abschlussgehäuse, KS und KGS / End Housing, Driving End and Free End....................................................... 38 018 - Kurbelgehäuse-Entlüftung / Crankcase breather.............................................................................. 47 024 - Räderkasten KGS / Gearcase, aux PTO end.................................................................................... 61 031 - Kurbelwelle mit Lager / Crankshaft with bearings........................................................................... 69 032 - Kurbelwelle, Abtrieb KS / Crankshaft, PTO on driving end................................................................... 74 035 - Kurbelwelle Abtrieb KGS / Crankshaft, PTO on aux PTO end................................................................... 77 037 - Kolben / Piston............................................................................................................ 81 038 - Pleuelstange / Connecting rod.............................................................................................. 86 041 - Zylinderkopf / Cylinder head............................................................................................... 88 051 - Nockenwelle / Camshaft..................................................................................................... 97 055 - Ventilantrieb / Valve drive................................................................................................104 070 - Kraftstoffsystem (Hochdruck) / Fuel System (High Pressure).................................................................107 075 - Druckrohrstutzen / Pressure Pipe Neck......................................................................................114 081 - Kraftstoffleitungen vor Kraftstoffpumpe / Fuel pipework before delivery pump...............................................121 083 - Kraftstoff-Filter / Fuel filter............................................................................................135 086 - Leckkraftstoffführung / Leak-Off Fuel Pipework.............................................................................149 100 - Abgasturbolader (ATL) / Exhaust turbocharger...............................................................................153 101 - Abgasturbolader, Allgemein oder Hochdrucklader / Exhaust turbocharger, general or H.P. turbocharger........................156 120 - Luftansaugung/ Luftzuführung / Air System..................................................................................161 121 - Luftfilter / Air filter....................................................................................................166 123 - Luftansaugung / Air system.................................................................................................168 124 - Luftführung zu den Zylindern / Air supply to cylinders.....................................................................171 125 - Luftführung vom ATL zu den LLK / Air System, Turbocharger - Intercooler....................................................183 141 - Abgasführung nach Zylinderkopf / Exhaust System After Cylinder Head........................................................188 145 - Abgasführung nach ATL / Exhaust system after turbocharger..................................................................190 146 - Abgasführung nach Motor (extern) / Exhaust system after engine (external)..................................................194 172 - Elektrische Anlassung / Electric starting..................................................................................197 180 - Schmierölsystem, Schmierölkreislauf / Lubricating oil system...............................................................218 181 - Schmierölpumpe mit Antrieb / Lube oil pump and drive.......................................................................225 182 - Zusatzeinrichtung für Trockensumpf-Schmierung / Additional equipment for dry sump lubrication..............................235 183 - Ölaufbereitung / Oil filtration/cooling....................................................................................238 185 - Ölversorgung der ATL / Turbocharger Oil Supply.............................................................................243 188 - Anschlüsse für Motorölversorgung / Connecting hardware for engine oil supply...............................................258 200 - Kühlwassersystem / Coolant system..........................................................................................260 202 - Kühlwasserkreislauf allg. ggf. Hochtemperaturkreislauf / Coolant circuit, general, HT circuit..............................264 205 - Motorwasserkühler, Anbauteile / Coolant cooler attaching h/ware............................................................277 206 - Wasserführung mit Temperaturregler / Coolant pipework with thermostat......................................................285 213 - Lichtmaschine / Generator..................................................................................................290 221 - Mechanischer Lüfterantrieb / Mechanical fan Drive..........................................................................301 227 - Lüfter / Fan...............................................................................................................327 231 - Motorlagerung / Engine mounting............................................................................................342 300 - Zubehör / Accessories......................................................................................................346 301 - Neutrales Zubehör / General Accessories....................................................................................355 369 - Luftversorgungssystem / Air Supply System..................................................................................358 500 - Überwachungs-, Steuer. u. Regelungseinr. Allg. elek. einr / Monitoring and control system, general electrical equipment....368 507 - Verkabelung, Allgemein für Motor / Getriebe / Aggregat / Wiring, general, for engine/gearbox/plant.........................371 508 - Zubehör für Motorregler (elektr.) / Steuerungseinrichtung / Accessories for engine governor (electronic) control system....406 511 - Alarmanlage / Alarm system.................................................................................................412 515 - Druck-/Temperatur-Überwachungseinrichtung (ausser Abgas) / Pressure/Temperature monitoring systems (excl. exhaust gas).....423 521 - Stromversorgung (Kleinspannung) / Power Supply (Low Voltage)...............................................................432 533 - Simulations- und Trainingseinrichtungen / Simulation and Training Equipment................................................434
Questions? Email us: [email protected]
https://vimeo.com/858570998?share=copy
DESCRIPTION:
MTU Diesel Engine 12V 2000 G65 Parts Manual 12V2000G65-00DE PDF DOWNLOAD
PREFACE:
This catalog forms the basis for ordering spare parts. As it is also useful for disassembly and assembly work, it also lists components which are not available as replacement parts. The parts originate from the Engine Design File.
Catalog Structure
The catalog is divided into Function Groups (FG) and Function Group Segments (FGS) in ascending order. The side contains the following information:
- MODEL: (Engine model)
- SERIAL NO.
- FG/FGS DESIGNATION
- FG/FGS NO.
- BOM NO.
Explanation of Columns
- ITEM: Provides a cross-reference between illustration and text section.
- PART NO: This is the valid number for ordering the part in question.
- DESIGNATION: The precise part name.
- QTY. (Quantity in Unit): Indicates the quantity of this part required for the case in question.
- UNIT: The 3-character codes indicate: PC = Piece, KG= Kilogramm, M= Meter, ROL= Roll, PAC= Pack
- FN. (Footnote): Provides additional parts information. For clarification of footnote symbols, see Page 2.
- DIMENSIONS: This column contains standard-part dimensions or manufacturer designations for purchased parts.
Amendments Service
Part No. changes and amendments which occur after publication of the catalog are not published. We therefore recommend that users make a record of amendments in their catalogs. This information is provided, for instance, in order confirmations and/or on spare parts labels.
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
G.P
