Mv Agusta F4 750 Serie Oro Engine Workshop Service Manual – PDF DOWNLOAD

Description

Mv Agusta F4 750 Serie Oro Engine Workshop Service Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:67
DOWNLOADABLE:YES
FILE TYPE:PDF

MV AGUSTA F4 750 SERIE ORO ENGINE WORKSHOP SERVICE MANUAL – PDF DOWNLOAD:

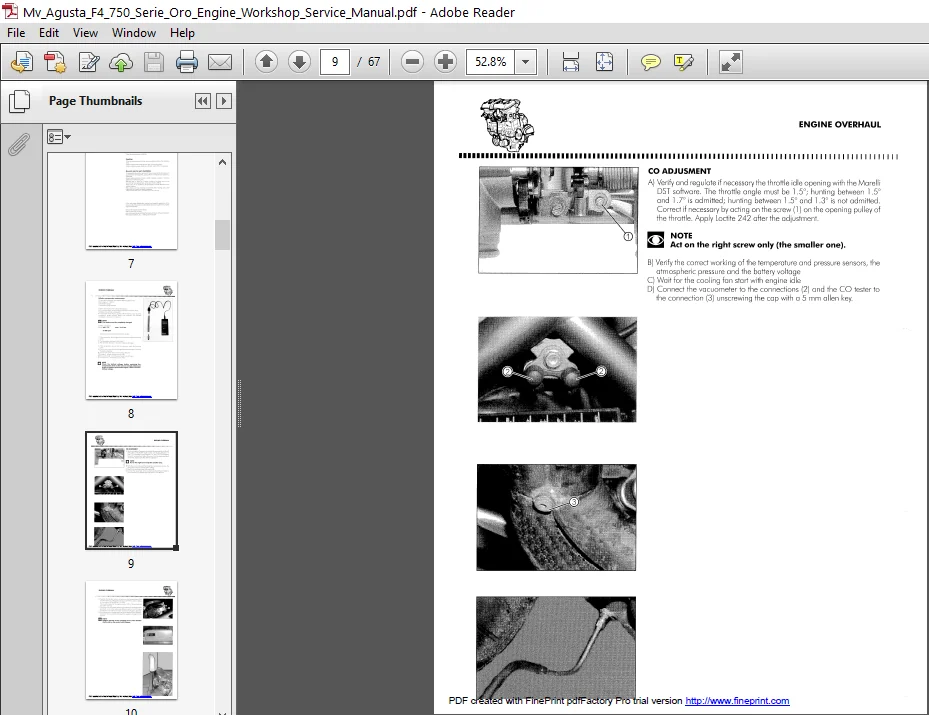

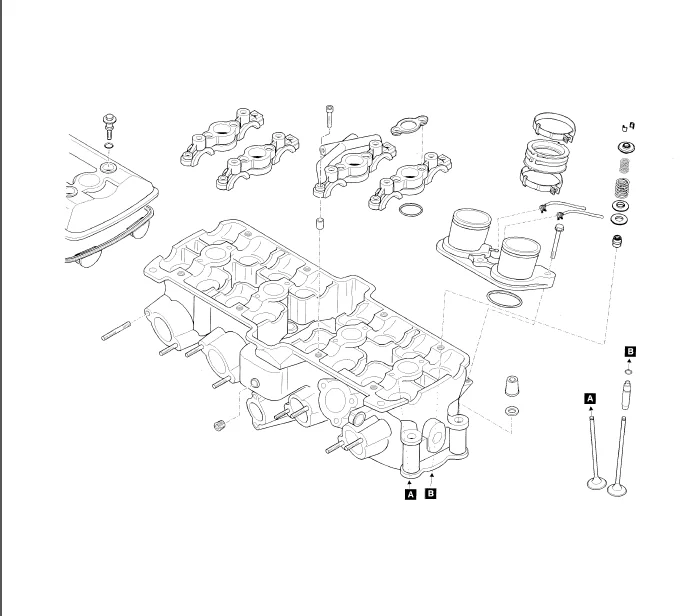

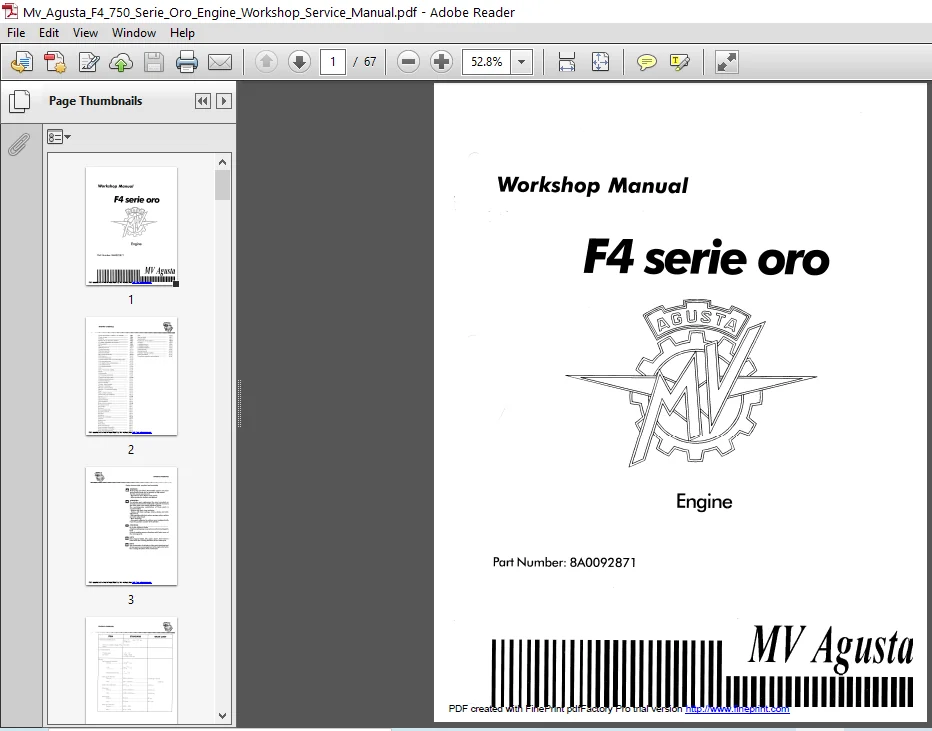

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Mv Agusta F4 750 Serie Oro Engine Workshop Service Manual

Parts cleaning:

Always clean parts with biodegradable solvents and dry with compressed air Always clean the 0355/ before disassembly and then the single parts. Clean everything before installation.

Coupling

To let the engine work at his best, every coupling must be in the dearartce limits A tight coupling may cause seizures when moving parts heat A slack coupling causes vibrations with taster wear of the moving parts.

General rules for parts installation

Ta reassembly the various parts you’ll ltave to execute the procedures in opposite sense at the assembly, paying attention tothe particular operations, it specified. Always replace gaskeis oil seals, metallic stoppers, washers in straining material and self-locking nuts. Bearings wear is done for a certain number of working hours so we recommend their replacement, as the wear check is difficult.

• These notes are an addition to the dimensional checks described in the various chapters. Parts cleaning is basic; bearings ar‘d all the other wearing pans need lubrication with engine oil Mime installation. Tighten screws and nuts to the prescribed torque setting.
• n the next pages disassembly, overhaul and assembly operations of the various parts of the engine are deseribcd in sequence to get to the complete engine disassembly. Remove the engine from the frame,- drain oil from the oil sump; remove the spark plugsand close their seats with clean clothes, to avoid any litt3e obiects (washers, etc….] tolling into the engine

TABLE OF CONTENTS:

Mv Agusta F4 750 Serie Oro Engine Workshop Service Manual

ENGINE DISASSEMELY, OVERHAUL AM) ASSEMBLY
PARTS CLEANING
COUPLING
GENERAL RULES FOR PARTS ASSEMBLY
CYLINDER COMPRESSION MEASUREMENT
Head assy removal
Timing system parts
Head assy Inspection
Head assy assembly
HEAD PARTS DISASSEMELY
Valveremoval
Valveseatmaintenance
Extemal diameter of the valve seat sealing surface
Valve seat replacement
Valve guide control and maintenance
Valve guide removal
Valve guide installation
Valve
Valve-Valveguide coupling
Valve assembly
Valve seat maintenance
Valve cleaiance adjustment
Cam chaintensioner
CYLINDER AND PISTON GROUP
Cylinder and pistonremoval
Cylinder overhauling
Piston over haulmg
Cylinder—piston coupling
Pistonpinoverhauling
Pistonpin—piston coupling
Pistonpin—rod small end coupling
Rings-cylindercoupling
Cylinder and piston installation
Clutch removal
Clutch over hauling
Clutch installation
GEAR AND GEAR CONTROL
Gear group removal
Gear control
Drive and output shafis
Gear group overhaul
Shififorks
Installation
CRANKCASE ACCESSORIES
Alternator
Startingmotor
Oil pump
Water pump
Water pump removal
Water pump parts disassembly
Water pump parts overhauling
Water pump pans assembly
Start free wheel
Neutral switch
CRANKCASE AND CRANKSHAFI‘
Ollsump
Crankshafi removal
Crankshaft overhaul
Crankshaf installation
Rod disassembly
Bearingsremoval
Crankpin-bearings coupling
Bearing installation
Timing chain inSpection and installation
