New Holland 2331 2332 Disc Headers Service Repair Manual (86643834) NH 2331 2332 – PDF Download

Description

New Holland 2331 2332 Disc Headers Service Repair Manual (86643834) NH 2331 2332

FILE DETAILS:

New Holland 2331 2332 Disc Headers Service Repair Manual (86643834) NH 2331 2332

• New Holland 2331, 2332 Repair Manual_86643834
• Size: 14.6 MB
• Format: PDF
• Language: English
• Number of Pages: 102 pages
• Brand: New Holland
• Type of document: Repair Manual
• Model: 2331, 2332
• Part No: 86643834

NEW HOLLAND 2331 2332 DISC HEADERS SERVICE REPAIR MANUAL (86643834) NH 2331 2332 – PDF DOWNLOAD:

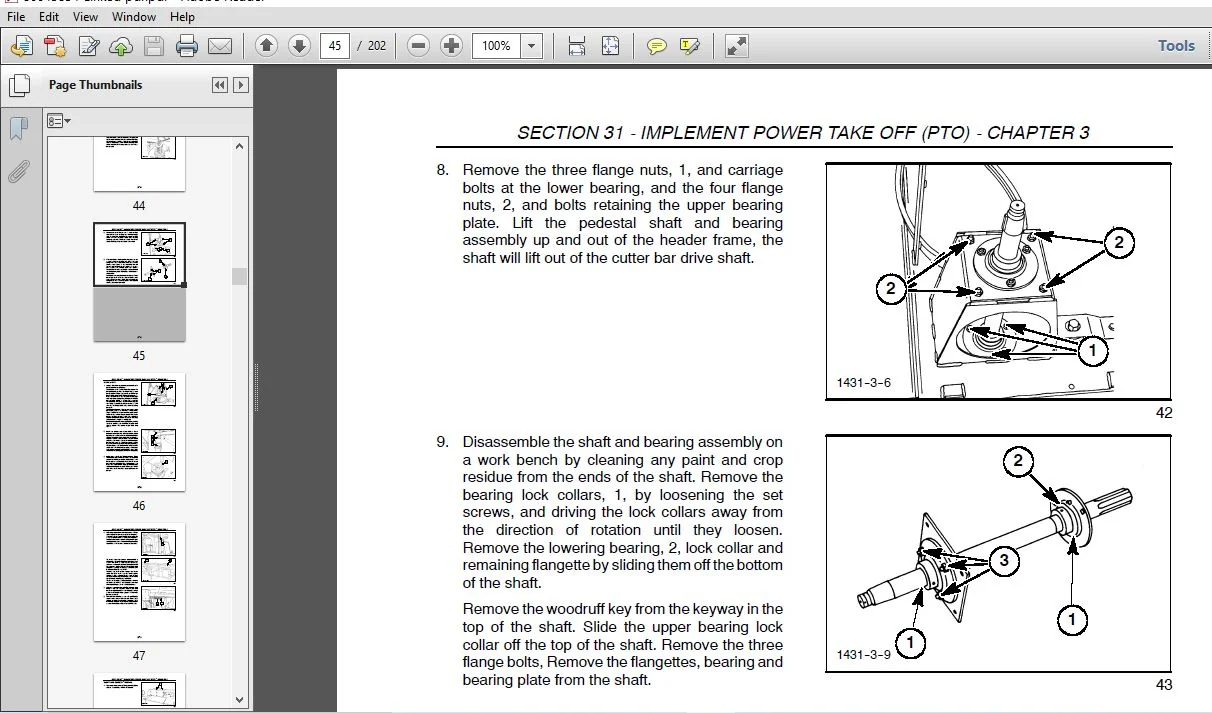

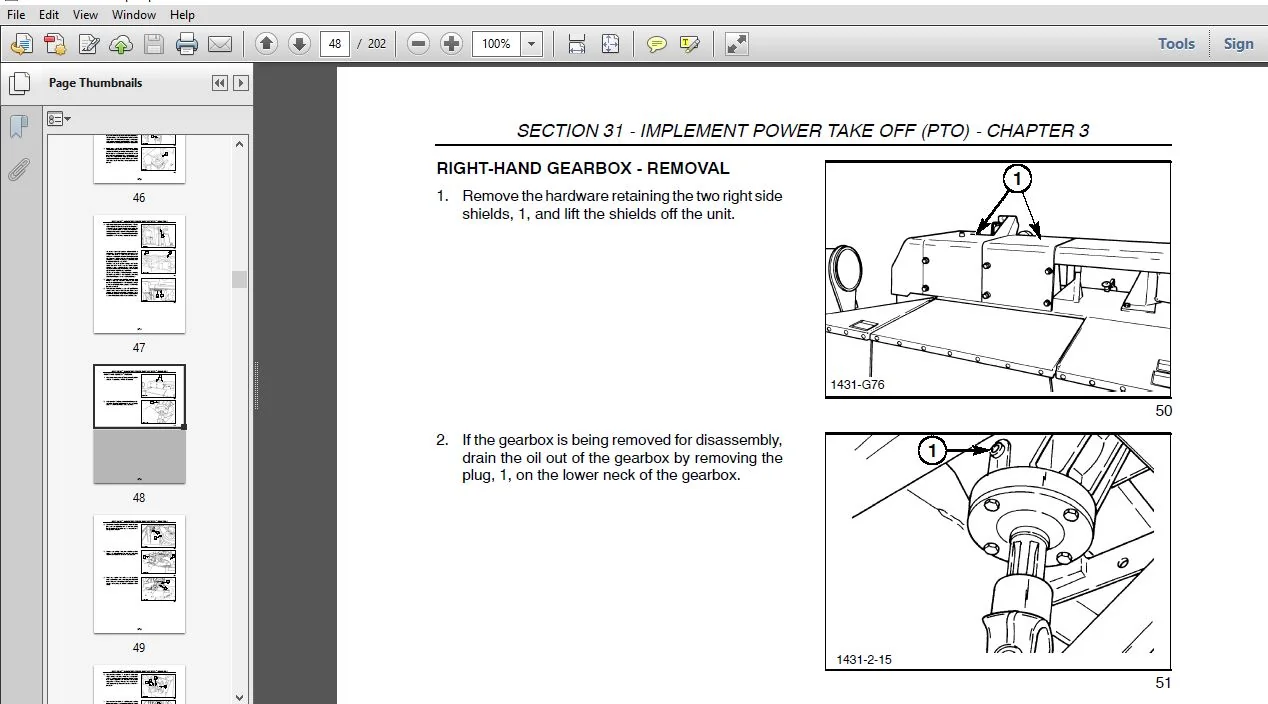

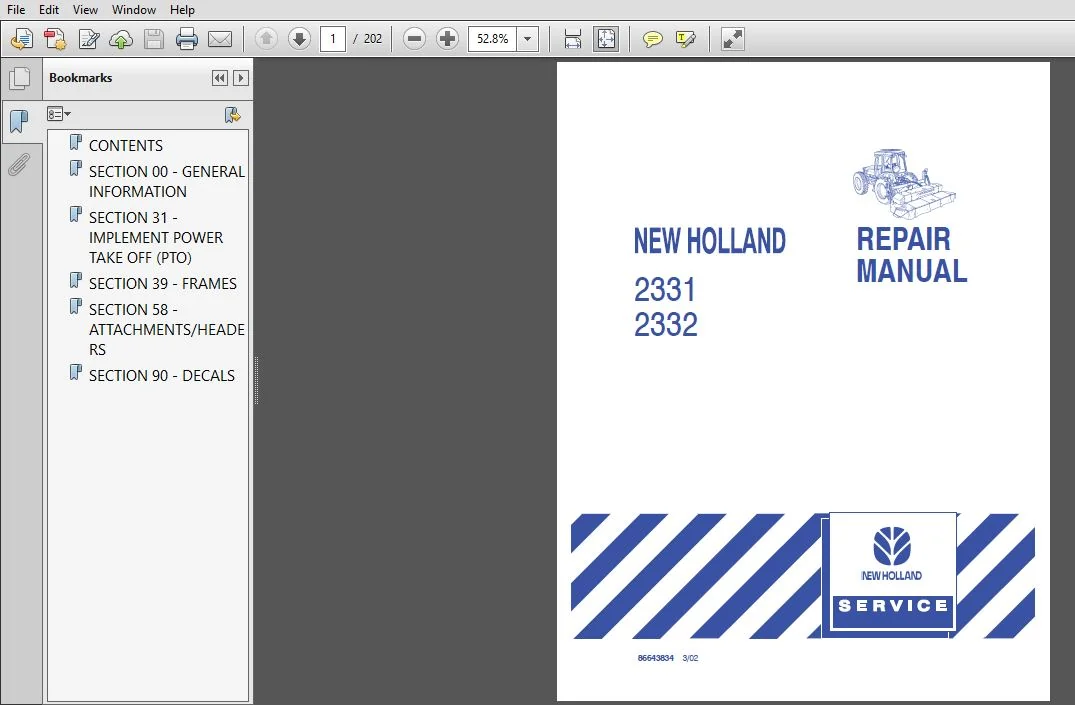

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland 2331 2332 Disc Headers Service Repair Manual (86643834) NH 2331 2332

• The sections used through out all New Holland product Repair manuals may not be used for each product. Each Repair manual will be made up of one or several books.
• The sections listed above are the sections utilized for the 2331, 2332Disc Headers.
• The Models 2331 and 2332 Discbine Disc headers are designed to attach to the 2330BF adapting frame for Use on the TV140 Biderectional tractor. The 2331 and 2332 Mower-Conditioners utilize constant velocity 50° U-joints on each end of the driveshaft for smooth operation, and provide the ability to lift and lower the head during PTO operation.
• The driveshaft attaches to the tractor PTO and the header center gearbox. A CV joint consists of a double U-joint assembly, with the front, 1, and rear, 2, yokes connected together with a mechanical connection.
• This ensures that both the front U-joint and rear U-joint in the assembly is operating at the same angles. By operating at equal angles, the CV joint provides a constant velocity output at all operating angles, and eliminates the vibration that can result from operating the U-joint at sharp angles.
• The CV joint degree rating indicates the maximum allowable operating angle of the CV U-joint. Operation at angles exceeding that value will result in CV joint failure. 1431–3–23 1 2 1 The 50° CV joint is constructed with no intermediate plate. One yoke has a ball, 1, on the rear strap of the yoke, while the opposing yoke has a socket, When the joint is assembled, the ball of one yoke is engaged in the socket of the other.
• The two joints are connected, and one yoke moves the other to maintain equal angles. An overrunning clutch is installed on the gearbox side of the drive shaft. The clutch allows the rotating equipment of the header coast to a stop when the operator disengages the PTO. The proper operation of the overrunning clutch will minimize wear to the header and tractor PTO.

TABLE OF CONTENTS:

New Holland 2331 2332 Disc Headers Service Repair Manual (86643834) NH 2331 2332

SECTION 00 — GENERAL INFORMATION
SECTION 31 — IMPLEMENT POWER TAKE OFF (PTO)
SECTION 39 — FRAMES
SECTION 58 — ATTACHMENTS/HEADERS
SECTION 90 — DECALS

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
