New Holland 555E,575E,655E,675E Loader Backhoe Service Repair Manual (40057540) – PDF Download

Description

New Holland 555E,575E,655E,675E Loader Backhoe Service Repair Manual (40057540)

FILE DETAILS:

New Holland 555E,575E,655E,675E Loader Backhoe Service Repair Manual (40057540)

• Format: PDF
• Language: English
• Number of Pages: 1276 pages
• Brand: New Holland
• Type of document: Repair Manual
• Model: 555E 575E 655E 675E COMPLETE
• Part No: 40057540

NEW HOLLAND 555E,575E,655E,675E LOADER BACKHOE SERVICE REPAIR MANUAL (40057540) – PDF DOWNLOAD:

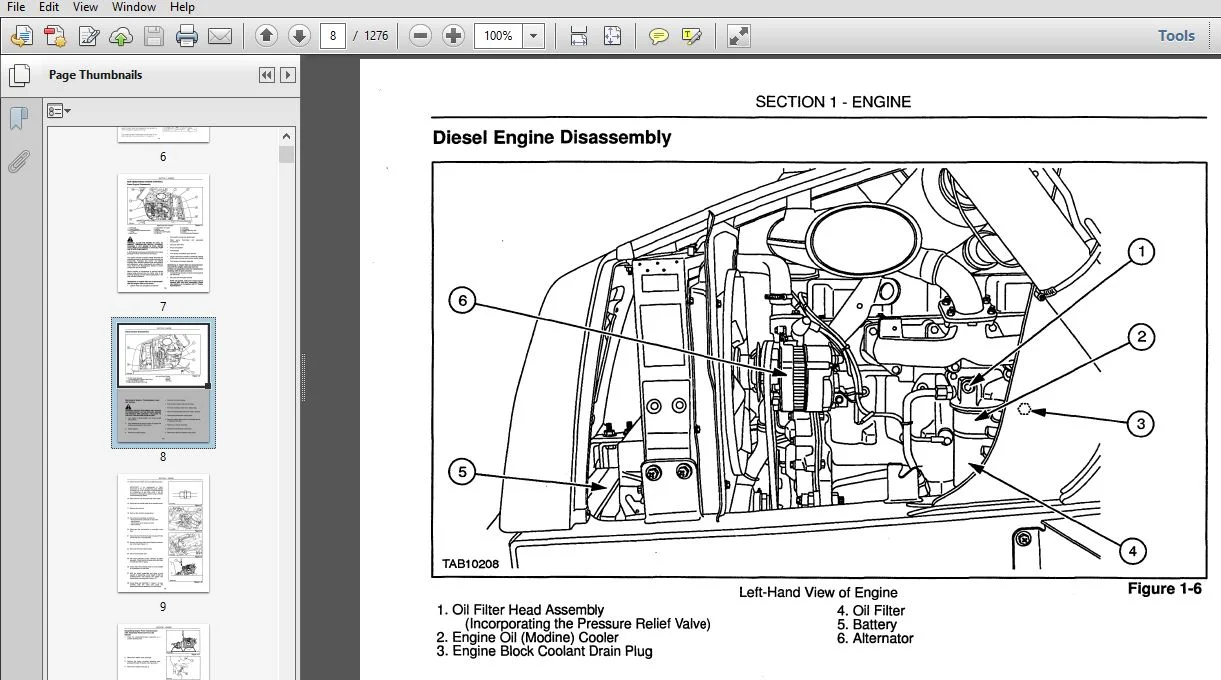

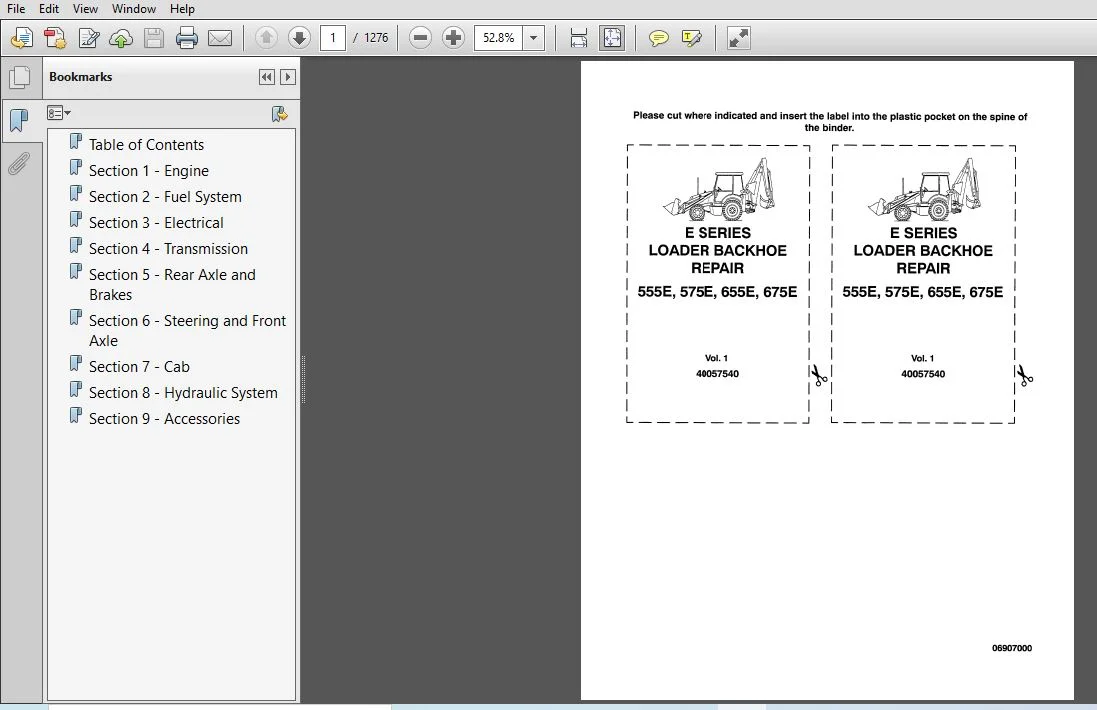

SCREENSHOOTS OF THE MANUAL:

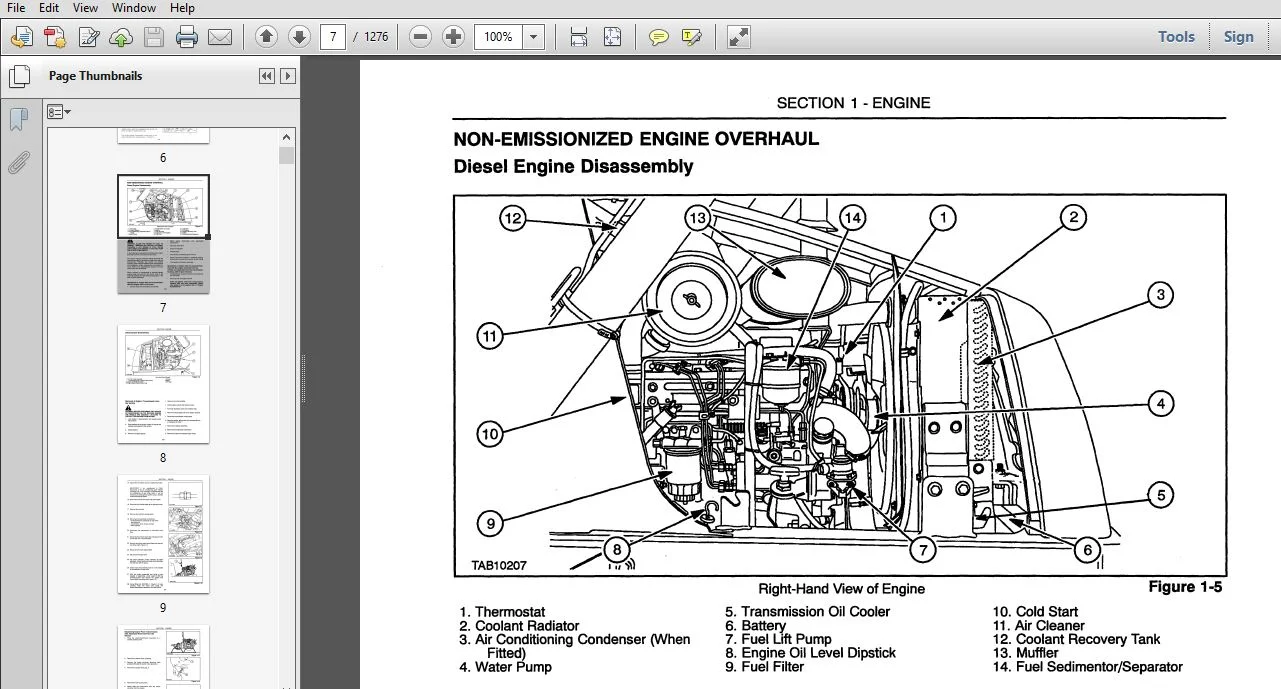

SAMPLE PAGE FROM THE MANUAL:

New Holland 555E,575E,655E,675E Loader Backhoe Service Repair Manual (40057540)

• Industrial engines are 4-cyllnder and available in naturally aspirated and turbocharged forms.
• All engines feature cross flow cylinder heads. with the inlet and exhaust manifolds on opposite sides of tle cylinder head. The fuel and air combustion process takes place in the specially designed bowl in the cronn of the pistons.
• Cylinder Head Assembly The cylinder. head Incorporates valves and springs. with the valve rocker arm shaft assembly bolted to the cylinder block through the cylinder head.
• Cylinder head retaining bolts are evenly spaced with a six point pattern around each cylinder. this ensures an even ciamplrg load across the cylinder head area. The intake and exhaust manifolds are bolted to the head. the intake manifold is mounted on the right-hand side of the engine, with the diesel injectors mounted outside the rocker cover.
• The exhaust manifold is mounted on the left-hand side of the engine. Water outlet connections and thermostat are attached to the front of the cylinder block directly behind the radiator. Valve guides are integral in the cylinder head. and valves with oversize stems are available In service.
• Special replaceable cast alloy valve seats are pressed into each valve port during manufacture, with oversize valve seats also avaflable in service.
• The exhaust valves are fitted with positive valve rotators with all valves using umbrella type oil seals. Valve lash is maintained by adjustment of the self locking adjusting screw. mounted In each of the rocker arms.

TABLE OF CONTENTS:

New Holland 555E,575E,655E,675E Loader Backhoe Service Repair Manual (40057540)

Table of Contents…………………. 2
Section 1 – Engine………………… 3
Section 2 – Fuel System……………. 181
Section 3 – Electrical…………….. 257
Section 4 – Transmission…………… 627
Section 5 – Rear Axle and Brakes……. 843
Section 6 – Steering and Front Axle…. 903
Section 7 – Cab…………………… 951
Section 8 – Hydraulic System………..1043
Section 9 – Accessories…………….1193

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
