NEW HOLLAND 568 BALER OPERATORS MANUAL – PDF Download

Description

📘 DOCUMENT OVERVIEW

This comprehensive manual provides detailed instructions and guidance for operating, maintaining, and troubleshooting a New Holland Model 568 baler. It’s a valuable resource for both professional mechanics and experienced DIY users who own or work with this specific baler model.
What is it? 🚜 This is an Operator’s Manual, designed to equip users with the knowledge to safely and effectively operate their New Holland 568 baler.
What it covers: The manual systematically covers various aspects of the baler, from initial setup and operation to intricate maintenance and troubleshooting procedures. Let’s delve into the key sections:

• Safety First! ⚠️ The manual emphasizes safety with clear warnings and precautions throughout. It highlights critical safety decals and their locations on the machine.
• General Information ℹ️ This section provides essential information such as identifying the baler’s serial number and recording important details for quick reference.
• Operation 🚜 This is a comprehensive guide on attaching the baler to a tractor, threading twine, adjusting bale length, and addressing common operational issues. Detailed diagrams and illustrations support the text.

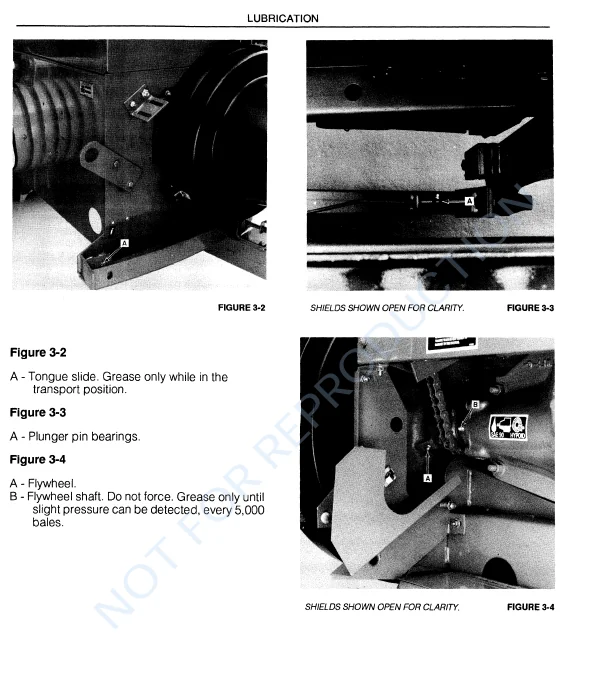

• Lubrication 🔧 A detailed lubrication schedule is provided, specifying which parts require lubrication and how often. This section is crucial for maintaining the baler’s longevity.

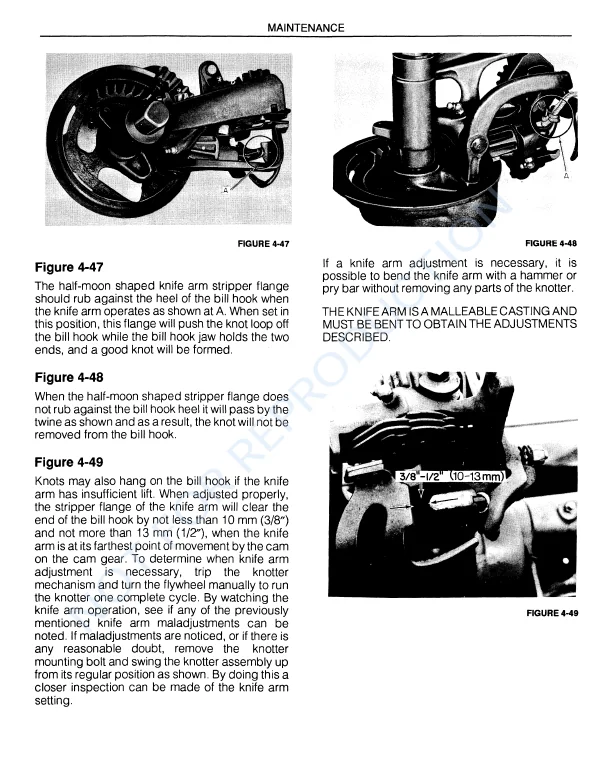

• Maintenance 🔧 This section is a goldmine of information for keeping your baler in top shape. It covers everything from adjusting the PTO slip clutch and checking the main gearbox to replacing the pickup fingers and meticulously adjusting the knotter. Detailed diagrams and step-by-step instructions ensure clarity.
• Troubleshooting ⚠️ This critical section tackles various problems encountered while operating the baler, offering potential causes and solutions. Organized by area (PTO, Pickup, Feeder, Plunger, etc.), it makes pinpointing issues easy. The troubleshooting guide is an invaluable tool for both preventative maintenance and resolving issues when they arise.

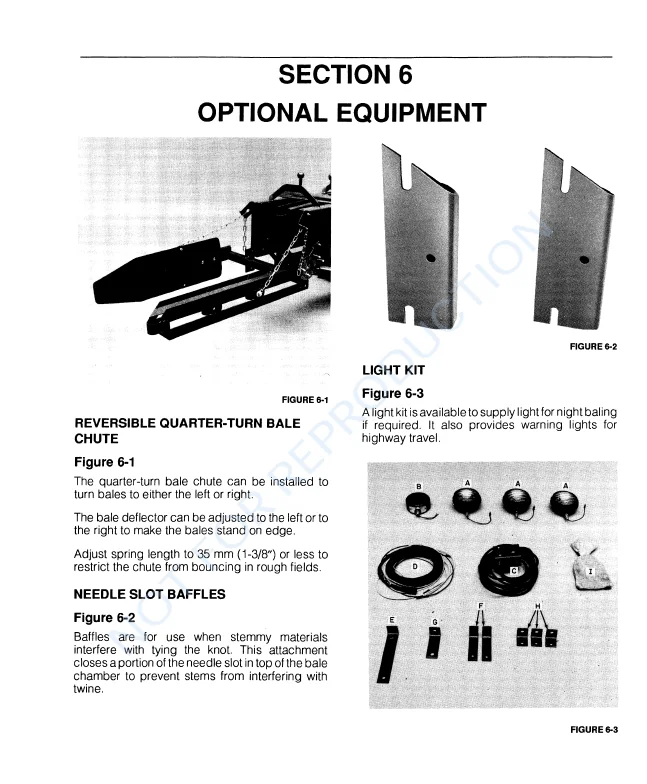

• Optional Equipment ⚙️ The manual details available optional equipment such as a light kit, bale chute, hydraulic pickup lift, and additional components that may enhance your baling process.
• Specifications 📑 This section provides a detailed list of technical specifications for the New Holland 568 baler, including dimensions, weight, PTO details, tire specifications, and more. This information is critical for correct operation and maintenance.

The manual’s structured approach, clear language, and abundant illustrations make it a user-friendly yet comprehensive guide for anyone operating or maintaining a New Holland 568 baler. The inclusion of troubleshooting tips and a detailed maintenance schedule significantly enhances its value as a practical resource.

❌ WHAT’S NOT INCLUDED

• Exploded parts diagrams.
• Detailed parts lists beyond those mentioned in maintenance checklists.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

💬 Customer FAQs:

Q: What models does this manual cover?
A: This manual specifically covers the New Holland Model 568 baler.

Q: What type of procedures are included?
A: The manual includes procedures for: operation, lubrication, maintenance (including detailed adjustments for various components like the PTO clutch, knotter, and plunger), and troubleshooting.

Q: Is this suitable for DIY mechanics?
A: While detailed, the technical nature and depth of information make this manual most suitable for experienced DIY mechanics comfortable with agricultural machinery. Complete novices should seek professional assistance.

Q: What format is this manual in?
A: This manual is in digital PDF format, downloadable immediately after purchase.

Q: Are there any language requirements?
A: The manual is written in English.

Q: What if I have more questions about my baler?
A: The manual strongly suggests contacting your authorized Ford New Holland dealer for additional assistance or parts.

Q: What safety precautions are emphasized?
A: The manual repeatedly stresses the importance of safety, including warnings to never adjust or clean the baler while it’s running or the tractor is running, and always ensuring that protective shielding is in place.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent; comprehensive and well-structured.
• Content Type: Operator’s Manual
• Language: English
• Technical Level: Professional/Intermediate
• Recommended For: Professional mechanics and experienced DIY users familiar with agricultural equipment.
• Page Count: Approximately 76 pages
• Image Quality: Good; diagrams and illustrations are clear and helpful.

📋 Original Product Description:

NEW HOLLAND 568 BALER OPERATORS MANUAL

DESCRIPTION:

This manual has been developed to assist you in understanding how to operate and maintain your machine. It contains a list of safety precautions, a discussion of the controls and instruments, procedures for operating the machine or equipment, a maintenance schedule, a brief troubleshooting section, and a specification section.

The Manual can be viewed on any computer, as well as zoomed and printed. Additional Information: PDF documents may require the newest version of Acrobat Reader to display correctly. Should you have any problems reading your document, please initially try upgrading to the latest version of Adobe Acrobat Reader.

IMAGES:

TABLE OF CONTENTS :

Safety
General Information
Specification
Operation
Lubrication
Troubleshooting
Maintenance
Optional Equipment

NEW HOLLAND 568 BALER OPERATORS MANUAL – PDF DOWNLOAD:
