NEW HOLLAND 648 658 678 688 ROUND BALER FEATURES PRODUCT MANUAL – PDF Download

Description

📘 DOCUMENT OVERVIEW

This comprehensive digital service manual provides detailed information on New Holland Models 648, 658, 678, and 688 round balers. It’s an invaluable resource for professional mechanics, experienced DIY enthusiasts, and anyone seeking in-depth knowledge of these machines. The manual goes beyond basic operation, delving into the intricate workings of these round balers.

🔧 Detailed Technical Specifications: The document meticulously outlines the technical specifications for each model, covering dimensions, weight, tractor requirements, bale data, driveline components, forming chamber specifics (rolls, belts, etc.), wrapping systems (twine and net-wrap options), and ejecting systems. Diagrams and illustrations clarify complex components and procedures.

🚜 Operational Procedures: The manual offers clear explanations of operational procedures, including hook-up, bale formation, twine/net wrapping, bale ejection, and routine maintenance. Step-by-step instructions are coupled with diagrams and illustrations to make understanding easy. The emphasis on safety is evident throughout the document.

⚠️ Troubleshooting & Maintenance: While not a dedicated troubleshooting manual, this document provides essential maintenance information, including diagrams showing access to key components. It highlights the importance of regular maintenance and emphasizes safety precautions during servicing.

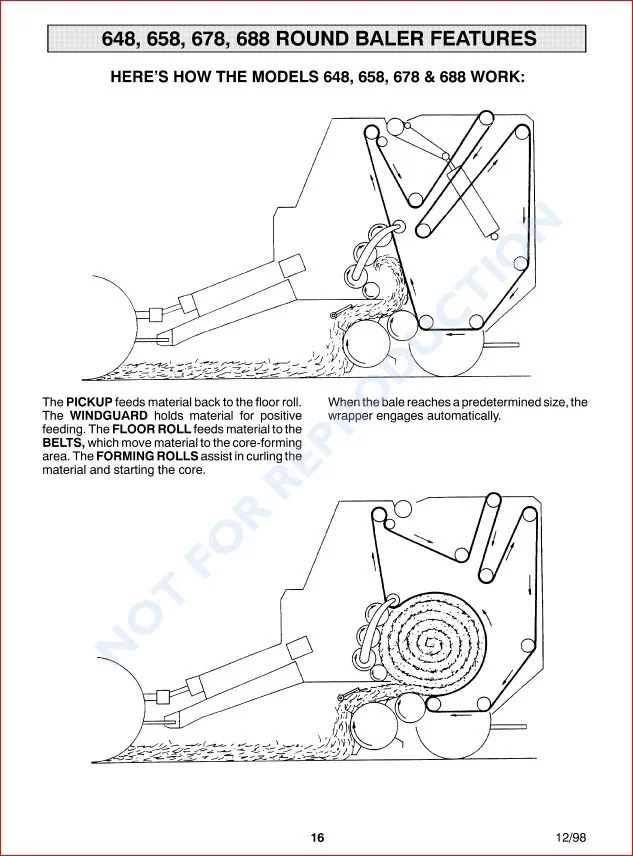

⚙️ Features Breakdown: The manual extensively details the unique features of each model, such as the Roll-Belt design, Super-Sweep pickups, various wrapping options (Auto-Wrap, Bale Command Plus, FastNet Net Wrap), Bale-Tension systems, and the various components like forming rolls, belts, and drivelines. This level of detail is critical for understanding how each component interacts and contributes to efficient operation.

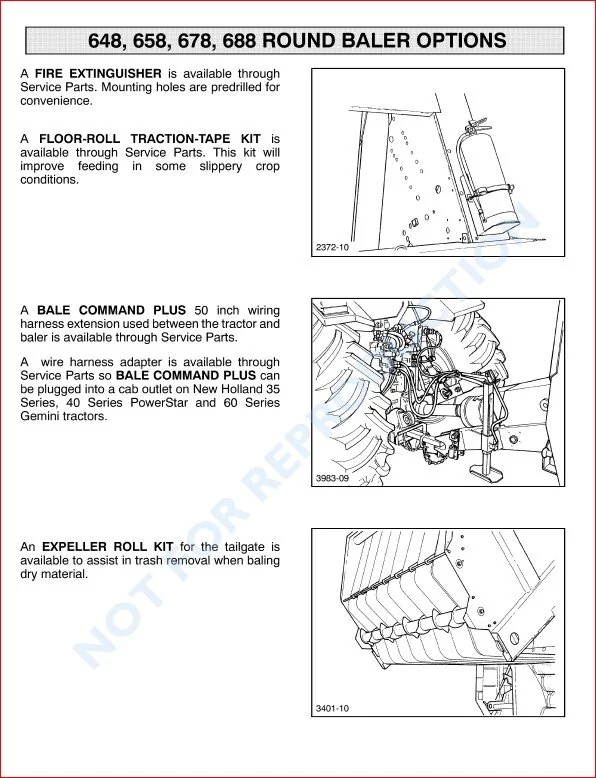

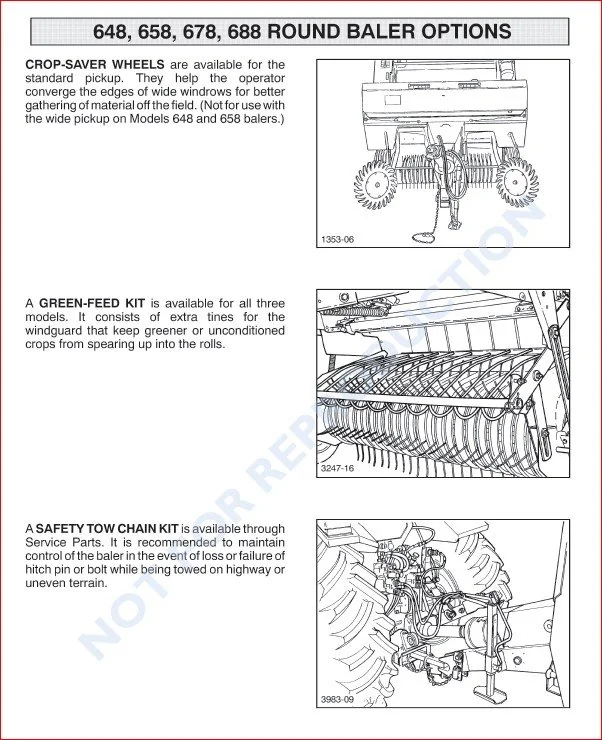

🤔 Options & Accessories: A dedicated section lists the optional accessories and upgrades available for these baler models, such as the wide pickup, Crop-Saver wheels, various safety kits, and additional twine boxes. This section helps customers make informed decisions about customizing their balers to meet specific needs.

This is a Service Manual that provides detailed technical specifications and operational procedures for various New Holland round baler models. It’s intended for users with some mechanical understanding who may need to perform advanced maintenance or repairs.

Equipment/Models Covered: New Holland Models 648, 658, 678, and 688 round balers.

Major Sections: Features (detailed breakdown for each model), Hook-Up, Driveline, Pickups, Feeding & Flotation, Bale Formation, Bale Tension System, Twine Wrapping, Bale Command Plus, FastNet Net Wrap, Convenience Features, Silage Version (Model 648), and Specifications.

Key Technical Information: Detailed dimensions, weights, tractor horsepower requirements, bale size and density information, driveline ratios, forming roll and belt details, wrapping systems (twine and net-wrap specifics), and maintenance procedures.

❌ WHAT’S NOT INCLUDED

• Step-by-step repair instructions
• Comprehensive parts diagrams

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

What models does this manual cover?

This manual covers New Holland Models 648, 658, 678, and 688 round balers.

What type of procedures are included?

The manual includes operational procedures (hook-up, bale formation, wrapping, ejection), maintenance instructions, and detailed explanations of the balers’ features and components.

Is this suitable for DIY mechanics?

Suitable for experienced DIYers with mechanical aptitude. Beginners may find some sections challenging.

What format is this manual in?

This manual is in digital PDF format, immediately downloadable after purchase.

Are there any language requirements?

The manual is written in English.

What types of wrapping systems are covered?

The manual details twine wrapping (with Auto-Wrap and Bale Command Plus options) and FastNet net wrap systems.

Does it include troubleshooting information?

While not a dedicated troubleshooting guide, the manual provides information essential for preventing and addressing potential issues through proper maintenance.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent; comprehensive and well-organized.
• Content Type: Service Manual
• Language: English
• Technical Level: Professional/Intermediate
• Recommended For: Professional mechanics, experienced DIY users familiar with heavy machinery.
• Page Count: 46
• Image Quality: Good; clear diagrams and illustrations support the text.

📋 Original Product Description:

NEW HOLLAND 648 658 678 688 ROUND BALER FEATURES PRODUCT MANUAL

DESCRIPTION:

This manual has been developed to assist you in understanding how to operate and maintain your machine. It contains a list of safety precautions, a discussion of the controls and instruments, procedures for operating the machine or equipment, a maintenance schedule, a brief troubleshooting section, and a specification section.

The Manual can be viewed on any computer, as well as zoomed and printed. Additional Information: PDF documents may require the newest version of Acrobat Reader to display correctly. Should you have any problems reading your document, please initially try upgrading to the latest version of Adobe Acrobat Reader.

IMAGES:

TABLE OF CONTENTS :

Round Baler Features for model 648, 658, 678, and 688
Hitch, Jack, PTO, and Slip Clutch
Drives & Pickups
Forming Rolls
Belts
Schematic
Bale-Tension System
Wrapping System
Tailgate Latches
Options & Accessories
Specifications

NEW HOLLAND 648 658 678 688 ROUND BALER FEATURES PRODUCT MANUAL – PDF DOWNLOAD:
