New Holland 9030 Bidirectional Tractor Service Repair Manual (40903000) – PDF Download

Description

New Holland 9030 Bidirectional Tractor Service Repair Manual (40903000)

FILE DETAILS:

New Holland 9030 Bidirectional Tractor Service Repair Manual (40903000)

NEW HOLLAND 9030 BIDIRECTIONAL TRACTOR SERVICE REPAIR MANUAL (40903000) – PDF DOWNLOAD:

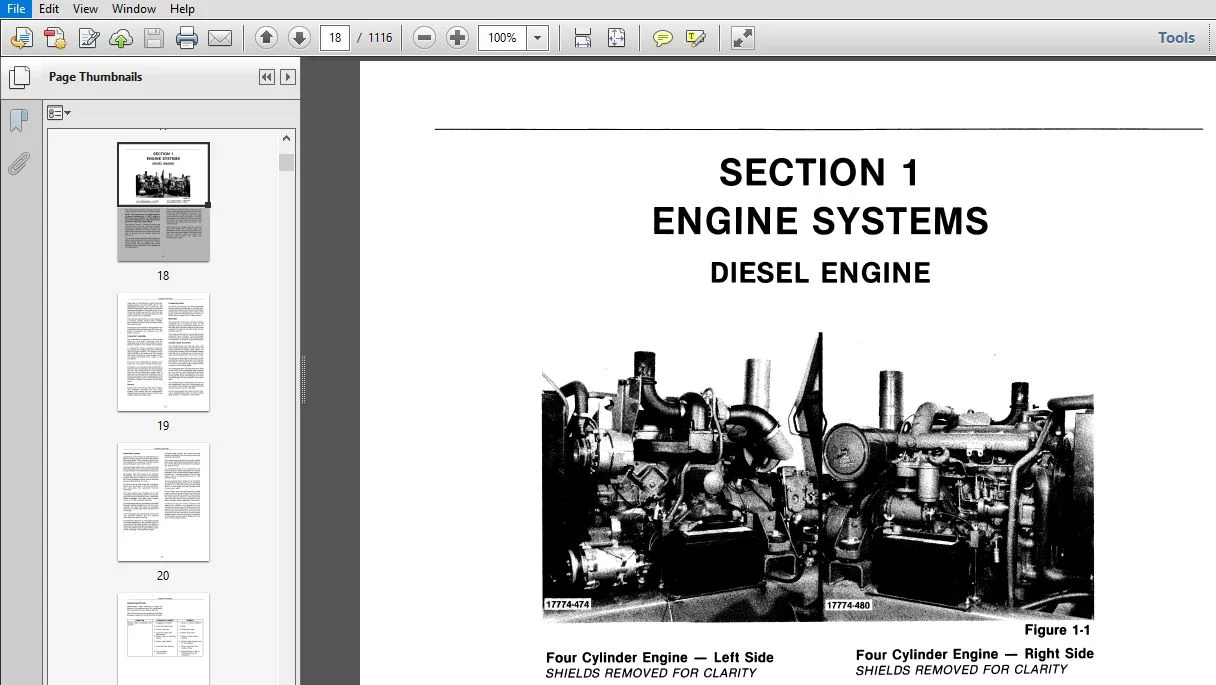

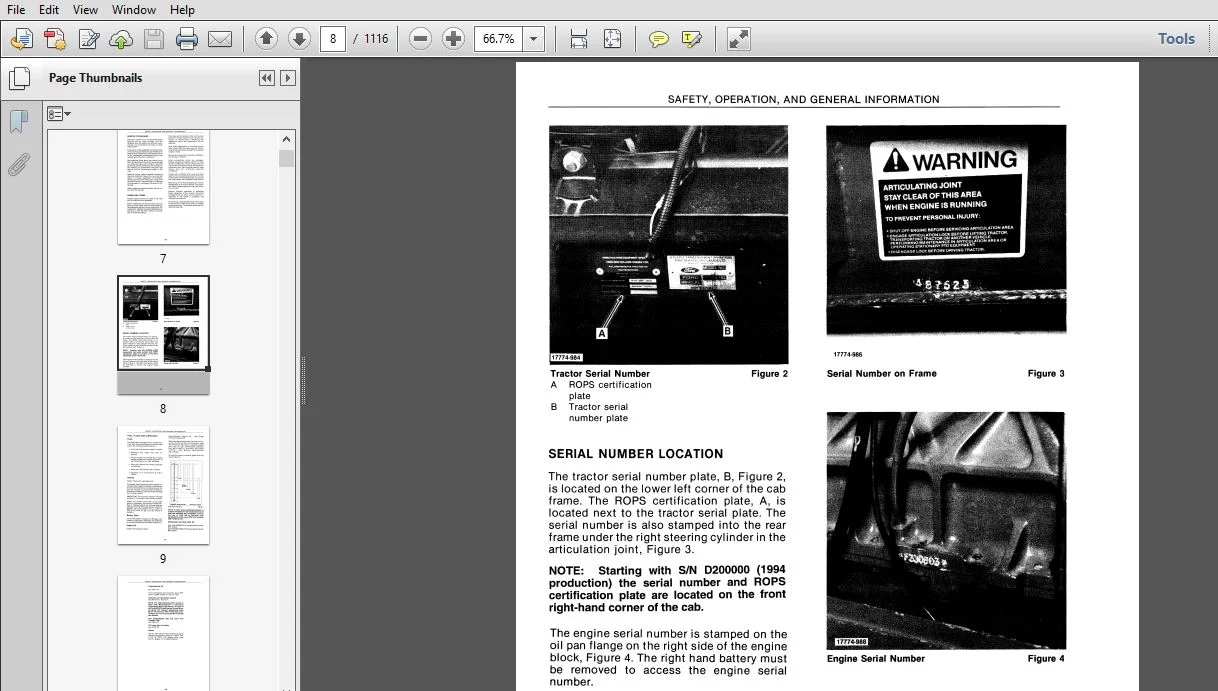

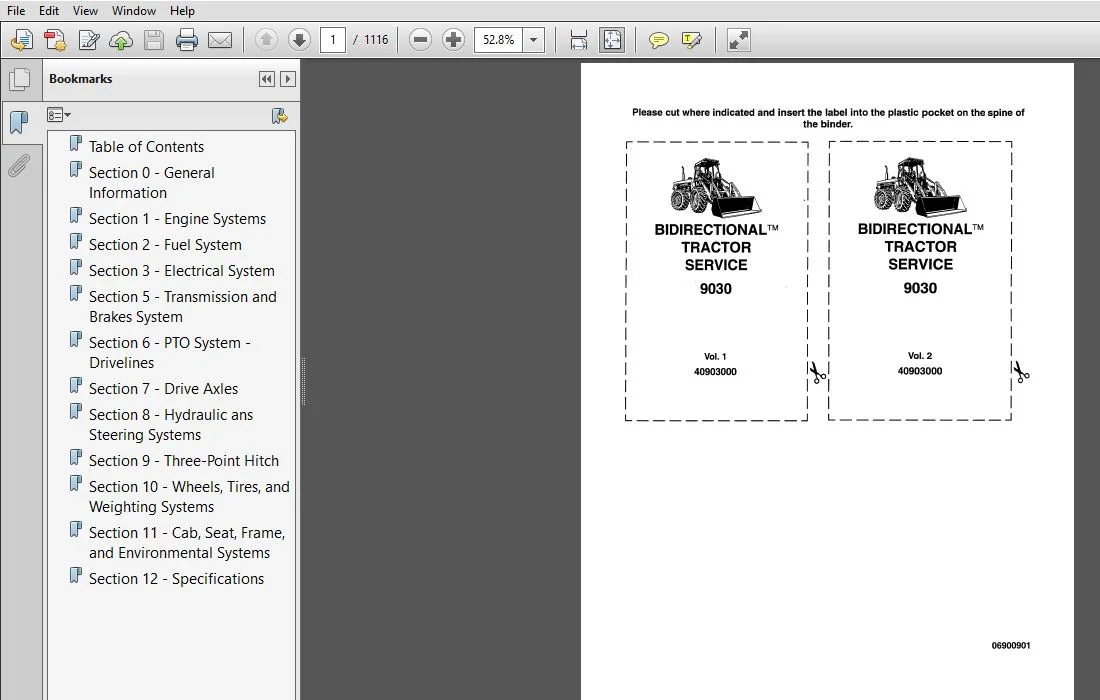

SCREENSHOOTS OF THE MANUAL:

DESCRIPTION:

New Holland 9030 Bidirectional Tractor Service Repair Manual (40903000)

• This service manual refers to serial number breaks at various times throughout the text. It is important to understand the order in which 9030 Bidirectional tractors were built. The following chart shows how 9030 tractors were built in the following ranges based on year of production.
• This section describes the overhaul and repair of the 4-cylinder direct injection diesel engine. NOTE: The engine used in the 9030 tractor is of special manufacture. A “BSD” engine is NOT to be used In a 9030.
• See 818 4l92-G12 for further information on engine differences between a 9030 and a BSD engine. The engine, Figure 1-1, features a cross flow cylinder head with the inlet and exhaust manifolds on opposite sides of the head.
• The combustion Chamber is formed in the crown of the piston which has two compression and one oil control ring all located above the piston pin. The cylinder head assembly incorporates the valves, valve springs. and the spring retainers.
• Valve guides are an integral part of the cylinder head with replaceable valve seats pressed into the valve ports. Valve guides are not replaceable.

TABLE OF CONTENTS:

New Holland 9030 Bidirectional Tractor Service Repair Manual (40903000)

SECTION 0 – GENERAL INFORMATION
SECTION 1 – ENGINE
SECTION 2 – FUEL SYSTEM
SECTION 3 – ELECTRICAL SYSTEM
SECTION 5 – TRANSMISSION AND BRAKE SYSTEMS
SECTION 6 – PTO AND DRIVELINES
SECTION 7 – DRIVE AXLES
SECTION 8 – HYDRAULIC AND STEERING
SECTION 9 – 3-POINT HITCH
SECTION 10 – WHEELS, TIRES, AND WEIGHTING SYSTEMS
SECTION 11 – CAB, SEAT, FRAME, AND ENVIRONMENTAL
SECTION 12 – SPECIFICATIONS

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
