New Holland 994 92C 94C Service Repair Manual (86642406) – New Holland 994 92C 94C – PDF Download

Description

New Holland 994 92C 94C Service Repair Manual (86642406) – New Holland 994 92C 94C

File Details:

New Holland 944, 92C, 94C Repair Manual_86642406
Size: 13.5 MB
Format: PDF
Language: English
Number of Pages: 204 pages
Brand: New Holland
Type of document: Repair Manual
Model: 944, 92C, 94C
Part No: 86642406

NEW HOLLAND 994 92C 94C SERVICE REPAIR MANUAL (86642406) – NEW HOLLAND 994 92C 94C – PDF DOWNLOAD:

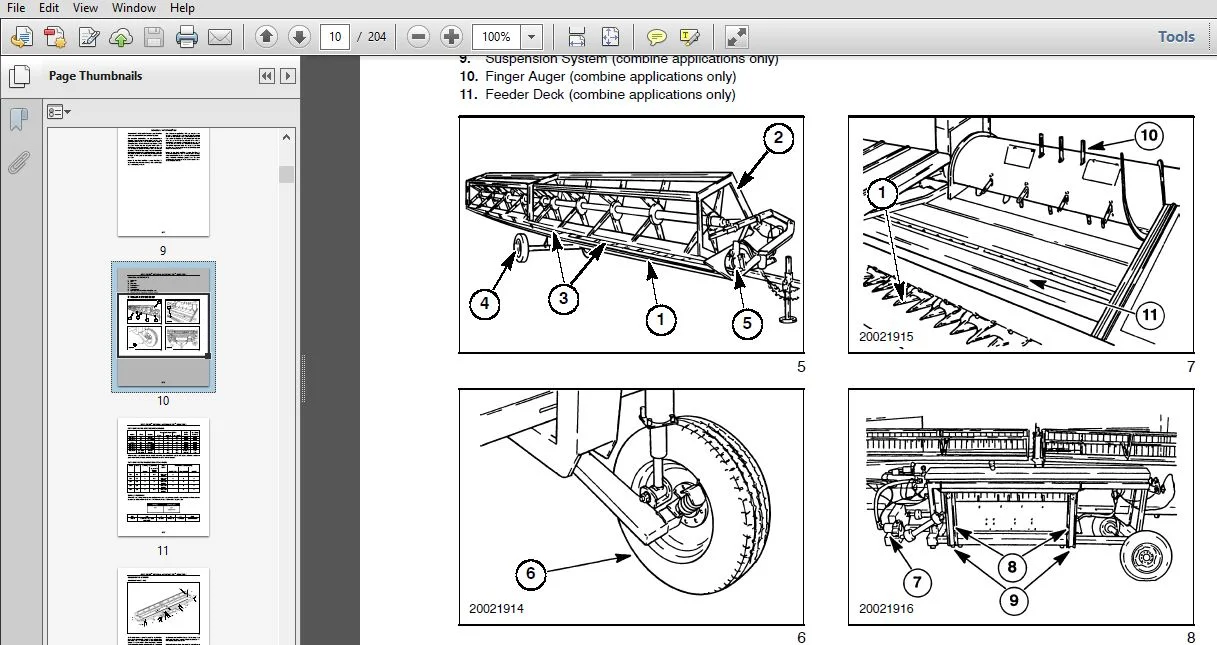

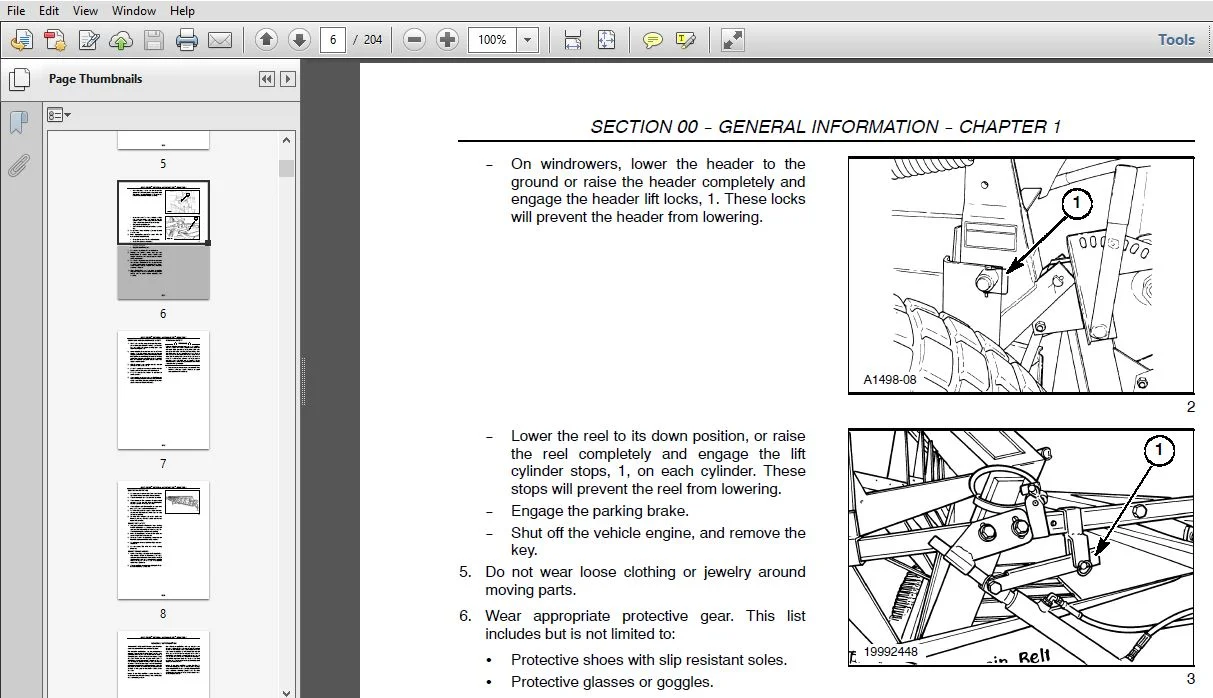

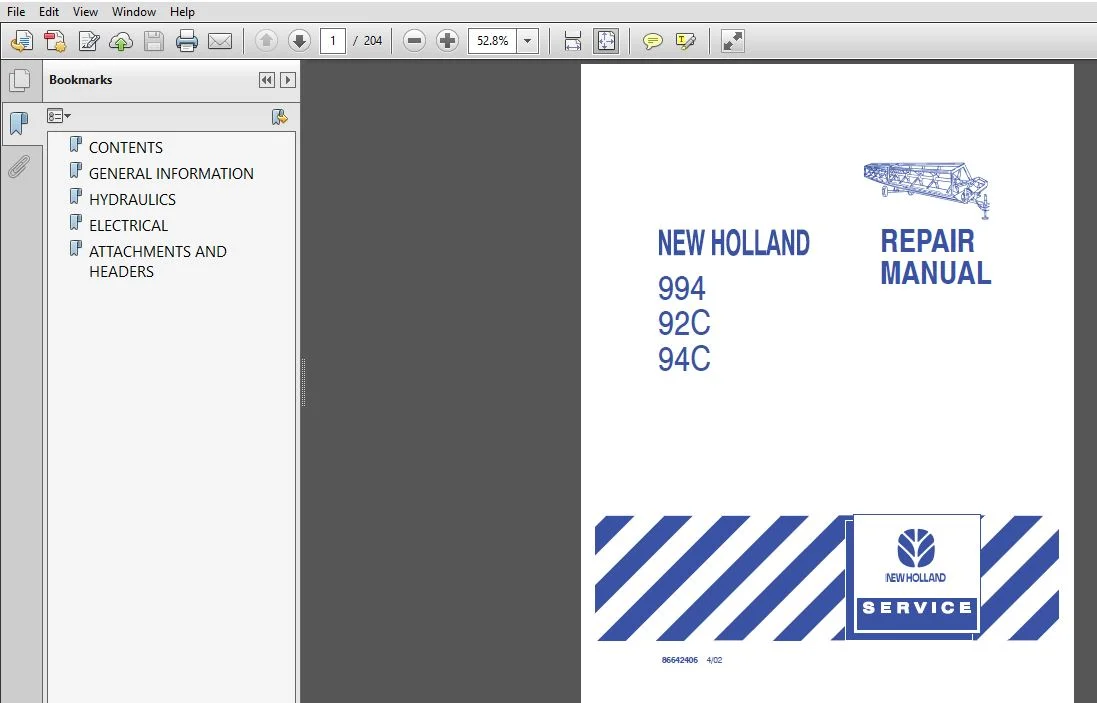

Image Preview:

Description:

New Holland 994 92C 94C Service Repair Manual (86642406) – New Holland 994 92C 94C

• The Model 994, 92C and 94C Headers consist of the main components listed on the following page. For combine applications, an adapter/subframe attaches to the feeder housing of the combine. The hydraulic power to run the header comes from a hydraulic pump driven off the feeder house of the combine. Power for the epicycle knife drive is provided by a hydraulic motor to cut the crop.
• The bat reel or optional pickup reel lays the crop on the canvases. The lateral canvases carry the crop to the feeder canvas that feeds the finger auger mounted in the auger adapter. The finger auger completes the delivery of the grain to the feeder house of the combine. When in the field position, header flotation is achieved through the use of heavy duty leaf springs and castor gauge wheels.
• For windrower applications, lift arm adapters are installed on the windrower to enable it to be coupled directly to the header. They hydraulic power to run the header is supplied by the windrower’s header drive pump. Power for the epicycle knife drive is provided by a hydraulic motor to cut the crop. A bat reel or pick-up reel lays the crop on the canvases.
• The lateral canvases carry the crop to the feed opening, and discharge the cut crop onto the ground in the form of a windrow. When in the field position, header flotation is achieved through the use of four flotation springs mounted on the windrower, and acting through the lift arms. Optional castoring gauge wheels are also available to prevent the ends of the header from contacting the ground.

Table Of Contents:

New Holland 994 92C 94C Service Repair Manual (86642406) – New Holland 994 92C 94C

SECTION 00 — GENERAL INFORMATION
SECTION 35 — HYDRAULICS
SECTION 55 — ELECTRICAL
SECTION 90 — DECALS

Please Note:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
