New Holland B110 Tier 3 Backhoe Loader Parts Catalog 2007-Onwards PDF

Description

This is the full illustrated parts catalog for the New Holland B110 Tier 3 Backhoe Loader, covering machines built from 2/07 onward. It is the reference document you open when you need to identify a component, confirm the correct part number before ordering, or check how an assembly goes back together. Every listing in the book is laid out the same way: a reference number keyed to a drawing, the New Holland part number, the quantity required, and an English description. Diagrams are exploded line art, so you can see exactly which bolt, seal, bushing, plate or casting the number belongs to.

File Details

• Manual type: Illustrated Parts Catalog
• Brand: New Holland
• Model: B110 Tier 3 Backhoe Loader
• Coverage: Machines from 2/07 onward
• Language: English descriptions with bilingual (English / Spanish) column headings
• Page count: 1,281 pages
• File format: PDF

Chapters Covered

• MPARTS(00) Maintenance Parts – fuel filter, engine oil filter, hydraulic oil filter, air filter, cab filter, power shuttle filter, grille
• SEC. 02 Fuel Tank – Muffler – Radiator – Air Cleaner – Chassis
• SEC. 03(01) and 03(02) Transmission
• SEC. 04 Front Axle
• SEC. 05 Rear Axle
• SEC. 06 Electrical
• SEC. 07 Slides Valves
• SEC. 08 Body & Hood
• SEC. 09(01) Loader – Side Shift
• SEC. 09(02) Backhoe – Center Pivot
• SEC. 09(03) Backhoe
• SEC. 10(01), 10(02), 10(03) Body, Hood & Driver’s Post
• SEC. 11 Wheels
• SEC. 18 Variation
• 0.02.1 Engine – B110 and B115 listings
• 0.04.0 Crankcase, 0.04.2 Engine Oil Sump, 0.04.3(01)-(03) Crankcase Covers
• 0.06.0 Cylinder Head, 0.06.3(01)-(02) Cylinder Head Covers, 0.06.6 Rocker Shaft
• 0.07.1 Manifold Intake, 0.07.7 Exhaust Manifold
• 0.08.0 Crankshaft, 0.08.1 Connecting Rod, 0.08.2 Piston, 0.08.3 Flywheel, 0.08.4 Pulley Crankshaft
• 0.10.5(01)-(02) Dynamic Balancer, Gears & Shafts
• 0.12.0 Camshaft – Timing Control
• 0.14.0(01)-(02) Injection Pump and Injection Equipment – Injector
• 0.14.0/A Injection Pump Components, 0.14.9 Injection Equipment Piping
• 0.17.0 Electronic Injection, 0.17.3 Motor Electric Installation
• 0.20.0 Fuel Filter, 0.20.3 Piping Fuel, 0.20.4 Injection Equipment Piping
• 0.24.0 Turbocharger
• 0.27.0 Engine Oil Dipstick
• 0.30.0 Oil Pump Engine, 0.30.2 Oil Filters Engine, 0.30.5 Piping Engine Oil
• 0.31.5 Heat Exchanger Engine
• 0.32.0 Water Pump, 0.32.3 Cooling System, 0.32.4 Piping Engine Cooling System, 0.32.6 Thermostat
• 0.34.0 Water Pump Control, 0.34.5 Fan Drive
• 0.36.0 Starter Motor, 0.40.0 Alternator
• 1.15.0(01)-(02) Muffler & Extensions, 1.17.2(01) Expansion Tank
• 1.19.1(01) Air Cleaner & Hoses
• 1.20.0(01)-(03) Loader and Backhoe sections
• 1.21.4(01) Rear Support (Side Shift), 1.21.5/1 and 1.21.5/3 Frames
• 1.27.0(01)-(02) Transmission sections
• 1.28.0(01) Gearing Speed Gear, 1.28.0/A 2WD Power-Shuttle, 1.28.0/B 4WD Power-Shuttle, 1.28.0/C 4WD Power-Shift
• 1.28.6(01) and 1.28.6/1(01) Gear Filter Pipes
• 1.29.1(01) Transmission External Shifting Controls
• 1.30.0 Front Axle, 1.31.0 Rear Axle, 1.32.1 and 1.32.1/1 Differential Control
• 1.38.1(01) and 1.38.3(01) Front & Rear Driveshaft
• 1.39.8(01) and 1.39.8/1(01) Transmission Oil Cooling Pipes
• 1.40.0(01)-(02) Front Axle 2WD, 1.40.8(01) Hydraulic Differential Lock, 1.40.9(01) Fuel Tank & Related Parts
• 1.42.7(01)-(02) Fuel Piping and Filter Fuel
• 1.44.0(01)-(04) Rear Axle Power-Shift, 1.44.0/A Rear Axle Power-Shuttle (Side Shift), 1.44.0/B Rear Axle Power-Shuttle (Center Pivot)
• 1.62.0(01)-(03) Body, Hood & Driver’s Post
• 1.63.0(01) Power Steering Hydraulic System
• 1.75.1, 1.75.2(01)-(03), 1.75.2/1 and 1.75.2/2 Harnesses, Battery Lock-Out Switch, Engine Harness
• 1.77.0 Slides Valves, 1.78.0 Body & Hood, 1.79.9(01) Stabilizer Control, 1.80.9(01)-(02) Swing Post Assembly, Bushings, Pins & Transport Lock Hook
• 1.81.9 and 1.81.9/1, 1.81.9/2 Transport Lock switch, valve, hoses, hook, cylinder and rear locking
• 1.82.0(01) Hydraulic Oil Reservoir, 1.82.3(01) Hydraulic Pump, 1.82.6(01)-(16) Hydraulic System Piping and Backhoe Control Valve
• 1.83.0(01) Hood, Grille & Related Parts, 1.87.2(01) Cab Screen, 1.87.8(01) Cab Fasteners
• 1.88.11(01) Arms and Joints, 1.88.11/1 Loader Cylinder, 1.88.11/2 Loader Bucket Control Cylinder, 1.88.11/3 Lift Cylinder and Bucket Pipes
• 1.88.11/5, 5A, 6, 6A, 7, 7A, 7C, 8 and 9 Self-Leveling Linkage, Stabilizer Cylinders and Pipes, Return to Dig Sensor, Cylinders and Rotation Plate, Swing Cylinders
• 1.88.12/3(01) and 3A(01) Front Control Valve Support and Transmissions
• 1.89.9(01) and 1.89.9/1(01) Distributor Valve Support
• 1.91.1, 1.91.1/1, 1.91.3, 1.91.4 (all sub-sections), 1.91.5, 1.91.6, 1.91.7, 1.91.7/1, 1.91.7/2, 1.91.8 Lights, wipers, dashboards, ignition switch, fuse panel, console harness, radio, beacon, extinguisher
• 1.92.2 to 1.92.9 Cab frame, windows, doors, fenders, firewall seal, rear windows
• 1.93.0, 1.93.0/1, 1.93.0/2, 1.93.0/3, 1.93.0/4 Soft trim, consoles, mats and trim panels
• 1.93.4(01) Rear Mirror – Sun Screen, 1.93.5 and 1.93.5/1 Cab Panel Dash and Front Console
• 1.93.7(01) Inner Rear View Mirror, 1.94.0(01) and 1.94.0/1(01) Cab/Canopy and Roof
• 1.94.2(01) Heater Water Hoses
• 1.95.0, 1.95.0/1, 1.95.0/2, 1.95.1 Brake Pedal, Hand Brake, 1.95.2 Transport Lock Control, 1.95.3 Accelerator Control
• 1.95.5 and 1.95.5/1 Power Steering Motor, Wheel & Column Trim and Hoses
• 1.96.0 and 1.96.0/1 Forward/Reverse & Multi-Purpose Lever, 1.96.2 Stabilizer Control, 1.96.2/1 Pilot Control Diagnostics
• 1.96.7 (all sub-sections) Cab plugs, floor plates and air conveyer
• 1.98.0, 1.98.0/1, 1.98.1 Information and Warning Symbol Decals, Pilot Identification, Model Identification
• 128 Approval for Italy, 129 Approval for Germany, 130 Approval for Europe, 131 Single Battery, 140 UK Version, 141 Approval for France
• 173 Muffler & Extensions with Flash Guard, 175 and 176 Air Intake Cap & Pre-Cleaner
• 201 Shovel and Rear Lifting Hooks, 203 and 215 Front Weights
• 243 Backhoe Loader Buckets Coupling, 284 Rear Mirror
• 301 Backhoe Control Valve (6 sections, outlet section, pedal-operated telescopic dipper), 302 Two-Section Control Valve for Loader
• 311 Stabilizer Cylinder Lock Valve, 321 Double Battery
• 331, 331/A, 331/B, 331/C, 332, 332/B, 333, 333/1, 333/1B, 333/A, 333/B, 333/C, 334, 334/B Towers, pilot control valves and joysticks
• 336, 336/1 Two-Section and Loader Control Valves, 337 and 338 Lock Valves on Loader Cylinders
• 341, 341/A, 341/B, 341/C Tower Assemblies and Proportional Valves
• 344 Stabilizer Control Valve, 346 and 347 A/C & Heater Housing, Blower, Coils, Control Panels and Console Ducts
• 350, 351, 358, 393, 394 and 394/1 Backhoe Controls (2-lever, JCB, ISO, 4-lever)
• 367 Lock Valves Components, 374, 375, 379, 380 Transport Lock systems
• 390 Loader Control Valve, 391 and 392 Lock Valves, 402 and 415 4WD Front Axle assemblies
• 416 System Hammer Components, 437 and 698 Glide Ride Valve
• 471, 471/1, 472, 473, 474, 487, 515, 515/1, 516, 516/1, 517, 517/1, 518, 518/1, 519, 519/1, 520, 520/1, 521, 522, 522/1, 525, 526, 527, 536, 536/1, 537, 548 Buckets, blades, teeth and fork conversions
• 529, 530, 535, 535/1, 599 Stabilizer Feet
• 622 Internal Fan, 638 and 639 Radiator and Accessory Engine groups, 638/1 4WD Steering Lock, 642 EGS Control
• 646 Air Conditioning Set, Compressor, Filter & Condenser
• 650 Steering Column, 699 Hand Hammer Switch
• 700, 702, 721, 724, 725, 727, 728 Hydraulic lines, telescopic dipper, hammer and breaker systems, quick couplers
• 733 and 734 Mechanical Quick-Coupling, 758 Rotating Beacon
• 787, 788 Front Consoles, 789 Speed Sensor, 793 and 794 Working Lights, 796 Antitheft
• 80.00, 81.00, 82.00, 83.00 Wheels and Fenders
• 851, 855, 856 Seat assemblies (cloth, air ride, vinyl) with cushions, armrests, suspension and seat belts
• 879 Cab Right Back View Mirror, 900 and 901 Boom, Long Dipper, Telescopic Dipper, hydraulic systems and cylinders
• 966 Plate Support, 973, 987, 992, 993, 998 Decal sets, 990 Tool Kit, 995 Cold Start

Read as a whole, the book is a complete part-level breakdown of the B110 Tier 3. The engine group alone runs from crankcase castings and cylinder heads through pistons, connecting rods, crankshaft, camshaft, injection pump, turbocharger, oil pump, heat exchanger, water pump, fan drive, starter and alternator. The driveline group separates 2WD and 4WD front axles, Power-Shuttle and Power-Shift gearing, driveshafts, differential controls and rear axle internal assemblies. Everything downstream of the driveline – loader arms and cylinders, backhoe boom and dipper, swing and stabilizer cylinders, control valves and towers, hydraulic reservoir and piping, cab trim, consoles, wiring harnesses, lamps, seats, decals and buckets – has its own illustrated section so nothing is left to guesswork.

IMAGES PREVIEW

How Each Section Is Organised

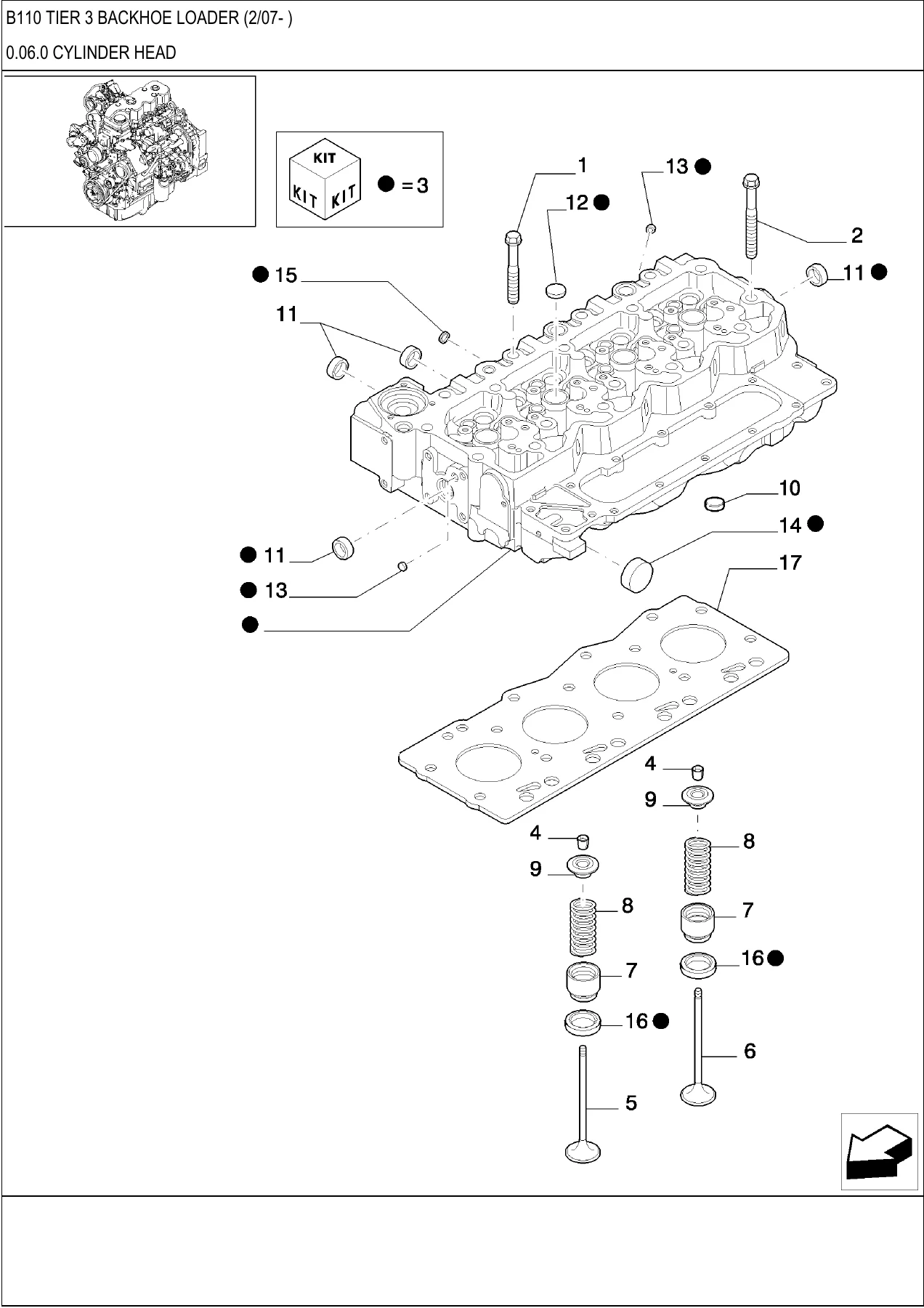

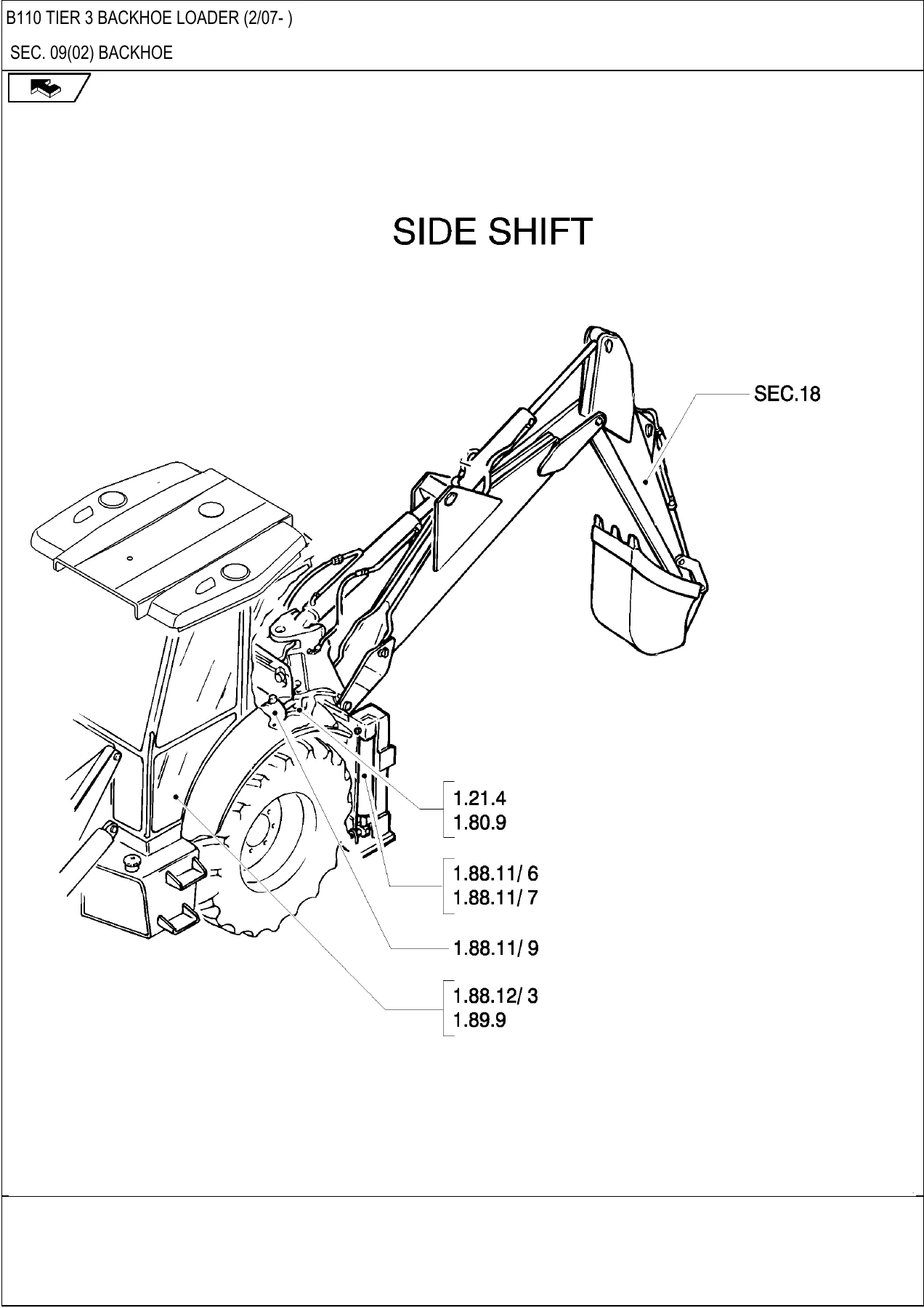

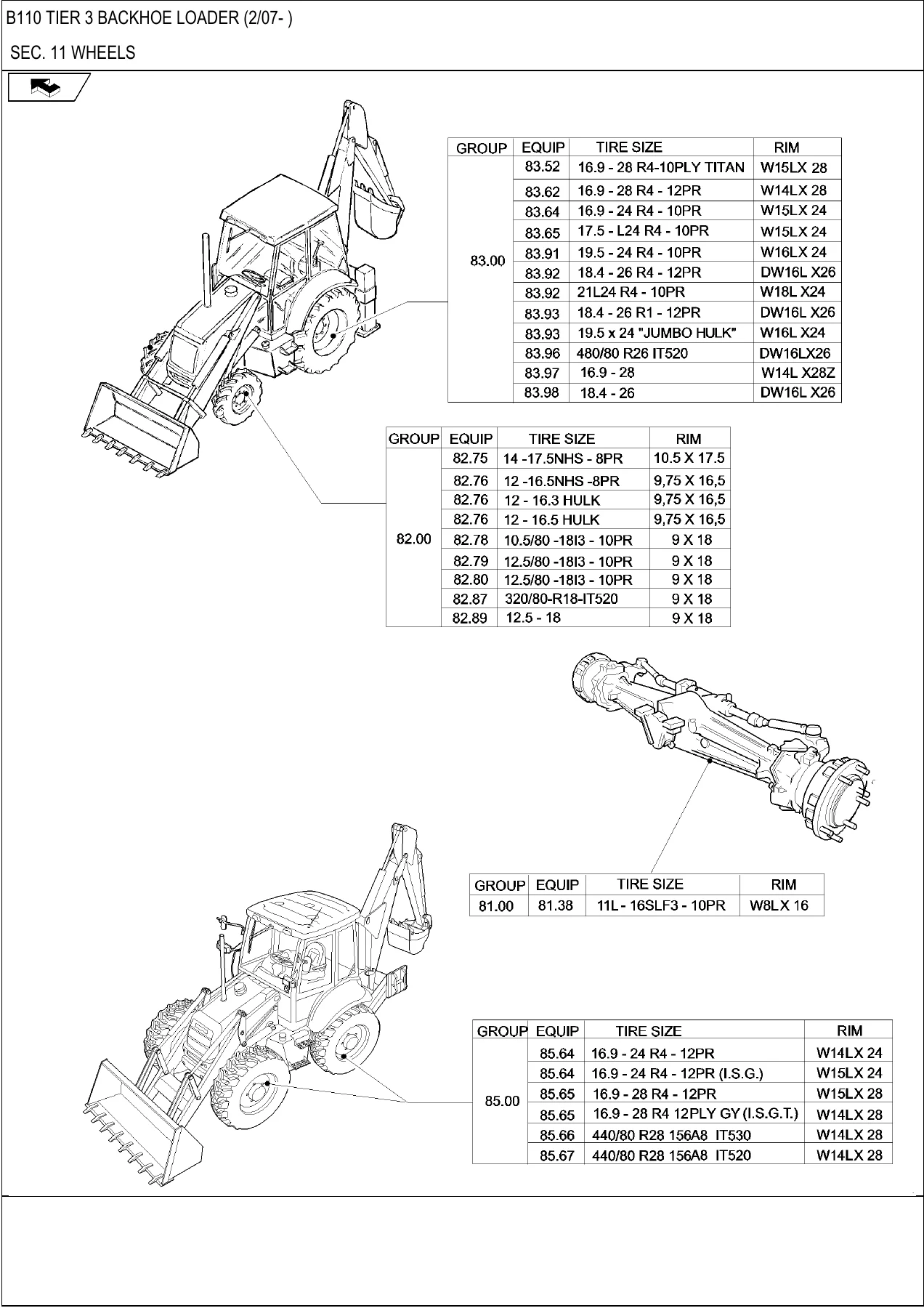

Section pages follow a fixed reference layout. A drawing carries balloon numbers, and the accompanying table repeats those numbers in the first column, then gives the New Holland part number, the quantity used and the description. Where a component is serviced as part of a larger assembly, the catalogue points to the relevant page – for example, hydraulic oil filters and engine oil filters are cross-referenced to their own maintenance pages, and the fuel filter entry points to the fuel filter section. That means once you have a balloon number from a diagram, you can go straight to the correct part number without a second lookup. Kit rows appear where New Holland grouped several small items into one repair or seal kit, and shim and spacer rows appear in the sizes the catalogue actually stocks.

What the Coverage Spans

The catalogue covers B110 Tier 3 machines from 2/07 onward and also lists B115 engine part numbers, so several sections carry part data that spans both. Because the B110 was offered in 2WD and 4WD, with Power-Shuttle or Power-Shift transmission, and with either side shift or centre pivot backhoe mounting, the parts book is broken out by variant rather than presented as one flat list. Separate sub-sections exist for 2WD Power-Shuttle, 4WD Power-Shuttle and 4WD Power-Shift gearing; separate rear axle groups exist for Power-Shift, Power-Shuttle side shift and Power-Shuttle centre pivot; separate sections cover side shift and centre pivot backhoe and loader geometry; and separate approval packages appear for Italy, Germany, Europe, the UK and France. Front axle parts are likewise split between 2WD and 4WD. If your machine is a specific build combination, this structure lets you go straight to the section that matches it instead of sorting through parts that do not apply.

Why This Catalogue Belongs in the Workshop

Ordering the wrong part is expensive on a backhoe loader, and the cost is rarely limited to the part itself – it is the downtime, the second shipment and the job that gets pushed back. This catalogue removes the guesswork. It lets you identify a component from the drawing, match it to the correct part number and quantity, and check whether it is supplied individually or only as part of an assembly or kit. In the workshop it is equally useful during strip-down: the exploded views show the order in which retainers, shims, seals, washers and bushings are assembled, which is often the step that causes a leak or a premature failure if it is put back wrong. Owners running older Tier 3 B110s will find this especially valuable, because the part numbers printed here are the numbers the parts counter still works from, and the illustrations make it possible to describe a component accurately over the phone or in a message.

Delivery is instant. The New Holland B110 Tier 3 Backhoe Loader Parts Catalog is supplied as a PDF that downloads immediately after purchase, with no shipping and no waiting on a courier. Open it on a laptop or tablet in the workshop, keep it on your phone while you are standing at the machine, or print the individual section pages you need and take them to the bench without worrying about damaging the file. Whether you are rebuilding a loader cylinder, chasing an electrical fault through the chassis harness, replacing cab trim, sourcing a stabilizer cylinder seal kit, matching a bucket tooth or simply confirming a filter number before a service, the answer is in this book.
