NEW HOLLAND B110 TIER 3 LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

Description

NEW HOLLAND B110 TIER 3 LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

FILE DETAILS:

NEW HOLLAND B110 TIER 3 LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

DESCRIPTION:

NEW HOLLAND B110 TIER 3 LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

We want you to be completely satisfied with your investment. Normally any problems with your equipment will be handled by your dealer’s Service Department; however, misunderstandings can occur. If your problem has not been handled to your satisfaction, we suggest the following:

Be aware that your problem will likely be resolved in the dealership using the dealer’s facilities, equipment, and personnel. So it is important that your initial contact be with the dealer.

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

NEW HOLLAND B110 TIER 3 LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

MAIN SECTIONS
MPARTS 00 MAINTENANCE PARTS
SEC. 02 FUEL TANK – MUFFLER – RADIATOR – AIR CLEANER – CHASSIS
SEC. 03 01 TRANSMISSION
SEC. 03 02 TRANSMISSION
SEC. 04 FRONT AXLE
SEC. 05 REAR AXLE
SEC. 06 ELECTRICAL
SEC. 07 SLIDES VALVES
SEC. 08 BODY & HOOD
SEC. 09 01 LOADER
SEC. 09 02 BACKHOE
SEC. 09 03 BACKHOE
SEC. 10 01 BODY, HOOD & DRIVER’S POST
SEC. 10 02 BODY, HOOD & DRIVER’S POST
SEC. 10 03 BODY, HOOD & DRIVER’S POST
SEC. 11 WHEELS
SEC. 18 VARIATION
0.02.0 SEC. 01 – ENGINE
0.02.1 ENGINE
0.04.0 CRANKCASE
0.04.2 ENGINE OIL SUMP
0.04.3 01 CRANKCASE COVERS
0.04.3 02 CRANKCASE COVERS
0.04.3 03 CRANKCASE COVERS
0.06.0 CYLINDER HEAD
0.06.3 01 CYLINDER HEAD COVERS
0.06.3 02 CYLINDER HEAD COVERS
0.06.6 ROCKER SHAFT
0.07.1 MANIFOLD – INTAKE
0.07.7 EXHAUST MANIFOLD
0.08.0 CRANKSHAFT
0.08.1 CONNECTING ROD
0.08.2 PISTON – ENGINE
0.08.3 FLYWHEEL – ENGINE
0.08.4 PULLEY – CRANKSHAFT
0.10.5 01 DYNAMIC BALANCER, GEARS & SHAFTS
0.10.5 02 DYNAMIC BALANCER, GEARS & SHAFTS
0.12.0 CAMSHAFT – TIMING CONTROL
0.14.0 01 INJECTION PUMP
0.14.0 02 INJECTION EQUIPMENT – INJECTOR
0.14.0/ A INJECTION PUMP – COMPONENTS
0.14.9 INJECTION EQUIPMENT – PIPING
0.17.0 ELECTRONIC INJECTION
0.17.3 MOTOR ELECTRIC INSTALLATION
0.20.0 FUEL FILTER
0.20.3 PIPING – FUEL
0.20.4 INJECTION EQUIPMENT – PIPING
0.24.0 TURBOCHARGER
0.27.0 ENGINE OIL DIPSTICK
0.30.0 OIL PUMP – ENGINE
TABLE OF CONTENTS
0.30.2 OIL FILTERS – ENGINE
0.30.5 PIPING – ENGINE OIL
0.31.5 HEAT EXCHANGER – ENGINE
0.32.0 WATER PUMP
0.32.3 COOLING SYSTEM – ENGINE
0.32.4 PIPING – ENGINE COOLING SYSTEM
0.32.6 THERMOSTAT – ENGINE COOLING SYSTEM
0.34.0 WATER PUMP – CONTROL
0.34.5 FAN DRIVE
0.36.0 STARTER MOTOR
0.40.0 ALTERNATOR
1.14.0 SEC. 02 – FUEL TANK – MUFFLER – RADIATOR – AIR CLEANER – CHASSIS
1.15.0 01 MUFFLER & EXTENSIONS
1.15.0 02 MUFFLER & EXTENSIONS
1.17.2 01 EXPANSION TANK
1.19.1 01 AIR CLEANER & HOSES
1.21.5/1 01 FRAME (CENTER PIVOT) – NA
1.21.5/3 01 FRAME (SIDE SHIFT) – EU
1.40.9 01 FUEL TANK & RELATED PARTS
1.42.7 01 FUEL PIPING
1.42.7 02 FILTER FUEL
1.27.0 01 SEC. 03 – TRANSMISSION
1.27.0 02 SEC. 03 – TRANSMISSION 2/2
1.28.0 01 GEARING SPEED GEAR
1.28.0/A 01 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE) – EU
1.28.0/A 02 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE) – EU
1.28.0/A 03 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE) – EU
1.28.0/A 04 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE) – EU
1.28.0/A 05 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE) – EU
1.28.0/A 06 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE) – EU
1.28.0/A 07 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE) – EU
1.28.0/B 01 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/B 02 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/B 03 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/B 04 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/B 05 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/B 06 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/B 07 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/B 08 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/C 01 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 02 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 03 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 04 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 05 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 06 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 07 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 08 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 09 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 10 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 11 TRANSMISSIONGEARING SPEED GEAR (4WD, 2WS, POWER-SHIFT)
1.28.0/C 12 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
TABLE OF CONTENTS
1.28.0/C 13 TRANSMISSIONGEARING SPEED GEAR (4WD, 2WS, POWER-SHIFT)
1.28.0/C 14 TRANSMISSIONGEARING SPEED GEAR (4WD – 2WS POWER-SHIFT)
1.28.0/C 15 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.0/C 16 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHIFT)
1.28.6 01 GEAR FILTER PIPES (POWER-SHUTTLE)
1.28.6/1 01 GEAR FILTER PIPES (POWER-SHIFT)
1.29.1 01 TRANSMISSION ESTERNALSHIFTING CONTROLS (POWER-SHUTTLE)
1.38.1 01 FRONT & REAR DRIVESHAFT (POWER-SHUTTLE)
1.38.3 01 FRONT & REAR DRIVESHAFT (POWER-SHIFT)
1.39.8 01 TRANSMISSION OIL COOLING PIPES (POWER-SHUTTLE)
1.39.8/1 01 TRANSMISSION OIL COOLING PIPES (POWER-SHIFT)
1.40.8 01 HYDRAULIC DIFFERENTIAL LOCK (POWER SHIFT)
1.30.0 SEC. 04 – FRONT AXLE
1.40.0 01 FRONT AXLE (2WD) – NA
1.40.0 02 FRONT AXLE (2WD) – NA
1.31.0 00 SEC. 05 – REAR AXLE
1.32.1 01 DIFFERENTIAL CONTROL (POWER-SHUTTLE)
1.32.1/1 01 DIFFERENTIAL CONTROL (POWER-SHUTTLE) (MECHANIC) (CENTER PIVOT)-NA
1.44.0 01 REAR AXLE (POWER-SHIFT)
1.44.0 02 REAR AXLE (POWER-SHIFT)
1.44.0 03 REAR AXLE (POWER-SHIFT)
1.44.0 04 REAR AXLE (POWER-SHIFT)
1.44.0/A 01 REAR AXLE (POWER-SHUTTLE) (SIDE SHIFT) – EU
1.44.0/A 02 REAR AXLE (POWER-SHUTTLE) (SIDE SHIFT) – EU
1.44.0/A 03 REAR AXLE (POWER-SHUTTLE) (SIDE SHIFT) – EU
1.44.0/B 01 REAR AXLE (POWER-SHUTTLE) (CENTER PIVOT) – NA
1.44.0/B 02 REAR AXLE (POWER-SHUTTLE) (CENTER PIVOT) – NA
1.44.0/B 03 REAR AXLE (POWER-SHUTTLE) (CENTER PIVOT) – NA
1.63.0 01 POWER STEERING HYDRAULIC SYSTEM
1.75.1 SEC. 06 – ELECTRICAL
1.75.2 01 CHASSIS HARNESS & GROUND WIRE (POWER SHUTTLE) – NA
1.75.2 02 BATTERY LOCK-OUT SWITCH & GROUND WIRE (POWER SHUTTLE)
1.75.2 03 ENGINE HARNESS (POWER SHUTTLE)
1.75.2/1 01 CHASSIS HARNESS & GROUND WIRE (POWER SHUTTLE)
1.75.2/2 01 CHASSIS HARNESS & GROUND WIRE (POWER SHIFT)
1.75.2/2 02 BATTERY LOCK-OUT SWITCH & GROUND WIRE (POWER SHIFT)
1.75.2/2 03 ENGINE HARNESS (POWER SHIFT)
1.77.0 SEC. 07 – SLIDES VALVES
1.81.9 01 “TRANSPORT LOCK” ON/OFF SWITCH, VALVE & HOSES (SIDE SHIFT)
1.81.9 02 TRANSPORT LOCK HOOK, CYLINDER & HOSE (SIDE SHIFT, POWER SHIFT)
1.81.9 03 LOCKING CYLINDER “TRANSPORT LOCK”
1.81.9/1 01 “TRANSPORT LOCK” ON/OFF SWITCH, VALVE & HOSES (POWER SHIFT, CENTER
PIVOT) – EU
1.81.9/1 02 TRANSPORT LOCK HOOK, CYLINDER & HOSE (CENTER PIVOT, POWER SHIFT) – EU
1.82.0 01 HYDRAULIC OIL RESERVOIR
1.82.3 01 HYDRAULIC PUMP (40+35-165L/MM)
1.82.6 01 HYDRAULIC SYSTEM PIPING
1.82.6 02 HYDRAULIC SYSTEM PIPING
1.82.6 03 HYDRAULIC SYSTEM PIPING
1.82.6 04 HYDRAULIC SYSTEM PIPING
1.82.6 05 HYDRAULIC SYSTEM PIPING
TABLE OF CONTENTS
1.82.6 06 HYDRAULIC SYSTEM PIPING
1.82.6 07 HYDRAULIC SYSTEM PIPING
1.82.6 08 HYDRAULIC SYSTEM PIPING
1.82.6 09 HYDRAULIC SYSTEM PIPING
1.82.6 11 HYDRAULIC SYSTEM PIPING(SIDE SHIFT)
1.82.6 12 HYDRAULIC SYSTEM PIPING
1.82.6 13 HYDRAULIC SYSTEM PIPING(SIDE SHIFT)
1.82.6 14 HYDRAULIC SYSTEM PIPING (SIDE SHIFT)
1.82.6 15 HYDRAULIC SYSTEM PIPING
1.82.6 16 BACKHOE CONTROL VALVE(CENTER PIVOT) – NA
1.82.6 17 DIPPER VALVE SECTION (CENTER PIVOT) – NA
1.82.6 18 BUCKET, SWING, & BOOM VALVE SECTION (CENTER PIVOT) – NA
1.82.6/ 1 01 FRONT HYDRAULIC PUMP INTAKE & OUTLET HOSES (CENTER PIVOT) – NA
1.82.6/ 1 02 REAR HYDRAULIC PUMP STABILIZER, LOADER & BACKHOE VALVE HOSES
(CENTER PIVOT) – NA
1.82.6/ 1 03 HYDRAULIC SYSTEM PIPING(CENTER PIVOT) – NA
1.82.6/ 1 04 RETURN MANIFOLD HOSES – NA
1.82.6/ 1 05 FILTER ASSEMBLY & HOSE TO RETURN MANIFOLD (CENTER PIVOT) – NA
1.82.6/ 1 07 LOADER LIFT CYLINDER HOSES (CENTER PIVOT) – NA
1.82.6/ 1 08 LOADER BUCKET CYLINDER HOSES (CENTER PIVOT) – NA
1.82.6/ 1 09 HYDRAULIC SYSTEM PIPING NA (CENTER PIVOT) – NA
1.82.6/ 1 10 BACKHOE CONTROL VALVE HOSES (CENTER PIVOT) – NA
1.82.6/ 1 11 ROTATION PLATE HOSE CLAMPS (CENTER PIVOT)
1.82.6/ 2 02 BACKHOE SWING CYLINDER HOSES (CENTER PIVOT) – NA
1.82.6/ 2 03 HYDRAULIC SYSTEM PIPING
1.82.6/ 3 01 HYDRAULIC SYSTEM PIPING
1.78.0 SEC. 08 – BODY & HOOD
1.83.0 01 HOOD, GRILLE & RELATED PARTS
1.87.2 01 CAB SCREEN
1.87.8 01 CAB FASTENERS
1.20.0 01 SEC. 09 – LOADER
1.20.0 02 SEC. 09 – BACKHOE
1.20.0 03 SEC. 09 – BACKHOE
1.21.4 01 REAR SUPPORT (SIDE SHIFT) – EU
1.80.9 01 SWING POST ASSEMBLY, BUSHINGS & PINS
1.80.9 02 SWING POST PINS & TRANSPORT LOCK HOOK
1.81.9/2 01 TRANSPORT LOCK” REAR LOCKING” (CENTER PIVOT)
1.81.9/2 02 TRANSPORT LOCK” REAR LOCKING” (CENTER PIVOT)
1.88.11 01 ARMS AND JOINTS
1.88.11/1 01 LOADER CYLINDER
1.88.11/2 01 LOADER BUCKET CONTROL CYLINDER
1.88.11/2 02 LOADER BUCKET CONTROL CYLINDER
1.88.11/3 01 LIFT CYLINDER AND BUCKET PIPES
1.88.11/5 01 SELF-LEVELING LINKAGE, LOADER CONTROLS (SIDE SHIFT)
1.88.11/5 02 SELF-LEVELING LINKAGE, LOADER ARM (SIDE SHIFT)
1.88.11/5A 01 SELF-LEVELING LINKAGE, LOADER CONTROLS (CENTER PIVOT MECHANIC) – NA
1.88.11/5A 02 SELF-LEVELING LINKAGE, LOADER ARM (CENTER PIVOT) – NA
1.88.11/6 01 STABILIZER CYLINDERS (SIDE SHIFT) – EU
1.88.11/6A 01 STABILIZER CYLINDERS (CENTER PIVOT)
1.88.11/7 01 PIPES FOR STABILIZER CYLINDERS (SIDE SHIFT) – EU
1.88.11/7A 01 PIPES FOR STABILIZER CYLINDERS (CENTER PIVOT PILOT)
TABLE OF CONTENTS
1.88.11/7C 01 PIPES FOR STABILIZER CYLINDERS (CENTER PIVOT MECHANIC) – NA
1.88.11/8 01 RETURN TO DIG SENSOR
1.88.11/9 01 CYLINDERS AND ROTATION PLATE (SIDE SHIFT) – EU
1.88.11/9 02 SWING CYLINDERS BACKHOE
1.88.11/9A 01 CYLINDERS AND ROTATION PLATE (CENTER PIVOT)
1.88.12/3 01 FRONT CONTROL VALVE SUPPORT AND TRANSMISSIONS (CENTER PIVOT – SIDE
SHIFT)
1.88.12/3A 01 FRONT CONTROL VALVE SUPPORT AND TRANSMISSIONS (CENTER PIVOT) – NA
1.89.9 01 DISTRIBUTOR VALVE SUPPORT (SIDE SHIFT REXROTH) – EU
1.89.9/1 01 DISTRIBUTOR VALVE SUPPORT HUSCO (CENTER PIVOT) – NA
1.62.0 01 SEC. 10 – BODY, HOOD & DRIVER’S POST
1.62.0 02 SEC. 10 – BODY, HOOD & DRIVER’S POST
1.62.0 03 SEC. 10 – BODY, HOOD & DRIVER’S POST
1.79.9 01 STABILIZER CONTROL (CENTER PIVOT) – NA
1.91.1 01 CAB / CEILING LIGHT
1.91.1/1 01 SAFETY FRAME- INSTRUMENTS AND GAUGES (ROPS) – NA
1.91.3 01 BACK-UP ALARM
1.91.4 01 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHUTTLE)
1.91.4 02 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHUTTLE)
1.91.4 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHUTTLE)
1.91.4 04 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHUTTLE)
1.91.4 05 FRONT DASH (CAB POWER SHUTTLE)
1.91.4 06 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHUTTLE)
1.91.4/1 01 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHIFT)
1.91.4/1 02 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHIFT)
1.91.4/1 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHIFT)
1.91.4/1 04 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHIFT)
1.91.4/1 05 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHIFT)
1.91.4/1 06 FRONT DASH (CAB POWER SHIFT)
1.91.4/1 07 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHIFT)
1.91.4/1 08 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
POWER SHIFT)
1.91.4/2 01 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE) – NA
1.91.4/2 02 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE) – NA
1.91.4/2 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE) – NA
1.91.4/2 04 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE) – NA
TABLE OF CONTENTS
1.91.4/2 05 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE) – NA
1.91.4/2 06 RH SIDE CONSOLE TRIM, INSTRUMENT CLUSTER & SWITCHES (ROPS CP
POWER SHUTTLE) – NA
1.91.5 01 FRONT AND REAR WINDSCREEN WIPERS
1.91.5 02 WINDSCREEN WIPERS RESERVOIR & NOZZLES
1.91.6 01 RADIO ANTENNA & SPEAKER COVER
1.91.7 01 LAMPS & LIGHTS – CAB – EU
1.91.7/1 01 LAMPS & LIGHTS – ROPS – NA
1.91.7/2 01 LAMPS & LIGHTS – CAB – NA
1.91.8 01 CAB-SAFETY FRAME / EXTINGUISHER
1.92.2 01 CAB – FRAME-DOOR
1.92.3 01 WINDOWS
1.92.4 01 WINDOWS
1.92.4 02 WINDOWS
1.92.4 03 WINDOWS
1.92.5 01 FENDERS, REAR
1.92.6 01 DOOR COMPONENTS
1.92.6 02 DOOR COMPONENTS
1.92.6 03 DOOR COMPONENTS
1.92.8 01 FIREWALL SEAL, ROPS – NA
1.92.9 01 REAR WINDOWS
1.92.9 02 REAR WINDOWS
1.92.9 03 REAR WINDOWS
1.93.0 01 CAB / SOFT TRIM (POWER SHUTTLE, POWER SHIFT)
1.93.0 02 CAB / SOFT TRIM (POWER SHUTTLE)
1.93.0 03 CAB / SOFT TRIM (POWER SHUTTLE – POWER SHIFT)
1.93.0 04 CAB / SOFT TRIM (POWER SHUTTLE, POWER SHIFT)
1.93.0/1 01 CAB / SOFT TRIM (POWER SHIFT – POWER SHUTTLE)
1.93.0/2 01 CAB / SOFT TRIM (POWER SHUTTLE, POWER SHIFT)
1.93.0/2 02 CAB / SOFT TRIM (POWER SHUTTLE, POWER SHIFT)
1.93.0/3 01 RH & BACKHOE CONSOLE TRIM, ROPS (CENTER PIVOT) – NA
1.93.0/4 01 MACHINES SOFT TRIMS (ROPS) – NA
1.93.4 01 REAR MIRROR – SUN SCREEN
1.93.5 01 CAB / PANEL DASH
1.93.5 02 CAB / PANEL DASH
1.93.5/1 01 FRONT CONSOLE – ROPS (POWER SHUTTLE) – NA
1.93.5/1 02 RH SIDE CONSOLE SEAL & CLIPS – ROPS (POWER SHUTTLE) – NA
1.93.7 01 INNER REAR VIEW MIRROR (POWER SHUTTLE) ROPS – NA
1.94.0 01 CAB/ CANOPY
1.94.0/1 01 ROOF – NA
1.94.2 01 HEATER WATER HOSES
1.95.0 01 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0 02 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0 03 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0/A 01 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.1 01 CAB-SAFETY FRAME / HAND BRAKE
1.95.2 01 TRANSPORT LOCK CONTROL – NA
1.95.3 01 ACCELERATOR CONTROL HAND/PEDAL
1.95.5 01 POWER STEERING MOTOR, WHEEL & COLUMN TRIM – NA
1.95.5 02 POWER STEERING MOTOR HOSES – NA
TABLE OF CONTENTS
1.95.5 03 POWER STEERING MOTOR – NA
1.95.5/1 01 POWER STEERING MOTOR, WHEEL & COLUMN TRIM – EU
1.95.5/1 02 POWER STEERING MOTOR HOSES – EU
1.95.5/1 03 POWER STEERING MOTOR – EU
1.96.0 01 FOWARD/REVERSE & MULTI-PURPOSE LEVER
1.96.0/1 01 FOWARD/REVERSE & MULTI-PURPOSE LEVER
1.96.2 01 STABILIZER CONTROL (SIDE SHIFT)
1.96.2/1 01 PILOT CONTROL DIAGNOSTICS
1.96.7 01 CAB / MISCELLANEOUS CAPS (POWER SHIFT) (SIDE SHIFT) – EU
1.96.7/1 01 CAB / MISCELLANEOUS CAPS (POWER SHIFT) (SIDE SHIFT) – EU
1.96.7/2 01 CAB PLUGS, FLOOR PLATES & AIR CONVEYER (SIDE SHIFT POWER SHUTTLE) – EU
1.96.7/3 01 CAB / MISCELLANEOUS CAPS (POWER SHIFT) – EU
1.96.7/4 01 ROPS PLUGS & FLOOR PLATE (CENTER PIVOT) – NA
1.96.7/5 01 CAB / MISCELLANEOUS CAPS (CENTER PIVOT) – NA
1.96.7/6 01 CAB / MISCELLANEOUS CAPS (CENTER PIVOT) – NA
1.96.7/7 01 ROPS PLUGS & FLOOR PLATE (CENTER PIVOT) – NA
1.98.0 01 INFORMATION SYMBOL DECALS – EU
1.98.0 02 WARNING SYMBOL DECALS
1.98.0/1 01 INFORMATION SYMBOL DECALS (POWER SHUTTLE – POWER SHIFT)
1.98.1 01 PILOT IDENTIFICATION – EU
1.98.1 02 B110 MODEL IDENTIFICATION (POWER SHIFT) – EU
1.98.1 03 B110 MODEL IDENTIFICATION (POWER SHUTTLE) – EU
1.98.1 05 B110 MODEL IDENTIFICATION (POWER SHUTTLE) – NA
1.98.1 06 B110 MODEL IDENTIFICATION – POWER SHIFT – NA
80.00 SEC. 11 – WHEELS
81.00 01 FRONT WHEELS (2WD) – NA
82.00 01 DRIVING WHEELS(4WD) – NA
82.00 02 FRONT WHEELS (4WD) – EU
82.00 03 FRONT WHEELS (4WD) – EU
83.00 01 REAR WHEELS – NA
83.00 02 REAR WHEELS (SIDE SHIFT) – EU
83.00 03 FRONT WHEELS (2WD/4WD) – EU
094 SEC. 18 – VARIATION
095 01 STABILIZER CONTROL WITHOUT AUTO-UP (CENTER PIVOT)
096 01 STABILIZER CONTROL WITH AUTO-UP (CENTER PIVOT) – NA
128 01 APPROVAL FOR ITALY – EU
128 02 APPROVAL FOR ITALY – EU
128 03 APPROVAL FOR ITALY – EU
128 04 APPROVAL FOR ITALY – EU
128 05 APPROVAL FOR ITALY – EU
128 07 APPROVAL FOR – EU
129 01 APPROVAL FOR GERMANY – EU
129 02 APPROVAL FOR GERMANY – EU
129 03 APPROVAL FOR GERMANY – EU
129 04 APPROVAL FOR GERMANY – EU
129 05 APPROVAL FOR GERMANY – EU
129 07 APPROVAL FOR GERMANY – EU
130 01 APPROVAL FOR EUROPE
130 02 APPROVAL FOR EUROPE
130 03 APPROVAL FOR EUROPE
130 04 APPROVAL FOR EUROPE
TABLE OF CONTENTS
131 01 SINGLE BATTERY
140 01 UK VERSION – EU
140 02 APPROVAL FOR UK – EU
140 03 APPROVAL FOR UK – EU
140 04 APPROVAL FOR UK – EU
140 05 UK VERSION – EU
140 06 APPROVAL FOR UK – EU
141 01 APPROVAL FOR FRANCE – EU
141 02 APPROVAL FOR FRANCE – EU
141 03 APPROVAL FOR FRANCE – EU
141 04 APPROVAL FOR FRANCE – EU
141 05 APPROVAL FOR FRANCE – EU
173 01 MUFFLER & EXTENSIONS WITH FLASH GUARD
175 01 AIR INTAKE CAP & PRE-CLEANER
176 01 AIR INTAKE CAP & PRE-CLEANER
201 01 SHOVEL AND REAR LIFTING HOOKS
203 01 FRONT WEIGHTS
215 01 FRONT WEIGHTS
243 01 BACKHOE LOADER BUCKETS COUPLING – EU
284 01 REAR MIRROR (CAB) – NA
301 01 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT)
301 02 BACKHOE CONTROL VALVE, OULET SECTION (SIDE SHIFT) – EU
301 04 PEDAL-OPERATED TELESCOPIC DIPPER HYDRAULIC SYSTEM (SIDE SHIFT) – EU
302 01 TWO-SECTION CONTROL VALVE FOR LOADER
302 02 TWO-SECTION CONTROL VALVE FOR LOADER
302 03 TWO-SECTION CONTROL VALVE FOR LOADER
302 04 TWO-SECTION CONTROL VALVE FOR LOADER
311 01 STABILIZER CYLINDER – LOCK VALVE (SIDE SHIFT) – EU
321 01 DOUBLE BATTERY
331 01 TOWER ASSY 6 SECTIONS (CENTER PIVOT) – EU
331 02 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 03 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331 04 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 05 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 06 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331 07 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 08 PILOT CONTROL VALVE SUPPORT, COMPLETE
331 09 PILOT CONTROL VALVE SUPPORT, COMPLETE
331/A 01 PROPORTIONAL CONTROL VALVE 6 SECTIONS
331/B 01 BACKHOE CONTROL VALVE, 6 SECTIONS (CENTER PIVOT) – EU
331/B 02 BACKHOE CONTROL VALVE, INLET SECTION (CENTER PIVOT) – EU
331/B 03 BACKHOE CONTROL VALVE, BOOM SECTION (CENTER PIVOT) – EU
331/B 04 BACKHOE CONTROL VALVE, SWING SECTION (CENTER PIVOT) – EU
331/B 05 BACKHOE CONTROL VALVE, BUCKET SECTION (CENTER PIVOT) – EU
331/B 06 BACKHOE CONTROL VALVE, DIPPERSTICK SECTION (CENTER PIVOT) – EU
331/B 07 BACKHOE CONTROL VALVE, STABILIZER SECTION (CENTER PIVOT) – EU
331/C 01 PILOT VALVE OF HYDRAULIC CONTROL LEVER (RIGHT HAND)
331/C 02 VALVE, JOYSTICK PILOT CONTROLS (LEFT HAND)
332 01 TOWER ASSY 6 SECTIONS (SIDE SHIFT) – EU
332/B 01 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT) – EU
332/B 02 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT) – EU
TABLE OF CONTENTS
332/B 03 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT) – EU
332/B 04 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT) – EU
332/B 05 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT) – EU
332/B 06 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT) – EU
332/B 07 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT) – EU
332/B 08 BACKHOE CONTROL VALVE, 6 SECTIONS (SIDE SHIFT) – EU
333 01 TOWER ASSY 7 SECTIONS (CENTER PIVOT)
333 02 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
333 03 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
333 04 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
333 05 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
333/1 01 TOWER ASSY 7 SECTIONS (CENTER PIVOT) – NA
333/1B 01 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – NA
333/1B 02 BACKHOE CONTROL VALVE, INLET SECTION (CENTER PIVOT) – NA
333/1B 03 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – NA
333/1B 04 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – NA
333/1B 05 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – NA
333/1B 06 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – NA
333/1B 07 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – NA
333/1B 08 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – NA
333/A 01 PROPORTIONAL CONTROL VALVE 7 SECTIONS
333/B 01 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – EU
333/B 02 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) – EU
333/C 01 PILOT VALVE OF HYDRAULIC CONTROL LEVER (RIGHT HANDS) 7 SPOOLS
334 01 TOWER ASSY 7 SECTIONS (SIDE SHIFT) – EU
334 02 7-SECTIONS EXCAVATOR CONTROL VALVE (SIDE SHIFT) – EU
334/B 01 7-SECTIONS EXCAVATOR CONTROL VALVE (SIDE SHIFT) – EU
334/B 02 7-SECTIONS EXCAVATOR CONTROL VALVE (SIDE SHIFT) – EU
336 01 TWO SECTION LOADER CONTROL VALVE (CENTER PIVOT)
336 02 LOADER CONTROL VALVE, TWO SECTION, CAP & UNLOAD VALVE (CENTER
PIVOT)
336 03 LOADER CONTROL VALVE, TWO SECTION, RELIEF & CHECK VALVES (CENTER
PIVOT)
336 04 LOADER CONTROL VALVE, TWO SECTION, BY-PASS KIT (CENTER PIVOT)
336 05 LOADER CONTROL VALVE, TWO SECTION, UNLOAD KIT OR DUMP VALVE
(CENTER PIVOT)
336/1 01 TOWER ASSY 7 SECTIONS (SIDE SHIFT)
337 01 LOCK VALVE ON LOADER CYLINDERS
337 02 LOCK VALVE ON LOADER LIFT CYLINDERS
338 01 LOCK VALVE ON LOADER LIFT CYLINDERS
341 01 TOWER ASSY 8 SECTIONS (SIDE SHIFT) – EU
341 02 8 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE – EU
341 03 8 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE (SIDE SHIFT) EU
341 04 8 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE – EU
341/A 01 PROPORTIONAL VALVE 4 OPERATIONSV – EU
341/B 01 8-SECTIONS EXCAVATOR CONTROL VALVE (SIDE SHIFT) – EU
341/B 02 EXCAVATOR CONTROL VALVES GROUP 8 SECTIONS (SIDE SHIFT) – EU
341/C 01 PILOT VALVE OF HYDRAULIC CONTROL LEVER (L.H.) – EU
344 01 STABILIZER CONTROL VALVE, TWO SECTION (CENTER PIVOT) – NA
344 02 STABILIZER CONTROL VALVE, LH & RH SECTION (CENTER PIVOT) – NA
346 01 A/C HOUSING & FILTERS
TABLE OF CONTENTS
346 02 A/C BLOWER & COILS
346 03 HEATER COIL HOSES
346 04 A/C & HEATER CONTROL PANEL
346 05 A/C & HEATER CONSOLE DUCTS
347 01 HOUSING & FILTERS
347 02 HEATER BLOWER & COILS
347 03 HEATER COIL HOSES
347 04 A/C & HEATER CONTROL PANEL
347 05 A/C & HEATER CONSOLE DUCTS
347 06 CAB HEATING COATING PLUG
350 01 2 LEVER BACKHOE CONTROLS
350 02 2 LEVER BACKHOE CONTROLS
351 01 JCB 2 LEVER BACKHOE CONTROLS
351 02 JCB 2 LEVER BACKHOE CONTROLS
351 03 JCB 2 LEVER BACKHOE CONTROLS
358 01 ISO 2 LEVER BACKHOE CONTROLS
358 02 ISO 2 LEVER BACKHOE CONTROLS
367 01 LOCK VALVES COMPONENTS – EU
374 01 HYDRAULIC SYSTEM FOR “TRANSPORT LOCK” REAR LOCKING (POWER
SHUTTLE, SIDE SHIFT) – EU
374 02 HYDRAULIC SYSTEM FOR “TRANSPORT LOCK” REAR LOCKING (POWER
SHUTTLE, SIDE SHIFT) – EU
375 01 TRANSPORT LOCK – EUROPE (POWER SHUTTLE) (CAB SIDE SHIFT) – EU
379 01 TRANSPORT LOCK” REAR LOCKING” (SIDE SHIFT POWER SHUTTLE) – EU
379 02 TRANSPORT LOCK” REAR LOCKING” (SIDE SHIFT POWER SHUTTLE) – EU
380 01 TRANSPORT LOCK CONTROL (CAB POWER SHUTTLE) – EU
390 01 LOADER CONTROL VALVE, TWO SECTION, LEVER & DECAL
391 01 LOCK VALVE FOR BUCKET 4X1 / 6X1
392 01 LOCKING VALVE ON BACKHOE LIFT AND DIPP. CYLINDER
392 02 BACKHOE LIFT & DIPPERSTICK CYLINDER LOCK VALVE
393 01 2 LEVER BACKHOE CONTROLS, LEVER, BOOT & DECALS
394 01 4 LEVER BACKHOE CONTROLS, CONSOLE, LEVERS & BELLCRANK (CENTER
PIVOT – SIDE SHIFT)
394 02 4 LEVER BACKHOE CONTROLS, UPPER TIE-ROD ASSEMBLY, (CENTER PIVOT –
SIDE SHIFT)
394 03 4 LEVER BACKHOE CONTROLS, LOWER TIE-ROD ASSEMBLY (CENTER PIVOT –
SIDE SHIFT)
394/1 01 ISO 2 LEVER BACKHOE CONTROLS, LEVERS, BOOT & DECALS (CENTER PIVOT)
394/1 02 ISO 2 LEVER BACKHOE CONTROLS, TIE-ROD ASSEMBLY (CENTER PIVOT)
402 01 4WD FRONT AXLE, HOUSING, BUSHINGS & SUPPORTS – NA
402 02 4WD FRONT AXLE, SWIVEL HOUSING & STEERING CYLINDER – NA
402 03 4WD FRONT AXLE, HUBS – NA
402 04 4WD FRONT AXLE, RING GEAR & PINION ASSEMBLY – NA
402 05 4WD FRONT AXLE, DIFFERENTIAL – NA
402 06 4WD FRONT AXLE, DRIVE SHAFT
415 01 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 02 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 03 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 04 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 05 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 06 FRONT AXLE – (4WD) W/GEAR,BEVEL
TABLE OF CONTENTS
416 01 SYSTEM HAMMER COMPONENTS (CAB – ROPS)
437 01 GLIDE RIDE VALVE,HYDRAULIC SYSTEM FOR MACHINE FRAME LEVELLING
471 01 BUCKET 4X1 (1 M3) WITH BLADE “COMMON GREY”
471 02 BUCKET 4X1 (1 M3) WITH BLADE “COMMON GREY”
471/1 01 HYDRAULIC CYLINDER (BUCKET 4X1-6X1)
472 01 BUCKET 4X1 (1 M3) WITH TINE “COMMON GREY”
472 02 BUCKET 4X1 (1 M3) WITH TINE “COMMON GREY”
473 01 BUCKET 6X1 (1 M3) WITH BLADE “COMMON GREY”
473 02 BUCKET 6X1 (1 M3) WITH BLADE “COMMON GREY”
474 01 BUCKET 6X1 (1 M3) WITH TINE “COMMON GREY”
474 02 BUCKET 6X1 (1 M3) WITH TINE “COMMON GREY”
487 01 24″ (610MM) BACKHOE BUCKET WITH PIN TEETH
515 01 12″ (305MM) BACKHOE BUCKET WITH BOLT-ON TEETH
515/1 01 12″ (305MM) BACKHOE BUCKET WITH PIN TEETH
516 01 18″ (457MM) BACKHOE BUCKET WITH BOLT-ON TEETH
516/1 01 BACKHOE BUCKET WITH PIN TEETH
517 01 24″ (610MM) BACKHOE BUCKET WITH BOLT-ON TEETH
517/1 01 24″ (610MM) BACKHOE BUCKET WITH PIN TEETH
518 01 30″ (762MM) BACKHOE BUCKET WITH BOLT-ON TEETH
518/1 01 30″ (762MM) BACKHOE BUCKET WITH PIN TEETH
519 01 36″ (914MM) BACKHOE BUCKET WITH BOLT-ON TEETH
519/1 01 36″ (914MM) BACKHOE BUCKET WITH PIN TEETH
520 01 0.88 M3 BUCKET WITHOUT TINES
520/1 01 18″ (457MM) BACKHOE BUCKET WITH PIN TEETH (EXTRA HD)
521 01 PIN TOOTH KIT, 24” (610 MM) BACKHOE BUCKETS (EXTRA HD) – EU
522 01 1 M3 BUCKET
522/1 01 STANDARD 1MC BUCKET WITH FORKS
525 01 STANDARD 1MC BUCKET WITH FORKS AND REVERSIBLE BLADE
526 01 STANDARD 1M3 BUCKET WITH FORKS AND TINE
527 01 0.88 M3 BUCKET AND EXTRA REVERSIBLE BLADE
529 01 STABILIZER FOOT STREET PAD (SIDE SHIFT) – EU
530 01 STABILIZER FOOT GROUND (SIDE SHIFT) – EU
535 01 STABILIZER FOOT GROUND (CENTER PIVOT)
535/1 01 STABILIZER FOOT STREET PAD (CENTER PIVOT)
536 01 STANDARD 1MC BUCKET WITH TINE
536/1 01 REVERSIBLE STABILIZER FOOT (CENTER PIVOT)
537 01 STANDARD 1MC BUCKET WITH EXTRA REVERSIBLE BLADE
548 01 DITCH CLEANING BUCKET
599 01 STABILIZER FOOTSTREET PAD (SIDE SHIFT) – EU
622 01 INTERNAL FAN
638 01 RADIATOR
638 02 RADIATOR
638 03 RADIATOR
638 04 RADIATOR
638/ A 01 ACCESSORY ENGINE
638/ A 02 ACCESSORY ENGINE – VENTILATOR
638/ A 03 ACCESSORY ENGINE – STARTER
638/ A 04 ACCESSORY ENGINE- ALTERNATOR
638/1 01 4WD STEERING LOCK
639 01 RADIATOR
639 02 RADIATOR
TABLE OF CONTENTS
639 03 RADIATOR
639 04 RADIATOR
639/ A 01 ACCESSORY ENGINE
639/ A 02 ACCESSORY ENGINE – VENTILATOR
639/ A 03 ACCESSORY ENGINE – STARTER
639/ A 04 ACCESSORY ENGINE- ALTERNATOR
642 01 EGS CONTROL, 20 & 40KM/H (POWER SHIFT)
646 01 MACHINE PART AIR CONDITIONING SET
646 02 A/C COMPRESSOR ATTACHING GROUP
646 03 A/C COMPRESSOR
646 04 A/C FILTER & CONDENSER ATTACHING GROUP
650 01 STEERING COLUMN, FIXED & ADJUSTABLE
698 01 GLIDE RIDE VALVE,HYDRAULIC SYSTEM FOR MACHINE FRAME LEVELLING &
ON/OFF SWITCH
699 01 HAND HAMMER SWITCH
700 01 4X1 & 6X1 BUCKET HYDRAULIC LINES (POWER SHIFT POWER SHUTTLE)
700 02 4X1 & 6X1 BUCKET HYDRAULIC LINES (POWER SHIFT POWER SHUTTLE)
700 03 THREE-SECTION CONTROL VALVE FOR LOADER (POWER SHIFT – POWER
SHUTTLE)
700 04 THREE-SECTION CONTROL VALVE FOR LOADER (POWER SHIFT – POWER
SHUTTLE)
702 01 PEDAL-OPERATED TELESCOPIC DIPPER HYDRAULIC SYSTEM (SIDE SHIFT) (7
SECTION) – EU
702 02 PEDAL-OPERATED TELESCOPIC DIPPER HYDRAULIC SYSTEM (SIDE SHIFT) (7
SECTIONS) – EU
702 03 PEDAL-OPERATED TELESCOPIC DIPPER HYDRAULIC SYSTEM 7 SECTIONS
702 04 PEDAL-OPERATED TELESCOPIC DIPPER HYDRAULIC SYSTEM – EU
702 05 PEDAL-OPERATED TELESCOPIC DIPPER HYDRAULIC SYSTEM (SIDE SHIFT) – EU
702 06 PEDAL-OPERATED TELESCOPIC DIPPER HYDRAULIC SYSTEM (SIDE SHIFT) – EU
702 07 PEDAL-OPERATED TELESCOPIC DIPPER HYDRAULIC SYSTEM (SIDE SHIFT) – EU
721 01 TELESCOPIC CONTROL VALVE, 3 SECTIONS(CENTER PIVOT) – NA
721 02 STABILIZER CONTROL VALVE, THIRD SECTION (CENTER PIVOT) – NA
721 03 HED TELESCOPIC CONTORL VALVE, SECTION HOSES(CENTER PIVOT) – NA
721 04 HED CYLINDER PISTON END HYDRAULIC LINES (CENTER PIVOT) – NA
721 05 HED CYLINDER ROD END HYDRAULIC LINES (CENTER PIVOT) – NA
721 06 HED FOOT PEDAL, CABLE & DECALS (CENTER PIVOT) – NA
724 01 HYDRAULIC SYSTEM FOR HAMMER (SIDE SHIFT) – EU
724 02 HYDRAULIC SYSTEM FOR BREAKER BACK (SIDE SHIFT) – EU
724/1 01 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/1 02 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/2 01 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/2 02 HYDRAULIC SYSTEM FOR HAMMER
724/A 01 REAR HAMMER CONTROL VALVE
725 01 HAMMER KIT FROM LIFTING ARM TO DEMOLITION ARM
725/1 01 4X1 & 6X1 BUCKET HYDRAULIC LINES (POWER SHUTTLE) – NA
725/1 02 4X1 & 6X1 BUCKET HYDRAULIC LINES (P. SHUTTLE) – NA
725/1 03 LOADER CONTROL VALVE, THREE SECTION (CENTER PIVOT) – NA
725/1 04 LOADER CONTROL VALVE, THREE SECTION, CAP & UNLOAD VALVE (CENTER
PIVOT) – NA
725/1 05 LOADER CONTROL VALVE, THREE SECTION, RELIEF & CHECK VALVES (CENTER
PIVOT) – NA
TABLE OF CONTENTS
725/1 06 THREE-SECTION CONTROL VALVE FOR LOADER – BUCKET SECTION 4X1 /
6X1(CENTER PIVOT) – NA
725/2 01 4X1 & 6X1 BUCKET HYDRAULIC LINES (POWER SHIFT) – NA
725/2 02 4X1 & 6X1 BUCKET HYDRAULIC LINES (POWER SHIFT) – NA
727 01 HYDRAULIC SYSTEM PRESETTING FOR TELESCOPIC LINKS PEDAL OPERATED
728 01 MANUAL HAMMER SYSTEM
728 02 MANUAL HAMMER SYSTEM
728 03 MANUAL HAMMER VALVE
733 01 REAR MECHANICAL QUICK-COUPLING
734 01 FRONT MECHANICAL QUICK-COUPLING
758 01 ROTATING BEACON
787 01 FRONT CONSOLE WITHOUT SPEEDOMETER (POWER SHUTTLE, ROPS)
787/1 01 FRONT CONSOLE WITHOUT SPEEDOMETER (POWER SHUTTLE, CAB)
788 01 FRONT CONSOLE WITH SPEEDOMETER (ROPS)
788/1 01 FRONT CONSOLE WITH SPEEDOMETER (CAB)
789 01 SPEED SENSOR(P.SHUTTLE)
793 01 FRONT WORKING LIGHT – CAB
793/1 01 FRONT WORKING LIGHT (ROPS) – NA
794 01 LAMPS & LIGHTS – CAB
794/1 01 LAMPS & LIGHTS (ROPS) – NA
796 01 ANTITHEFT
803 01 FENDERS, FRONT
851 01 CLOTH SEAT & ATTACHING HARDWARE – CABINE
851/1 01 CLOTH SEAT CUSHIONS, ARMRESTS & RELATED PARTS
851/1 02 CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT
851/1 03 CLOTH SEAT UPPER SUSPENSION PARTS
851/1 04 CLOTH SEAT LOWER SUSPENSION PARTS
855 01 AIR RIDE CLOTH SEAT & ATTACHING HARDWARE – CABINE
855/1 01 AIR RIDE CLOTH SEAT CUSHIONS, ARMRESTS & RELATED PARTS
855/1 02 AIR RIDE CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT
855/1 03 AIR RIDE CLOTH SEAT UPPER SUSPENSION PARTS
855/1 04 AIR RIDE CLOTH SEAT LOWER SUSPENSION PARTS
855/1 05 AIR RIDE CLOTH SEAT COMPRESSOR & TUBING
856 01 VINYL SEAT CUSHIONS, ARMRESTS & RELATED PARTS (ROPS) – NA
856/1 01 VINYL SEAT WITH ARMRESTS & MOUNTING HARDWARE (ROPS) – NA
856/1 02 VINYL SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT (ROPS) – NA
856/1 03 VINYL SEAT UPPER SUSPENSION PARTS (ROPS) – NA
856/1 04 VINYL SEAT LOWER SUSPENSION PARTS (ROPS) – NA
879 01 CAB RIGHT BACK VIEW MIRROR
900 01 BOOM – LONG DIPPER
900 02 LONG DIPPER
900 03 LONG/SHORT DIPPER – BUCKET MOTION
900 04 LONG DIPPÊR – HYDRAULIC SYSTEM
900 05 LONG DIPPER – HYDRAULIC SYSTEM
900 06 LONG DIPPER – HYDRAULIC SYSTEM
900 07 LONG DIPPER – HYDRAULIC SYSTEM
900 08 HYDRAULIC LIFTING CYLINDER – TELESCOPIC DIPPER LONG
900 09 HYDRAULIC DITCHING CYLINDER
900 10 HYDRAULIC BUCKET CYLINDER
901 01 TELESCOPIC DIPPER LONG
901 02 TELESCOPIC DIPPER LONG – HYDRAULIC SYSTEM
TABLE OF CONTENTS
901 03 TELESCOPIC DIPPER LONG – HYDRAULIC LIFTING CYLINDER
966 01 PLATE SUPPORT
973 01 CAB WARNING & INFORMATION DECALS (SIDE SHIFT) – EU
987 01 FOWARD/REVERSE & STEERING DECALS – POWER SHIFT
990 01 TOOL KIT
992 01 CAB WARNING & INFORMATION DECALS (POWER SHUTTLE – POWER SHIFT) – EU
993 01 PLATES – NA
993 02 PLATES – NA
995 01 COLD START
998 01 FOWARD/REVERSE & STEERING DECALS – POWER SHIFT

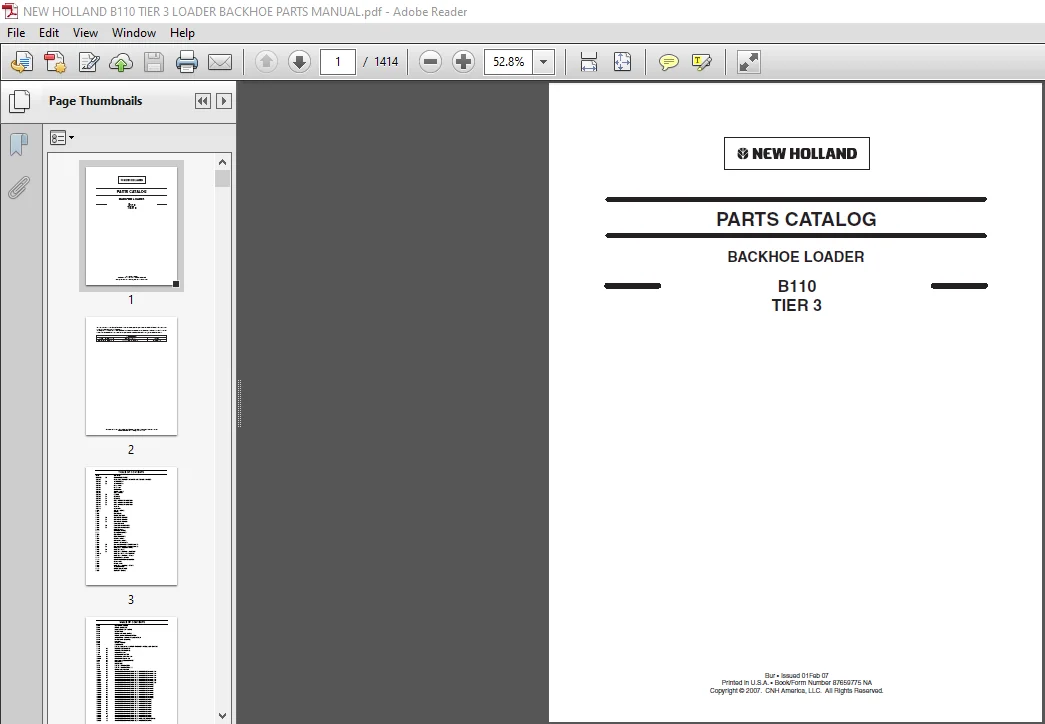

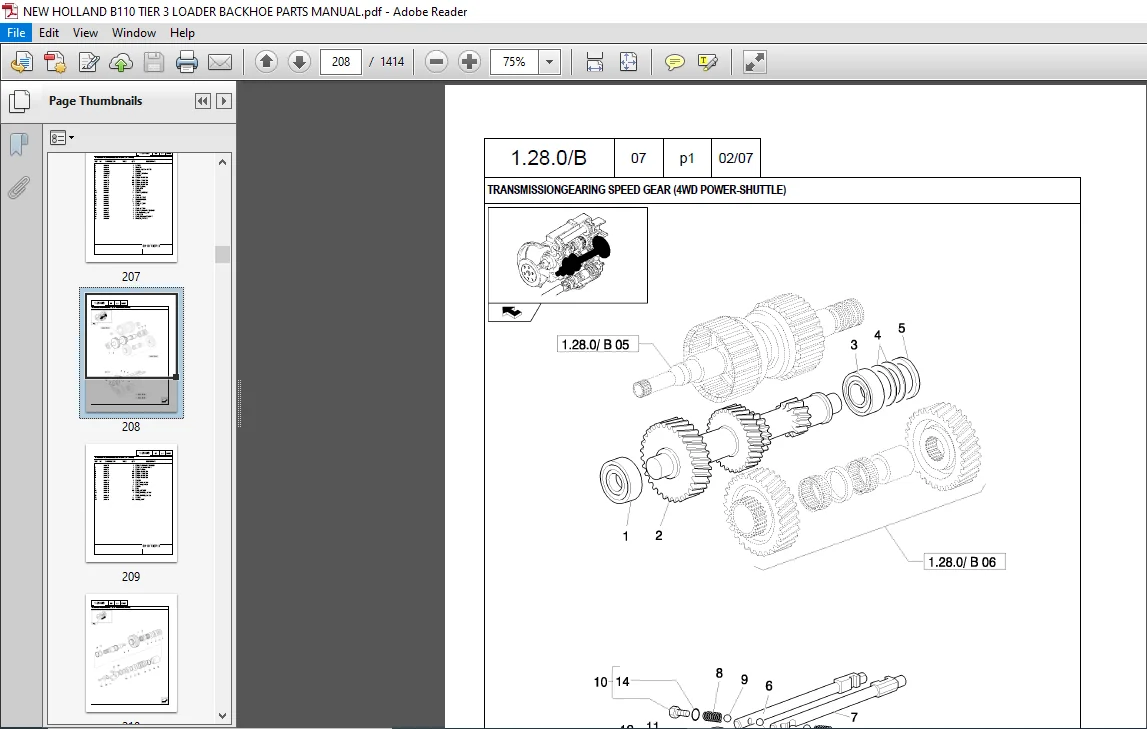

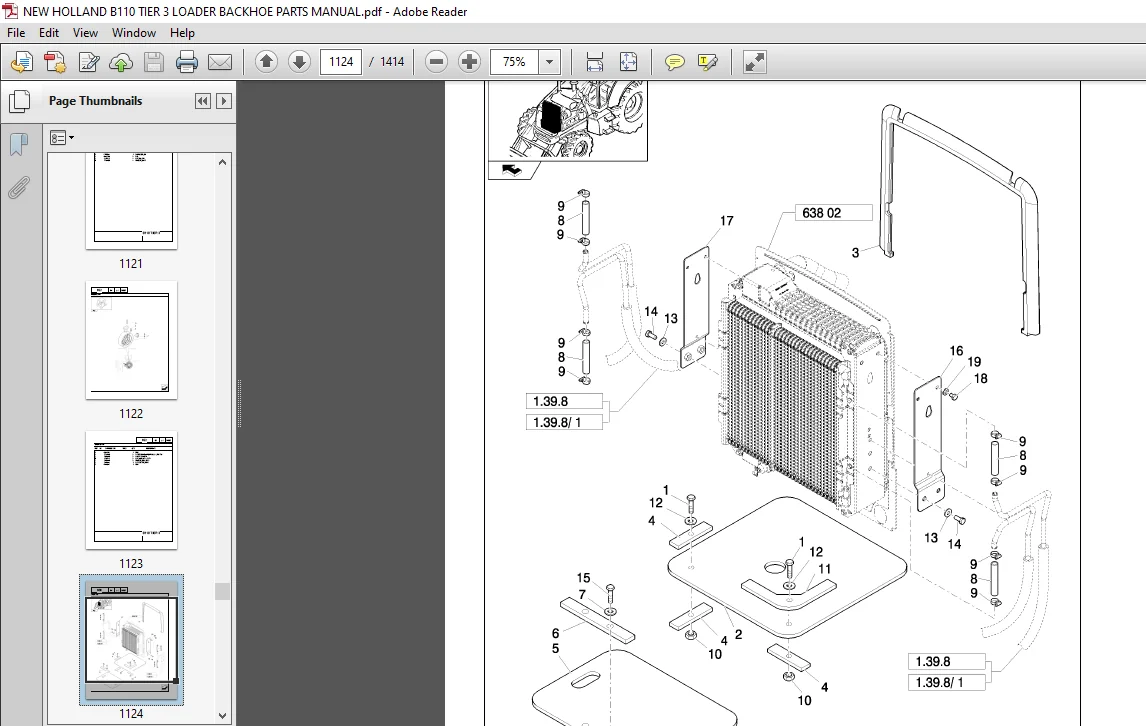

NEW HOLLAND B110 TIER 3 LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
