New Holland B95LR NA Backhoe Loader Parts Catalog – January 2006 Onward PDF Download

Description

New Holland B95LR NA Backhoe Loader Parts Catalog (January 2006 Onward)

This New Holland B95LR NA Backhoe Loader Parts Catalog is the complete parts reference for machines built from January 2006 onward. Whether you are ordering a single filter or rebuilding a major assembly, this catalog gives you the exact part numbers, quantities, and component breakdowns you need to keep your B95LR running. The New Holland B95LR NA Backhoe Loader Parts Catalog covers every major system on the machine, from the engine block to the backhoe bucket teeth.

File Details

• Manual Type: Parts Catalog
• Brand: New Holland
• Model: B95LR NA Backhoe Loader
• Coverage: January 2006 Onward
• Language: English
• Page Count: 1040
• File Format: PDF

Chapters Covered

The New Holland B95LR NA Backhoe Loader Parts Catalog is organized into major sections and detailed sub-sections, making it fast to locate any part on the machine.

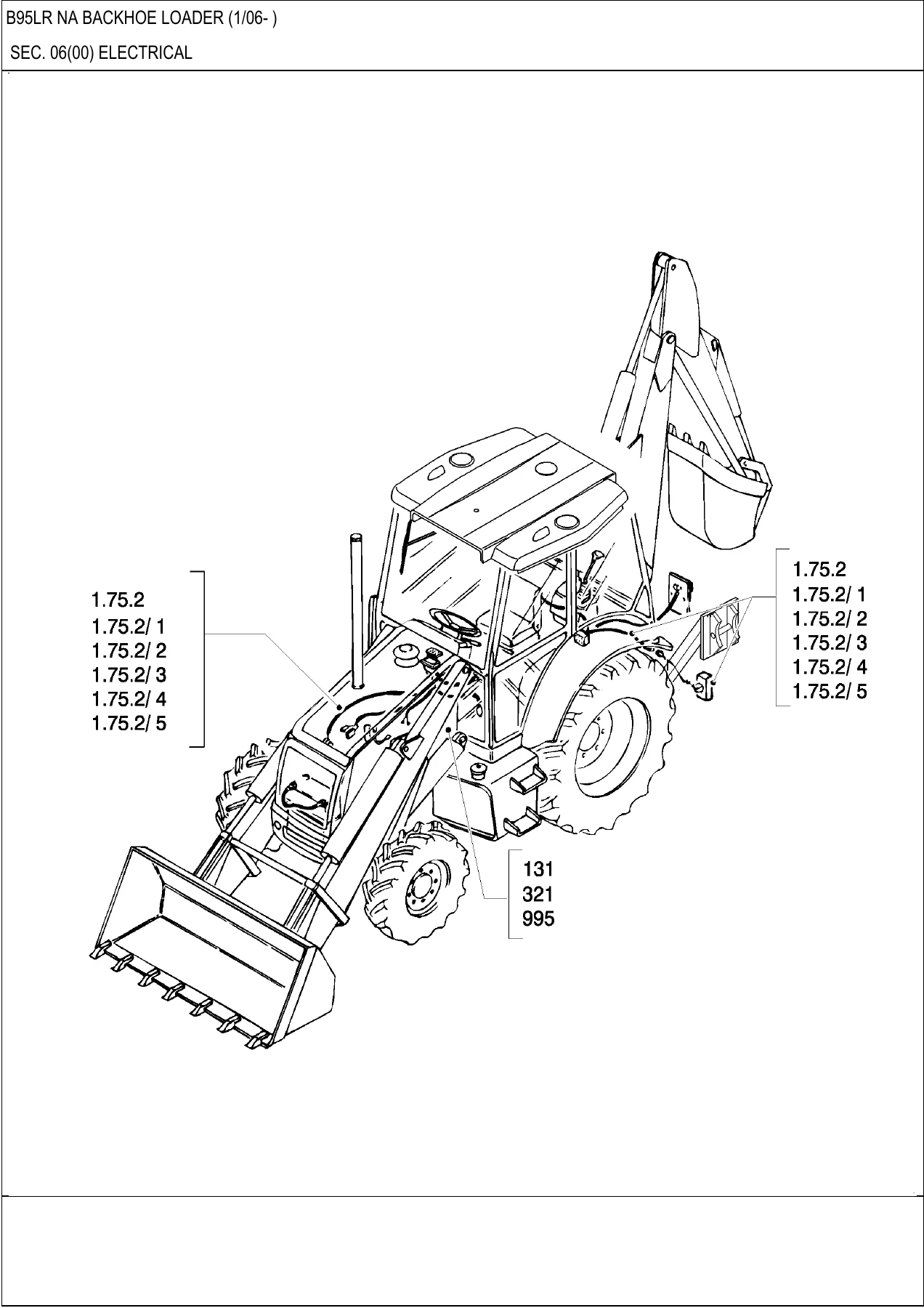

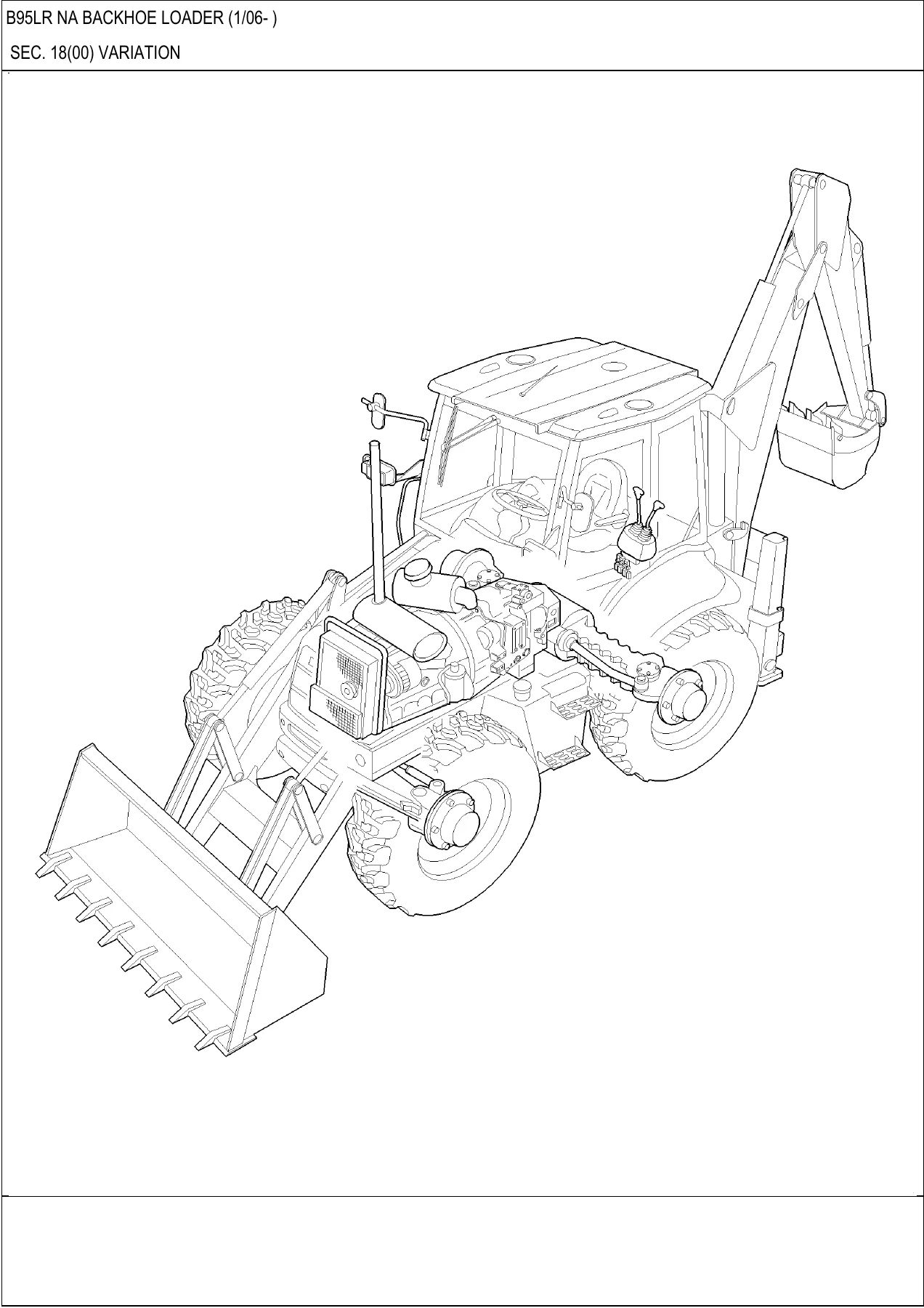

IMAGES PREVIEW

• Main Sections (00)
• Engine (01) – 1/2 and 2/2
• Fuel Tank – Muffler – Radiator – Air Cleaner – Chassis (02)
• Transmission (03) – 1/2 and 2/2
• Front Axle (04)
• Rear Axle (05)
• Electrical (06)
• Slides Valves (07)
• Body & Hood (08)
• Loader (09) – 1/1
• Backhoe (09) – 1/2 and 2/2
• Body, Hood & Driver’s Post (10) – 1/3, 2/3, 3/3
• Wheels (11)
• Variation (18)
• Engine – Detailed Components: Cylinder Block, Cylinder Head, Cylinder Head Covers, Valve Mechanism, Manifold Intake/Exhaust, Crankshaft, Pistons & Connecting Rod, Flywheel, Pulley, Dynamic Balancer, Camshaft, Fuel Injection Pump, Fuel Injection System, Fuel Filter, Fuel Pump, Turbocharger, Engine Oil System, Oil Pump, Oil Filters, Piping, Oil Filter and Cooler, Water Pump, Cooling System, Thermostat, Fan Drive, Power Take-Off, Starter Motor, Alternator, Engine Lift Hook
• Transmission – Detailed Components: Gearing Speed Gear (2WD Power-Shuttle), Gearing Speed Gear (4WD Power-Shuttle), Gear Filter Pipes, Transmission External Shifting Controls, Front & Rear Driveshaft, Transmission Oil Cooling Pipes
• Front Axle – Detailed Components: Front Axle (2WD), 4WD Front Axle, Housing, Bushings & Supports, Swivel Housing & Steering Cylinder, Hubs, Ring Gear & Pinion Assembly, Differential, Drive Shaft
• Rear Axle – Detailed Components: Rear Axle (Power-Shuttle) Center Pivot
• Hydraulic System – Hydraulic Oil Reservoir, Hydraulic Pump (35+35-154L/MM), Hydraulic Pump (40+35-165L/MM), Hydraulic System Piping, Front Hydraulic Pump Intake & Outlet Hoses, Rear Hydraulic Pump Stabilizer, Loader & Backhoe Valve Hoses, Return Manifold Hoses, Filter Assembly & Hose to Return Manifold, Loader Lift Cylinder Hoses, Loader Bucket Cylinder Hoses, Backhoe Swing Cylinder Hoses, Backhoe Control Valve, Dipper Valve Section, Bucket/Swing/Boom Valve Section, Rotation Plate Hose Clamps
• Body & Hood – Hood, Grille & Related Parts, Cab Screen, Cab Fasteners
• Arms & Joints – Lift Cylinder, Loader Bucket Control Cylinder, Lift Cylinder and Bucket Pipes, Stabilizer Cylinders, Pipes for Stabilizer Cylinders, Return to Dig Sensor, Cylinders and Rotation Plate, Swing Cylinders Backhoe
• Cab & ROPS – Cab/Ceiling Light, Safety Frame Instruments and Gauges, Back-Up Alarm, Ignition Switch, Power Point, Fuse Panel & Side Console Harness, Front and Rear Windscreen Wipers, Windscreen Wipers Reservoir & Nozzles, Radio Antenna & Speaker Cover, Lamps & Lights, Cab-Safety Frame / Extinguisher, Cab Frame Door, ROPS Safety Frame, Windows, Fenders Rear, Door Components, Firewall Seal ROPS, Rear Windows, Cab / Soft Trim, RH & Backhoe Console Trim, Roof ROPS, Rear Mirror – Sun Screen, Front Console ROPS, RH Side Console Seal & Clips, Cab / Panel Dash, Interior Rear-View Mirror, Cab/Canopy, Heater Housing Coil Blower & Valve, Heater Assembly & Filters, Heater Water Hoses, Air Ducts & Vents, Cab-Safety Frame / Brake Pedal, Cab-Safety Frame / Hand Brake, Hand-Operated and Pedal-Operated Accelerator Control, Power Steering Motor Wheel & Column Trim, Power Steering Motor Hoses, Power Steering Motor, Forward/Reverse & Multi-Purpose Lever, Stabilizer Control, Pilot Control Diagnostics, Cab Plugs Floor Plates & Air Conveyer, ROPS Plugs & Floor Plate
• Decals & Identification – Information Symbol Decals, Backhoe Loader & Engine Warning Decals, B95 B95LR Model Identification, B95LR Model Identification, Plates
• Attachments & Options – Silent Hammer CB65S, Hammer CB65B, Single Battery, Double Battery, Air Intake Cap & Pre-Cleaner, Shovel and Rear Lifting Hooks, Front Weights, Rear Weight, Two-Section Control Valve for Loader, Three-Section Control Valve for Loader, Backhoe Control Valve 6 Sections, 7-Sections Excavator Control Valve, Loader Control Valve, Stabilizer Control Valve, A/C Housing & Filters, A/C Blower & Coils, Heater Coil Hoses, A/C & Heater Control Panel, A/C & Heater Console Ducts, Transformation Set from Heating to Air Conditioning, Housing & Filters, Heater Blower & Coils, Heater Control Panel, Heater Console Ducts, Cab Heating Coating Plug, Case 3 Lever Backhoe Controls, ISO 2 Lever Backhoe Controls, 4 Lever Backhoe Controls, 4WD Steering Lock, Radiator, Accessory Engine, Machine Part Air Conditioning Set, A/C Compressor Attaching Group, A/C Compressor, A/C Filter & Condenser Attaching Group, Fork Kit, Steering Column Fixed & Adjustable, Glide Ride Valve, Hand Hammer Switch, 4X1 & 6X1 Bucket Hydraulic Lines, Seat Belts, Manual Hammer System, Rear Mechanical Quick-Coupling, Front Mechanical Quick-Coupling, Rotating Beacon, Front Console with Speedometer, Front Console without Speedometer, Speed Sensor, RH Console with Instruments, RH Console with Instruments and Diagnostics, Antitheft, Fenders Front, Front Wheels, Driving Wheels, Rear Wheels, Battery Connection, Cloth Seat & Attaching Hardware, Air Ride Cloth Seat & Attaching Hardware, Vinyl Seat with Armrests & Mounting Hardware, Vinyl Seat Cushions Armrests & Related Parts, Tool Kit, Cold Start, Boom – Dipper Short, Short Dipper, Long Dipper, Telescopic Dipper Long, Hydraulic Bucket Cylinder, Hydraulic Ditching Cylinder, Hydraulic Lifting Cylinder, Buckets (12 inch, 18 inch, 24 inch, 30 inch, 36 inch), Bolt-On Tooth Kits, Pin Tooth Kits, Stabilizer Foot Ground, Stabilizer Foot Street Pad, Reversible Stabilizer Foot, Ditch Cleaning Bucket, Front Bucket Teeth, Loader Bucket Reversible Blade, Internal Fan, Scrab Grab
• DIA Kits for B-Series Backhoe Loaders

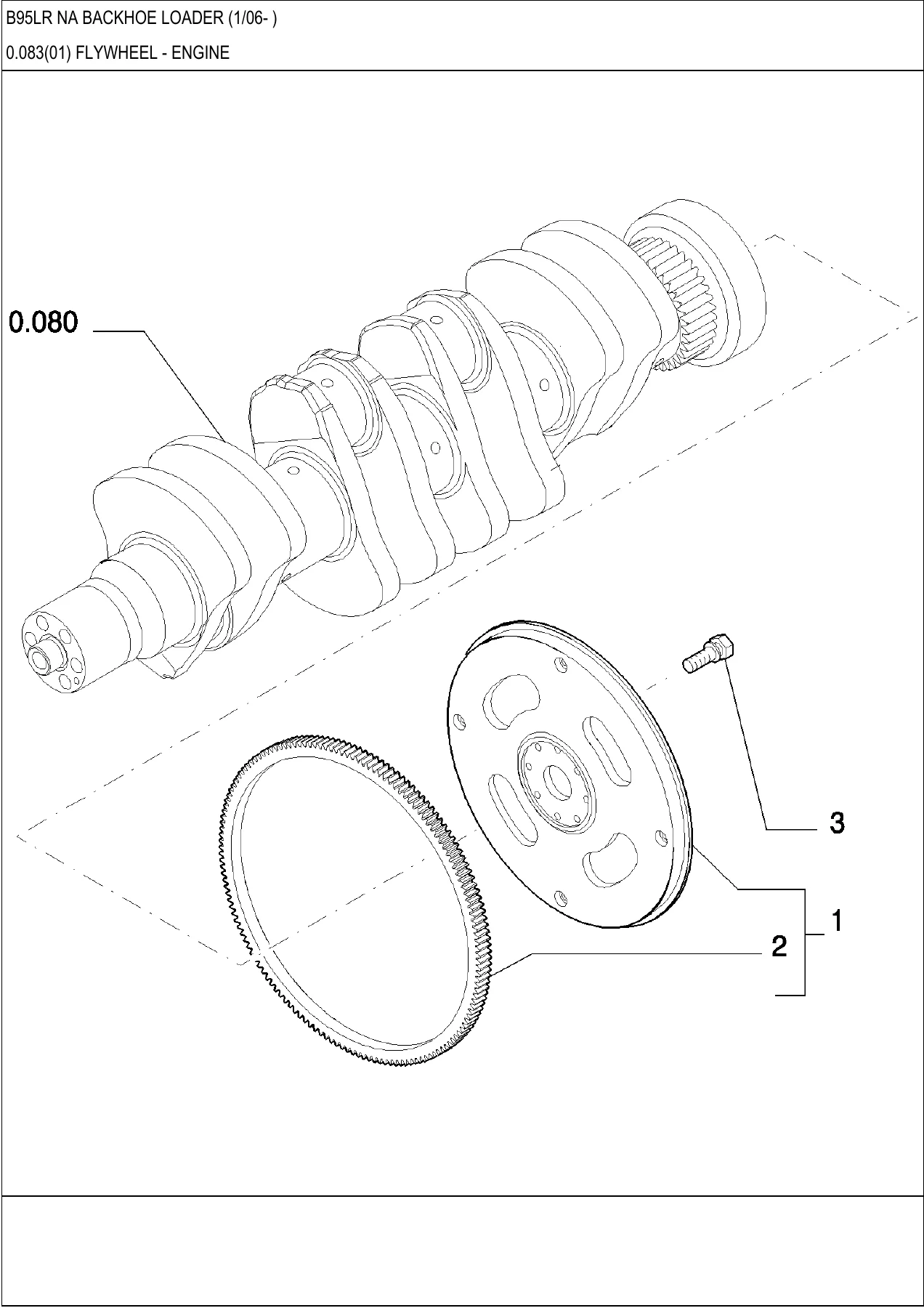

The New Holland B95LR NA Backhoe Loader Parts Catalog is far more than a simple list of numbers. Every major assembly is broken down into its individual components with reference numbers, part numbers, quantities, and descriptions. The exploded-view illustrations throughout the catalog show how parts fit together, which is invaluable when you are rebuilding a hydraulic cylinder, replacing a gear in the transmission, or tracing a leak in the hydraulic system. This is the same type of parts reference used by parts counter professionals and experienced technicians to identify the correct component for a specific machine configuration. Because the catalog covers January 2006 onward production, you can be confident that the part numbers inside are current for machines built in that period. The level of detail extends to individual o-rings, seals, bearings, bushings, snap rings, shims, and fasteners, so you can order exactly what you need without guesswork. Sections are organized by major system and then subdivided by sub-assembly, making navigation straightforward even for complex areas like the Power-Shuttle transmission or the pilot control valve. The catalog also includes serial number break information where applicable, helping you determine which variant of a part fits your particular machine. Whether you are maintaining a single B95LR or managing a fleet, having the New Holland B95LR NA Backhoe Loader Parts Catalog on hand reduces downtime and ensures you get the right part the first time.

Why This Parts Catalog Matters

Ordering the wrong part costs time and money. The New Holland B95LR NA Backhoe Loader Parts Catalog eliminates that risk by giving you the exact part number for every component on the machine. From engine internals to backhoe bucket teeth, from hydraulic hoses to cab trim, this catalog covers it all. The exploded views help you understand assembly order and identify related parts you might otherwise overlook – like the o-ring behind a fitting or the shim behind a gear. For anyone performing repairs, rebuilds, or routine maintenance on a B95LR, this catalog is an essential reference that pays for itself the first time it saves you from ordering the wrong component.

Instant PDF Delivery

The New Holland B95LR NA Backhoe Loader Parts Catalog is delivered as an instant PDF download. No shipping, no waiting. Access it on any device – laptop, tablet, or smartphone – and print the pages you need for the shop. Keep it on your computer for quick reference, or print the entire catalog and keep it in a binder. Instant access means you can start identifying parts and placing orders immediately after checkout.
