New Holland Compact Excavator E30 E35 Service Repair Manual (87360586NAR0) – NH – PDF Download

Description

New Holland Compact Excavator E30 E35 Service Repair Manual (87360586NAR0) – NH

File Details:

New Holland Compact Excavator E30 E35 Service Repair Manual
Size: 42.7 MB
Format: PDF
Language: English
Number of Pages: 559 pages
Brand: New Holland
Type of document: Service Manual
Model: E30 E35
Part No: 87360586NAR0

NEW HOLLAND COMPACT EXCAVATOR E30 E35 SERVICE REPAIR MANUAL (87360586NAR0) – NH – PDF DOWNLOAD:

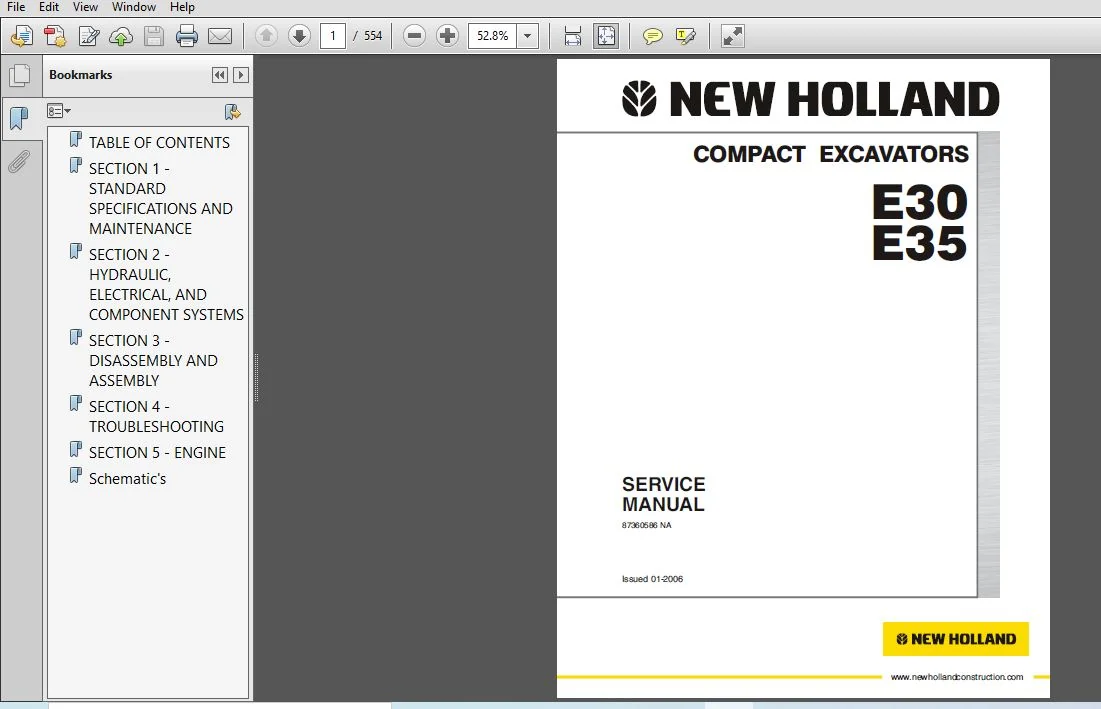

Image Preview:

Description:

New Holland Compact Excavator E30 E35 Service Repair Manual (87360586NAR0) – NH

• The serviceman may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component.
• Because of the size of some of the machine components, the serviceman should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the SPECIFICATIONS section.
• The following is a list of basic precautions that must always be observed.
• 1. Read and understand all Warning plates and decals on the machine before Operating, Maintaining or Repairing machine.
• 2. Always wear protective glasses and protective shoes when working around machines. Wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
• 3. Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
  4. If possible, make all repairs with the machine parked on a level, hard surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
• 5. Do not work on any machine that is supported only by jacks or a hoist. Always use blocks or jack stands capable of supporting the machine.
• 6. Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.

Table Of Contents:

New Holland Compact Excavator E30 E35 Service Repair Manual (87360586NAR0) – NH

CHAPTER 1
GENERAL INFORMATION AND SAFETY
TABLE OF CONTENTS 1-1
1.1 General Safety Information 1-3
1.2 Safety Precautions 1-4
1.3 General Precautions for Repairs1-6
1.4 International Unit Conversion System 1-9
CHAPTER 2
SPECIFICATIONS
TABLE OF CONTENTS 2-1

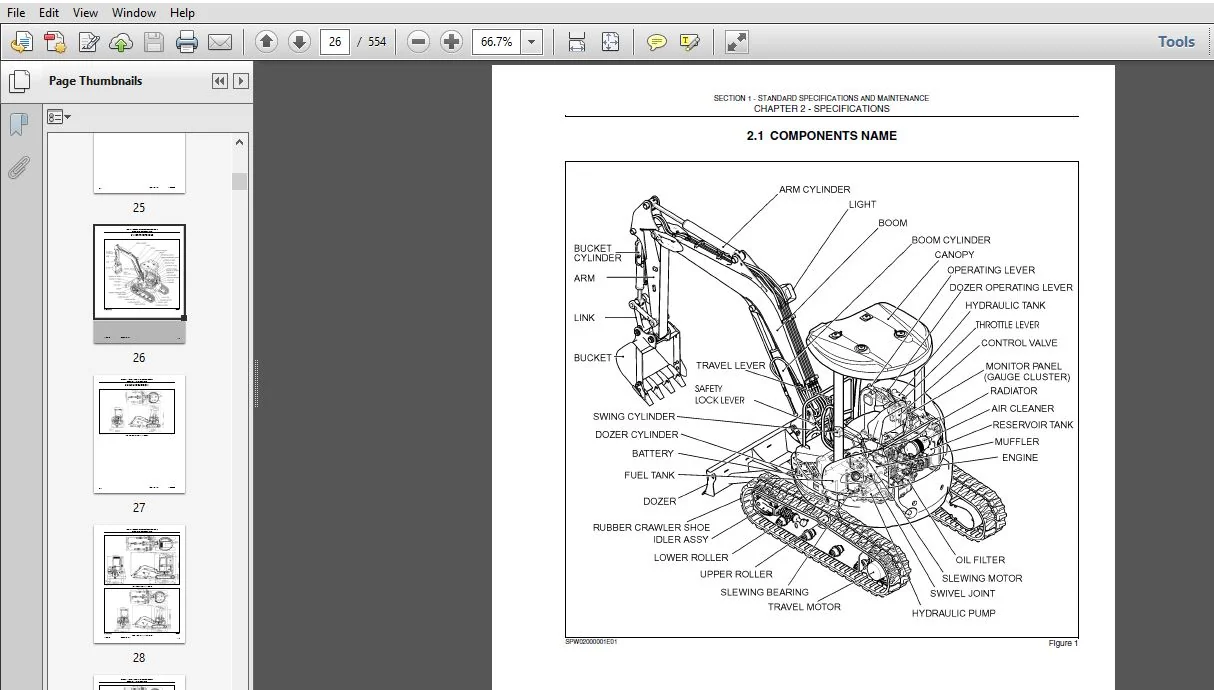

2.1 Components Name 2-3

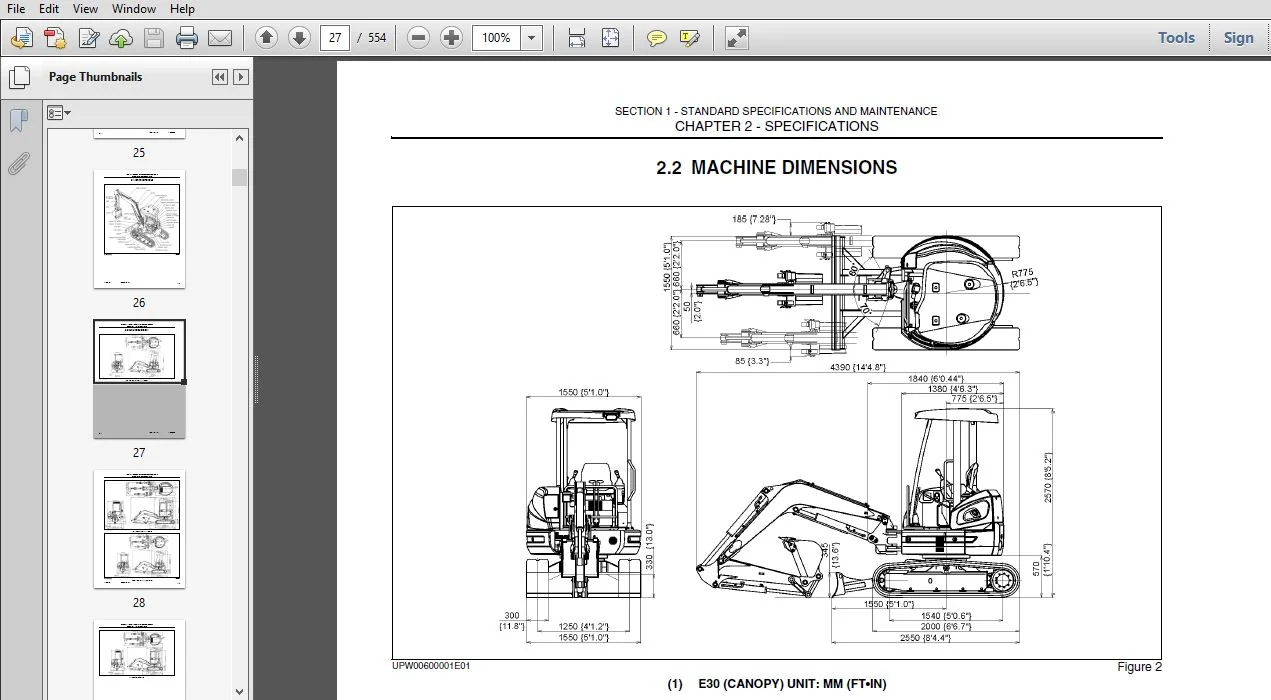

2.2 Machine Dimensions 2-4
2.3 Specifications and Performance2-7
2.4 Machine and Components Weights (Dry) 2-8
2.5 Transportation2-10
2.6 Type of Track Shoes 2-12
2.7 Type of Bucket 2-12
2.8 Engine Specifications2-13
CHAPTER 3
ATTACHMENT DIMENSIONS
TABLE OF CONTENTS 3-1
3.1 Boom 3-3
3.2 Arm 3-8
3.3 Bucket3-15
3.4 Dozer 3-17
3.5 Swing 3-21
CHAPTER 11
TOOLS
TABLE OF CONTENTS 11-1
11.1 Torque Specifications for Capscrews and Nuts 11-3
11.2 Screw and Tool Sizes11-5
11.3 Torque Specifications for Joints and Hoses11-6
11.4 Torque Specifications for Sleeve Type Tube Fittings11-7
11.5 Plugs11-8
11.6 Special Spanners for Tubes11-10
11.7 Special Tools11-11
11.8 Application of Screw Locking and Sealing Compounds 11-11
11.9 Counterweight Lifting Jig 11-12
11.10 Upper Frame Lifting Jig 11-13
CHAPTER 12
STANDARD MAINTENANCE TIME TABLE
TABLE OF CONTENTS 12-1
12.1 Working Standards for Time Tables12-3
12.2 Time Tables 12-4

Please Note:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
