New Holland F4CE9484 – F4HE9687 NEF Tier 3 Service Manual Engine 47597675 – PDF DOWNLOAD

Description

New Holland F4CE9484 – F4HE9687 NEF Tier 3 Service Manual Engine

FILE DETAILS:

New Holland F4CE9484 – F4HE9687 NEF Tier 3 Service Manual Engine

Size : 48.4 MB
Format : PDF
Language : English
Number of Pages : 550 Pages
PART NUMBER: 47597675

DESCRIPTION:

New Holland F4CE9484 – F4HE9687 NEF Tier 3 Service Manual Engine

FOREWORD:

Engine Overhaul Part of the operations illustrated within this manual can be partially executed while the engine is assembled on the vehicle, depending on the room available for access to the engine and on the equipment application as well. NOTE: With regard to the engine disassembly operations, please apply for information consulting the specific manual. The following information relates to the engine overhaul operations only for what concerns the different components customizing the engine, according to its specific duties. In section “General Overhaul”, all the operations of engine block overhaul have been contemplated. Therefore the above mentioned section is to be considered as following the part hereby described. 47597675 27/09/2013 3

Standard safety prescriptions Particular attention shall be drawn on some precautions that must be followed absolutely in a standard working area and whose non fulfillment will make any other measure useless or not sufficient to ensure safety to the personnel in charge of maintenance. Be informed and inform personnel as well of the laws in force regulating safety, providing information documentation available for consultation.

• Keep working areas as clean as possible, ensuring adequate aeration.

• Ensure that working areas are provided with emergency boxes, that must be clearly visible and always provided with adequate sanitary equipment.

• Provide for adequate fire extinguishing means, properly indicated and always having free access. Their efficiency must be checked on a regular basis and the personnel must be trained on interventon methods and priorities. • Organize and identify specific exit points to evacuate the areas in case of an emergency, providing for adequate indications of the emergency indications of the emergency exit lines.

• Smoking in working areas subject to fire danger must be strictly prohibited.

• Provide warnings throughout adequate boards signaling danger, prohibitions and indications to ensure easy comprehension of the instructions even in case of an emergency. Prevention of injury

• Do not wear unsuitable clothes for work, with fluttering ends, nor jewels such as and chains when working close to engines and equipment in motion.

• Wear safety gloves and goggles when performing the following operations: •

• filling inhibitors or anti-frost

• lubrication oil topping or replacement

• utilization of compressed air or liquids under pressure (pressure allowed < 2 bar (29 psi)). • Wear safety helmet when working close to hanging loads or equipment working at head height level.

• Always wear safety shoes and clothes adhering to the body, better if provided with elastics at the ends.

• Use protection cream for hands.

• Change wet clothes as soon as possible.

• In presence of electrical current exceeding 48 – 60 V verify efficiency of earth and mass electrical connections. Ensure that hands and feet are dry and execute working operations utilizing isolating foot boards. Do not carry out working operations if not trained for.

• Do not smoke nor light up flames close to batteries and to any fuel material.

• Put the dirty rags with oil, diesel fuel or solvents in anti-fire specially provided containers. • Do not execute any intervention if not provided with necessary instructions.

• Do not use any tool or equipment for any different operation from the ones they’ve been designed and provided for. Serious injury may occur.

• In case of test or calibration operations requiring engine running, ensure that the area is sufficiently ventilated or utilize specific vacuum equipment to eliminate exhaust gas. Danger: poisoning or death.

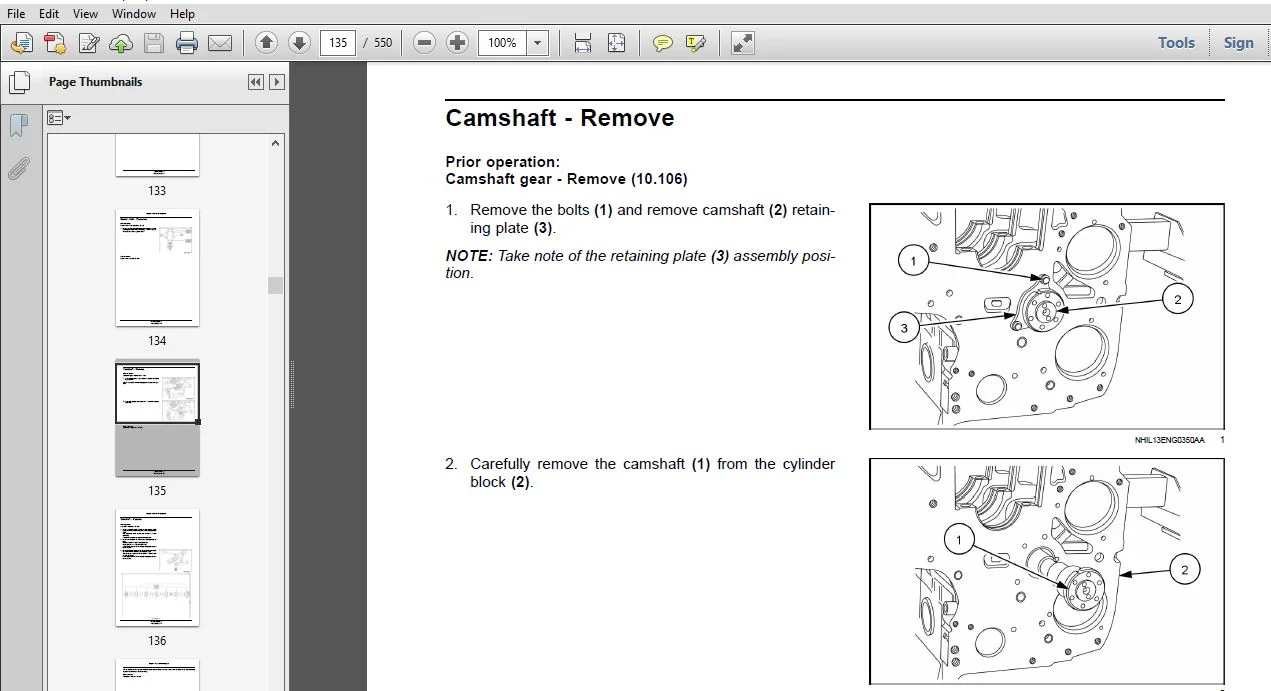

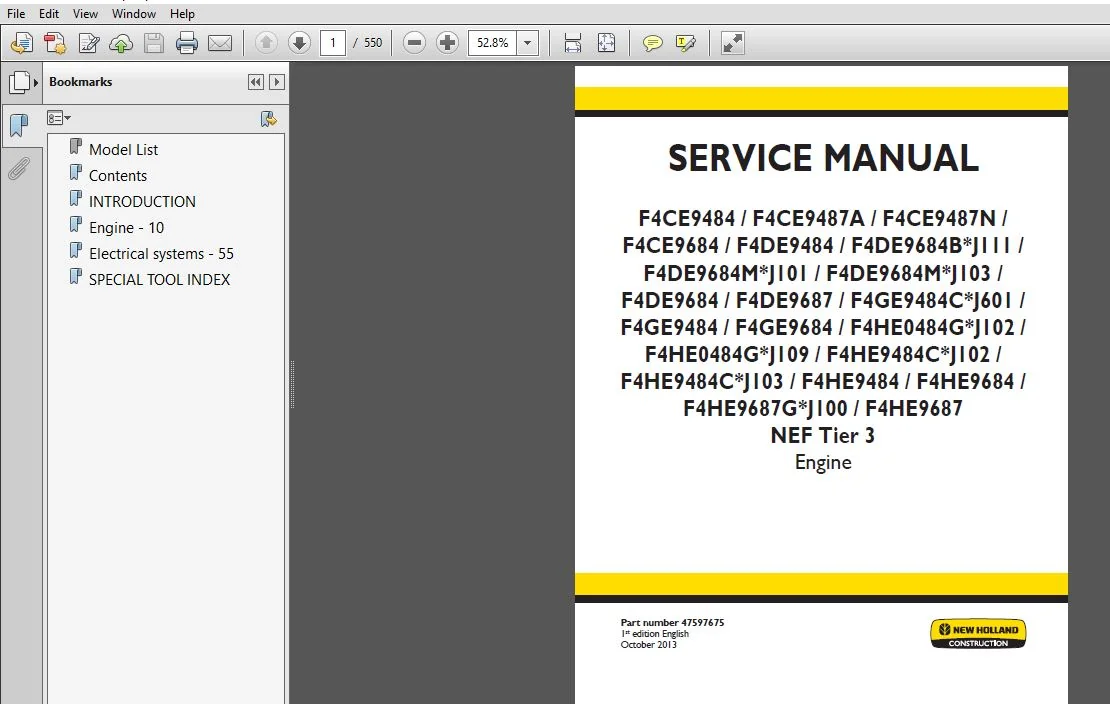

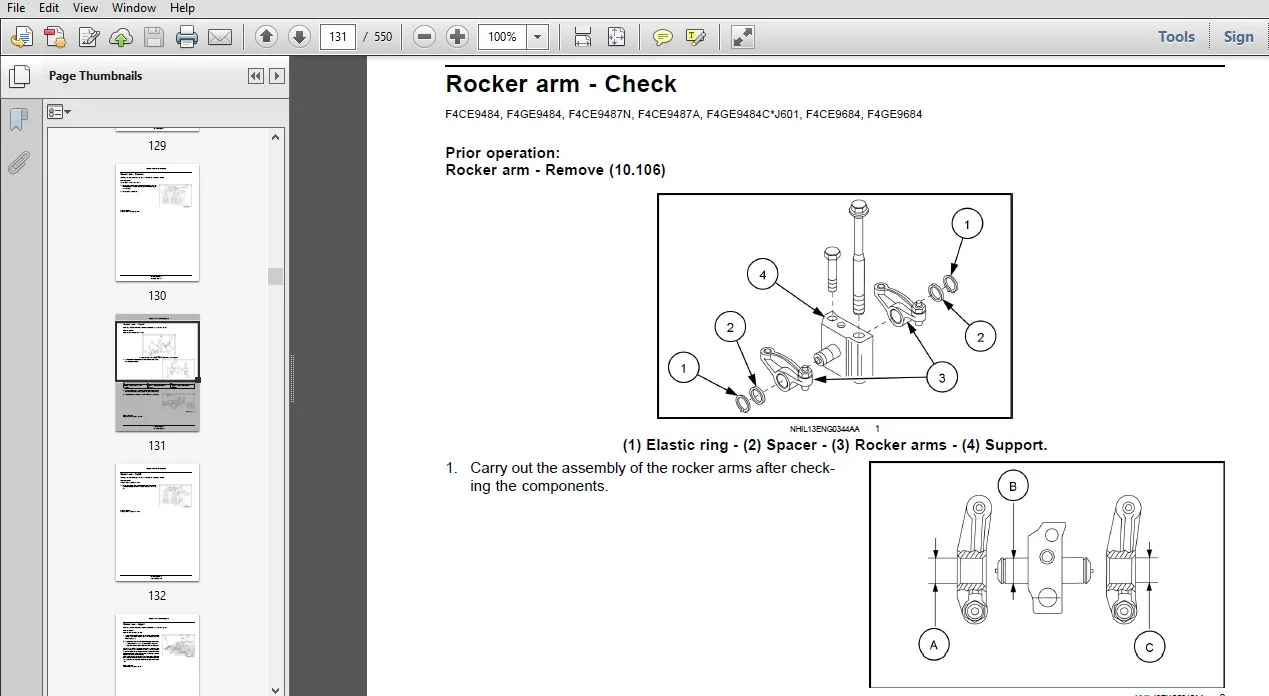

IMAGES PREVIEW OF THE MANUAL:

NEW HOLLAND F4CE9484 – F4HE9687 NEF TIER 3 SERVICE MANUAL ENGINE 47597675 – PDF DOWNLOAD:

TABLE OF CONTENTS:

New Holland F4CE9484 – F4HE9687 NEF Tier 3 Service Manual Engine

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 102] Pan and covers 10 2
[10 106] Valve drive and gears 10 3
[10 101] Cylinder heads 10 4
[10 105] Connecting rods and pistons 10 5
[10 103] Crankshaft and flywheel 10 6
[10 110] Balancer and damper 10 7
[10 114] Pump drives 10 8
[10 210] Lift pump and lines 10 9
[10 206] Fuel filters 10 10
[10 218] Fuel injection system 10 11
[10 250] Turbocharger and lines 10 12
[10 254] Intake and exhaust manifolds and muffler 10 13
[10 400] Engine cooling system 10 14
[10 414] Fan and drive 10 15
[10 304] Engine lubrication system 10 16
[10 408] Oil cooler and lines 10 17
Electrical systems 55
[55 015] Engine control system 55 1
[55 201] Engine starting system 55 2
[55 301] Alternator 55 3
[55 202] Cold start aid 55 4
[55 010] Fuel injection system 55 5
[55 014] Engine intake and exhaust system 55 6
[55 012] Engine cooling system 55 7
47597675 27/09/2013
[55 013] Engine oil system

  PLEASE NOTE:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
