New Holland Ford Combines TF & TX Series Service Repair Manual (6046400100_A4) – PDF Download

Description

New Holland Ford Combines TF & TX Series Service Repair Manual (6046400100_A4)

FILE DETAILS:

New Holland Ford Combines TF & TX Series Service Repair Manual (6046400100_A4)

• New Holland Ford Combine TF & TX Series Service Manual_6046400100_A4
• Size: 129 MB
• Format: PDF
• Language: English
• Number of Pages : 1038 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: TF42, TF44, TF46
• Part No: 6046400100_A4

NEW HOLLAND FORD COMBINES TF & TX SERIES SERVICE REPAIR MANUAL (6046400100_A4) – PDF DOWNLOAD:

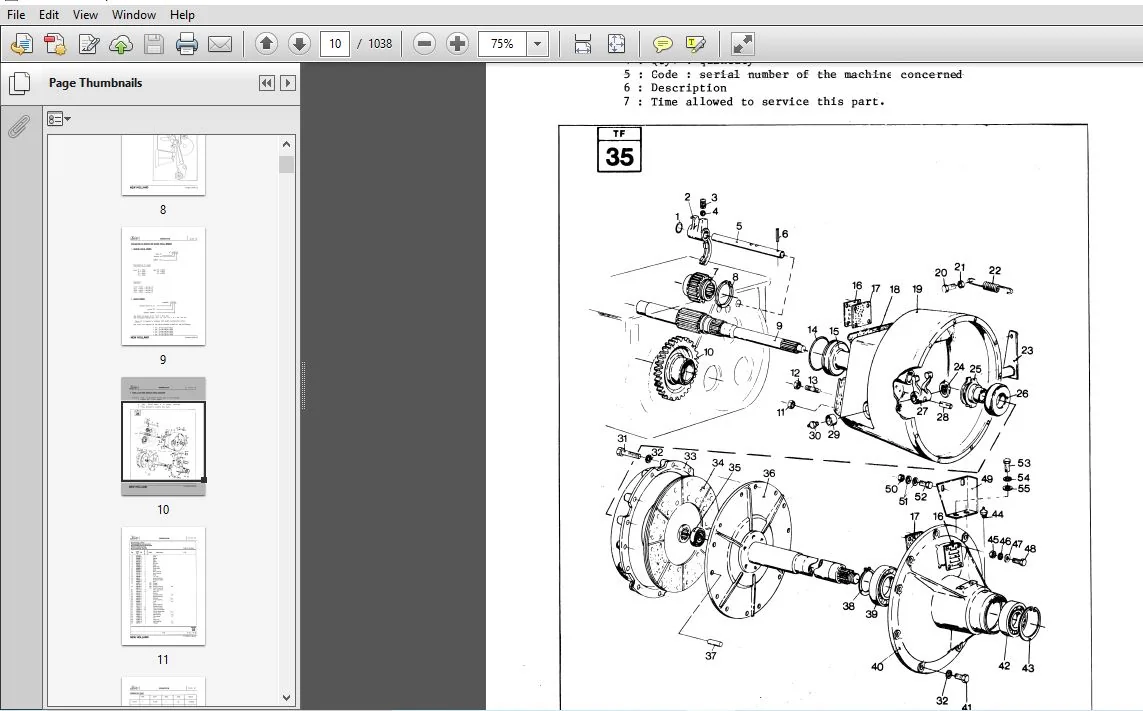

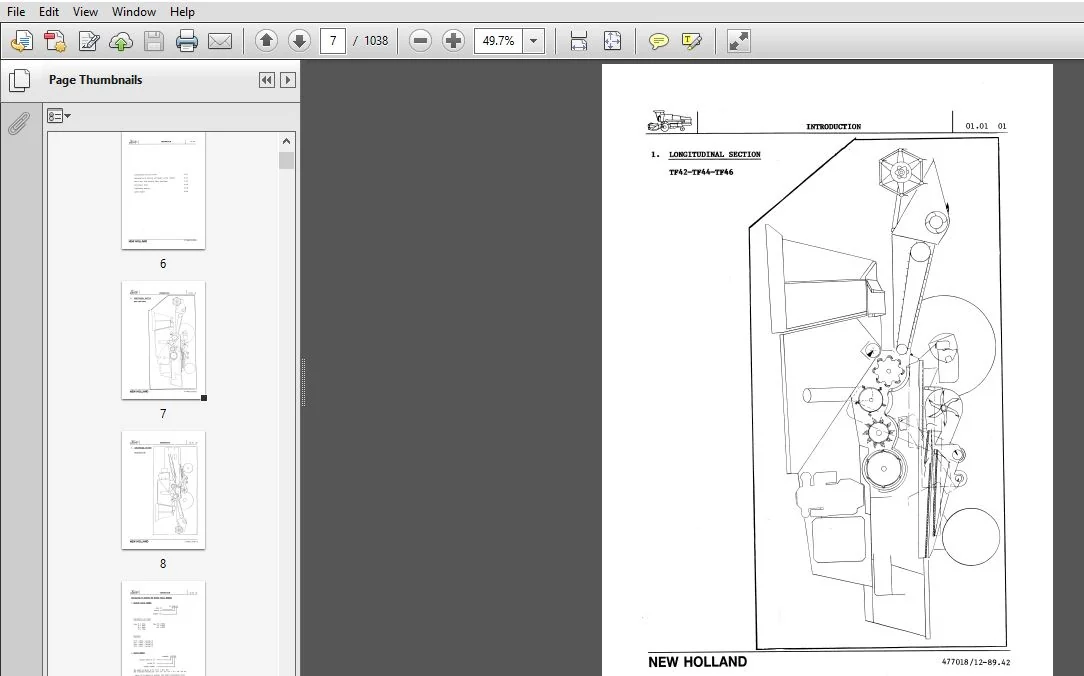

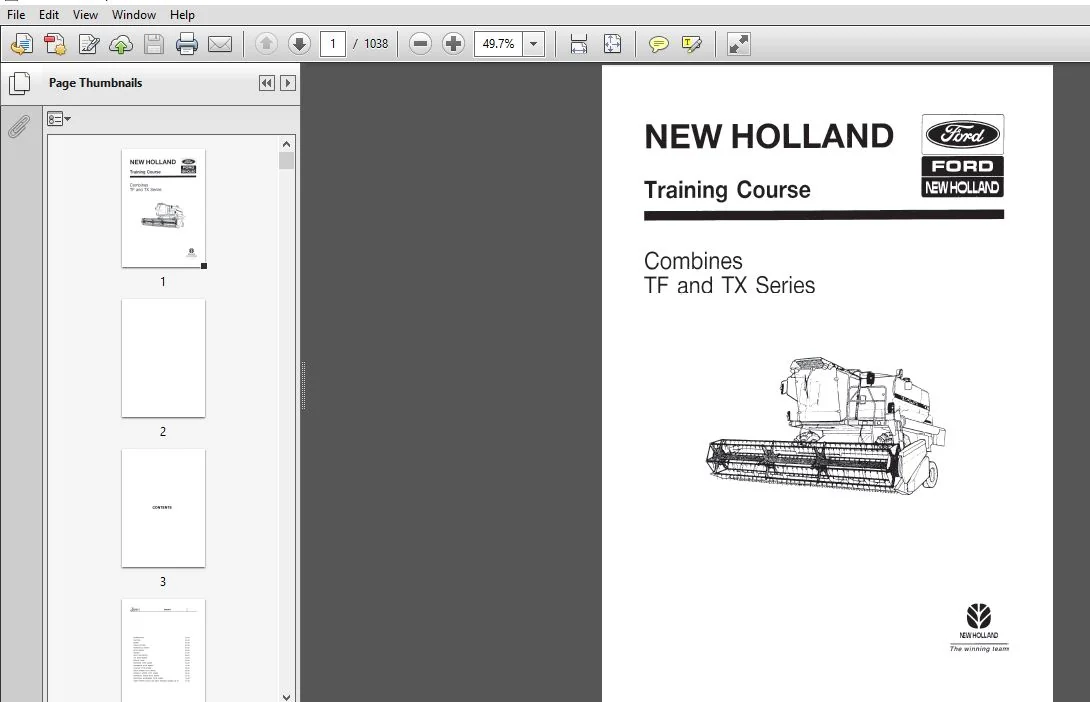

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland Ford Combines TF & TX Series Service Repair Manual (6046400100_A4)

• A) On a new compressor
• Screw in the compressor suction and discharge valves completely (front seated)
• Remove the oil filler plug – insert the locally made dipstick and slowly rotate flywheel to ensure that the dipstick is at the bottom of the crankcase
• Keep oil level between the set limits.
• Note: using refrigerant hoses in excess of 5 m for discharge, liquid and suction need additional oil in the compressor if the system has never been used before Add 30 cc of oil for each additional 2 m of refrigerant hose Max. hose lenghts must not exceed 15 m
• B) On a compressor already filled with refrigerant – screw in the compreBsor suction‚ and discharge valves completely (front seated) – remove the oil filler plug slowly as a small amount of R-12 escapes from the compressor at this moment
• Insert dipstick and slowly rotate the flywheel to ensure the dipstick is at the bottom of the cranckcase – keep oil level between the set limits – connect vacuum pump to discharge and suction gauges of the compressor using the manifold kit – evacuate the compressor to 711 mm hg – stop vacuum pump and close the low side and high side hand valves on the manifold
• Ppen the suction service valve on the compressor until a minimum pressure of 3,45 bar in the crankcase is reached
• Close the suction service valve (front seated), open the hand ‚ valvcs of the manifold and operate the vacuum pump until a vacuum of 711 mm hg is again reached
• Open and backseat the discharge service valve — open and midseat the suction service valve to fill the system with refrigerant to the specified limits (see further on)

TABLE OF CONTENTS:

New Holland Ford Combines TF & TX Series Service Repair Manual (6046400100_A4)

INTRODUCTION 01.00
TRACTION . 02.00
HEADER 03.00
STRAW ELEVATOR ‘ 04.00
HYDRCSTATIC SYSTEM 05.00
MAIZE HEADER _ 06.00
ENGINES  07.00
BASIC ELECTRICITY ‘ 08.00
AIR CONDITIONING . 22.00
SPECIAL TOOLS 23.00 ‘
THRESHING TF/TX SERIES 26.00
SEPARATION TF/TX SERIES 27.00
CLEANING TF/TX SERIES 28.00
GRAIN STORAGE TF/TX SERIES 29.00
HYDRAULIC SYSTEM TF/TX SERIES 30.00
ELECTRICAL SYSTEM TF/TX SERIES . 31.00
FUNCTIONAL ADJUSTMENTS TF/TX SERIES 32.00
STRAW CHOPPER CLUTCH AND CHAFF SPREADER GEARBOX ON TX 33.00
