New Holland FR10 FR12 FR15 BRAKE AND AIR SYSTEM WHEEL LOADER Service Manual 73148730 – PDF DOWNLOAD

Description

New Holland FR10 FR12 FR15 BRAKE AND AIR SYSTEM WHEEL LOADER Service Manual

FILE DETAILS:

New Holland FR10 FR12 FR15 BRAKE AND AIR SYSTEM WHEEL LOADER Service Manual

Size: 11.7 MB
Format: PDF
Language: English
Number of Pages: 105 pages
Brand: New Holland

DESCRIPTION:

New Holland FR10 FR12 FR15 BRAKE AND AIR SYSTEM WHEEL LOADER Service Manual

GENERAL INFORMATION:

• Study the Operation and Maintenance instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and hoed all machine-mounted safety signs before star- ting. operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been co*or coded yellow with black border and lettering for warning and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate, service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas slopes, overhangs, timber, demolitions, fire, high walls, dropoff, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on slopes or near dropoffs be alert to avoid loose or soft conditions that could cause sudden ripping or loss of con- trol.
• Do not lump on or off machine Keep two hands and one foot, or two feet and one hand. In contact with steps, grab rails and handles at ail times Do not use controls or hoses as handholds when climbing on or off machine Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles dear of foreign objects, oil. grease, mud or snow accumulation to minimize the danger ot slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine Be careful of Slippery conditions on stepping points, hard rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• For your personal protection, do not attempt to climb on or oil machine while machine is In motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended Return keys to authorized security. Heed all shutdown procedures ot the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason.
• Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators Consult your employer for specific safety equipment requirements.
• Do not use machine to carry loose objects by means omer than attachments for carrying such objects DO NOT CARRY RIOERS unless the machine »s equipped lor carrying people to reduce personal exposure to being thrown Off. Do not operate machinery in a condition of extreme fatigue or illness. Be especially careful towards the end of the shift. Roll Over Protective Structures are required on wheel loaders, dozer tractors, track type loaders, graders and scrapers by local or national requirements
• DO NOT operate this machine without a Roll over Protective Structure Do not operate a machine without a falling obiect protective structure fFOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts arc required to be provided with roll over protective structures or roll protection cabs by local or national regula tions.
• Keep the safety belt fastened around you during opera lion. Wnere noise exposure exceeds 90 dBA for 8 hours, wear authorized ear protective equipment per local or national re- quirements that apply. Keep clutches and brakes on machine and attachments such as power control units, winches and master clutches adjusted according to Operation ano Maintenance Instruction Manuals of the manufacturers at all times.
• DO NOT adjust machine with engine running except as specified Do no: operate a machine with brakes out of adjustment See the Operation and Maintenance Instruction Manual Move carefully when under, in or near machine or implements. Wear required protectrvo equipment, such as hard hat. safety glasses . safety shoes, ear protectors. To move a disabled machine, use a trailer or low boy truck If available.
• If lowing is necessary, provide warning signals as required by local rules and regulations and follow Operation and Maintenance Instruction Manual recommendations. Load and unload on a level area that gives full support to the trailer wheels.
• Use ramps of adequate strength. k>w angle and proper height. Keep trailer bed clean of clay, oil and all materials that become slippery. Tie machine down securely to truck or trailer bed and block tracks (or wheels) as required by the carrier. To prevent entrapment in cabs or mounted enclosures, observe and know the mechanics of alternate exit routes.

NEW HOLLAND FR10 FR12 FR15 BRAKE AND AIR SYSTEM WHEEL LOADER SERVICE MANUAL 73148730 – PDF DOWNLOAD:

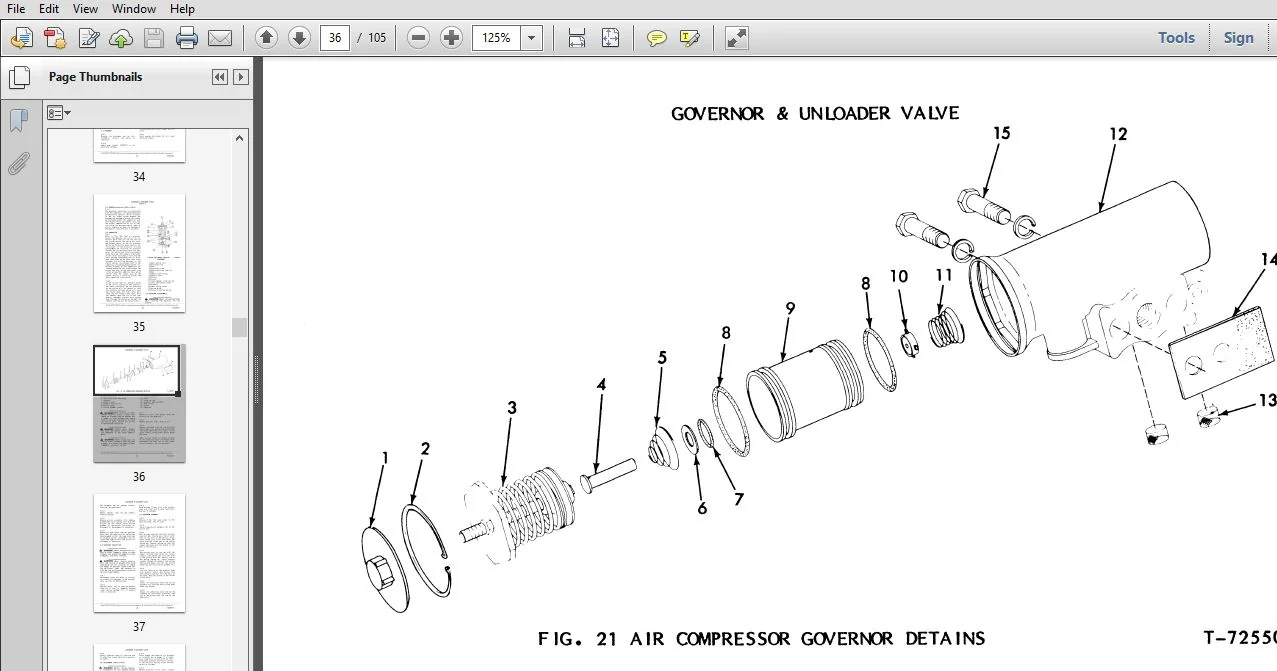

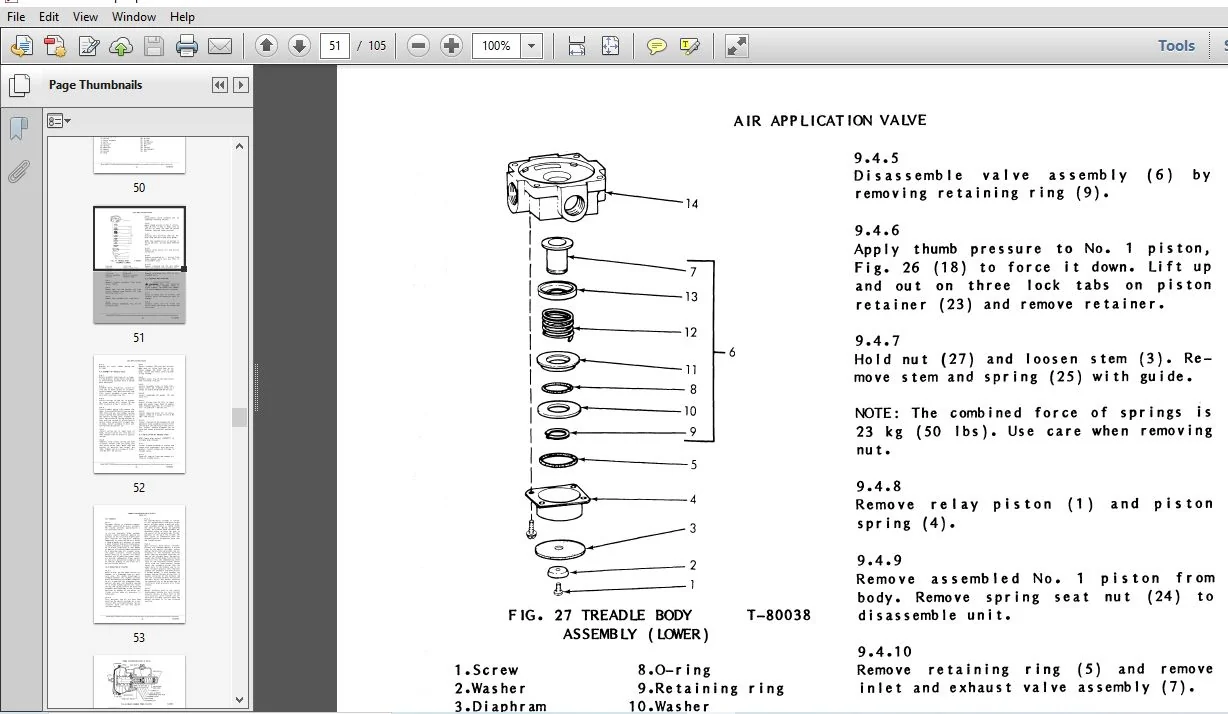

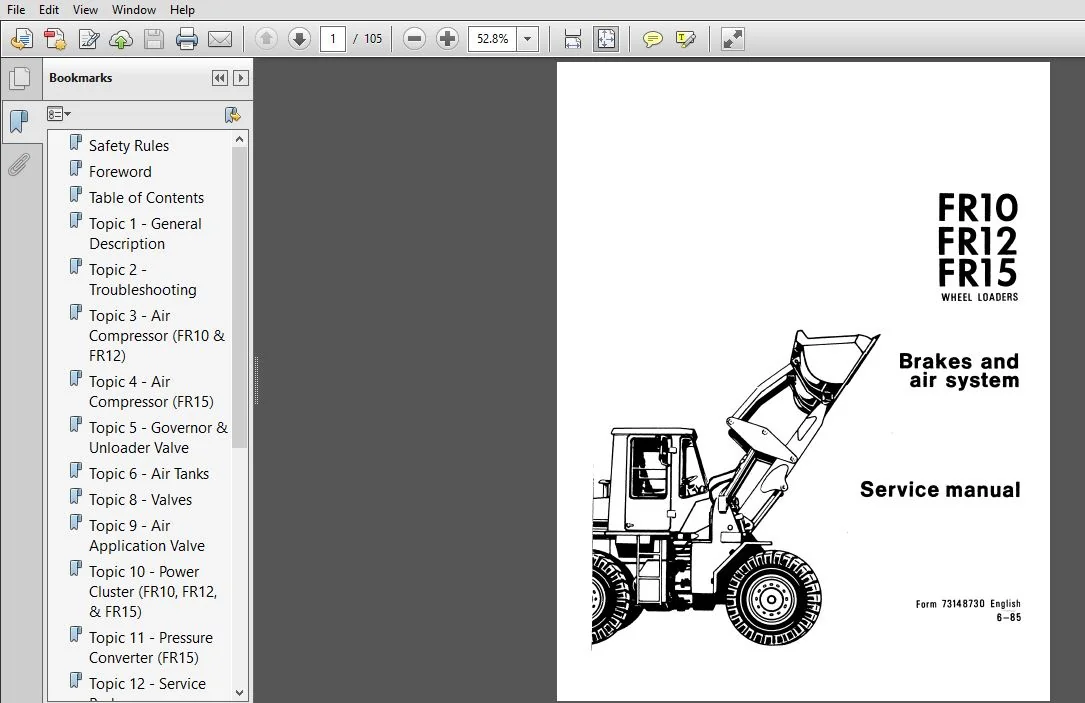

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland FR10 FR12 FR15 BRAKE AND AIR SYSTEM WHEEL LOADER Service Manual

Safety Rules 4
Foreword 10
Table of Contents 11
Topic 1 – General Description 12
Topic 2 – Troubleshooting 19
Topic 3 – Air Compressor (FR10 & FR12) 22
Topic 4 – Air Compressor (FR15) 31
Topic 5 – Governor & Unloader Valve 35
Topic 6 – Air Tanks 41
Topic 8 – Valves 46
Topic 9 – Air Application Valve 48
Topic 10 – Power Cluster (FR10, FR12, & FR15) 53
Topic 11 – Pressure Converter (FR15) 62
Topic 12 – Service Brakes 70
Topic 13 – Bleeding Brake System 81
Topic 14 – Alcohol Injector 83
Topic 15 – Air Pressure Gauge 86
Topic 16 – Air Horn 87
Topic 17 – Low Air Pressure & Brake Light Switch 90
Topic 18 – Parking Brake 91
Topic 19 – Clutch Cut-Off 95
Topic 20 – Unloader Valve & Schematics 96
Topic 21 – Tests 101

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
