New Holland L223 Tier 3 Skid-Steer Loader Parts Catalog

This is the full illustrated parts catalog for the New Holland L223 Tier 3 skid-steer loader, published by CNH Industrial. It is the document a parts counter, workshop or owner uses to identify and order the correct component for every assembly on the machine — from a single O-ring up to the complete boom. Every figure is drawn as an exploded view with numbered call-outs mapped to a reference table of part numbers, quantities and descriptions.

File Details

• Manual type: Illustrated Parts Catalog
• Brand / Publisher: New Holland / CNH Industrial
• Primary model: L223 Skid-Steer Loader (Tier 3)
• Language: English
• File format: PDF
• Page count: 908 pages (including the alphabetical part-number index)
• Page dates shown: 10/2014 through 12/2016

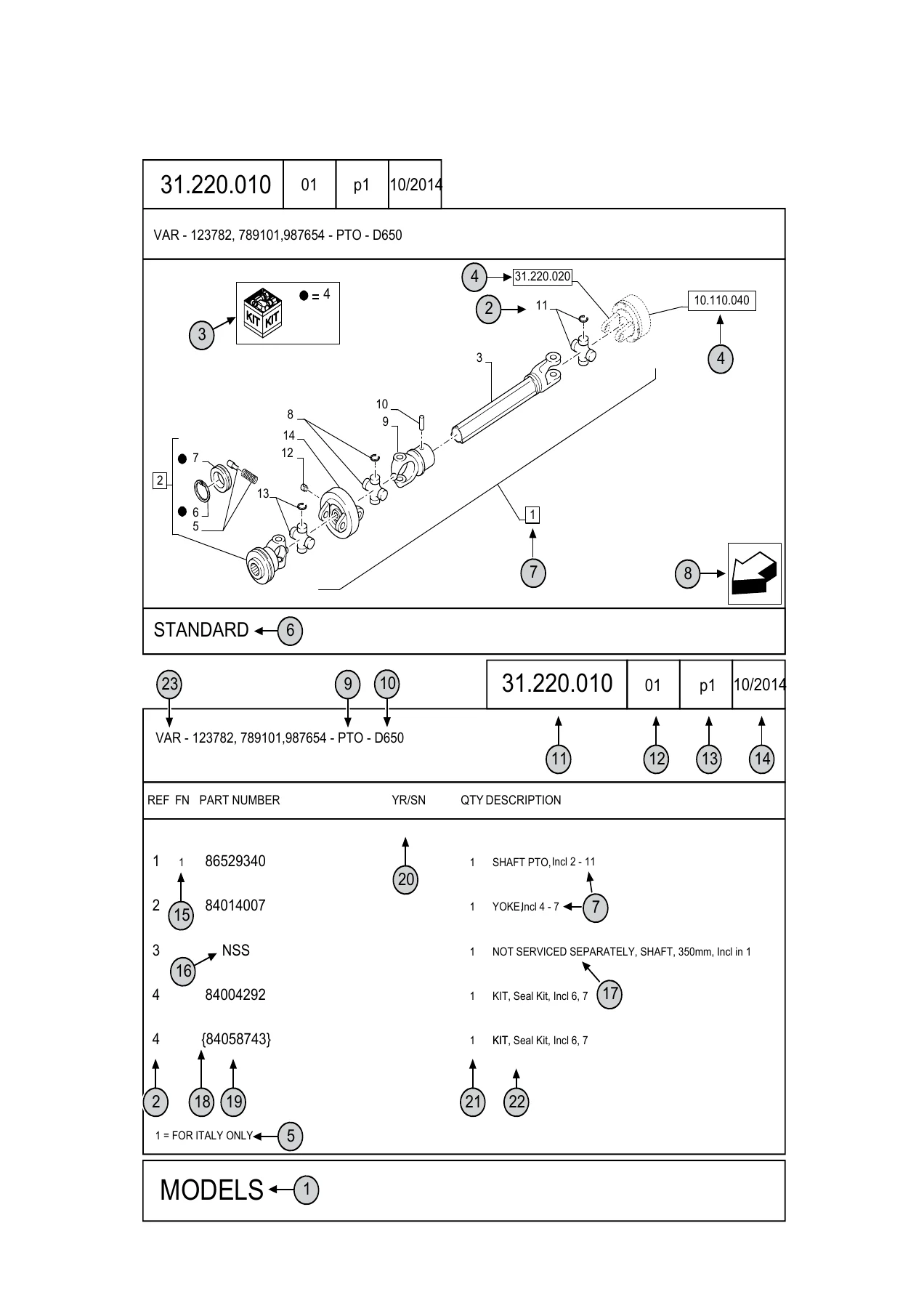

• Catalog figure reference example: 31.220.010 (PTO)
• Variant / option codes referenced: VAR – 123782, 789101, 987654 – PTO – D650

Chapters Covered

The catalog is organised by CNH’s numeric section codes. The index below lists the top-level groups and their principal sub-sections exactly as they appear.

• 05 — Service & Maintenance
  • 05.100.01 Initial Stocking List (List A)
  • 05.100.03 01 Filters
  • 05.100.03 02 Capacities
• 10 — Engine
  • 10.001.AD Engine (long block, reman and core options)
  • 10.001.AK Engine Mount (L223–C238)
  • 10.202.AB Air Cleaner Assembly NA 8in
  • 10.202.AK Air Intake Tubes
  • 10.210.AF Fuel System (including units built before 18-Jun-2013)
  • 10.220.AA Throttle Control — Hand & Foot Mechanical, EH, Hand Mechanical, Throttle Mounting
  • 10.254.AD Engine Exhaust Large Vertical
  • 10.254.AI Muffler
  • 10.304.AF Remote Engine Oil Filter Lines
  • 10.304.AJ Oil Fill
  • 10.304.AL Remote Oil Drain (three date variants)
  • 10.304.AS Remote Dipstick
  • 10.400.BE Radiator & Related Parts / Radiator & Cooler Assembly
  • 10.414.AC Engine Fan
  • 10.414.BE Standard and High-Flow Fan Belt
• 25 — Power Train
  • 25.450.AA Axle Assembly, Heavy Duty (L223–L230)
  • 25.450.AC Power Train (L223, L225, L230)
• 29 — Controls & Hydrostatic Pump
  • 29.200.AI Dampening, Centering, Handle Mounting, Hand & Foot Controls
  • 29.200.AM Hand Control Interlink, Foot Control Interlink
  • 29.200.AN Foot Controls Mounting Assembly / Pedals
  • 29.204.AB Hydrostatic Pump Drive Lines and Supply Lines (Mechanical & EH)

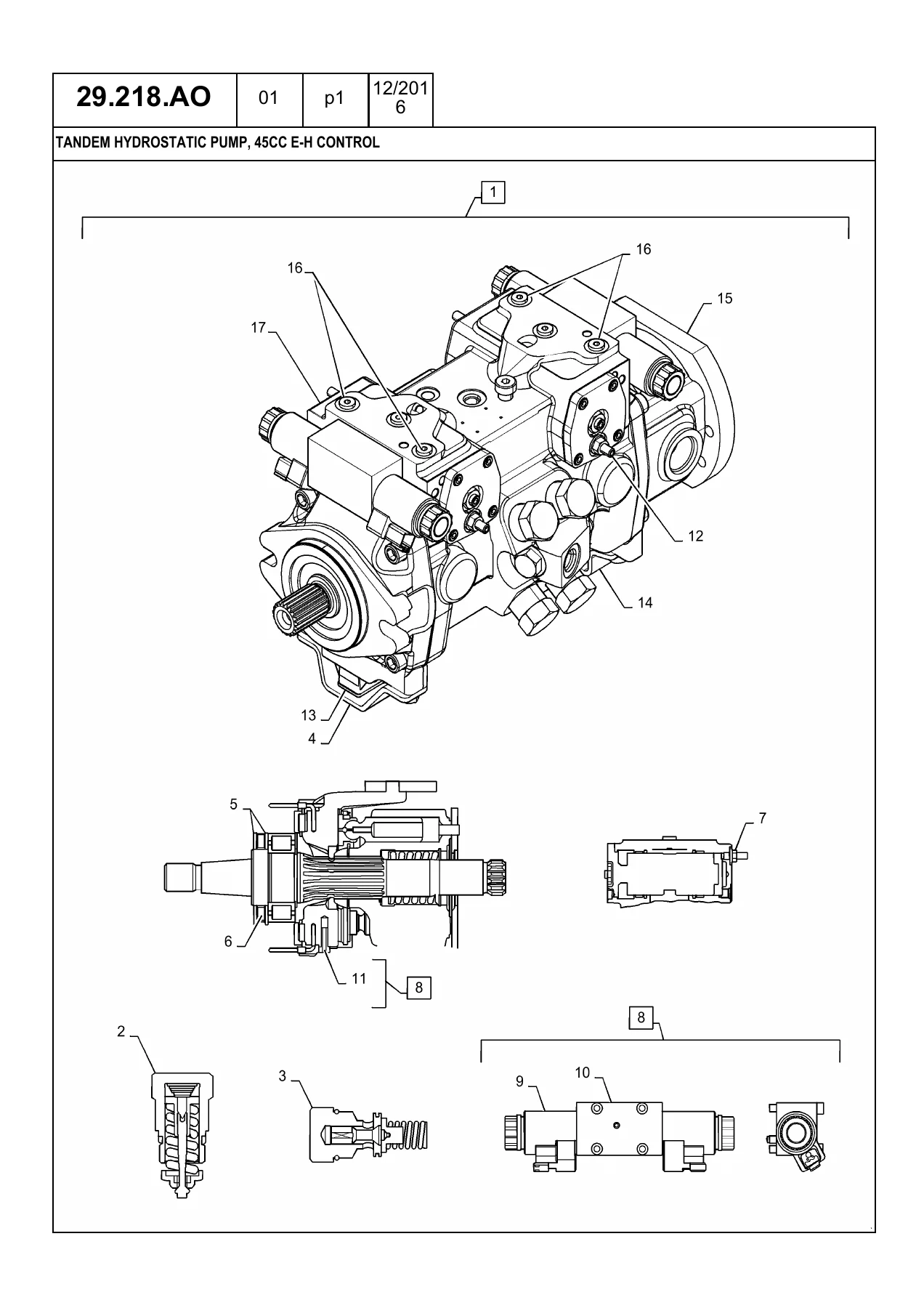

  • 29.218.AO Tandem Hydrostatic Pump 45cc E-H, 46cc Mechanical variants (Front and Rear)
• 35 — Hydraulic Systems
  • 35.100.AB Hydraulic Return Plumbing
  • 35.100.BG Hydraulic Supply Plumbing
  • 35.220.AA Auxiliary Hydraulic Standard and High-Flow Gear Pump
  • 35.300.AN Hydraulic Oil Filter
  • 35.300.AQ Hydraulic Fluid Reservoir
  • 35.353.AC Brake Valve (single speed, 2-speed, EH, before/after build dates)
  • 35.353.AD Rexroth Drive Motor 1-Speed and 2-Speed
  • 35.353.AE Brake Line and 2-Speed Lines
  • 35.355.AH Loader Control Valve, Hand Controls Mechanical (before and after 1-Nov-12)

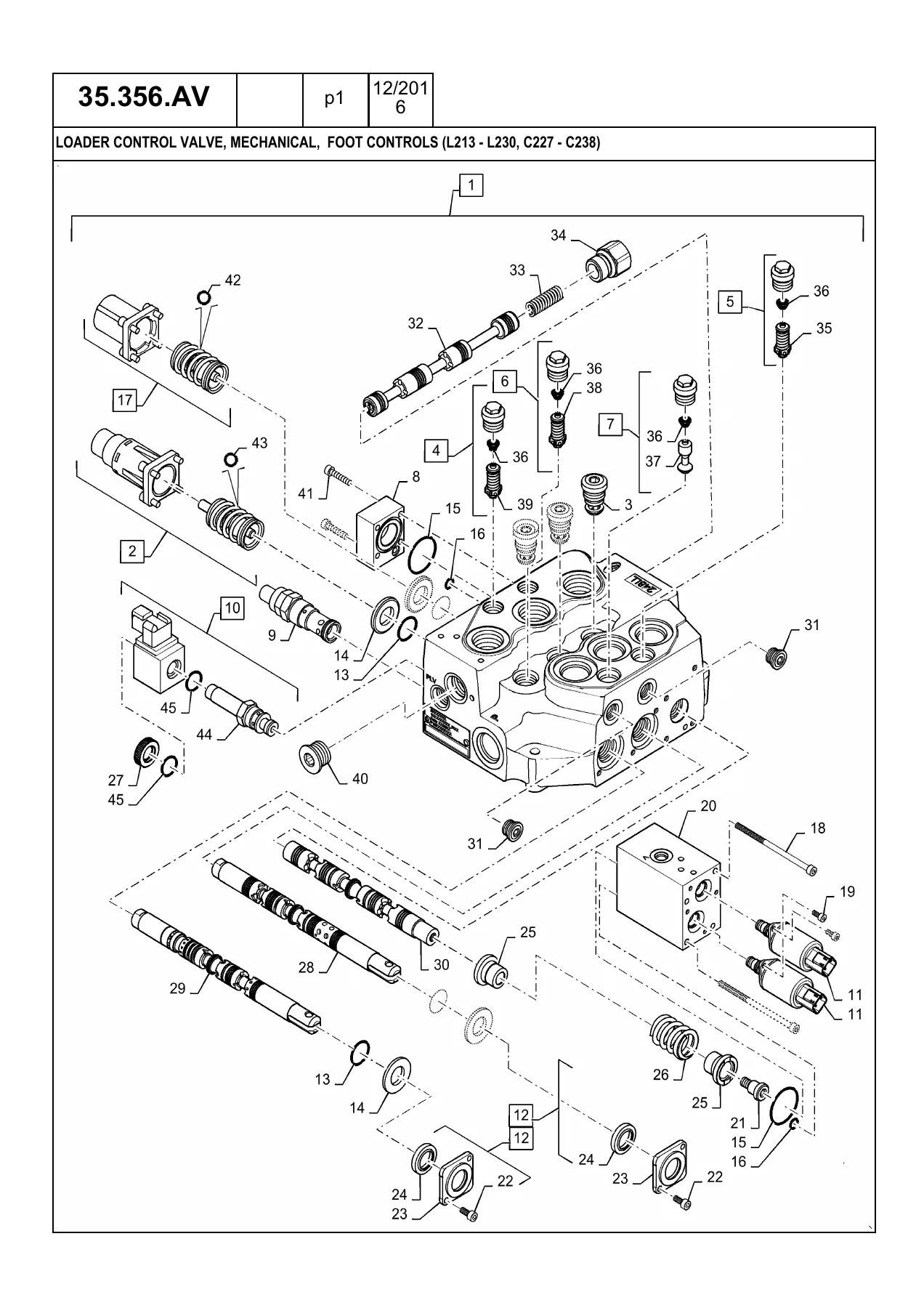

  • 35.356.AV Loader Control Valve, Mechanical, Foot Controls
  • 35.357.AG Loader Control Valve, E-H Controls (four build-date variants)
  • 35.701.AX Loader Valve Plumbing and Loader Arm Lines
  • 35.701.BQ / 35.701.BU Ride Control and Self-Leveling options
  • 35.723.AA Bucket Cylinder (before and after 21-Dec-2012)
  • 35.734.AA / 35.734.AC Hydraulic Coupler Cylinder and Valve
  • 35.734.AH Coupler Boom Arm Plumbing, Auxiliary Hydraulic Standard and High Flow (Boom and Chassis)
  • 35.736.AA Boom LH and RH Lift Cylinder
• 39 — Frames & Ballasting
  • 39.100.AB Frame
  • 39.140.AM Counterweight
• 44 — Wheels
  • 44.511.AG Rims, tyres and wheel nuts (12 x 16.5, 10 x 16.5, 14 x 17.5)
• 50 — Cab Climate Control
  • 50.100.AC Heater Plumbing Basic
  • 50.100.AP Heater, Large Frame / Heater (All NH) / HVAC Large Frame / Heater with A/C
  • 50.200.AA Air Conditioner Compressor
  • 50.200.BY AC Plumbing Basic (before 30-Jun-2015 and after 1-Jul-2015)
• 55 — Electrical Systems
  • 55.015.AB Engine Electrical Large Vertical
  • 55.100.DO Fuse Box #1 and Fuse Box #2 (EH)
  • 55.101.AC Chassis Options Harness, Electrical Mechanical, EH Open Cab, EH
  • 55.201.AH Ignition and Display, Keyed / Keyless
  • 55.202.AE Block Heater NA and EU
  • 55.302.AG / 55.302.AI / 55.302.AK Battery, Battery Disconnect and Retention
  • 55.404.AL / 55.404.CL / 55.404.CY Light Assemblies, Turn Signal and EU Road Lights
  • 55.408.AG Worklights, Horn and Related Parts
  • 55.408.BE Common Instruments and Electrical
  • 55.510.BM Electrical Assembly Socket NA / EU
  • 55.512.BW Multifunction Electrical
  • 55.512.CL Handle, Electronic Control NH and all Level 100–550 handle grip variants
  • 55.518.AT Washer Bottles Front, Rear, Front & Rear
  • 55.991.AA Electronic Control Unit, Telematics
• 82 — Front Loader & Bucket
  • 82.100.AF Front Loader & Bucket (20-Jul-2016 and newer)
  • 82.100.AG Coupler and Coupler Frame Service Kit
  • 82.100.AH Boom Lock and Dual Boom Lock
  • 82.300.AC Manual Coupler
  • 82.300.AN Buckets — Extended Low Profile, Heavy Duty Dirt, Dirt/Foundry, Utility/Light Material, Manure/Slurry, B.O.C.E., Pallet Fork, Spill Guards, SSL Quick Attach Latches
• 84 — Booms
  • 84.910.AA Boom (L223)
• 88 — Accessories (DIA Kits)
  • 88.100.05 Fire Extinguisher Kit
  • 88.100.10 Aspirator, Block Heater, Engine Accessories, Radiator Debris
  • 88.100.35 Self-Level Bucket, Ride Control, Hydraulic Coupler, Attachment Hose Guide, High Flow Aux, 2nd Front Hydraulic Aux, Cylinder Guard
  • 88.100.37 Draw Bar
  • 88.100.39 Counterweight, 4-Point and Single-Point Lift Hook
  • 88.100.50 Complete Heat and Complete HVAC kits
  • 88.100.55 Chassis Harness, Multi-Function Electric, EU Road Lights, Turn Signal, Side Lamp, Strobe, Beacon, Wide Bucket EU Lights, Telematics, Battery Disconnect, Foot Controls, Hand Controls, Italy-Specific, Mirror, Radio, Auxiliary Lights, Seal Package, Fuse Cover, Handle Grip Upgrades
  • 88.100.82 Boom Kit, Spill Guards, Bucket Cutting Edges, Heavy Duty Bucket Teeth, Field Buckets, Coupler Cross Tube Reinforcement
  • 88.100.84 RH and LH Boom Link Kits
  • 88.100.90 Door Kits, Cab Side Windows, Rear Access Window, Top Window, Side Screens, Lap Belt, Handle Kits, Debris Kits, Armrests, Hood Reinforcement, FOPS Level 2, Fenders, Interior Trim, Lap Kit
• 90 — Platform, Cab, Bodywork & Decals
  • 90.100.AU Hoods and Covers, Rear Hood and Chassis Access Covers
  • 90.108.AB / 90.108.AC Decals and Warning Decals
  • 90.116.AO Loader Stop 40mm and 63mm
  • 90.119.AB Cab Sealing and Cab NH
  • 90.120.AD Seat, Non-Suspension and Mechanical Suspension variants
  • 90.124.AD Seat, Air Suspension variants
  • 90.150.AC Cab (All)
  • 90.151.AD Seat Belt 2-Point Retractor and 3-Point
  • 90.154.AA / 90.154.AC / 90.154.AQ / 90.154.AV Demo Door, Glass Door, Open Cab, Cab Gas Strut, Rear Window EU/NA
  • 90.160.AR Floor Mats, 90.160.AS Floorplates, 90.160.AX Cab Headliners, 90.160.CK Seal Package and Interior Trim
• 95 — CE Attachments
  • 95.002.BBS SSL Attachment Adapter Blank
  • 95.004.BBS Auger Drive and all auger bit sizes (HDF, HDC, HTF)
  • 95.006.BBS Auto Rake
  • 95.008.BBT Backhoes 509, 511, 6100, 6120 with mounting, stabilizer and bucket options
  • 95.010.BBS Bale Handler, 95.012.BBS Bale Spear
  • 95.016 Angle Broom, Hopper Broom, Pick-Up Broom with water kits
  • 95.018.DDN 4×1 Bucket (Construction), 95.018.FFS Power Side Discharge Buckets
  • 95.022.BBN Chipper
  • 95.024 Cold Planers High Flow and Standard Flow
  • 95.026.BBS Concrete Bucket, 95.028.BBS Concrete Claw
  • 95.032.BBS Dozer Blades, 95.034.BBS Grader Rakes
  • 95.036 Brush, Log and Scrap Grapples
  • 95.042.BBS Harley Power Box Rake
  • 95.044.BBS Hydraulic Hammers HH-3M, HH-4M, HH-5M with full tool options
  • 95.048.BBS Lift Boom, 95.050.BBS Load Monitors
  • 95.052.BBS Manure Fork and Grapple, 95.054.BBS Manure Scrapers
  • 95.088.SPA Snow Pusher Attachments 8ft and 10.5ft

What this catalog actually gives you

What separates a parts catalog from a general workshop book is that it answers one question with certainty: which exact part. Every assembly in this document is drawn stripped down and exploded, with each component given a reference number that resolves to a part number, a quantity and a full description in the accompanying table. Where CNH split a component across build dates — the remote oil drain, the bucket cylinder, the loader control valve, the fuel system — those date ranges are printed against the affected figures so you order the right revision. Service kits, seal kits and reman options are listed alongside the new part, and non-serviced items are flagged rather than left blank.

The scope reflects the machine itself. The L223 shares its large-frame platform with the L225 and L230 and its compact-track siblings C232 and C238, so a large portion of the figures carry multi-model applicability notes. Where a variant is specific to the L223 that is stated. The sections run from the engine long block and its Tier 3 emissions hardware, through the tandem hydrostatic pump and Rexroth drive motors, out to the loader arm, coupler and every bucket and attachment the machine was sold with. At the back sits an alphabetical part-number index that lets you work backwards — find a part number on a component and locate the figure it belongs to.
