New Holland LB115 Backhoe Loader Service Repair Manual (86584406) New Holland LB115 – PDF Download

Description

New Holland LB115 Backhoe Loader Service Repair Manual (86584406) New Holland LB115

FILE DETAILS:

New Holland LB115 Backhoe Loader Service Repair Manual (86584406) New Holland LB115

• New Holland Backhoe Loader LB115 Service Manual_86584406
• Size: 223 MB
• Format: PDF
• Language: English
• Number of Pages: 756 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: LB115
• Part No: 86584406

NEW HOLLAND LB115 BACKHOE LOADER SERVICE REPAIR MANUAL (86584406) NEW HOLLAND LB115 – PDF DOWNLOAD:

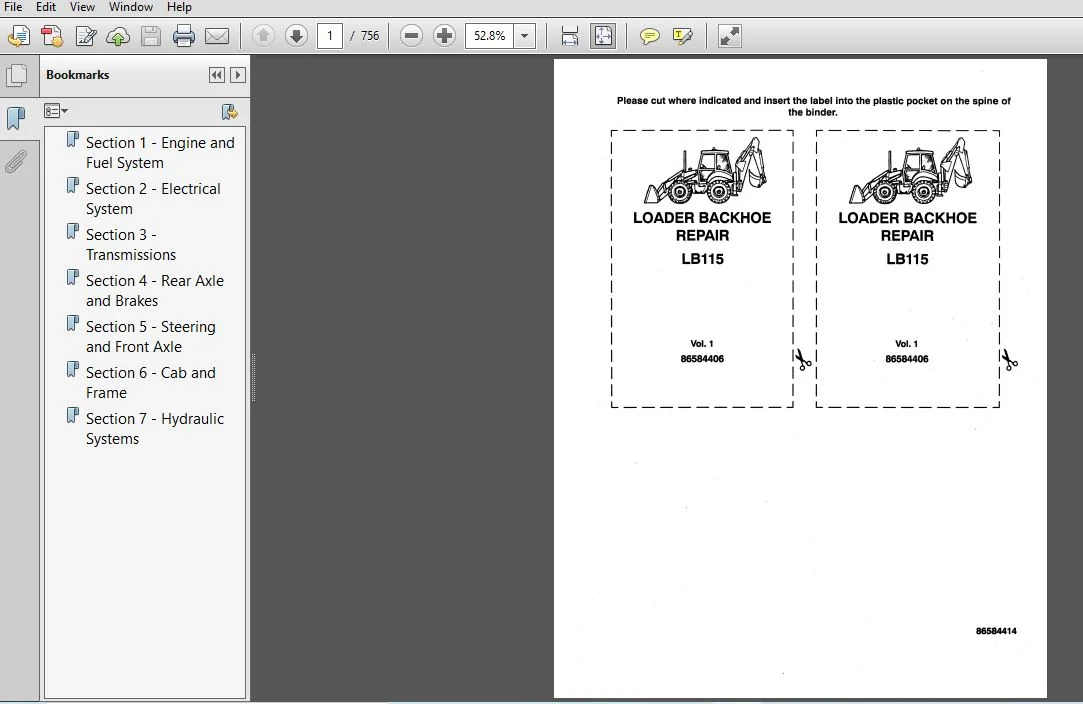

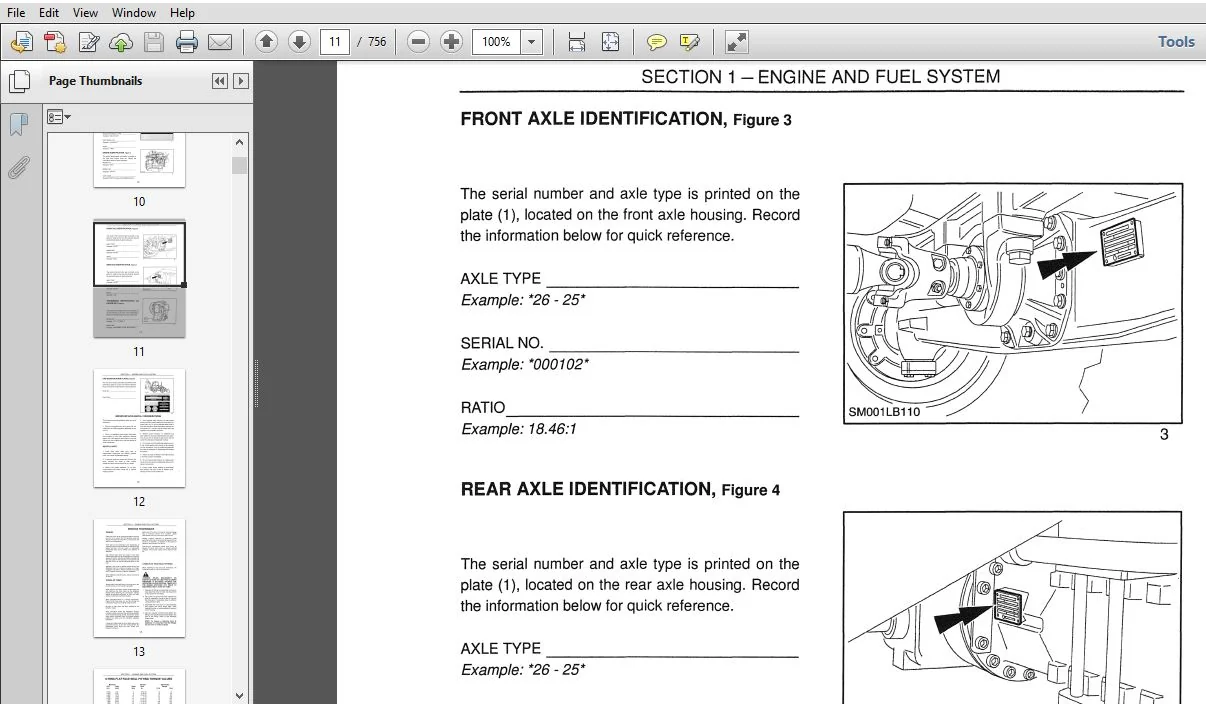

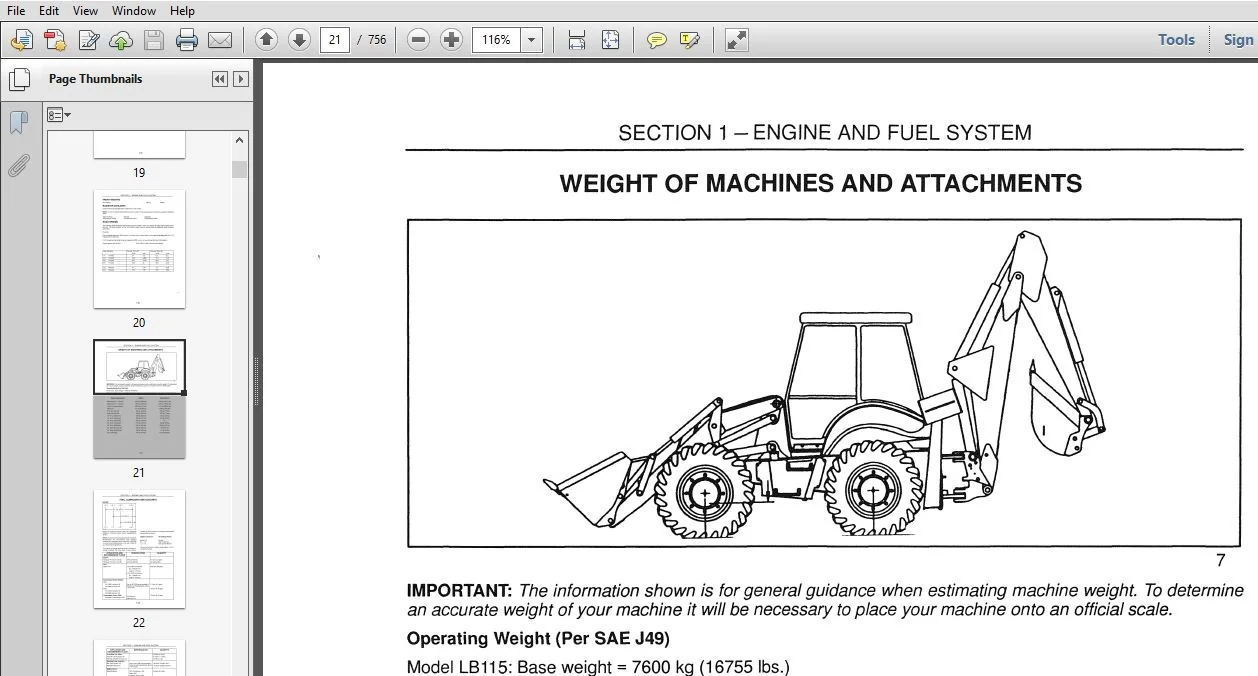

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland LB115 Backhoe Loader Service Repair Manual (86584406) New Holland LB115

• IMPORTANT NOTICE
• All maintenance and repair operations described In this manual should be carried out exclusively by NEW HOLLAND authorized workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary.
• Everyone who carries out service operations described without carefully observing these prescriptions will be directly responsflnfe of deriving damages. SHIMMING At each adiustment. select adjusting shims. measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set. which may be incorrect. or on rated value indicated for each shim.
• ROTATING SHAFT SEALS To correctly install rotating shalt seals. observe the following instructions: – Let the seal soak into the same oil as it will seal for at least half an hour before mounting; – Thoroughly clean the shaft and ensure that the shaft working surface is not damaged: – Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shah rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal: – Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill with grease the gap between the sealing lip and the dust lip of double lip seals; – Insert the seal Into Its seat and press it down using a suitable tool. Do not tap the seal with a hammer or a drift: – Take care to insert the seal perpendicularly to its seat while you are pressing it. Once the seal is settled. ensure that it contacts the thrust element if required; – To prevent damaging the sealing lip against the shalt. place a suitable protection during installation.
• 0 RINGS Lubricate the 0 rings before inserting them into their seats. This will prevent the 0 rings from rolling over during mounting which will Jeopardlzc sealing.
• SEALERS Apply Loctite Gasket Eliminator 510 or a suitable equivalent. over the mating surfaces marked with an X. Before applying the sealer. prepare the surface as follows: – remove possible scales using a metal brush; – thoroughly degrease the surfaces using NEW HOLLAND DEGREASER, or a suitable equivalent.
• BEARINGS It is advisabb to heat the bearings to 80 – 90-‘C before mounting them on their shafts and cool them dorm before inserting them into their seats with external tapping.
• SPRING PINS When mounting split socket spring pins, ensure that the pin notch ls oriented In the direction of the effort to stress the pin. Spiral spring pins should not be oriented during installation.

TABLE OF CONTENTS:

New Holland LB115 Backhoe Loader Service Repair Manual (86584406) New Holland LB115

SECTION 1 – ENGINE AND FUEL SYSTEM
SECTION 2 – ELECTRICAL SYSTEM
SECTION 3 – TRANSMISSIONS
SECTION 4 – REAR AXLE AND BRAKES
SECTION 5 – STEERING AND FRONT AXLE
SECTION 6 – CAB AND FRAME
SECTION 7 – HYDRAULIC SYSTEMS
