New Holland LW 170.B Wheel Loader Service Repair Manual (6-49712NAR0)

Description

New Holland LW 170.B Wheel Loader Service Repair Manual (6-49712NAR0)

File Details:

New Holland LW170_B Wheel Loader Service Manual_6-49712NAR0
Size: 130 MB
Format: PDF
Language: English
Number of Pages: 825 pages
Brand: New Holland
Type of document: Service Manual
Model: LW130_B Wheel Loader
Part No: 6-49712NAR0

NEW HOLLAND LW 170.B WHEEL LOADER SERVICE REPAIR MANUAL (6-49712NAR0):

Image Preview:

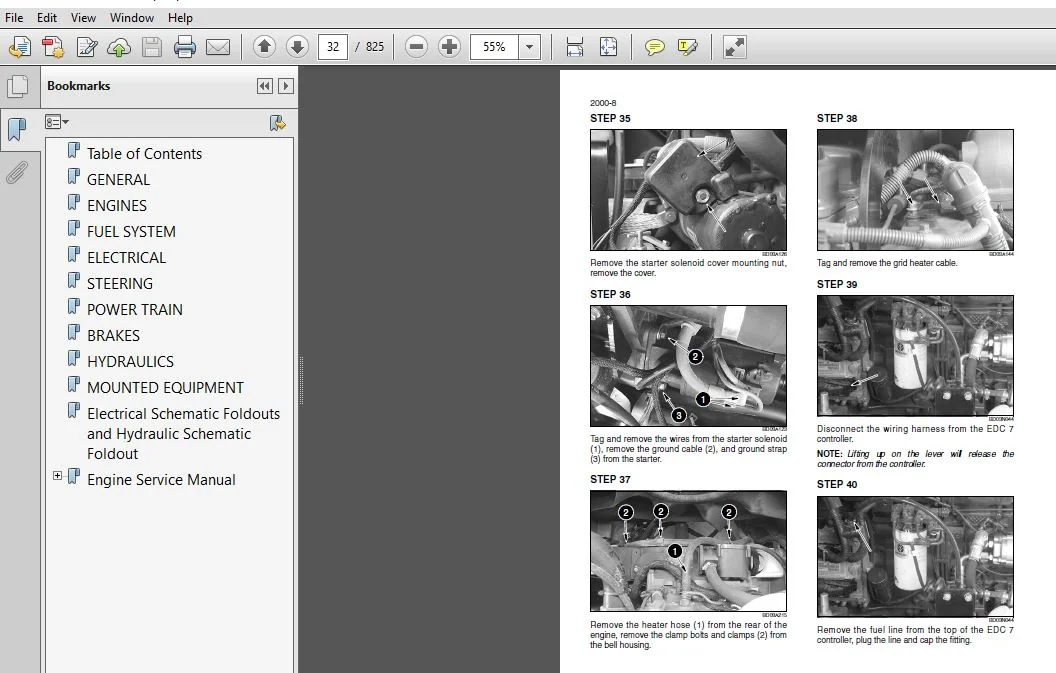

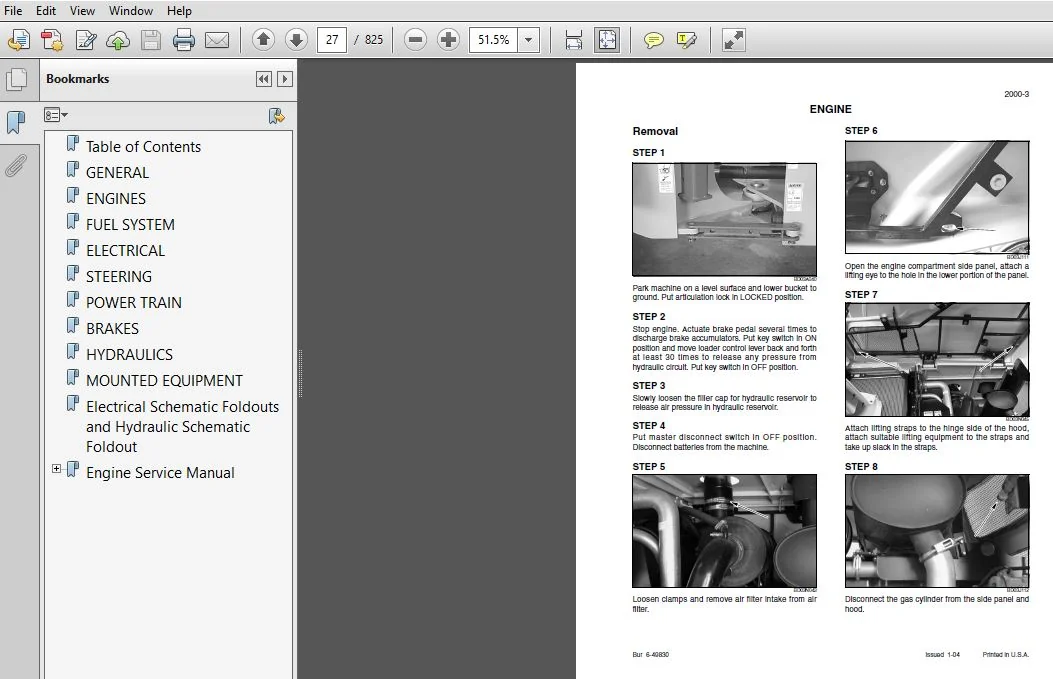

Sample Page from The Manual:

Use No. 2 diesel fuel in the engine of this machine. The use of other fuels can cause the loss of engine power and high fuel consumption. In very cold temperatures, a mixture of No. 1 and No. 2 diesel fuels is temporarily permitted. See the following Note. NOTE: See your fuel dealer for winter fuel requirements in your area. If the temperature of the fuel lowers below the cloud point (wax appearance point), wax crystals in the fuel will restrict the fuel filter and cause the engine to lose power or not start. The diesel fuel used in this machine must meet the specifications as shown below in, “Specifications for Acceptable No. 2 Diesel Fuel”, or “Specification D975-81” of the American Society for Testing and Materials. Fuel Storage If you keep fuel in storage for a period of time, you can get foreign material or water in the fuel storage tank. Many engine problems are caused by water in the fuel. Keep the fuel storage tank outside and keep the fuel as cool as possible. Remove water from the storage container at regular periods of time. Fill the fuel tank at the end of the daily operating period to prevent condensation in the fuel tank.

• New Holland AMBRA Engine oil is recommended for use in your New Holland engine. New Holland AMBRA Engine Oil will lubricate your engine correctly under all operating conditions.
• If New Holland AMBRA Multi-Viscosity Oil is not available, use only oil meeting API engine oil service category CH-4 (preferred) or CG-4

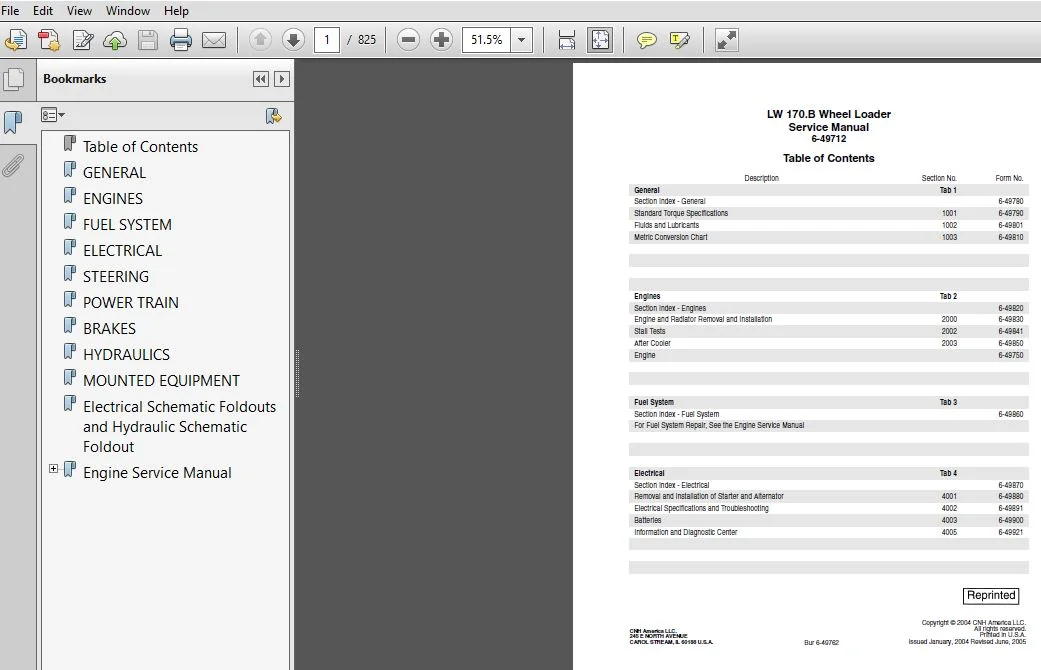

Table of Contents:

General Tab 1
Section Index – General 6-49780
Standard Torque Specifications 1001 6-49790
Fluids and Lubricants 1002 6-49801
Metric Conversion Chart 1003 6-49810
Engines Tab 2
Section Index – Engines 6-49820
Engine and Radiator Removal and Installation 2000 6-49830
Stall Tests 2002 6-49841
After Cooler 2003 6-49850
Engine 6-49750
Fuel System Tab 3
Section Index – Fuel System 6-49860
For Fuel System Repair, See the Engine Service Manual
Electrical Tab 4
Section Index – Electrical 6-49870
Removal and Installation of Starter and Alternator 4001 6-49880
Electrical Specifications and Troubleshooting 4002 6-49891
Batteries 4003 6-49900
Information and Diagnostic Center 4005 6-49921
Steering Tab 5
Section Index – Steering 6-49950
Removal and Installation of Steering Components 5001 6-49960
Steering Specifications, Pressure Checks, and Troubleshooting 5002 6-49970
Steering Control Valve 5003 6-49980
Steering Priority Valve 5004 6-49990
Steering Cylinders 5005 6-72000
Center Pivot 5006 6-72010
Auxiliary Steering Motor and Pump 5007 6-72020
Power Train Tab 6
Section Index – Power Train 6-72030
Removal and Installation of Power Train Components 6001 6-72040
Transmission Specifications, Pressure Checks, and Troubleshooting 6002 6-72050
Transmission 6003 6-72060
Front Axle 6004 6-72070
Rear Axle 6004 6-72080
Drive Shafts, Center Bearing, and Universal Joints 6005 6-72090
Wheels and Tires 6006 6-72100
Transmission Control Valve 6007 6-72110
Brakes Tab 7
Section Index – Brakes 6-72120
Removal and Installation of Brake Components 7001 6-72130
Hydraulic Brake Troubleshooting 7002 6-72141
Parking Brake 7008 6-72160
Hydraulics Tab 8
Section Index – Hydraulics 6-72170
Removal and Installation of Hydraulic Components 8001 6-72182
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002 6-72192
Cleaning the Hydraulic System 8003 6-72200
Loader Control Valve 8005 6-72220
Cylinders 8006 6-72231
Coupler Solenoid Locking Valve 8007 6-72240
Pilot Pressure Accumulator and Ride Control Accumulator 8013 6-72260
Ride Control Valve
Mounted Equipment Tab 9
Section Index – Mounted Equipment 6-72280
Air Conditioning Troubleshooting and System Checks For Systems with HFC-134a
Refrigerant 9002 6-72290
Air Conditioner System Service 9003 6-72300
Removal and Installation of Air Conditioning Components For Systems with
HFC-134a Refrigerant 9004 6-72310
Loader 9006 6-72321
ROPS Cab and ROPS Canopy 9007 6-72330
Cab Glass Installation 9010 6-72340
Electrical Schematic Foldouts and Hydraulic Schematic Foldout In Rear Pocket 6-49770

Please Note:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
