New Holland RG140.B RG170.B RG200.B RG140.B VHP RG170.B VHP RG200.B VHP RG170.B AWD RG200.B AWD GRADERS 71114389 SERVICE MANUAL

Description

New Holland RG140.B RG170.B RG200.B RG140.B VHP RG170.B VHP RG200.B VHP RG170.B AWD RG200.B AWD GRADERS

FILE DETAILS:

New Holland RG140.B RG170.B RG200.B RG140.B VHP RG170.B VHP RG200.B VHP RG170.B AWD RG200.B AWD GRADERS

Size: 56.0 MB
Fomat: PDF
Language: English
Brand: New Holland
Type of machine: Grader

DESCRIPTION:

New Holland RG140.B RG170.B RG200.B RG140.B VHP RG170.B VHP RG200.B VHP RG170.B AWD RG200.B AWD GRADERS

SAMPLE PAGE FORM THE MANUAL:

• Use Nº2 DIESEL fuel in the engine of this machine. The use of other fuels can cause the loss of engine power and high fuel consumption. In very cold temperatures, a mixture of Nº1 and Nº2 DIESEL FUELS is temporarily permitted.
• See the following note. NOTE: See your fuel dealer for winter fuel requirements in your area. If the temperature of the fuel lowers below the cloud point (wax appearance point), wax crystals in the fuel will cause the engine to lose power or not to start. The Diesel fuel used in this machine must meet the specifications in the chart below or Specification D975-81 of the American Society for Testing and Materials.
• Fuel Storage If you keep fuel in storage for a period of time, you can get foreign material or water in the fuel storage tank. Many engine problems are caused by water in the fuel. Keep the fuel storage tank outside and keep the fuel as cool as possible. Remove water from the storage container at regular periods of time. Fill the fuel tank at the end of the daily operating period to prevent condensation in the fuel tank.
• Turn the master disconnect switch to the OFF position. Use a wrench to move the belt tensioner and loosen the tension on the belt . Refer to the illustration on the following page.  Remove the belt.  Remove the boots. Tag and disconnect wires (14) and (15) from from the alternator.  Remove the bolt (,and washer and from the support bracket  and the alternator
•  Remove the alternator  and shield from the. machine. Installation 1. Install the alternator on the machine. Torque the bolt  to 60 to 104 Nm (2) to 60 to 104 Nm (42.5 to 76 pound-feet). Refer to the illustration on the following page.  Install the washer ( And  and bolt . Torque the bolt to 60 to 104 Nm (42.5 to 76) pound-feet).
• Use a wrench to move the belt tensioner until the belt can be installed. Install the belt .  Install the wire, lockwasher and nut to the alternator’s D+ terminal. Torque the nut to 3.5 to 3.9 Nm (2.6 to 2.9 pound-feet).  Install the boot.  Install the wire, lockwasher and nut to the alternator’s B+ terminal. Torque the nut to 15 to 27 Nm (11 to 20 pound-feet).  Install the boot.  Turn the master disconnect switch to the ON position

NEW HOLLAND RG140.B RG170.B RG200.B RG140.B VHP RG170.B VHP RG200.B VHP RG170.B AWD RG200.B AWD GRADERS 71114389 SERVICE MANUAL:

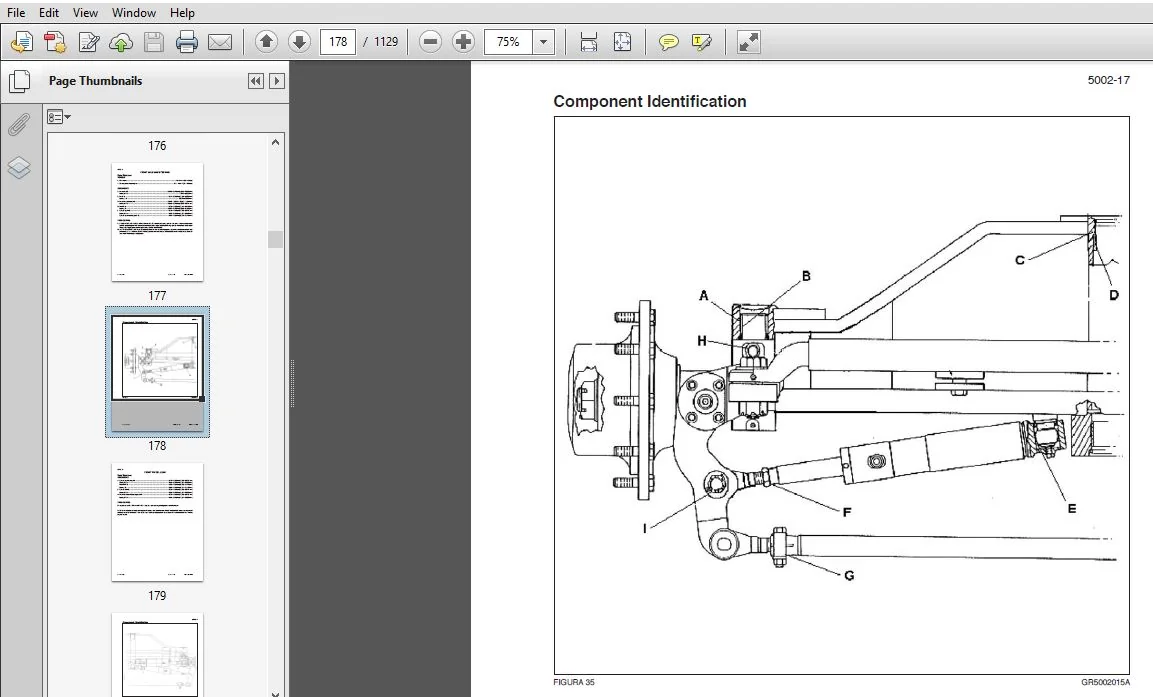

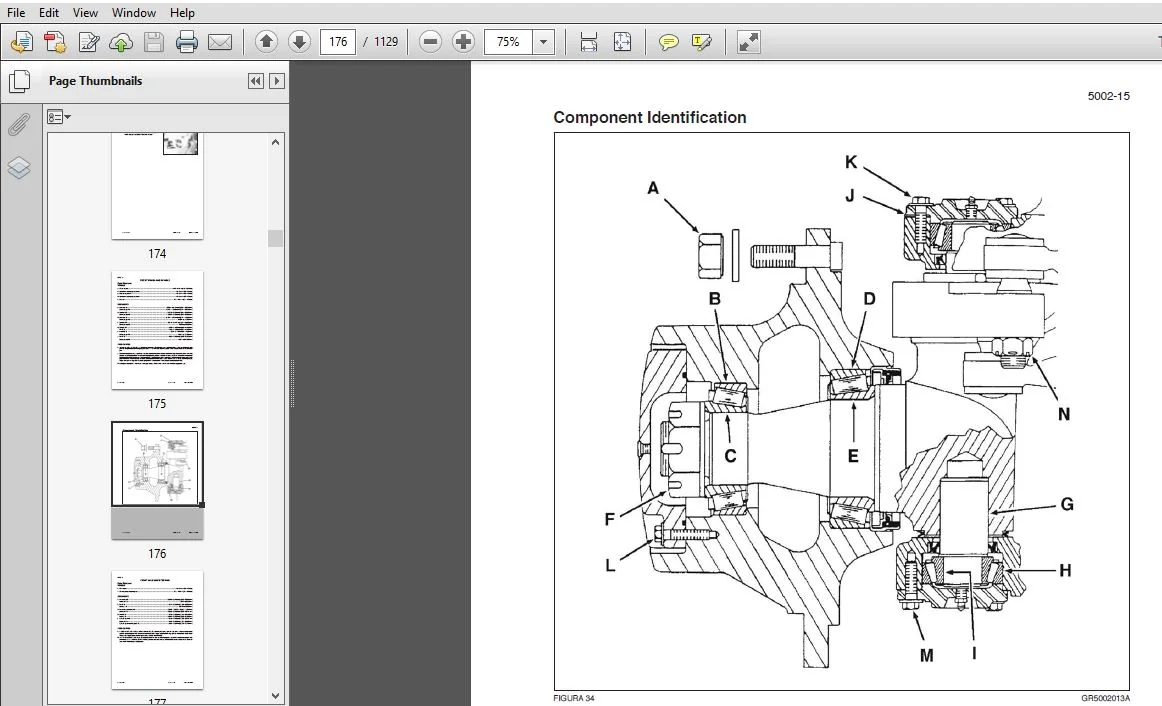

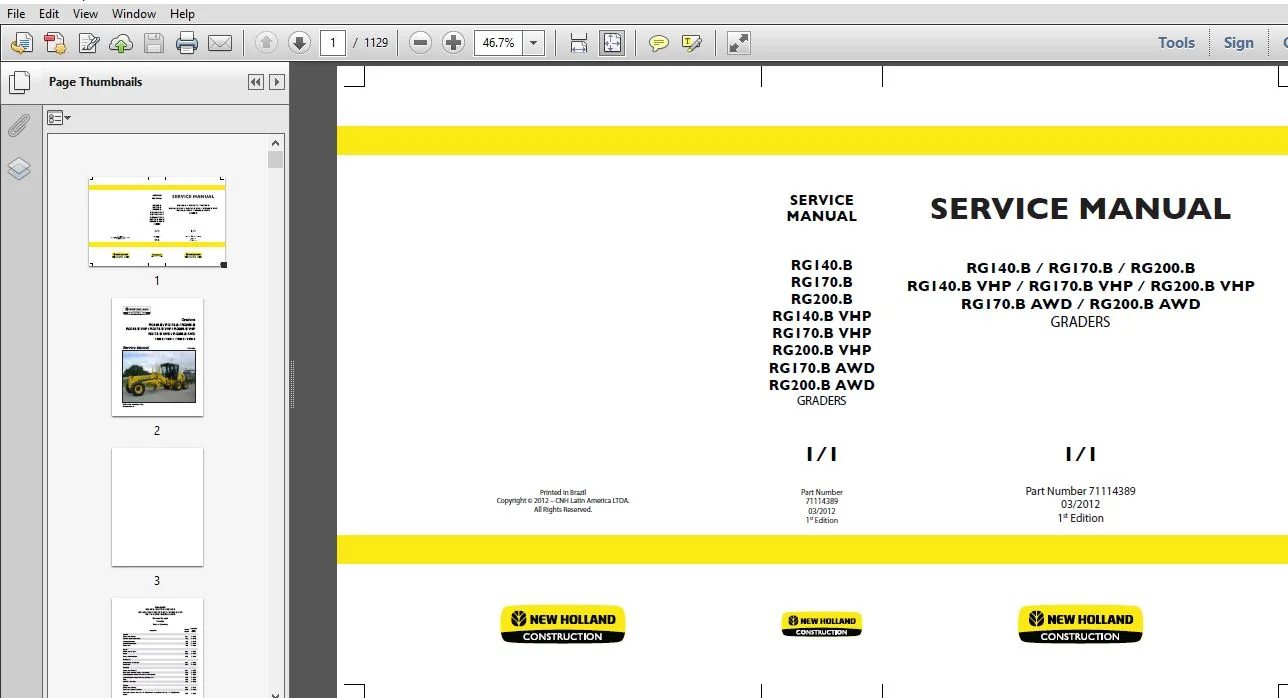

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland RG140.B RG170.B RG200.B RG140.B VHP RG170.B VHP RG200.B VHP RG170.B AWD RG200.B AWD GRADERS

General
Section Index – General Tab 1 6-46520
Standard Torque Especifications 1001 6-46530
Fluids and Lubricants 1002 6-46540
Metric Conversion Chart 1003 6-46550
Service Tools 1005 6-46551
Engine
Section Index – Engines Tab 2 6-46559
Engine 2000 6-46441
Charge Air Cooler System 2003 6-46570
Fuel System
Section Index – Fuel System Tab 3 6-46580
Fuel System 3001 6-46590
Electrical
Section Index – Electrical Tab 4 6-46600
Removal and Installation of Starter and Alternator 4001 6-42320
Electrical Diagram – Models Without All Wheel Drive System 4002 6-46620
Electrical Diagram – Models With All Wheel Drive System 4003 6-46621
Battery 4004 6-42330
Alternator – 80 Ampere 4008 6-42361
Steering
Section Index – Steering Tab 5 6-46770
Front Wheel, Axle and Wheel Lean 5002 6-46780
Steering Control Valve – RG140 B VHP / RG170 B VHP / RG200 B VHP / RG170 B AWD / RG200 B AWD
Models 5003 6-46690
71114389 Issued 03-12 Printed in Brazil
Description Section
Number
Publication
Form
Number
Steering Priority Valve – RG140 B VHP / RG170 B VHP / RG200 B VHP / RG170 B AWD / RG200 B AWD
Models 5004 6-46700
Power Train
Section Index – Power Train Tab 6 6-46720
ZF Transmission – Ergopower 5/6 WG-160 – RG140 B / RG170 B / RG140 B VHP / RG170 B VHP Models 6000 6-46730
FUNK Transmission – Specifications, Pressure Checks, Troubleshooting – RG140 B VHP / RG170 B VHP
Models 6002 6-46750
FUNK Transmission – RG140 B VHP / RG170 B VHP / RG170 B AWD Models 6003 6-75360
FUNK Transmission – RG200 B / RG200 B VHP / RG200 B AWD Models 6004 6-75361
Front Axle – RG140 B / RG170 B / RG200 B / RG140 B VHP / RG170 B VHP / RG200 B VHP Models 6007 6-46790
Front Drive Axle – RG170 B AWD / RG200 B AWD Models 6008 6-46770
Transmission Gear Box (Wheel Reductor) For Front Drive Axle – RG170 B AWD / RG200 B AWD Models 6009 6-46771
Rear Axle Assembly (Graziano) – RG140 B / RG140 B VHP Models 6010 6-46820
Rear Axle Assembly (Graziano) – RG170 B / RG170 B VHP / RG170 B AWD / RG200 B / RG200 B VHP /
RG200 B AWD Models 6011 6-46811
Tandem for Rear Axle Assembly (Graziano) 6013 6-46821
Tandem Flange Adjustments (Graziano) 6014 6-46822
Brakes
Sect ion Index – Brakes Tab 7 6-46810
Hydraulic Brake Troubleshooting 7002 6-46830
Brake Pedal Valve and System 7003 6-46840
Hydraulics
Section Index – Hydraulics Tab 8 6-46812
Removal and Installation of Hydraulic Components 8001 6-46870
Front Wheel Drive Hydraulic Pump and Motor – RG170 B AWD / RG200 B AWD Models 8003 6-46890
Hydraulic Schematics – RG170 B AWD / RG200 B AWD Models 8004 6-46891
Mounted Equipment
Section Index – Mounted Equipment Tab 9 6-46940
Air Conditioning Troubleshooting and System Checks for Systems With HFC-134A Refrigerant 9002 6-46950
Air Conditioner System Service 9003 6-46960
Removal and Installation of Air Conditioning Components for Systems With HFC-134A Refrigerant 9004 6-46971
Rear Ripper 9007 6-47011
Frame, Articulation Joint Circle and Scarifier 9008 6-47001
Front Blade and Counterweight 9009 6-47021
ROPS Cab 9010 6-47031
Cab Glass Installation 9011 6-47041
CNH Latin America LTDA
2237, General David Sarnoff Avenue
Contagem – MG – Brazil 6-46520 ENG
Copyright © 2011 CNH America LLC
All Rights Reserved
Printed in Brazil
Issued July, 2011
SECTION INDEX
GENERAL
Section Title Section Number
Standard Torque Especifications 1001
Fluids and Lubricants 1002
Metric Conversion Chart 1003
Service Tools
