NEW HOLLAND T4020 T4030 T4040 T4050 Deluxe/Supersteer Tractors Service Repair Manual (876667878) – PDF Download

Description

NEW HOLLAND T4020 T4030 T4040 T4050 Deluxe/Supersteer Tractors Service Repair Manual (876667878)

File Details:

NEW HOLLAND T4020 T4030 T4040 T4050 Deluxe/Supersteer Tractors Service Repair Manual
Size : 49.9 MB
Format : PDF
Language : English
Number of Pages : 1725 pages
Brand: NEW HOLLAND
Type of machine: Tractor
Type of document: Service Manual
Model: T4020 T4030 T4040 T4050 Deluxe/Supersteer
Part No: 876667878

NEW HOLLAND T4020 T4030 T4040 T4050 DELUXE/SUPERSTEER TRACTORS SERVICE REPAIR MANUAL (876667878) – PDF DOWNLOAD:

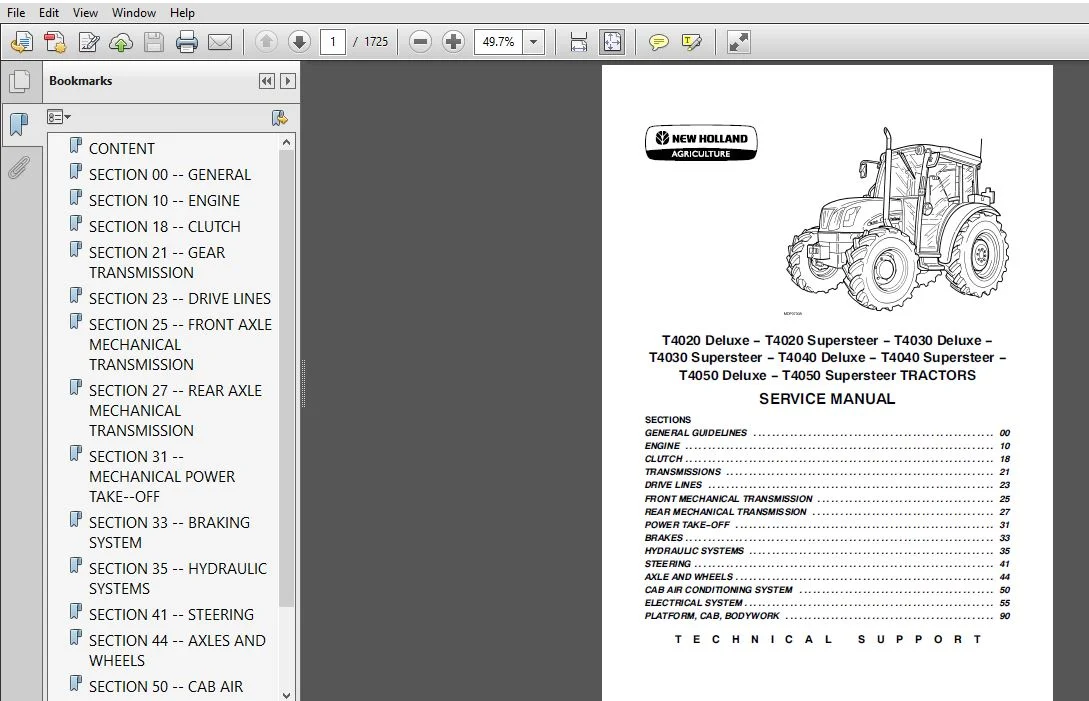

Image Preview:

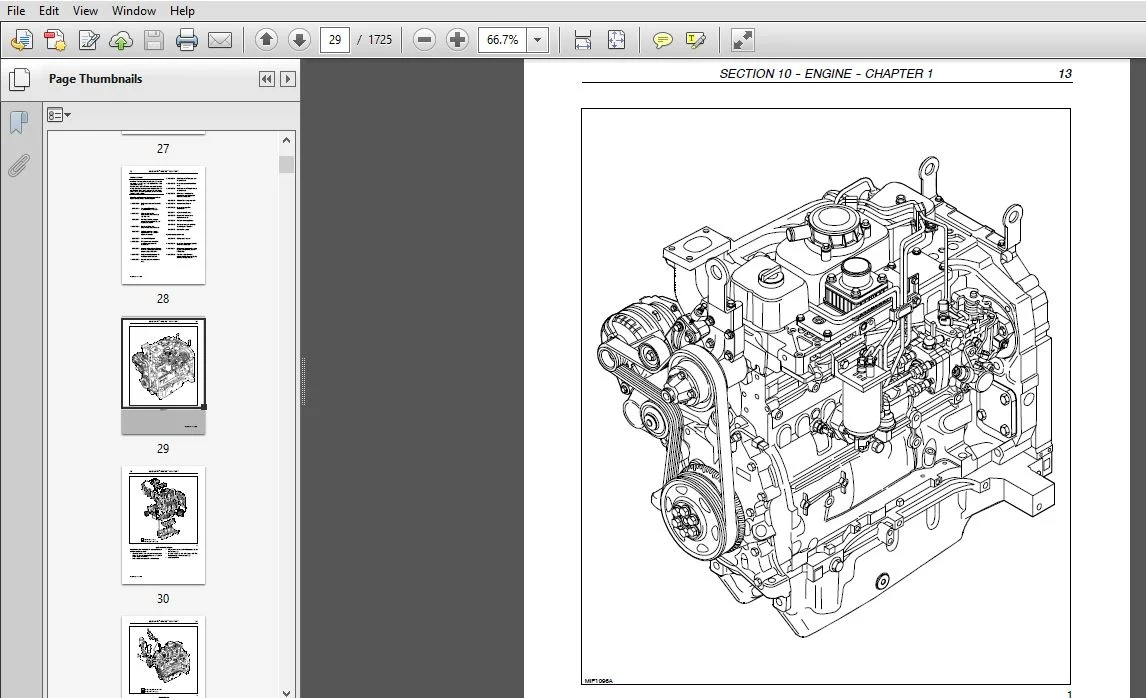

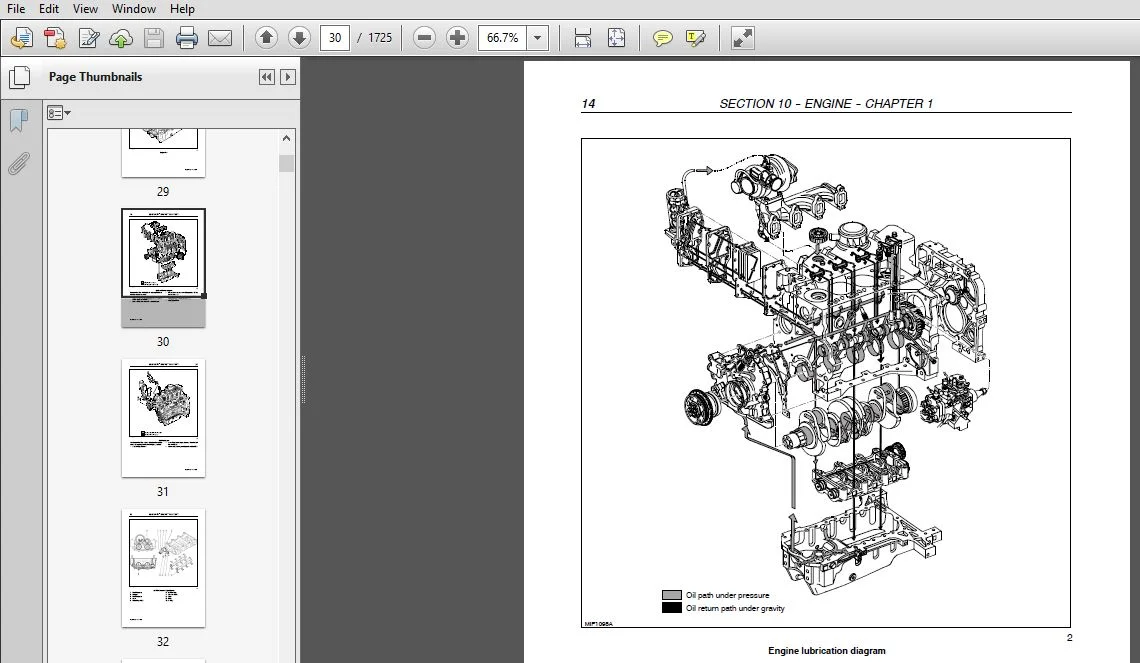

Sample Page From The Manual:

NEW HOLLAND T4020 T4030 T4040 T4050 Deluxe/Supersteer Tractors Service Repair Manual (876667878)

– Carefully follow specified repair and maintenance procedures.
– Do not wear rings, wristwatches, jewellery, unbuttoned or loose articles of clothing such as:
ties, torn clothing, scarves, open jackets or shirts with open zips that may remain entangled in moving parts. It is advised to wear approved safety clothing, e.g.: non-slip footwear, gloves, safety goggles, helmets, etc.
– Do not carry out repair operations with someone sitting in the driver’s seat, unless the person is a trained technician who is assisting with the operation in question.
– Do not operate the vehicle or use any of the implements from different positions, other than the driver’s seat.
– Do not carry out operations on the vehicle with the engine running, unless specifically indicated.
– Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc.
– All repair and maintenance operations must be carried out using extreme care and attention.
– Service steps and platforms used in a workshop or in the field should be built in compliance with the safety rules in force.
– Disconnect the batteries and label all controls to indicate that the vehicle is being serviced. Block the machine and all equipment which should be raised.
– Do not check or fill fuel tanks, accumulator batteries, nor use starting liquidwhen smoking or near naked flames, as these fluids are inflammable.
– Brakes are inoperative when manually released for repair or maintenance purposes: Use blocks or similar devices to control themachine in these conditions.
-The fuel nozzle should always be in contact with the filling aperture: Maintain this contact until the fuel stops flowing into the tank to avoid possible sparks due to static electricity build-up.

Table of Contents:

NEW HOLLAND T4020 T4030 T4040 T4050 Deluxe/Supersteer Tractors Service Repair Manual (876667878)

SECTIONS
GENERAL GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00
ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CLUTCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TRANSMISSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DRIVE LINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FRONT MECHANICAL TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
REAR MECHANICAL TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
POWER TAKE-OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
BRAKES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
HYDRAULIC SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
STEERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
AXLE AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
CAB AIR CONDITIONING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
PLATFORM, CAB, BODYWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.

• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.

• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
