New Holland TD4020F TD4030F TD4040F Tractor Service Repair Manual (48064955) – New Holland TD4020F – PDF Download

Description

New Holland TD4020F TD4030F TD4040F Tractor Service Repair Manual (48064955) – New Holland TD4020F

File Details:

New Holland Tractor TD4020F, TD4030F, TD4040F Service Manual_48064955
Size: 60 MB
Format: PDF
Language: English
Number of Pages : 605 pages
Brand: New Holland
Type of document: Service Manual
Model: TD4020F, TD4030F, TD4040F
Part No: 48064955

NEW HOLLAND TD4020F TD4030F TD4040F TRACTOR SERVICE REPAIR MANUAL (48064955) – NEW HOLLAND TD4020F – PDF DOWNLOAD:

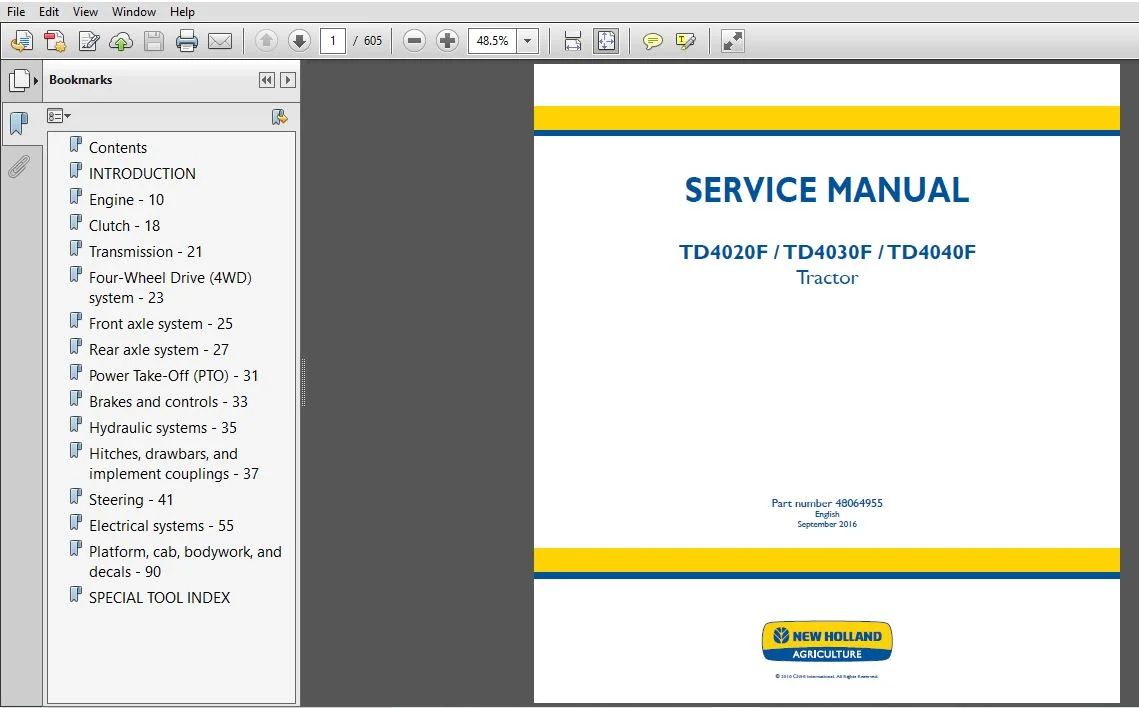

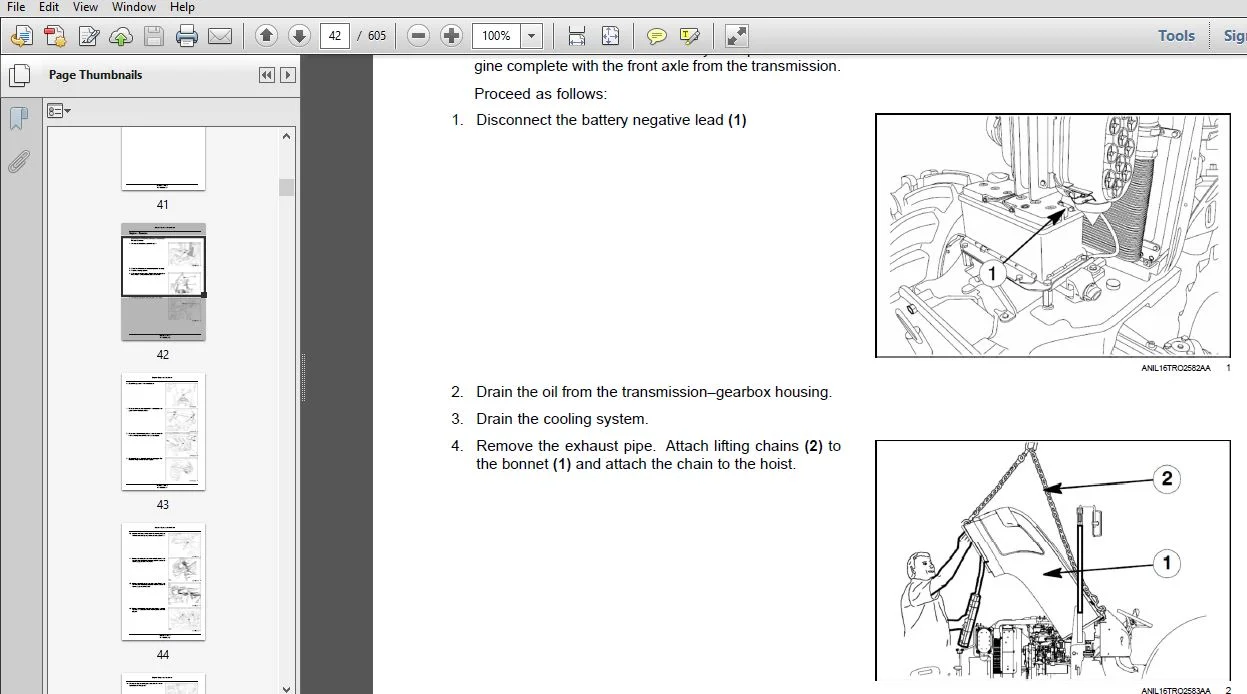

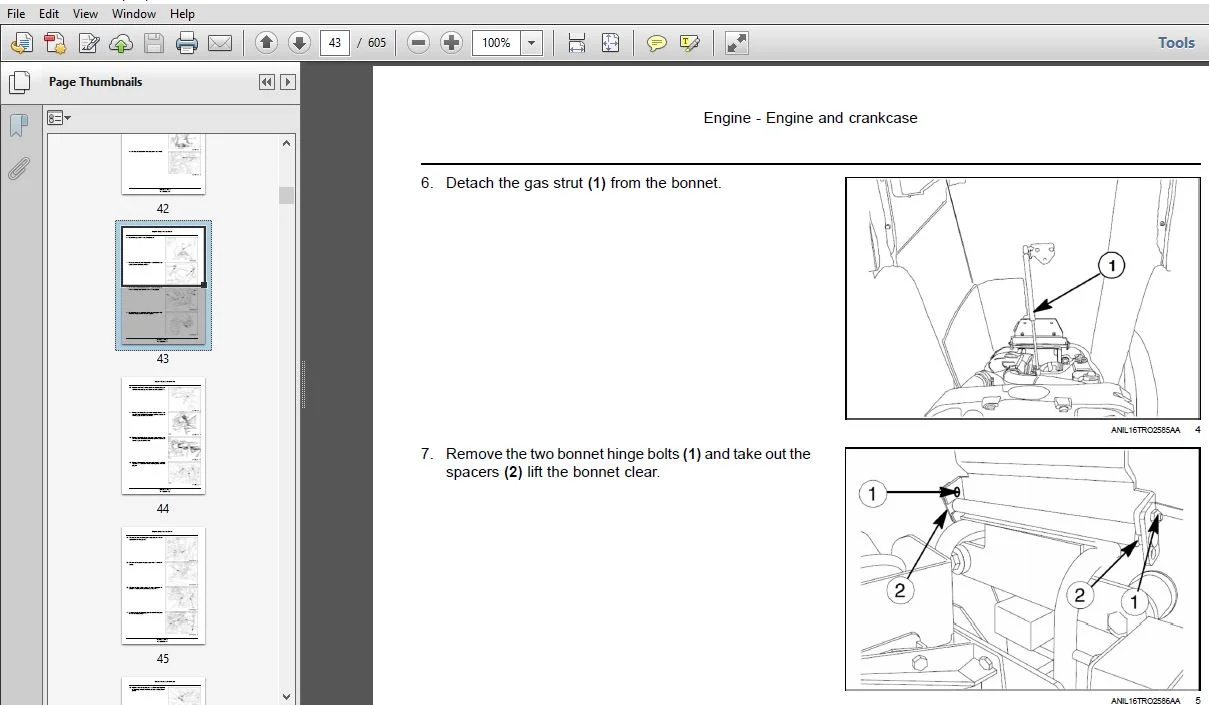

Image Preview:

Description:

New Holland TD4020F TD4030F TD4040F Tractor Service Repair Manual (48064955) – New Holland TD4020F

General
The TDF tractor has been built using metric hardware.
NOTE: Make sure you use the hardware specified when using tapped holes, as trying to install a metric bolt in an inch thread, or an inch bolt in a metric thread, will damage the thread.
Certain hardware must be tightened to specific torque specifications. If specific torque specifications are not noted, tighten the hardware to the standard torque chart specification listed in this manual.
Overlay
Hardware used on New Holland balers is plated with zinc chromate (gold color). Gold colored hardware has different torquing requirements from unplated or zinc plated (silver color) hardware because of the difference in the coefficient of friction of the plating material. The torque charts in this manual list the correct specifications for gold, silver, and unplated bolts.
Nut Tightening
Whenever possible, the nut should be tightened, not the head of the bolt. When tightening using the bolt head, the clamp load can be lost because some of the torque applied twists the bolt instead of tensioning (stretching) it. The tension on the bolt is what holds the joint together.
Approximately 90% of the torque applied during assembly goes to overcoming friction between the parts. The other 10% is used to tension (stretch) the bolt. After installation, the friction forces disperse, leading to the expression “If it doesn’t fail during installation, it won’t fail in service”. The bolt may fail later due to other factors, but may not be over tightened.
Locknuts
Most locknuts are coated with a special lubricant that is dry to the touch. Anytime a locknut is used, a lower than normal torque is required. Refer to the torque charts in this manual for specific values.
Locknuts
When using a jam nut to lock a regular nut, the jam nut should be installed first and tightened to one half the recommended torque, then held in place while installing a regular nut to the recommended torque.
Thread Lubrication
The addition of antiseize compound, Molykote, oil, graphite, or any other lubricant to a bolt decreases the friction between it and a nut. This makes it necessary to reduce the recommended torque to prevent over tensioning of the bolt. When using the torque charts in this manual, decrease the value by 20% whenever a lubricant is used.

Table of Contents:

New Holland TD4020F TD4030F TD4040F Tractor Service Repair Manual (48064955) – New Holland TD4020F

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
Clutch 18
[18 110] Clutch and components 18 1
Transmission 21
[21 114] Mechanical transmission 21 1
[21 160] Creeper 21 2
[21 162] Reverser 21 3
[21 182] Differential 21 4
Four-Wheel Drive (4WD) system 23
[23 202] Electro-hydraulic control 23 1
[23 304] Four-Wheel Drive (4WD) gearbox 23 2
Front axle system 25
[25 100] Powered front axle 25 1
[25 102] Front bevel gear set and differential 25 2
[25 108] Final drive hub, steering knuckles, and shafts 25 3
[25 310] Final drives 25 4
Rear axle system 27
[27 100] Powered rear axle 27 1
[27 106] Rear bevel gear set and differential 27 2
Power Take-Off (PTO) 31
[31 101] Rear mechanical control 31 1
Brakes and controls 33
[33 220] Trailer brake hydraulic control 33 1
[33 202] Hydraulic service brakes 33 2
Hydraulic systems 35
[35 204] Remote control valves 35 1
[35 114] Three-point hitch control valve 35 2
[35 322] Regulated/Low pressure system 35 3
Hitches, drawbars, and implement couplings 37
[37 110] Rear three-point hitch 37 1
Steering 41
[41 206] Pump 41 1
[41 216] Cylinders 41 2
[41 200] Hydraulic control components 41 3
Electrical systems 55
[55 301] Alternator 55 1
[55 201] Engine starting system 55 2
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 3
[55 523] Cab hitch controls 55 4
[55 408] Warning indicators, alarms, and instruments 55 5
[55 302] Battery 55 6
[55 100] Harnesses and connectors 55 7
Platform, cab, bodywork, and decals 90
[90 154] Cab doors and hatches 90 1
[90 151] Cab interior 90 2

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.

• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.

• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
