New Holland TD65F TD75F TD85F Tractor Service Repair Manual (48064954) – NH TD65F TD75F TD85F – PDF Download

Description

New Holland TD65F TD75F TD85F Tractor Service Repair Manual (48064954) – NH TD65F TD75F TD85F

File Details:

New Holland Tractor TD65F, TD75F, TD85F Service Manual_48064954
Size: 59.6 MB
Format: PDF
Language: English
Number of Pages : 613 pages
Brand: New Holland
Type of document: Service Manual
Model: TD65F, TD75F, TD85F
Part No: 48064954

NEW HOLLAND TD65F TD75F TD85F TRACTOR SERVICE REPAIR MANUAL (48064954) – NH TD65F TD75F TD85F – PDF DOWNLOAD:

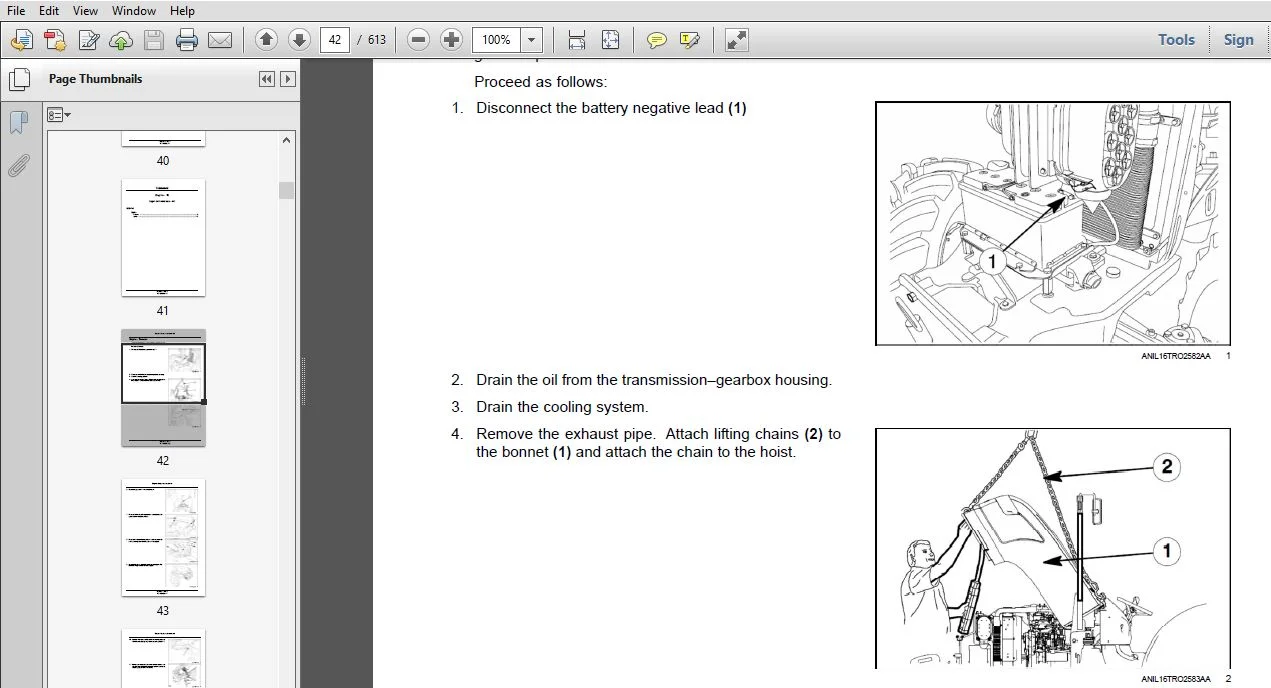

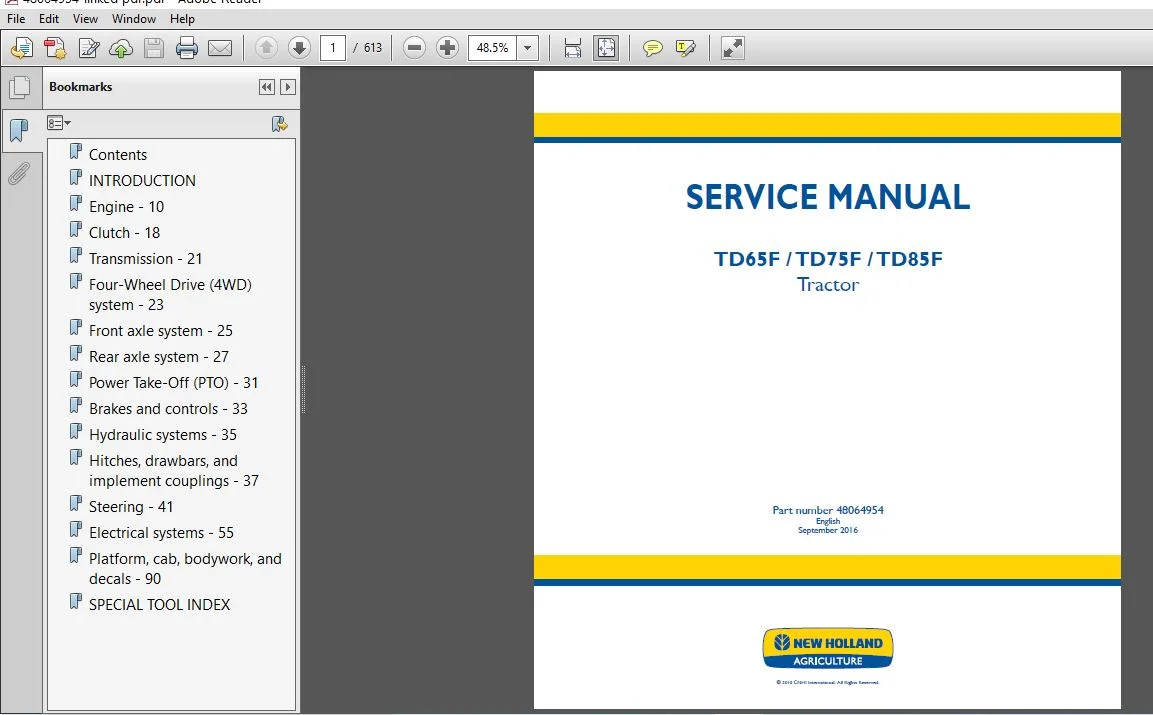

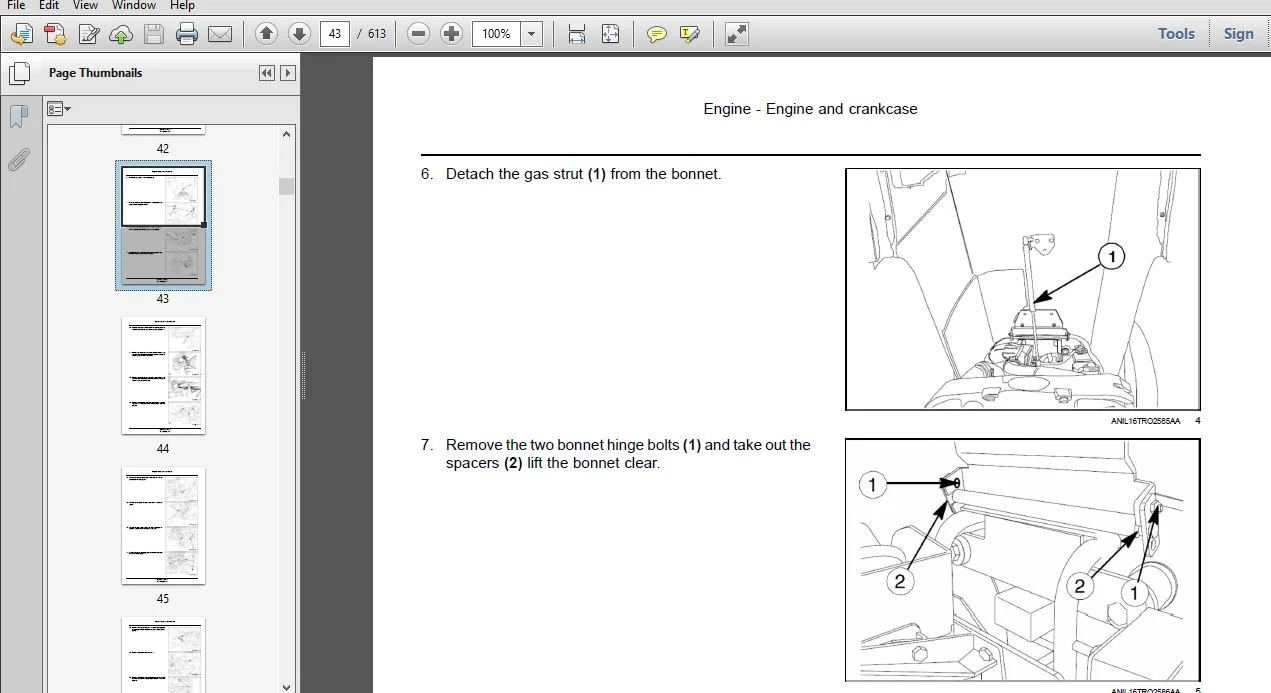

Image Preview:

Description:

New Holland TD65F TD75F TD85F Tractor Service Repair Manual (48064954) – NH TD65F TD75F TD85F

• Before servicing an air conditioning system, read and comply with the following safety precautions. Make sure that any repairs are performed by duly trained and skilled personnel only.
• Never attempt to remove the air conditioning system. Refrigerant leaks can cause serious burns to the eyes and hands.
• The refrigerant must always be handled very carefully in order to avoid accidents.
• Keep the refrigerant packaging as well as the air conditioning system away from flames or heat sources, as the resulting increase in pressure may cause the package or system to explode.
• If there is direct contact with naked flames or heated metal surfaces, the refrigerant will decompose and will produce toxic products and acids.
• Never discharge refrigerant into the atmosphere. A certified refrigerant recovery unit operated by a technician should be used to repair air conditioning units.
• When discharging the refrigerant in the system, do so in a well-ventilated area with perfect air circulation and away from naked flames.
• When charging or discharging the system, always wear safety goggles and take adequate precautions to protect the face in general and the eyes in particular, in case of accidental refrigerant spillage.
• The refrigerant and oil mixture inside the air conditioning system is pressurised. Because of this, never loosen the joints or work with the tubes without first depressurising the system.
• Before loosening any connector, cover it with a thick rag and use goggles and gloves to prevent the refrigerant from coming into contact with the skin or eyes. If an accident does happen, proceed as follows:
• If refrigerant gets into the eyes, wash immediately with copious amounts of distilled or tap water, and take the victim to hospital for specialist medical care.
• If refrigerant comes into contact with the skin, wash with cold water and seek medical assistance immediately at a hospital.

Table of Contents:

New Holland TD65F TD75F TD85F Tractor Service Repair Manual (48064954) – NH TD65F TD75F TD85F

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
Clutch 18
[18 110] Clutch and components 18 1
Transmission 21
[21 114] Mechanical transmission 21 1
[21 160] Creeper 21 2
[21 162] Reverser 21 3
[21 182] Differential 21 4
Four-Wheel Drive (4WD) system 23
[23 202] Electro-hydraulic control 23 1
[23 304] Four-Wheel Drive (4WD) gearbox 23 2
Front axle system 25
[25 100] Powered front axle 25 1
[25 102] Front bevel gear set and differential 25 2
[25 108] Final drive hub, steering knuckles, and shafts 25 3
[25 310] Final drives 25 4
Rear axle system 27
[27 100] Powered rear axle 27 1
[27 106] Rear bevel gear set and differential 27 2
Power Take-Off (PTO) 31
[31 101] Rear mechanical control 31 1
Brakes and controls 33
[33 220] Trailer brake hydraulic control 33 1
[33 202] Hydraulic service brakes 33 2
Hydraulic systems 35
[35 204] Remote control valves 35 1
[35 114] Three-point hitch control valve 35 2
[35 322] Regulated/Low pressure system 35 3
Hitches, drawbars, and implement couplings 37
[37 110] Rear three-point hitch 37 1
Steering 41
[41 206] Pump 41 1
[41 216] Cylinders 41 2
[41 200] Hydraulic control components 41 3
Electrical systems 55
[55 301] Alternator 55 1
[55 201] Engine starting system 55 2
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 3
[55 523] Cab hitch controls 55 4
[55 408] Warning indicators, alarms, and instruments 55 5
[55 302] Battery 55 6
[55 100] Harnesses and connectors 55 7
Platform, cab, bodywork, and decals 90
[90 154] Cab doors and hatches 90 1
[90 151] Cab interior 90 2

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.

• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.

• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
