New Holland TF and TX Series Combines Training Service Manual

Description

New Holland TF and TX Series Combines Training Service Manual

This New Holland TF and TX Series Combines Training Service Manual is a full technical training course built for the complete combine line: TF42, TF44, TF46, TX30, TX32, TX34 and TX36. Running to 1050 pages, it was written to walk a technician through every major system on these combines, from the mechanical and hydrostatic transmissions through the header, threshing, separation, cleaning and grain storage systems, to the engines, electrics and hydraulics that keep the machine running.

• Manual type: Factory training / service course
• Brand: New Holland
• Models covered: TF42, TF44, TF46, TX30, TX32, TX34, TX36
• Language: English
• Page count: 1050 pages
• File format: PDF, instant download

Chapters Covered

• Introduction

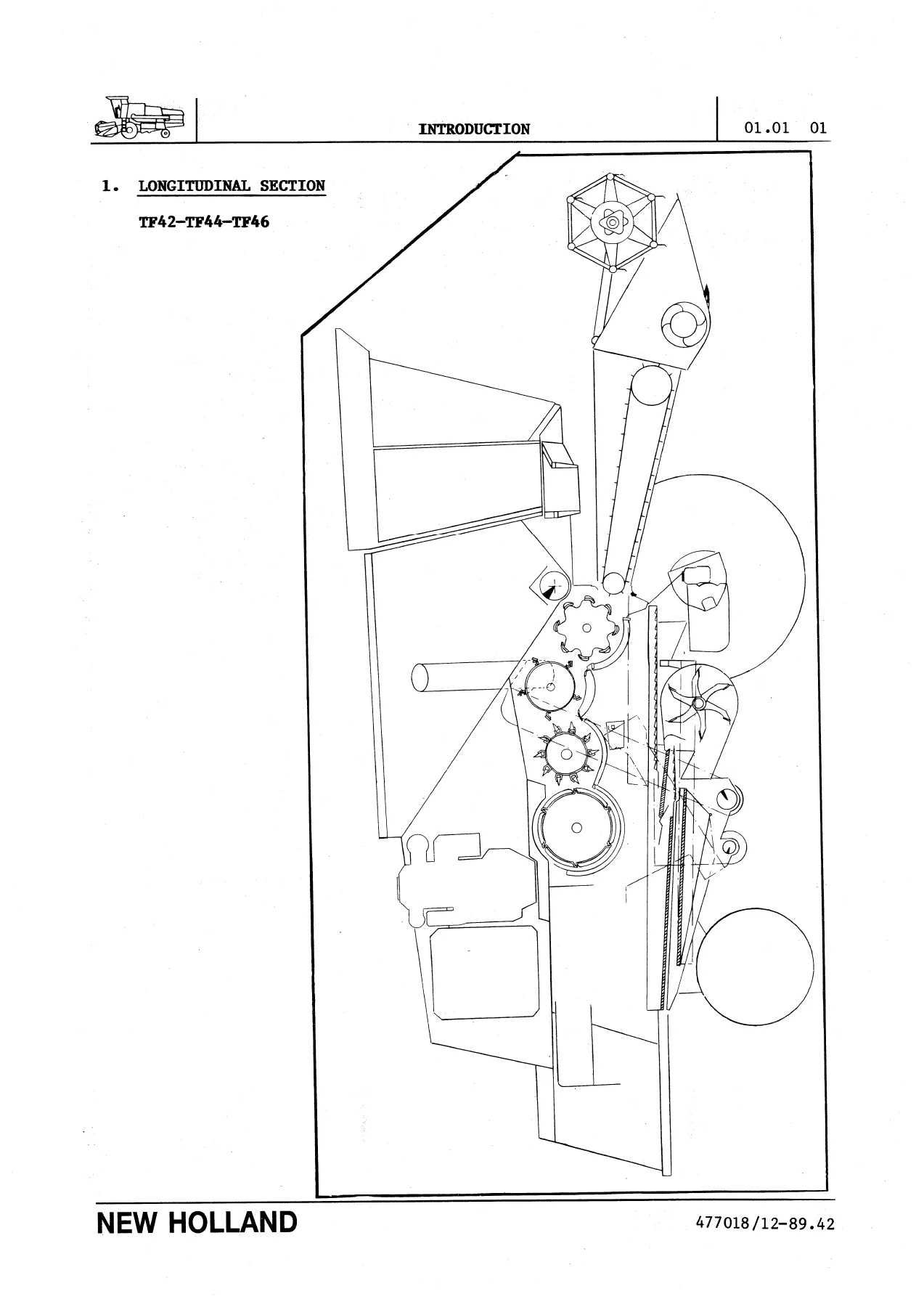

  • Longitudinal section TF/TX
  • Explanation of machine and header serial numbers
  • Parts list from Service Parts Catalogue
  • Conversion chart
  • Tightening torques
  • Speed ranges
• Traction
  • Mechanical traction multi-use gearbox
  • Hydrostatic traction multi-use gearbox
  • Clutches
  • Traction variators
  • Brakes
  • Final drives
  • Dump pedal adjustment
  Complete PDF Bookmark Tree

  Complete Bookmarks

  The complete bookmarks in the “New Holland TF and TX Series Combines Training Service Manual” are as follows:

  Coverp. 1

  Contentsp. 4

  Introductionp. 6

  Tractionp. 28

  Headerp. 145

  Straw Elevatorp. 178

  Hydrostatic Systemp. 193

  Maize Headerp. 382

  Enginesp. 397

  Basic Electricityp. 429

  Air Conditioningp. 454

  Treshing Mechanismp. 529

  Separationp. 557

  Cleaningp. 581

  Grain Storagep. 633

  Hydraulic Systemp. 654

  Electrical Equipmentp. 774

  Functional Adjustmentsp. 914

  Straw Chopperp. 949

  Electrical Equipment – N. Americap. 963

• Header
• Straw Elevator
• Hydrostatic System
• Maize Header
• Engines

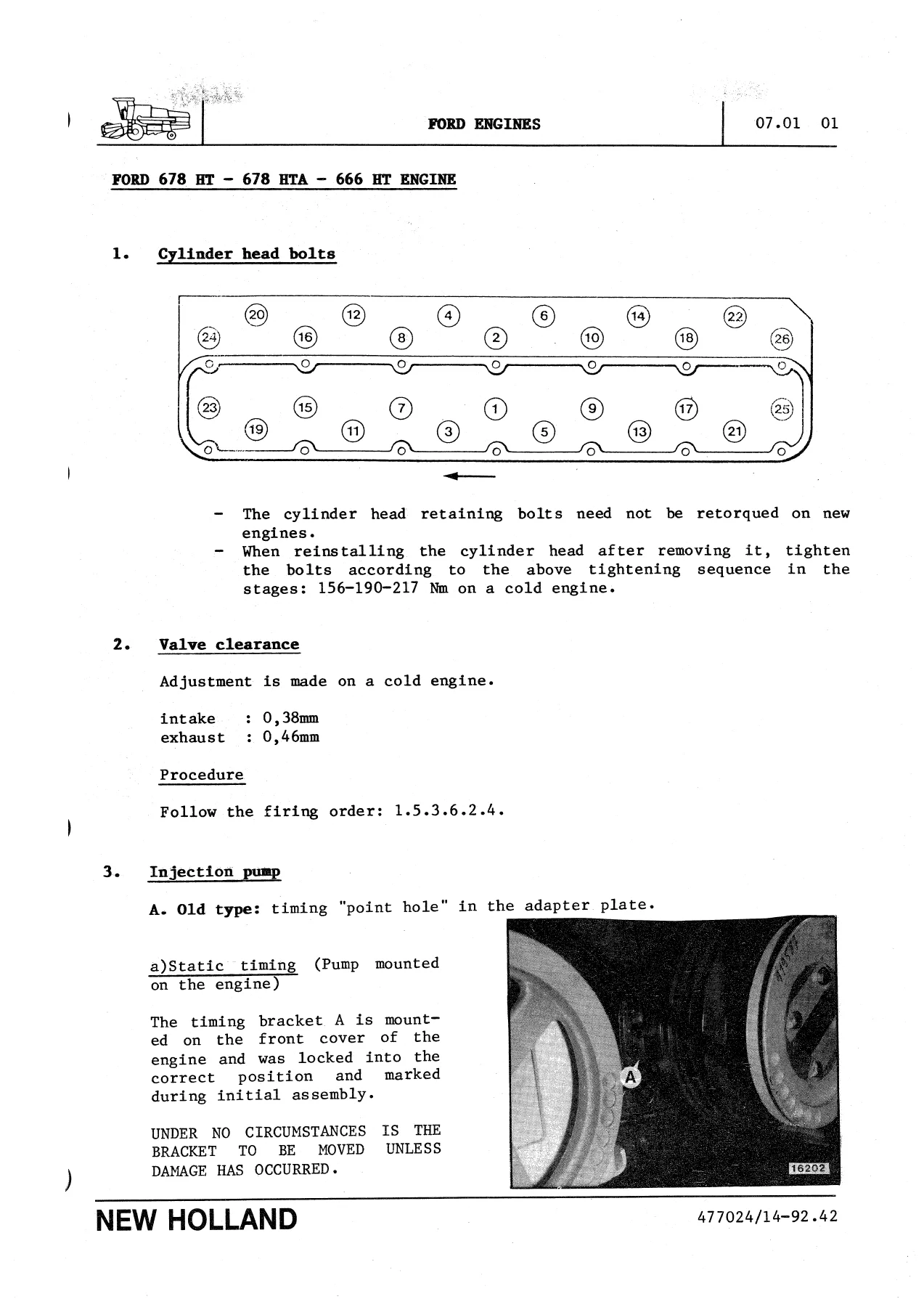

  • Ford 678 HT, 678 HTA, 666 HT engines
  • Mercedes OM 352A, OM 421, OM 421A, OM 422, OM 442A engines
  • Aifo-Fiat 8361I, 8361SI, 8361SI10 engines
  • Rotary dust screen
• Basic Electricity
• Air Conditioning
• Special Tools
• Threshing (TF/TX Series)
• Separation (TF/TX Series)
• Cleaning (TF/TX Series)
• Grain Storage (TF/TX Series)
• Hydraulic System (TF/TX Series)
• Electrical System (TF/TX Series)
• Functional Adjustments (TF/TX Series)
• Straw Chopper Clutch and Chaff Spreader Gearbox (TX)
• Electrical Equipment – North America

Taken as a whole, this New Holland TF and TX Series Combines Training Service Manual gives a technician everything needed to understand how each system on these combines is built, driven and adjusted, rather than isolated repair steps for a single fault.

IMAGES PREVIEW

What You Can Do With This Manual

Use this New Holland TF and TX Series Combines Training Service Manual to correctly identify machine and header serial numbers, set drive speeds using the full speed-range charts for both the TF and TX lines, torque metric and imperial hardware to factory specification, time and adjust the Ford, Mercedes and Aifo-Fiat engine options fitted across the range, and work through the traction, hydrostatic, threshing, separation, cleaning, grain storage, hydraulic and electrical systems system by system. Following the factory speed ranges and torque values in this training service manual helps you avoid drivetrain damage, incorrect valve and injection timing, and under- or over-tightened fasteners. Once purchased, the New Holland TF and TX Series Combines Training Service Manual is delivered instantly as a PDF — no shipping wait — and can be viewed on a phone, tablet, laptop or workshop PC, or printed for use at the bench.
