New Holland Tractor T1510,T1520 Service Manual 84260810 – PDF DOWNLOAD
$54.95 Original price was: $54.95.$22.95Current price is: $22.95.
New Holland Tractor T1510,T1520 Service Manual
Part No: 84260810
Description
New Holland Tractor T1510,T1520 Service Manual
FILE DETAILS:
New Holland Tractor T1510,T1520 Service Manual
Size: 40.2 MB
Format: PDF
Language: English
Number of Pages: 690 pages
Brand: New Holland
Type of document: Service Manual
Model: T1510,T1520
Part No: 84260810
DESCRIPTION:
New Holland Tractor T1510,T1520 Service Manual
INTRODUCTION:
This repair manual provides the technical information needed to properly service the New Holland T1510 and T1520 tractor. Use this manual in conjunction with the operator’s manual for complete operation, adjustment, and maintenance information. On New Holland equipment, left-hand and right-hand are determined by standing behind the unit, looking in the direction of travel.
PRECAUTIONARY STATEMENTS
- A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent accidents. read and take the following precautions before operating this equipment. Equipment should be operated only by those who are responsible and instructed to do so.
- Carefully review the procedures given in this manual with all operators. it is important that all operators befamiliar with and Follow safety precautions.
THE TRACTOR:
- 1. Read the Operator‘s Manual carefully before using the tractor. Lack of operating knowledge can lead to accidents.
- 2. Use an approved roll bar and seat belt for safe operation. Overturning a tractor without a roll bar can result in death or injury. If your tractor is not equipped with a roll bar and seat belt. see your New Holland Dealer.
- 3. Always use the seat belt. The only instance when the seat belt should not be used is if the roll bar has been removed from the tractor.
- 4. If a front end loader is to be installed, always use a FOPS (Falling Object Protective Structure) canopy to avoid injury from falling objects.
- 5. Use the handhelds and step plates when getting on and off the tractor to prevent falls. Keep steps and platform cleared of mud and debris.
- 6. Do not permit anyone but the operator to ride on the tractor. There is no safe place for extra riders.
- 7. Keep all safety decals clean of dirt and grime. and replace all missing. illegible. or damaged safety decals. See the list of decals in the Decal section of this manual.

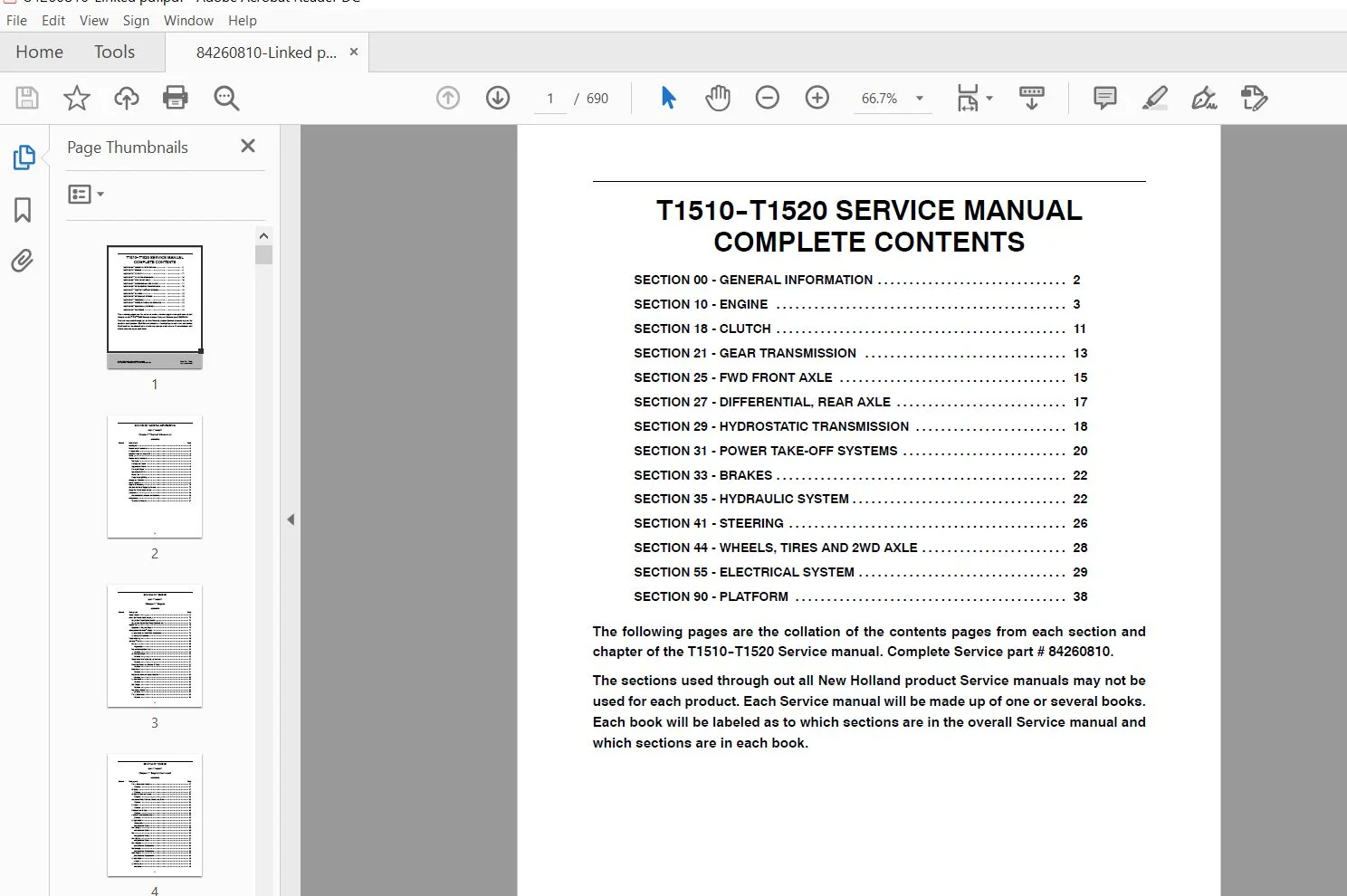

TABLE OF CONTENTS:
New Holland Tractor T1510,T1520 Service Manual
- Section 00 – General Information
- Section 10 – Engine
- Section 18 – Clutch
- Section 21 – Gear Transmission
- Section 25 – FWD Front Axle
- Section 27 – Differential, Rear Axle
- Section 29 – Hydrostatic Transmission
- Section 31 – Power Take-Off Systems
- Section 33 – Brakes
- Section 35 – Hydraulic System
- Section 41 – Steering
- Section 44 – Wheels. Tires and 2WD Axle
- Section 55 – Electrical System
- Section 90 – Platform
NEW HOLLAND TRACTOR T1510,T1520 SERVICE MANUAL 84260810 – PDF DOWNLOAD:

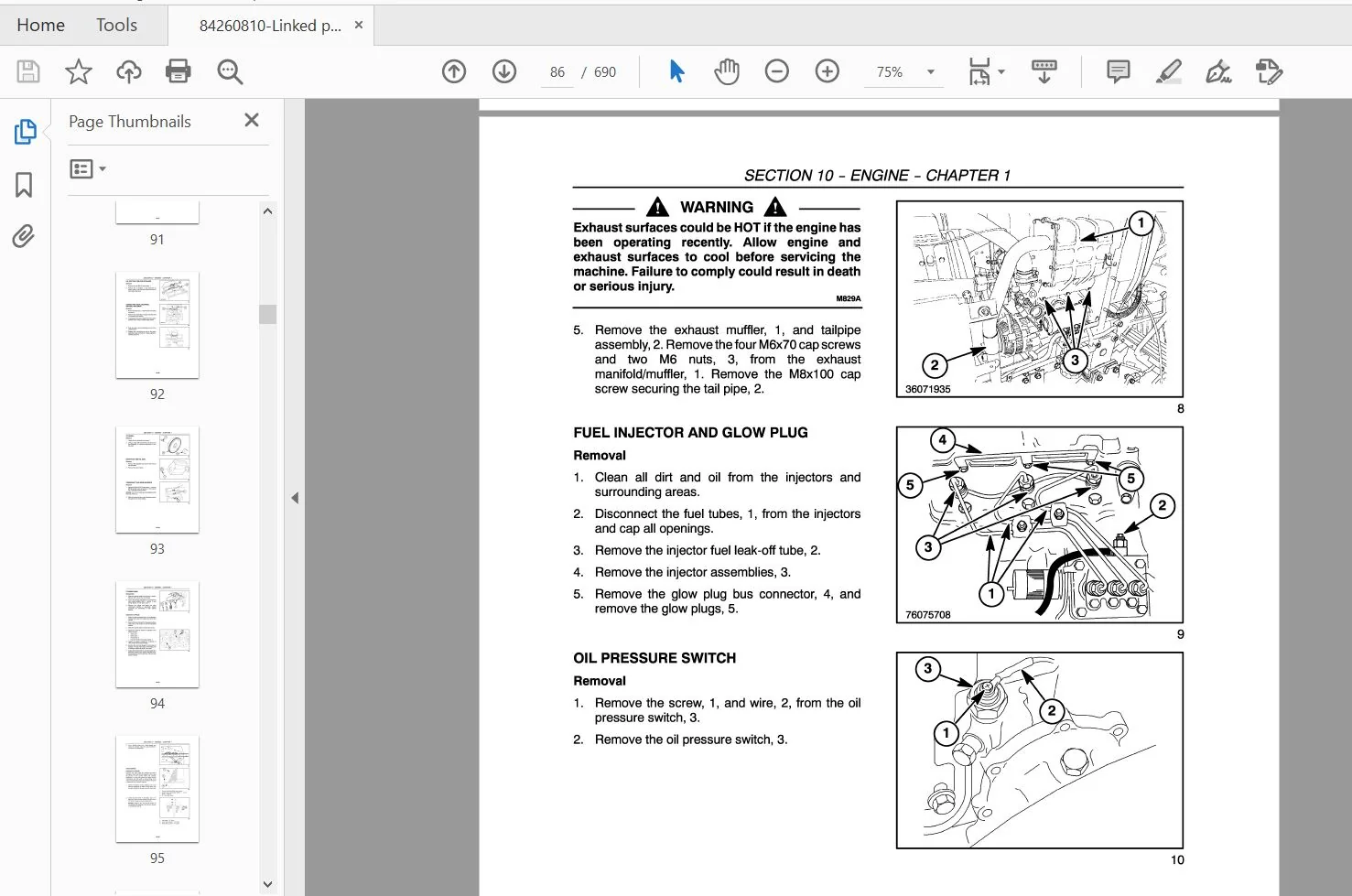

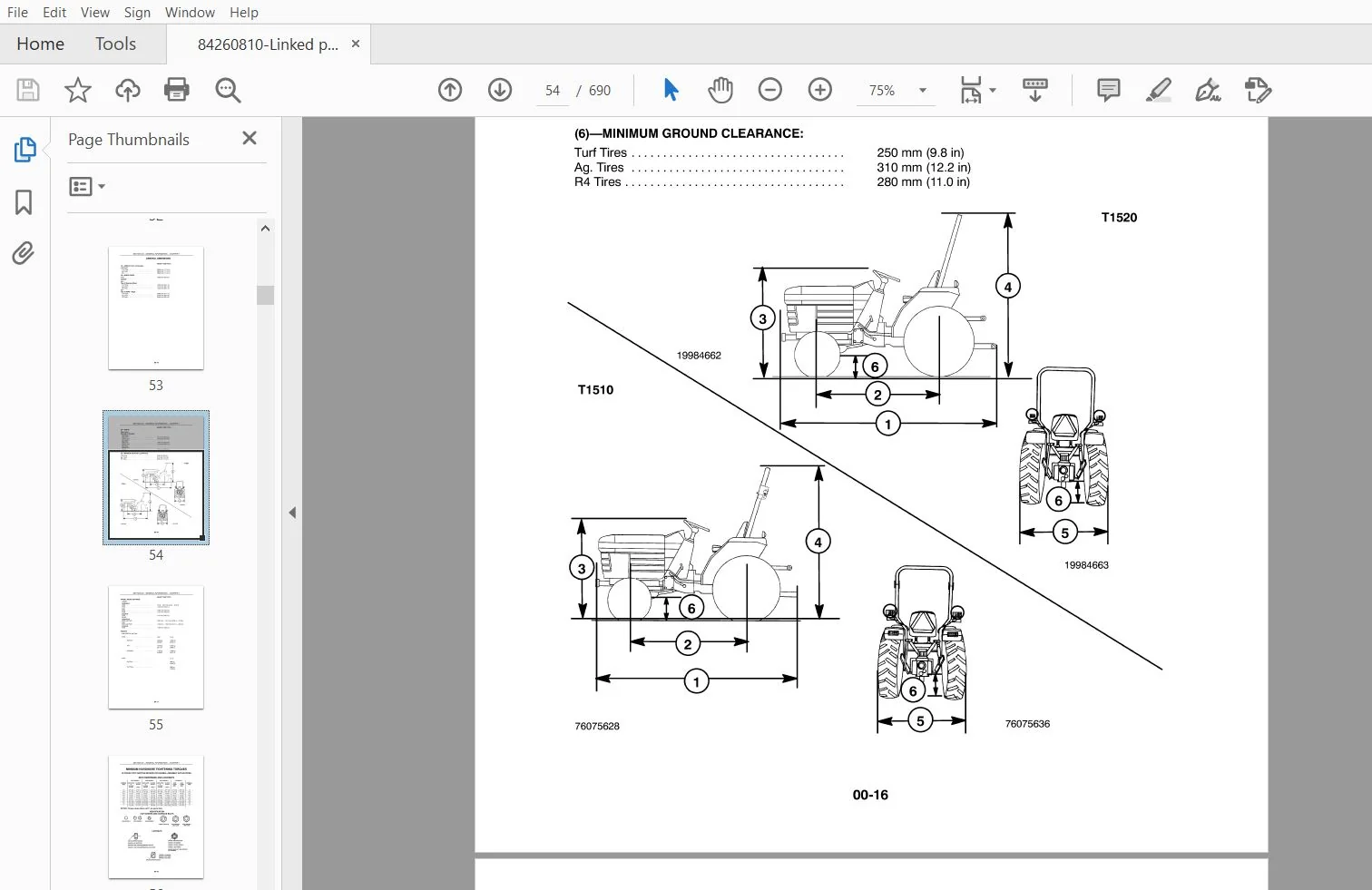

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
