New Holland Tractor T4.55S, T4.65S, T4.75S Service Manual 90402748 – PDF DOWNLOAD

Description

New Holland Tractor T4.55S, T4.65S, T4.75S Service Manual

FILE DETAILS:

New Holland Tractor T4.55S, T4.65S, T4.75S Service Manual

Language: English
Size: 338 MB
Pages:  2059
Format: PDF
Downloadable: YES
Part No: 90402748

DESCRIPTION:

New Holland Tractor T4.55S, T4.65S, T4.75S Service Manual

T4.55S T4.55S – Stage V, 3-cylinder S8000 engine – Four-Wheel Drive (4WD) –
Cab, T4.55S T4.55S – Stage V, 3-cylinder S8000 engine – Four-Wheel Drive
(4WD) – Roll Over Protective Structure (ROPS), T4.55S T4.55S – Stage V,
3-cylinder S8000 engine – Two-Wheel Drive (2WD) – Cab, T4.55S T4.55S
– Stage V, 3-cylinder S8000 engine – Two-Wheel Drive (2WD) – Roll Over
Protective Structure (ROPS), T4.65S T4.65S – Stage V, 3-cylinder S8000
engine – Four-Wheel Drive (4WD) – Cab, T4.65S T4.65S – Stage V, 3-cylinder
S8000 engine – Four-Wheel Drive (4WD) – Roll Over Protective Structure
(ROPS), T4.65S T4.65S – Stage V, 3-cylinder S8000 engine – Two-Wheel Drive
(2WD) – Cab, T4.65S T4.65S – Stage V, 3-cylinder S8000 engine – Two-Wheel
Drive (2WD) – Roll Over Protective Structure (ROPS), T4.75S T4.75S – Stage
V, 3-cylinder S8000 engine – Four-Wheel Drive (4WD) – Cab, T4.75S T4.75S
– Stage V, 3-cylinder S8000 engine – Four-Wheel Drive (4WD) – Roll Over
Protective Structure (ROPS), T4.75S T4.75S – Stage V, 3-cylinder S8000 engine
– Two-Wheel Drive (2WD) – Cab, T4.75S T4.75S – Stage V, 3-cylinder S8000
engine – Two-Wheel Drive (2WD) – Roll Over Protective Structure (ROPS)

ROTATING SHAFT SEALS:
To correctly position the rotating shaft seals, carry out the following steps:
1. Before you position the seal in its recess, soak the seal in oil for at least half an hour to ensure the seal sits in its location properly.
2. Carefully clean the shafts and ensure that the seal and contact surface are not worn.
3. Turn the seal so that its edge moves toward the oil. If the seal is an oil-recycling seal, turn the seal so that the grooved lip goes into the oil. Thus, oil is expelled while the shaft rotates.
4. Coat the seal lips with a light oil (choose engine oil rather than grease). Fill the gap between the seal lip and the dust prevention lip with grease. (also applicable to double-lip seal)
5. Position the seal with a flat-tipped tool. Do not use a hammer.
6. When you position the seal in its recess, ensure the seal is not positioned at an angle. Make sure that the seal fits snugly into its recess by applying a constant pressure perpendicular to the seal surface.
7. When you slide the seal along the shaft, use a protective sleeve to protect the seal lips.

TABLE OF CONTENTS:

New Holland Tractor T4.55S, T4.65S, T4.75S Service Manual

Maintenance 00
[00 100] New unit pre-delivery operations 00 1
[00 150] Start-up 00 2
Engine 10
[10 001] Engine and crankcase 10 1
[10 206] Fuel filters 10 2
[10 218] Fuel injection system 10 3
[10 250] Turbocharger and lines 10 4
[10 254] Intake and exhaust manifolds and muffler 10 5
[10 400] Engine cooling system 10 6
[10 501] Exhaust Gas Recirculation (EGR) exhaust treatment 10 7
[10 304] Engine lubrication system 10 8
Clutch 18
[18 104] Clutch hydraulic release control 18 1
[18 110] Clutch and components 18 2
[18 112] Slip clutch or flywheel damper 18 3
Transmission 21
[21 114] Mechanical transmission 21 1
[21 130] Mechanical transmission external controls 21 2
[21 140] Mechanical transmission internal components 21 3
[21 112] Power shuttle transmission 21 4
[21 110] Master clutch housing 21 5
[21 134] Power shuttle transmission external controls 21 6
[21 104] Power shuttle transmission hydraulic components 21 7
[21 154] Power shuttle transmission internal components 21 8
[21 160] Creeper 21 9
90402748 07/07/2020
[21 162] Reverser 21 10
[21 109] Transmission cooler and lines 21 11
[21 118] Transmission/Rear drive 21 12
Four-Wheel Drive (4WD) system 23
[23 101] Mechanical control 23 1
[23 202] Electro-hydraulic control 23 2
Front axle system 25
[25 100] Powered front axle 25 1
[25 108] Final drive hub, steering knuckles, and shafts 25 2
[25 400] Non-powered front axle 25 3
Rear axle system 27
[27 100] Powered rear axle 27 1
[27 106] Rear bevel gear set and differential 27 2
[27 120] Planetary and final drives 27 3
Power Take-Off (PTO) 31
[31 101] Rear mechanical control 31 1
[31 104] Rear electro-hydraulic control 31 2
Brakes and controls 33
[33 202] Hydraulic service brakes 33 1
[33 110] Parking brake or parking lock 33 2
[33 220] Trailer brake hydraulic control 33 3
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 104] Fixed displacement pump 35 2
[35 204] Remote control valves 35 3
[35 116] Three-point hitch cylinder 35 4
Steering 41
[41 101] Steering control 41 1
90402748 07/07/2020
[41 200] Hydraulic control components 41 2
[41 206] Pump 41 3
[41 216] Cylinders 41 4
Cab climate control 50
[50 100] Heating 50 1
[50 200] Air conditioning 50 2
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 525] Cab engine controls 55 3
[55 015] Engine control system 55 4
[55 201] Engine starting system 55 5
[55 301] Alternator 55 6
[55 302] Battery 55 7
[55 202] Cold start aid 55 8
[55 010] Fuel injection system 55 9
[55 014] Engine intake and exhaust system 55 10
[55 989] Exhaust Gas Recirculation (EGR) electrical system 55 11
[55 012] Engine cooling system 55 12
[55 013] Engine oil system 55 13
[55 512] Cab controls 55 14
[55 513] Cab transmission controls 55 15
[55 020] Transmission speed sensors 55 16
[55 040] Four-Wheel Drive (4WD) control system 55 17
[55 522] Cab Power Take-Off (PTO) controls 55 18
[55 048] Rear Power Take-Off (PTO) control system 55 19
[55 032] Trailer brake electrical system 55 20
[55 036] Hydraulic system control 55 21
90402748 07/07/2020
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 22
[55 640] Electronic modules 55 23
[55 408] Warning indicators, alarms, and instruments 55 24
[55 DTC] FAULT CODES 55 25
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1

NEW HOLLAND TRACTOR T4.55S, T4.65S, T4.75S SERVICE MANUAL 90402748 – PDF DOWNLOAD:

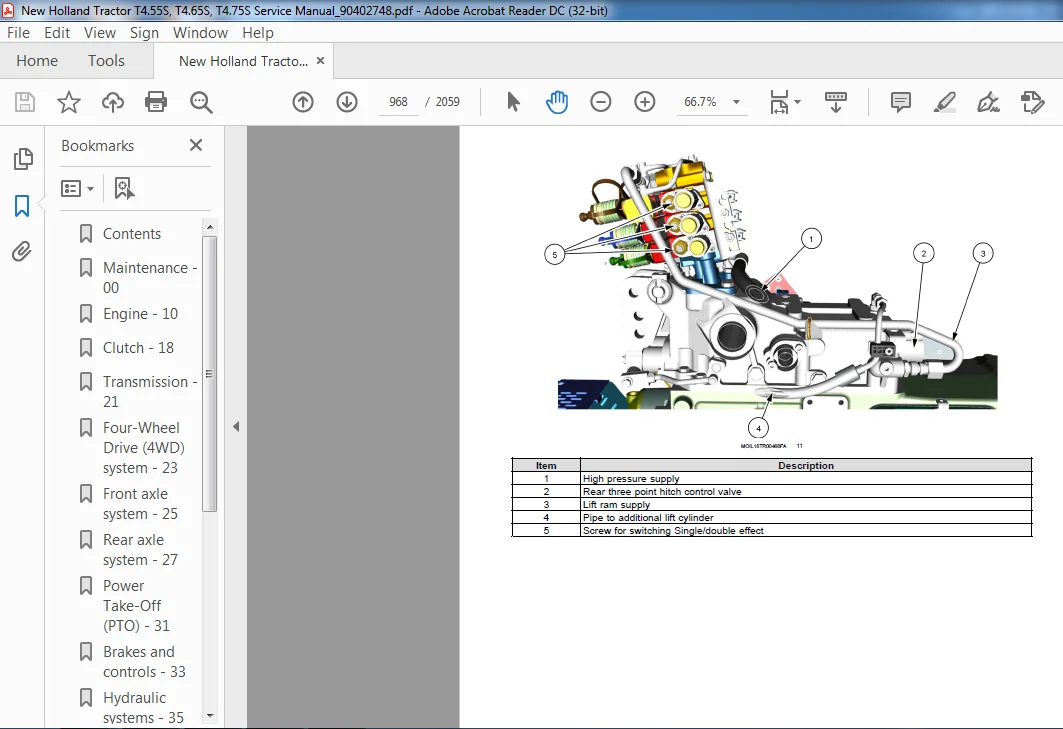

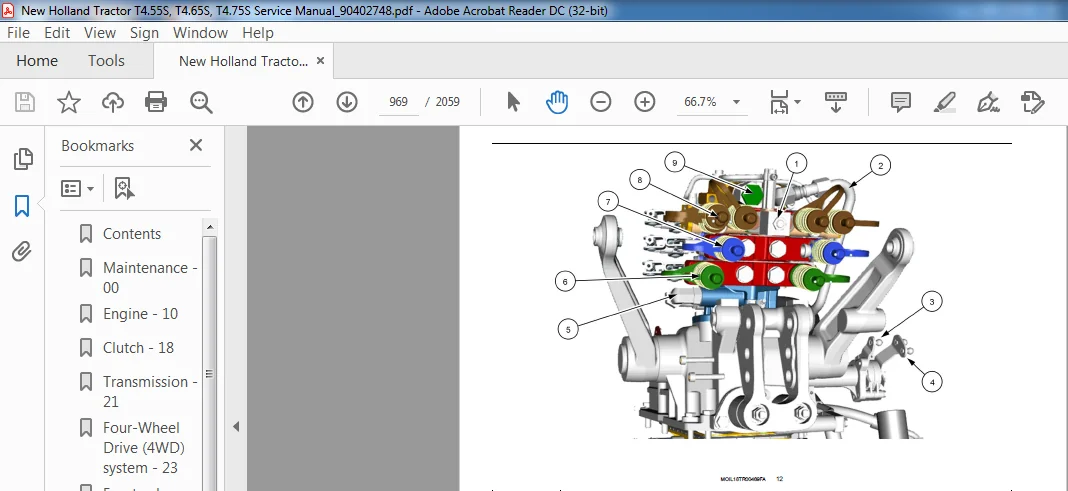

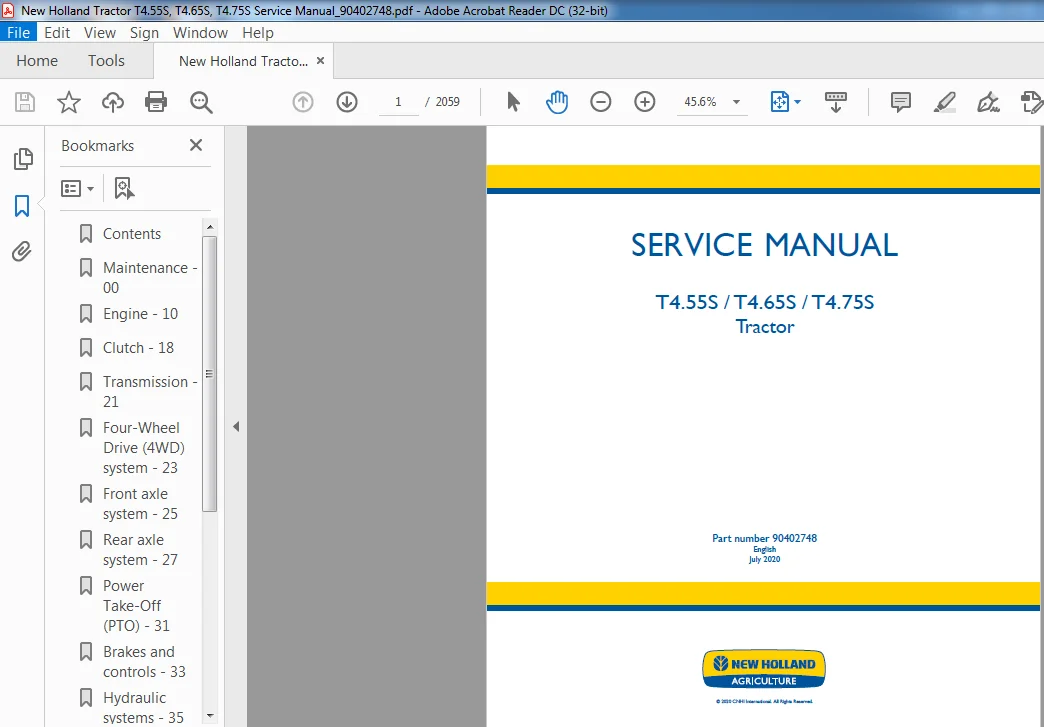

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
