New Holland Tractor TC18 TC21 TC21D Service Repair Manual (86590938) – NH Tractor TC18 TC21 TC21D – PDF Download

Description

New Holland Tractor TC18 TC21 TC21D Service Repair Manual (86590938) – NH Tractor TC18 TC21 TC21D

File Details:

New Holland Tractor TC18, TC21, TC21D Service Manual_86590938
Size: 53.8 MB
Format: PDF
Language: English
Number of Pages: 679 pages
Brand: New Holland
Type of document: Service Manual
Model: TC18, TC21, TC21D
Part No: 86590938

NEW HOLLAND TRACTOR TC18 TC21 TC21D SERVICE REPAIR MANUAL (86590938) – NH TRACTOR TC18 TC21 TC21D – PDF DOWNLOAD:

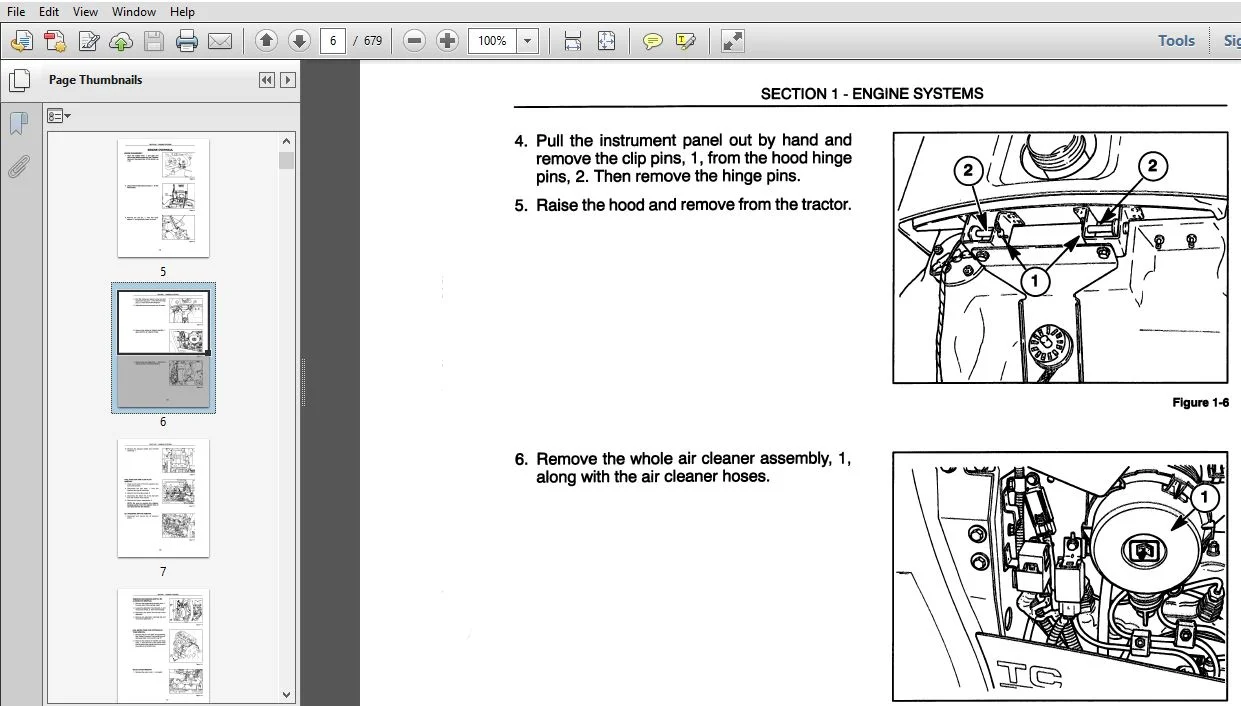

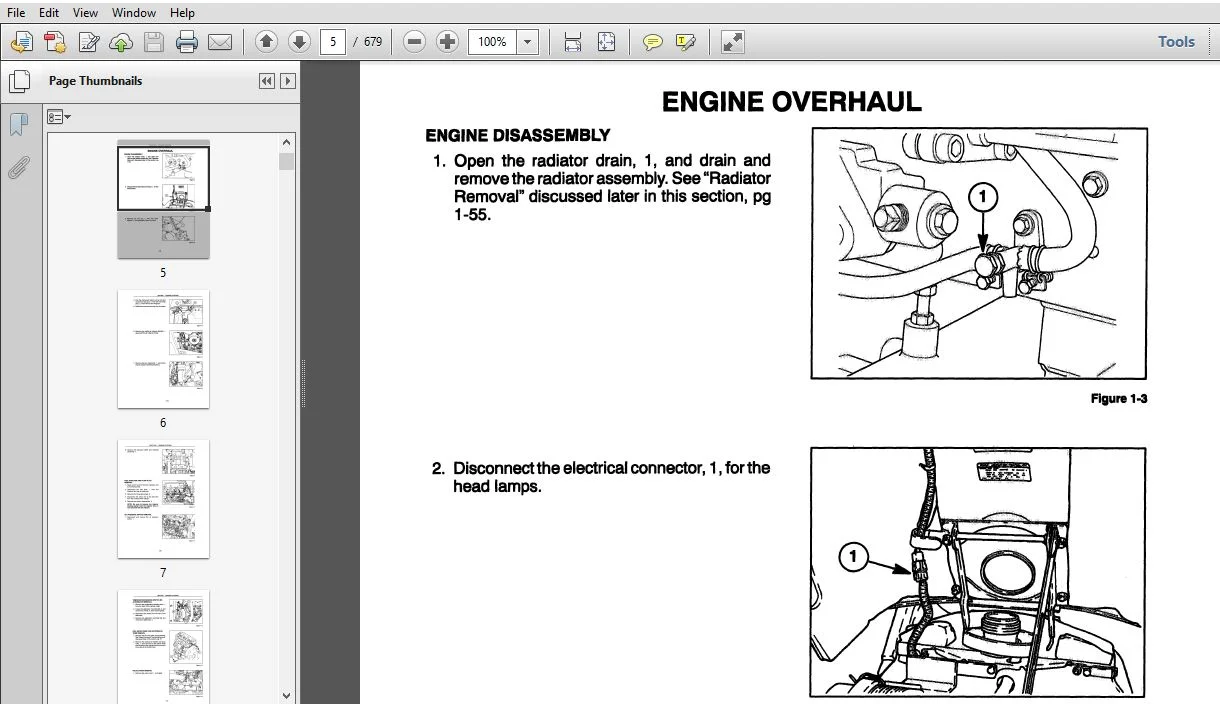

Image Preview:

Description:

New Holland Tractor TC18 TC21 TC21D Service Repair Manual (86590938) – NH Tractor TC18 TC21 TC21D

• This section describes the engine overhaul end repair procedures of the Models T018, T021, and TCZiD tractors. Repair procedures are essentially the same for all models except as noted in the repair procedures.
• The tractors are equipped with three—cylinder In line engines. They are all four cycle, overhead valve. liquid cooled engines. The engines are identified by a code cast into the lower right side of the cylinder block. just behind the hydraulic pump. The Identification numbers of the engines used is shown in the (allowing chart.
• The cylinder head lncorporates the valve assemblies, rocker arms, rocker shaft, push rode. lifters. and pre-combustion chambers. The air intake manifold is incorporated into the left hand side of the valve cover assembly. The exhaust manifold is boited on the left-hand side of the cylinder head. The cylinder heads have integral valve guides. Standard size valves only are used. Figure 1—2 provides a cut-away front and side view of an engine.

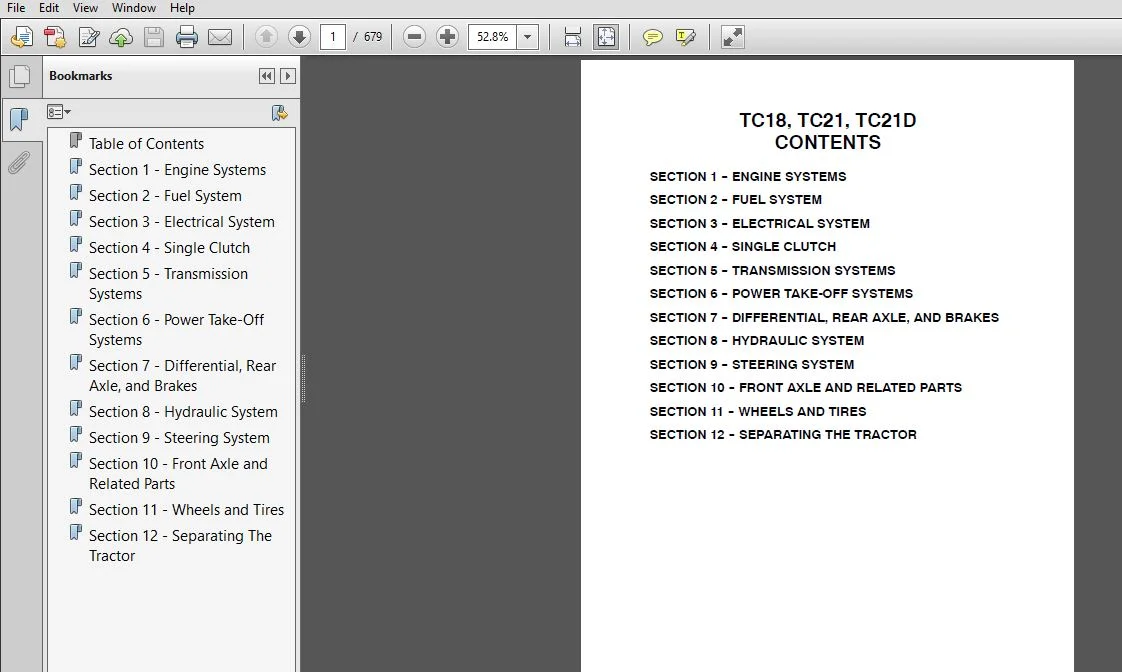

Table of Contents:

New Holland Tractor TC18 TC21 TC21D Service Repair Manual (86590938) – NH Tractor TC18 TC21 TC21D

Table of Contents ..................................  1
Section 1 - Engine Systems .........................  2
Section 2 - Fuel System ............................ 80
Section 3 - Electrical System ......................115
Section 4 - Single Clutch ..........................272
Section 5 - Transmission Systems ...................288
Section 6 - Power Take-Off Systems .................418
Section 7 - Differential, Rear Axle, and Brakes ....436
Section 8 - Hydraulic System  ......................466
Section 9 - Steering System  .......................522
Section 10 - Front Axle and Related Parts  .........584
Section 11 - Wheels and Tires ......................608
Section 12 - Separating The Tractor ................614
