New Holland Tractor TD75D TD95D TD95D High Clearance Repair Manual

FILE DETAILS:

New Holland Tractor TD75D TD95D TD95D High Clearance Repair Manual

Size: 39.5 MB
Format: PDF
Language: English
Number of Pages: 642 pages
Brand: New Holland
Type of machine: Tractor
Type of document: Repair Manual
Model: TD75D TD95D TD95D High Clearance
Part No: 87572972

DESCRIPTION:

New Holland Tractor TD75D TD95D TD95D High Clearance Repair Manual

GENERAL INSTRUCTIONS:

IMPORTANT NOTICE:

All maintenance and repair operations described in this manual should be carried out exclusively by the authorized workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these prescriptions will be directly responsible of deriving damages.

SHIMMING:
At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on the rated value indicated for each shim.
ROTATING SHAFT SEALS:
To correctly install rotating shaft seals, observe the following instructions:
• Let the seal soak into the same oil as it will seal for at least half an hour before mounting;
• Thoroughly clean the shaft and ensure that the shaft working surface is not damaged;
• Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal;
• Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill the gap between the sealing lip and the dust lip of double lip seals with grease;
• Insert the seal into its seat and press it down using a flat punch. Do not tap the seal with a hammer or a drift;
• Take care to insert the seal perpendicularly to its seat while you are pressing it. Once the seal is settled, ensure that it contacts the thrust element, if required;
• To prevent damaging the sealing lip against the shaft, place a suitable protection during installation.

TABLE OF CONTENTS:

New Holland Tractor TD75D TD95D TD95D High Clearance Repair Manual

• SECTION 00 – GENERAL
• SECTION 10 — ENGINE
• SECTION 18 — CLUTCH
• SECTION 21 — FRONT TRANSMISSION
• SECTION 23 — FWD TRANSFER BOX
• SECTION 25 — FWD AXLE
• SECTION 27 — REAR TRANSMISSION
• SECTION 31 — POWER TAKE-OFF
• SECTION 33 — BRAKES
• SECTION 35 — HYDRAULIC SYSTEMS
• SECTION 41 — STEERING
• SECTION 44 — FRONT AXLE AND WHEELS (2WD)
• SECTION 55 — ELECTRICAL SYSTEM
• SECTION 90 — PLATFORM, CAB, BODYWORK AND DECALS

NEW HOLLAND TRACTOR TD75D TD95D TD95D HIGH CLEARANCE REPAIR MANUAL 87572972 – PDF DOWNLOAD:

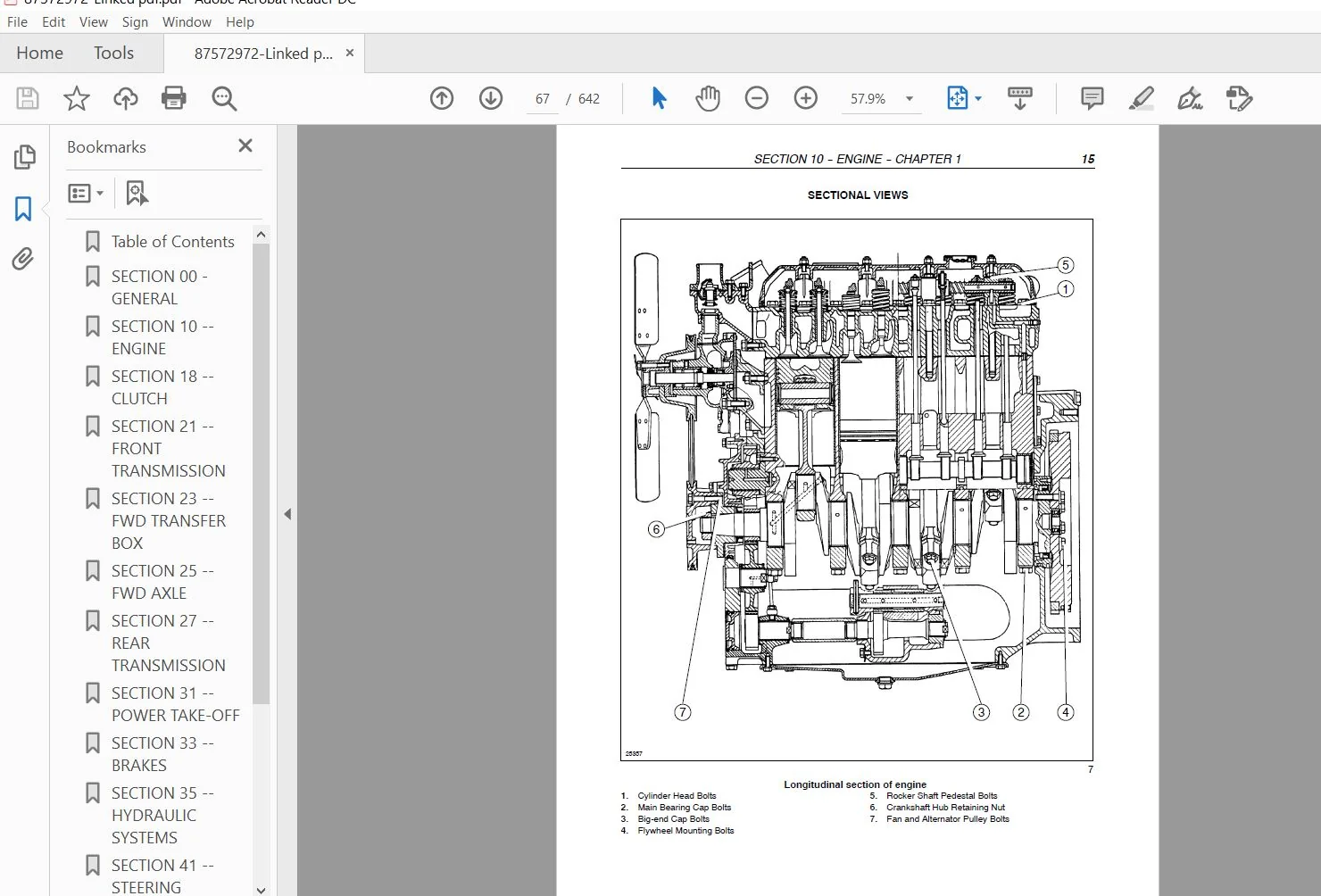

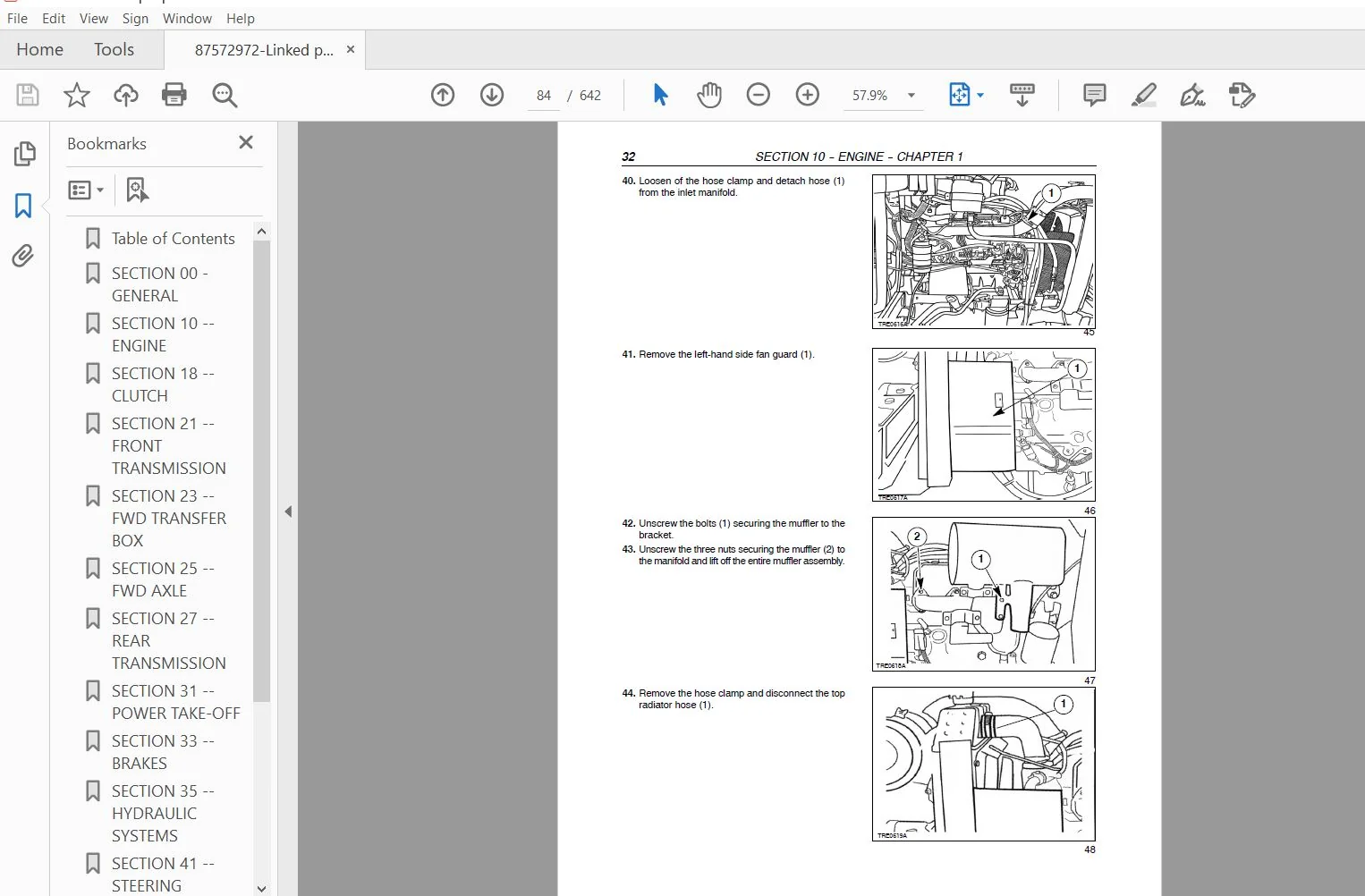

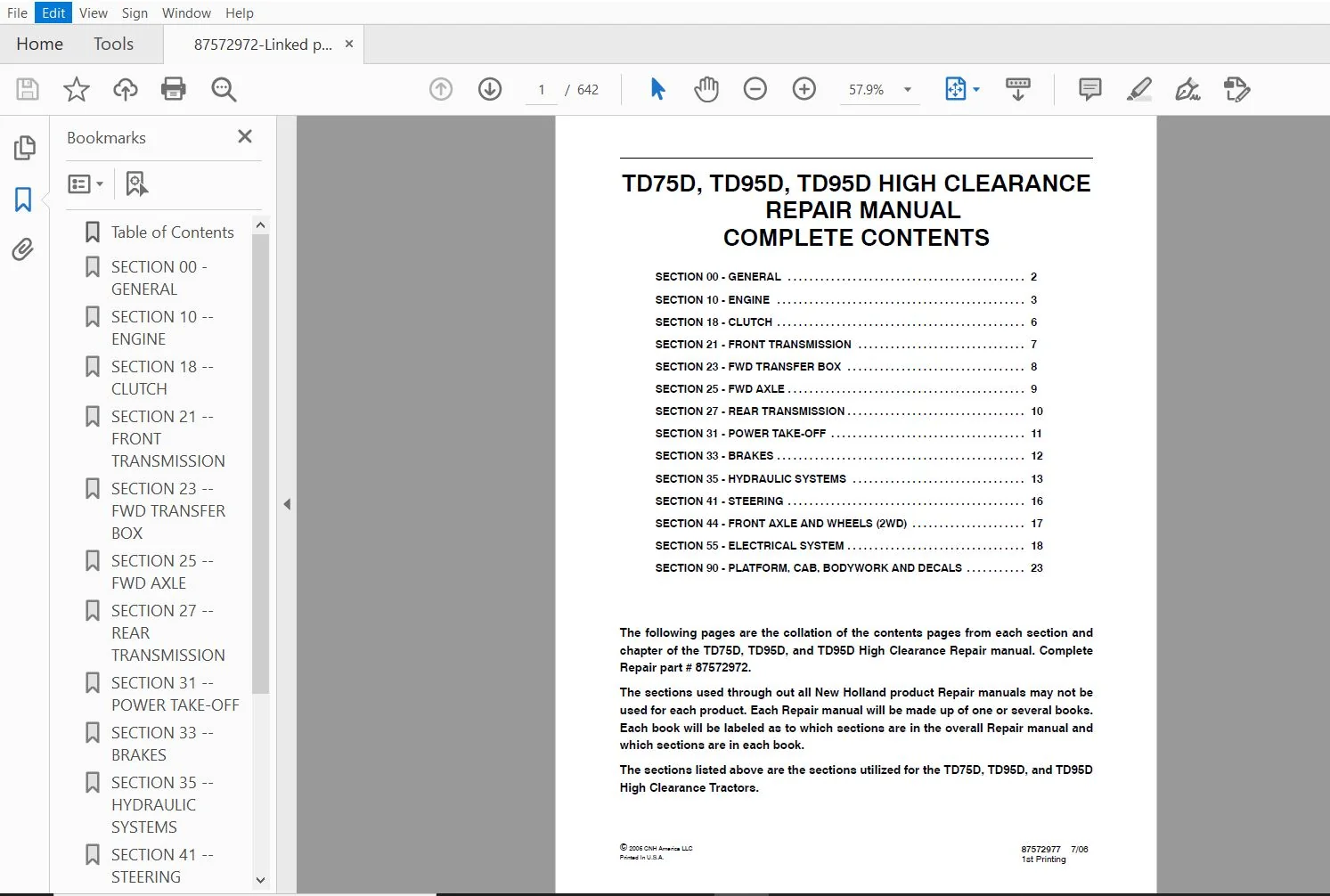

IMAGES PREVIEW OF THE MANUAL:
