New Holland Tractor TD80D, TD95D Repair Manual 87658938 – PDF DOWNLOAD

Description

New Holland Tractor TD80D, TD95D Repair Manual

FILE DETAILS:

New Holland Tractor TD80D, TD95D Repair Manual

Size: 32.3 MB
Format: PDF
Language: English
Number of Pages: 702
Brand: New Holland
Type of Machine: Tractor
Type of document: Repair Manual
Model: TD80D, TD95D

DESCRIPTION:

New Holland Tractor TD80D, TD95D Repair Manual

GENERAL INSTRUCTIONS:
IMPORTANT NOTICE:

All maintenance and repair operations described in this manual should be carried out exclusively by the authorized workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these directives will be directly responsible for resulting consequences.

SHIMMING:

At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on the rated value indicated for each shim.

ROTATING SHAFT SEALS:

To correctly install rotating shaft seals, observe the following instructions:

•  Let the seal soak into the same oil as it will seal for at least half an hour before mounting;
•  Thoroughly clean the shaft and ensure that the shaft working surface is not damaged;
•  Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal;
•  Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill the gap between the sealing lip and the dust lip of double lip seals with grease;
•  Insert the seal into its seat and press it down using a flat punch. Do not tap the seal with a hammer or a drift;
•  Take care to insert the seal perpendicular to its seat while you are pressing it. Once the seal is settled, ensure that it contacts the thrust element, if required;
•  To prevent damaging the sealing lip against the shaft, place a suitable protection during installation.

O RINGS :

Lubricate the O rings before inserting them into their seats. This will prevent the O rings from roll over and twisting during mounting, which will jeopardize sealing.

SEALERS:

Apply silicone/gasket eliminator over the mating surfaces marked with an X. Before applying the sealer, prepare the surface as follows:

• remove possible scales using a metal brush;
• thoroughly degrease the surfaces using one of the following cleaning agents: trichlorethylene, diesel fuel or a water and soda solution.

BEARINGS:

It is advisable to heat the bearings to 80° to 90°C (176° to 194°F) beforemounting them on their shafts and cool them down before inserting them into their seats with external tapping.

TABLE OF CONTENTS:

New Holland Tractor TD80D, TD95D Repair Manual

• SECTION 00 – GENERAL
• SECTION 10 – ENGINE
• SECTION 18 — CLUTCH
• SECTION 21 — FRONT TRANSMISSION
• SECTION 23 — FWD TRANSFER BOX
• SECTION 25 – MFD AXLE
• SECTION 27 —— REAR TRANSMISSION
• SECTION 31 — POWER TAKE-OFF
• SECTION 33 – BRAKES
• SECTION 35 — HYDRAULIC SYSTEMS
• SECTION 41 — STEERING
• SECTION 44 — FRONT AXLE AND WHEELS (2WD)
• SECTION 55 — ELECTRICAL SYSTEM
• SECTION 90 — PLATFORM, CAB, BODYWORK AND DECALS

NEW HOLLAND TRACTOR TD80D, TD95D REPAIR MANUAL 87658938 – PDF DOWNLOAD:

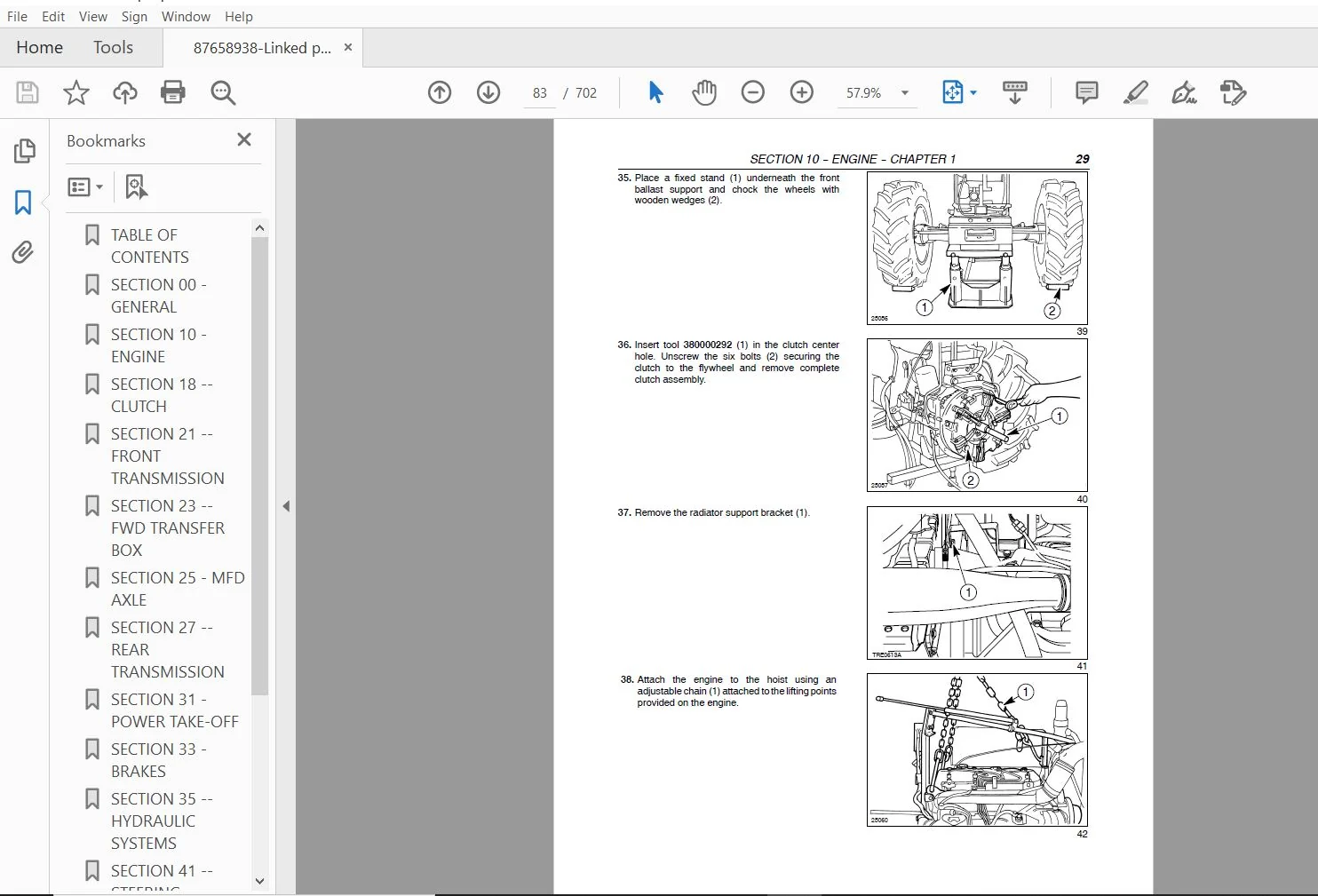

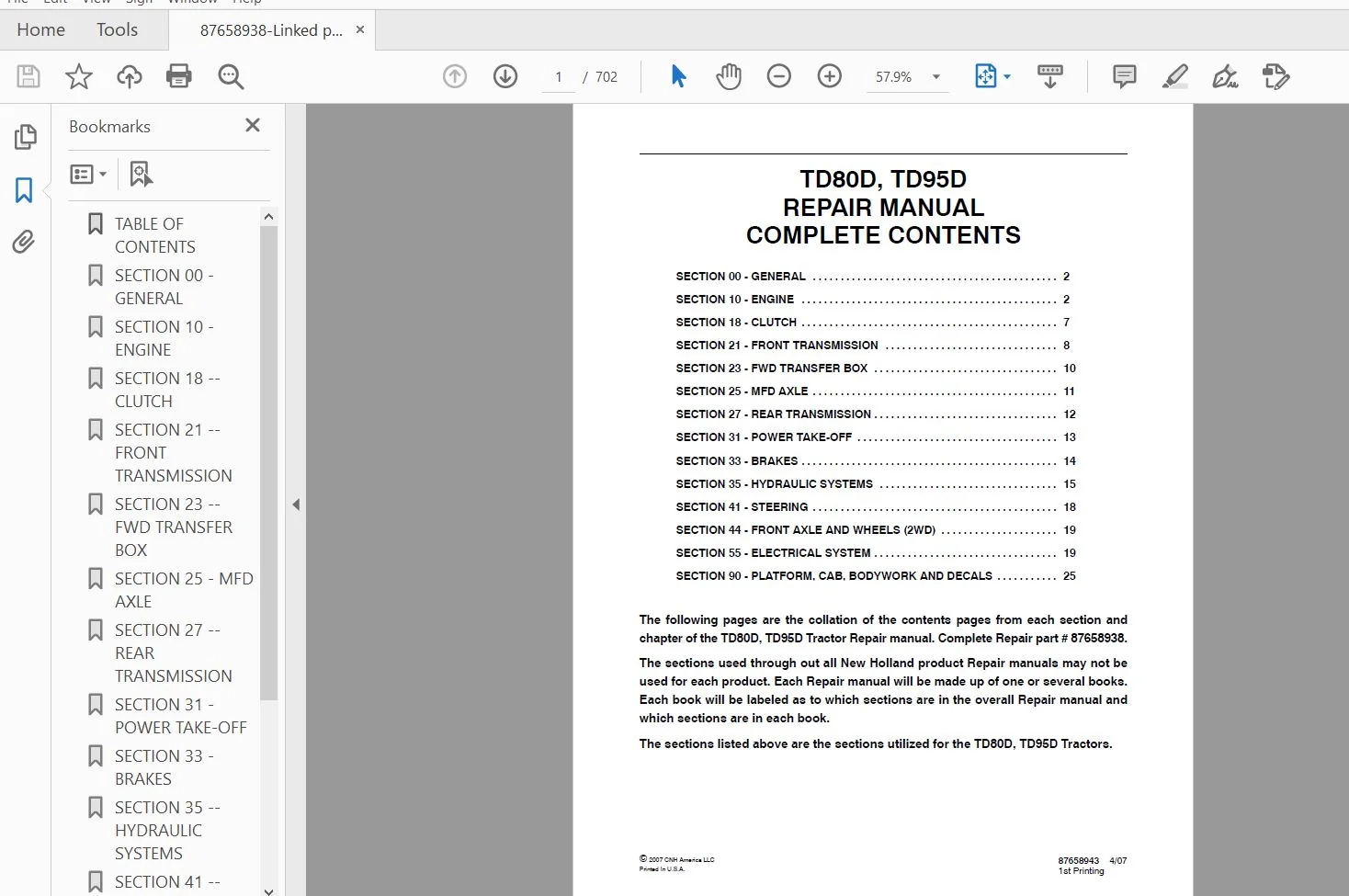

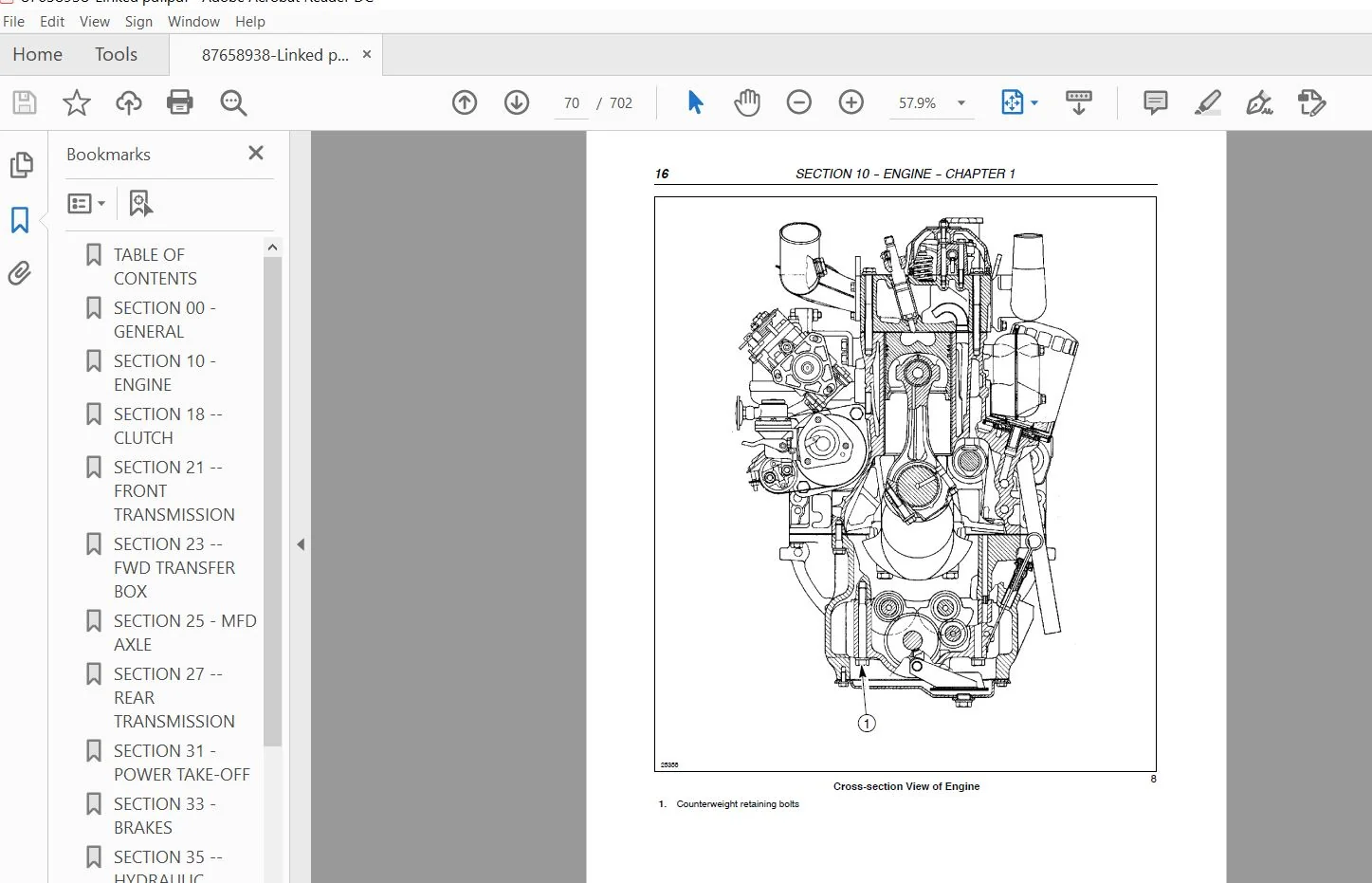

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
