New Holland Tractor TS A Series T6000 Series supplement Repair Manual 87550373 – PDF DOWNLOAD
Original price was: $89.95.$37.95Current price is: $37.95.
New Holland Tractor TS A Series T6000 Series supplement Repair Manual
Part No: 87550373
Models covered are:
T6010 Delta, T6020 Delta, T6030 Delta, T6050 Delta. T6010 Plus, T6020 Plus, T6030 Plus, T6050 Plus, T6070 Plus. T6020 Elite, T6040 Elite, T6060 Elite.
DESCRIPTION AND OPERATION Allmodels fittedwith cabs, CCLS pumpandEDCcan be fitted with a Remote valves with configurable detent. To select a setting, rotate the control until thenumber
Description
New Holland Tractor TS A Series T6000 Series supplement Repair Manual
FILE DETAILS:
New Holland Tractor TS A Series T6000 Series supplement Repair Manual
Size: 7.52 MB
Format: PDF
Language: English
Number of Pages: 1574 pages
Brand: New Holland
Type of machine: Tractor
Type of document: Repair Manual
Model: TS-A Series T6000 Series supplement
Part No: 87550373
DESCRIPTION:
New Holland Tractor TS A Series T6000 Series supplement Repair Manual
SAMPLE PAGE FROM THE MANUAL:
- On the end cap, aligns with the mark on the valve body. NOTE: If the number on the rotary control is not aligned correctly with the reference mark on the valve body, the performance of the valve may be affected.
- Before turning the selector, ensure any residual pressure in the hydraulic system is exhausted. To do this, stop the tractor engine, cycle the remote valve lever through all positions and then place the lever in neutral. Each position offers the follwing functions: 1 I. Raise (R), Neutral (N), Lower (L) and Float (F) positions available. Detent position in Float only. No lever auto return to neutral (kick out)
- Raise, Neutral and Lower positions only. No Float facility. No detent positions available. No lever auto return to neutral (kick out).
- Raise, Neutral, Lower and Float positions available. Detents in Raise, Lower and Float. Lever auto return to neutral (kick out) in Raise and Lower positions. IV. Raise, Neutral, Lower and Float positions available. Detents in Raise, Lower and Float. No lever auto return to neutral (kick out). V.
- Raise and Float positions available. Detents in Raise and Float. No lever auto return to neutral (kick out). *To select position
- place the remote valve lever in neutral, select position I or IV then move the lever to the Float position. With the lever in Float select position V. To de–select position V, put the remote valve lever into float, turn the selector control to position I or IV and then move the remote valve lever to neutral. It is now possible to select positions I to IV.
- To prevent inadvertent movement of attached equipment when starting the tractor engine, ensure the remote valve levers are in the correct position before operating the key–start switch: With the selector in positions I to IV — Neutral With the selector in position V — Float
NEW HOLLAND TRACTOR TS A SERIES T6000 SERIES SUPPLEMENT REPAIR MANUAL 87550373 – PDF DOWNLOAD:

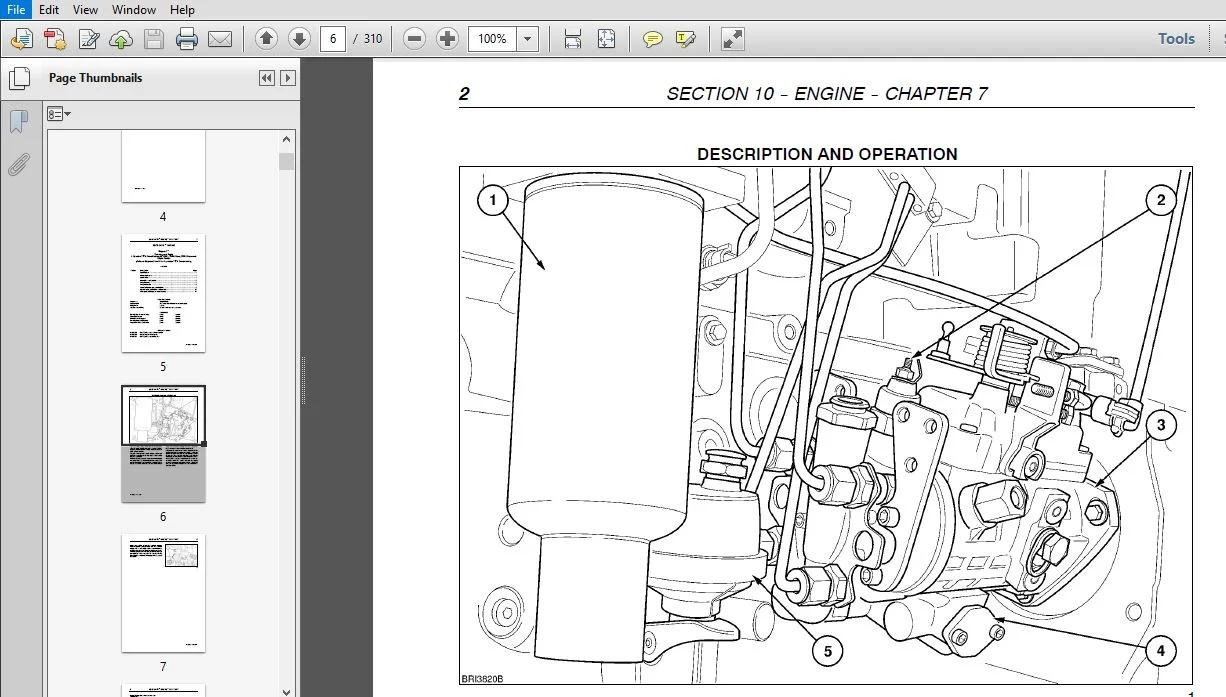

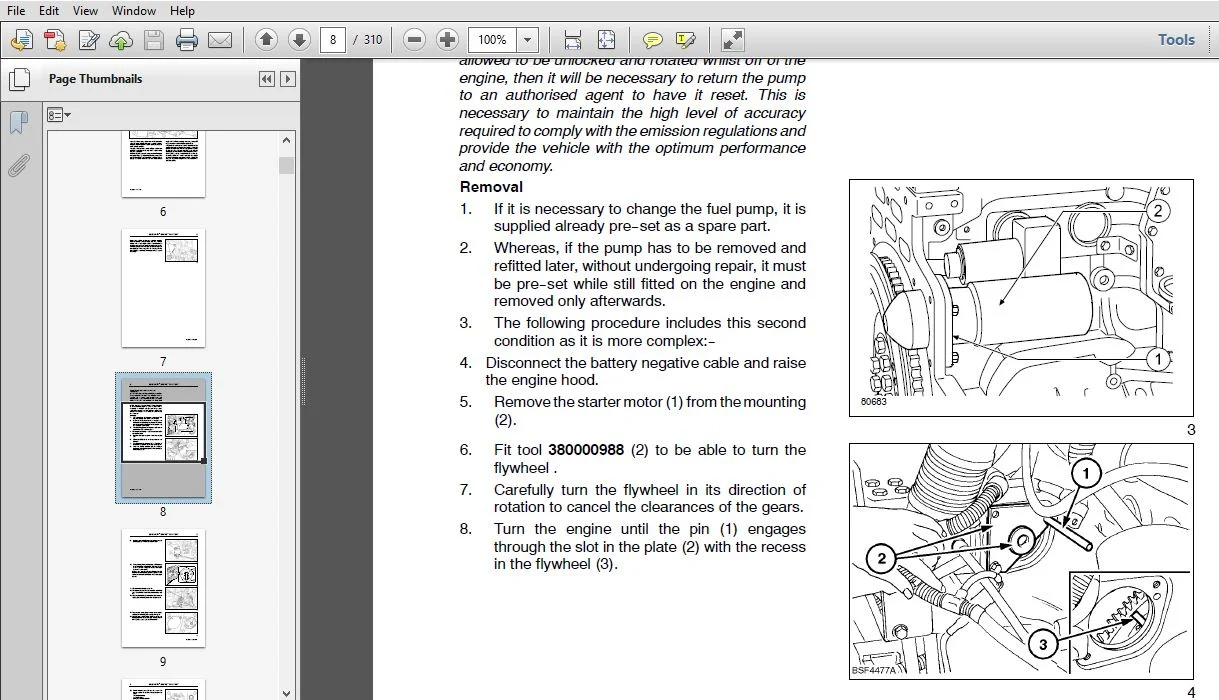

IMAGES PREVIEW OF THE MANUAL:

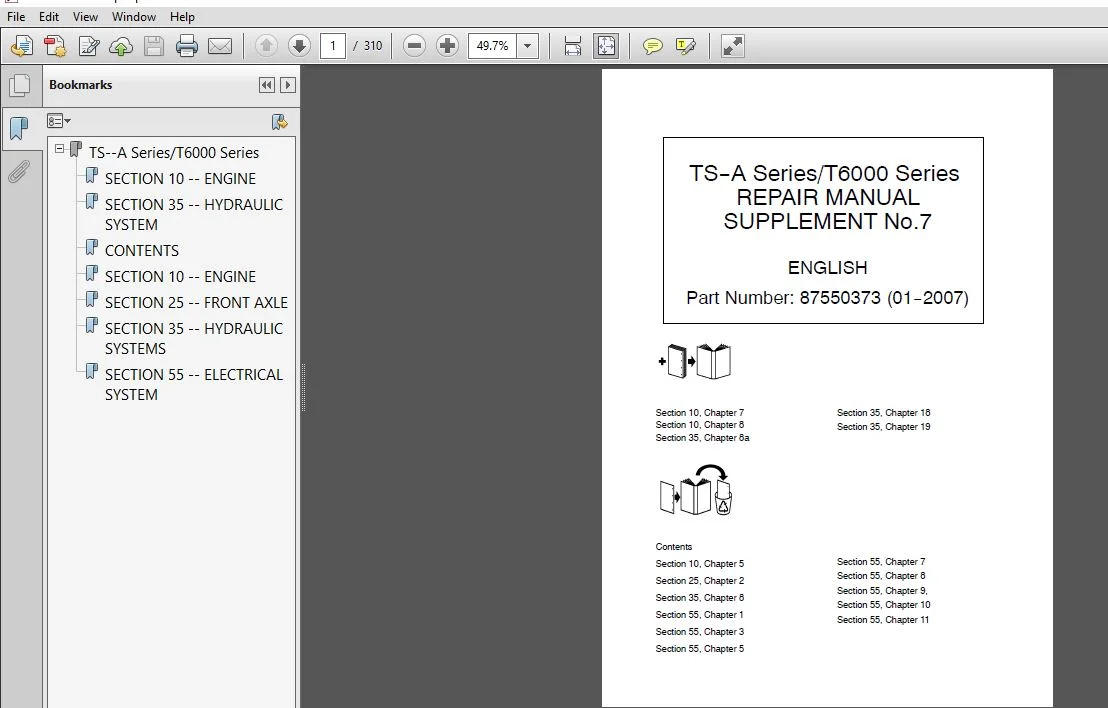

TABLE OF CONTENTS:
New Holland Tractor TS A Series T6000 Series supplement Repair Manual
Series/T6000 Series 1
SECTION 10 — ENGINE 5
SECTION 35 — HYDRAULIC SYSTEM 31
CONTENTS 83
SECTION 10 — ENGINE 183
SECTION 25 — FRONT AXLE 187
SECTION 35 — HYDRAULIC SYSTEMS 211
SECTION 55 — ELECTRICAL SYSTEM 219
