New Holland TS100A TS110A TS115A TS125A TS130A TS135A T6010 T6020 T6030 T6050 T6070 Service Manual (87693272) – PDF Download

Description

New Holland TS100A TS110A TS115A TS125A TS130A TS135A T6010 T6020 T6030 T6050 T6070 Service Manual (87693272)

File Details:

New Holland TS100A TS110A TS115A TS125A TS130A TS135A T6010 T6020 T6030 T6050 T6070 Service Manual
Size : 146 MB
Format : PDF
Language : English
Number of Pages : 4552 Pages
Part No:87693272

NEW HOLLAND TS100A TS110A TS115A TS125A TS130A TS135A T6010 T6020 T6030 T6050 T6070 SERVICE MANUAL (87693272) – PDF DOWNLOAD:

Image Preview:

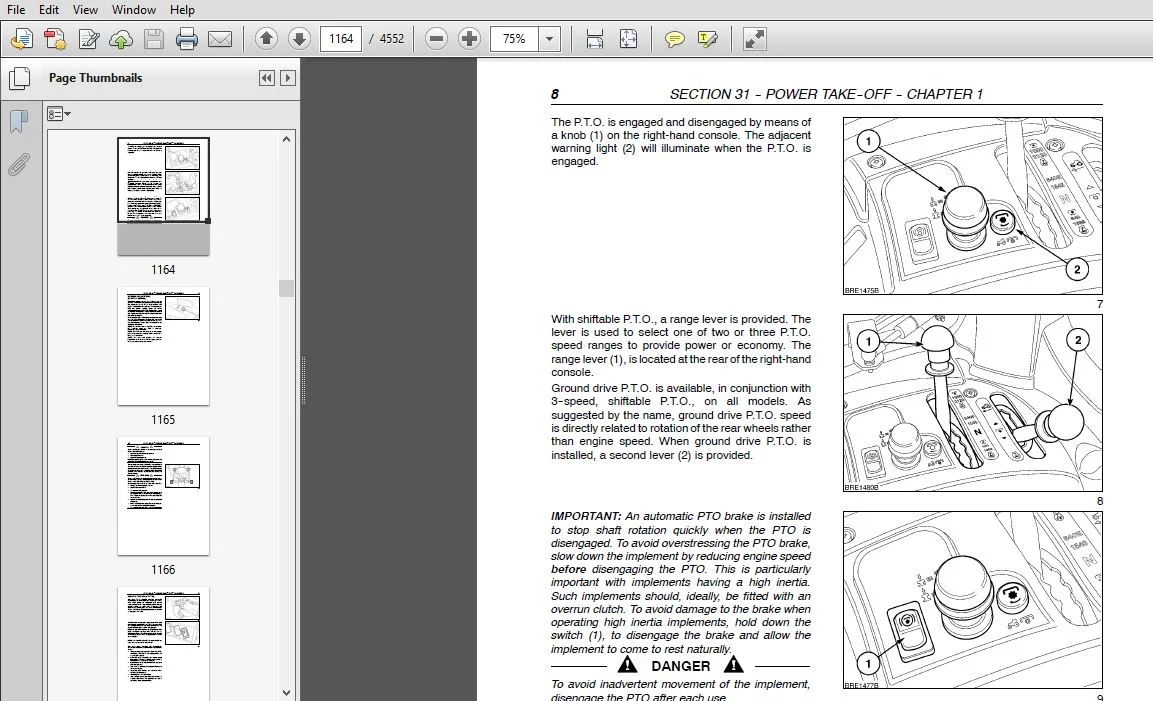

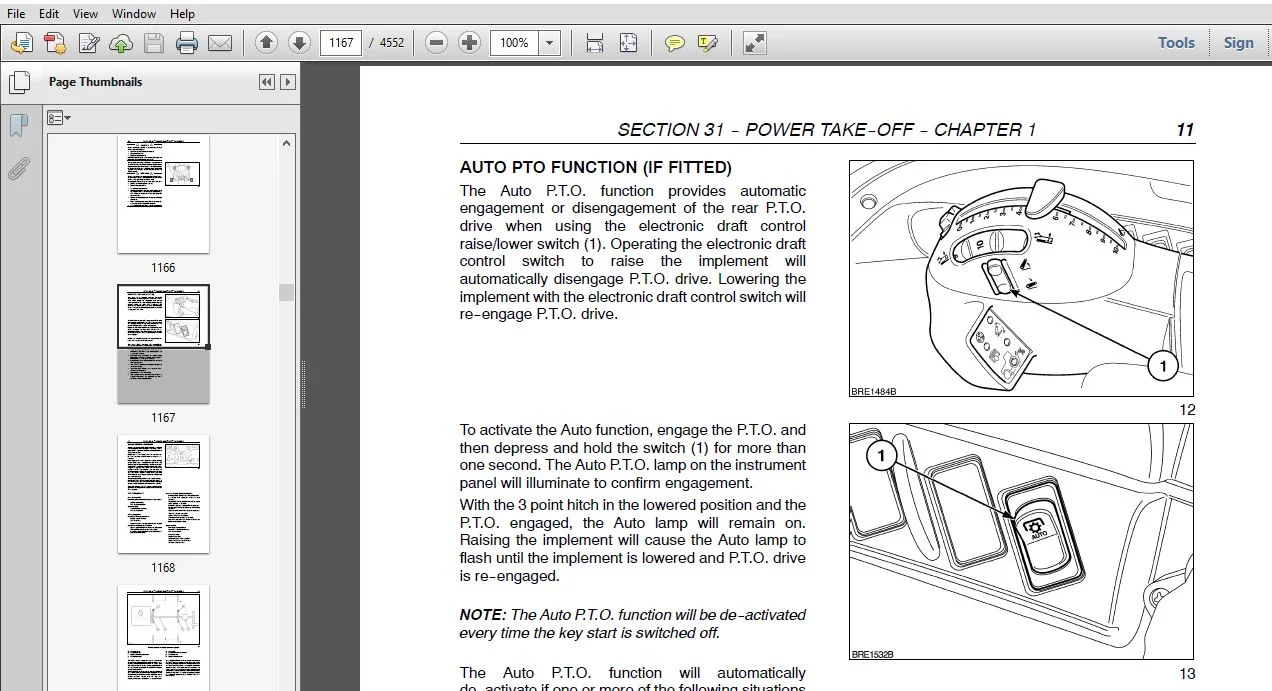

Sample Page From The Manual:

New Holland TS100A TS110A TS115A TS125A TS130A TS135A T6010 T6020 T6030 T6050 T6070 Service Manual (87693272)

• Carefully follow specified repair and maintenance procedures.
• Do not wear rings, wristwatches, jewels, unbuttoned or flapping clothing such as ties, torn clothes, scarves, open jackets or shirts with open zips which could get caught on moving parts.Use approved safety clothing such as anti–slipping footwear, gloves, safety goggles, helmets, etc.
• Wear safety glasses with side guards when cleaning parts using compressed air.
• Damaged or frayed wires and chains are unreliable. Do not use them for lifting or towing.
• Wear suitable protection such as approved eye protection, helmets, special clothing, gloves and footwear whenever welding. All persons standing in the vicinity of the welding process should wear approved eye protection. NEVER LOOK AT THEWELDING ARC IF YOUR EYES ARE NOT SUITABLY PROTECTED.
• Never carry out any repair on the machine if someone is sitting on the operator’s seat, except if they are qualified operators assisting in the operation to be carried out.
• Never operate the machine or use attachments from a place other than sitting at the operator’s seat or at the side of the machine when operating the fender switches.
• Never carry out any operation on the machine when the engine is running, except when specifically indicated. Stop the engine and ensure that all pressure is relieved fromhydraulic circuits before removing caps, covers, valves, etc.

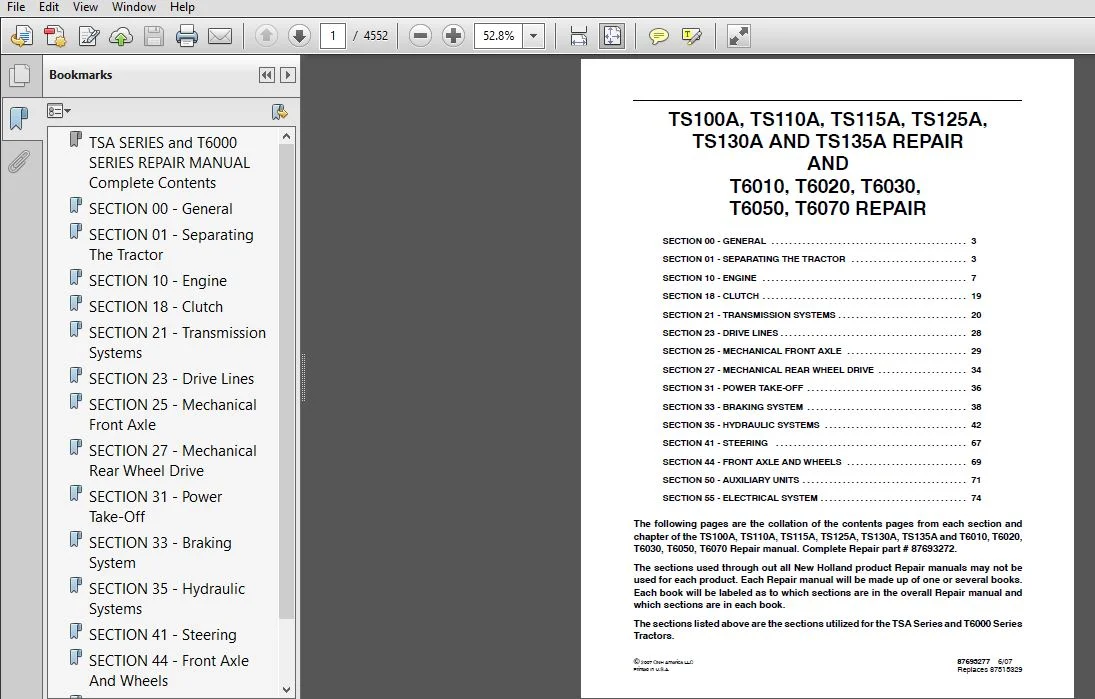

Table Of Contents:

New Holland TS100A TS110A TS115A TS125A TS130A TS135A T6010 T6020 T6030 T6050 T6070 Service Manual (87693272)

SECTION 00 – GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION 01 – SEPARATING THE TRACTOR . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION 10 – ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
SECTION 18 – CLUTCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SECTION 21 – TRANSMISSION SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SECTION 23 – DRIVE LINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SECTION 25 – MECHANICAL FRONT AXLE . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
SECTION 27 – MECHANICAL REAR WHEEL DRIVE . . . . . . . . . . . . . . . . . . . . 34
SECTION 31 – POWER TAKE-OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
SECTION 33 – BRAKING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
SECTION 35 – HYDRAULIC SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
SECTION 41 – STEERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
SECTION 44 – FRONT AXLE AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
SECTION 50 – AUXILIARY UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
SECTION 55 – ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Please Note:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
