NEW HOLLAND W110C Wheel Loader Tier II REPAIR SERVICE MANUAL 47476332 – PDF DOWNLOAD

Description

NEW HOLLAND W110C Wheel Loader Tier II REPAIR SERVICE MANUAL

FILE DETAILS:

NEW HOLLAND W110C Wheel Loader Tier II REPAIR SERVICE MANUAL

Size: 212 MB
Format: PDF
Language: English
Number of Pages : 983 pages
Brand: New Holland

DESCRIPTION:

NEW HOLLAND W110C Wheel Loader Tier II REPAIR SERVICE MANUAL

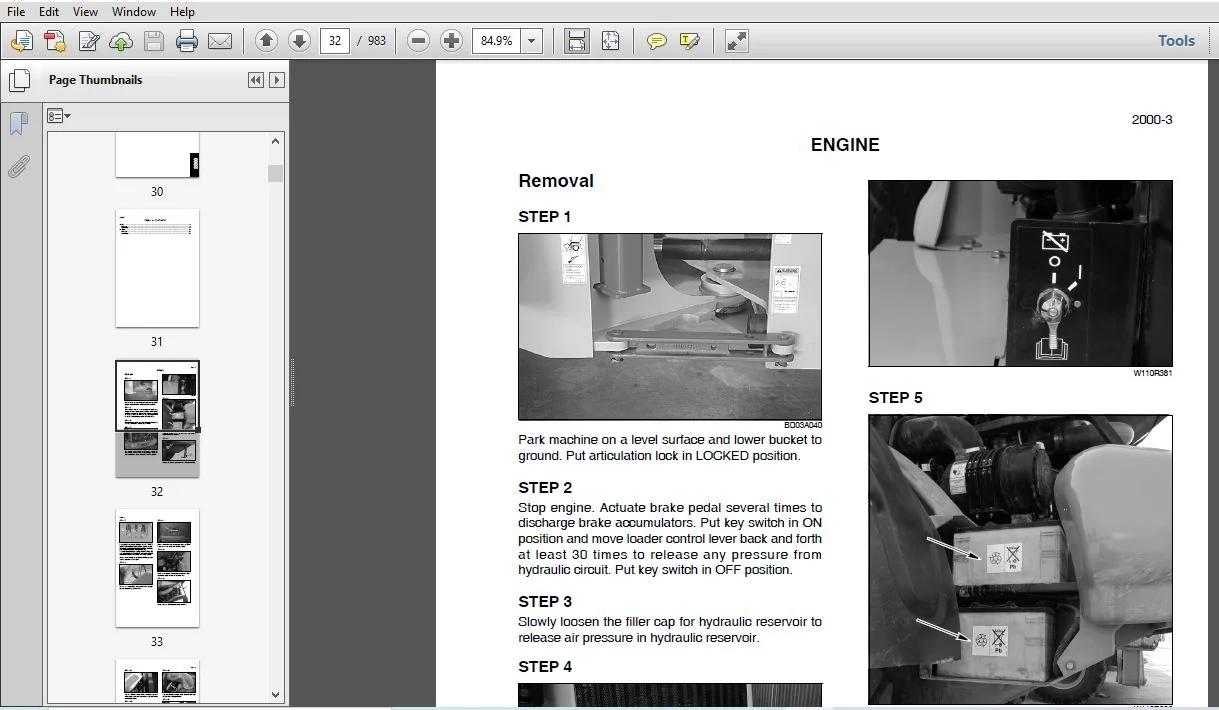

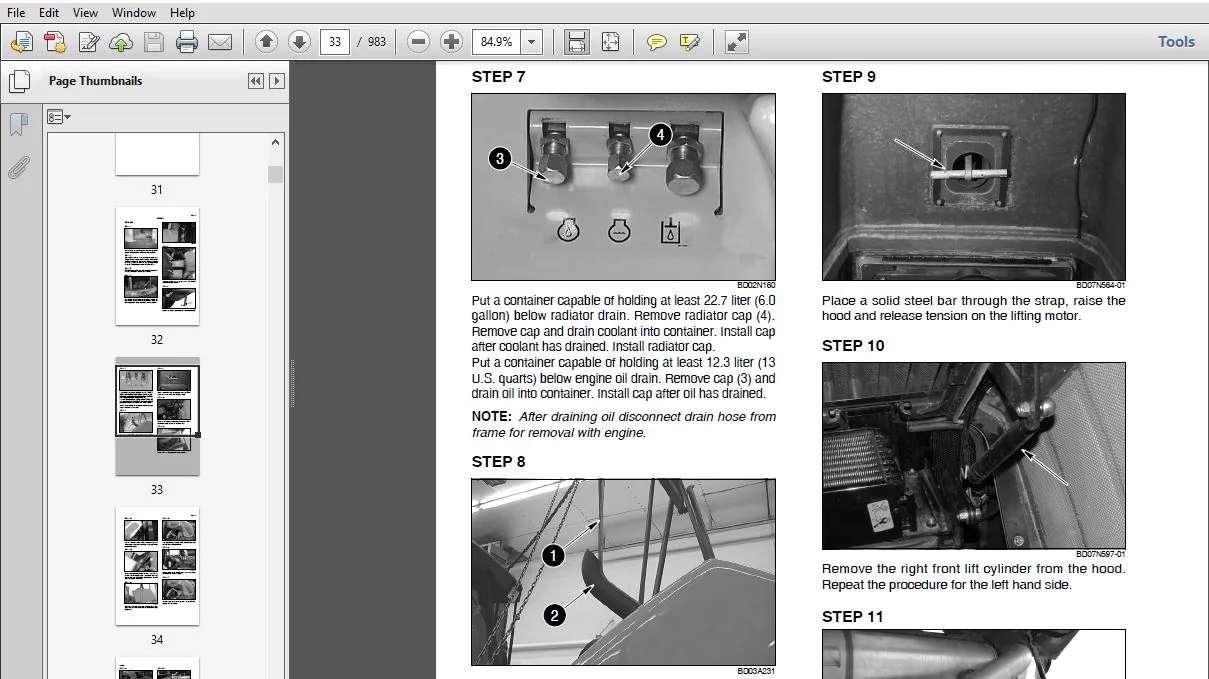

SAMPLE PAGE FROM THE MANUAL:

•  Park loader on level ground and lower bucket to ground. Put transmission in NEUTRAL, apply parking brake, and shut down engine,
•  Put master disconnect switch in OFF position. Remove all dirt and grease from auxiliary steering priority valve and adjacent area. See illustration on page
• Remove hydraulic reservoir fill cap. Connect a vacuum pump to hydraulic reservoir.  Start vacuum pump. Tag and disconnect tank return tube
• from the priority valve. Install a cap on the elbow and a plug in the tube. 8. Stop the vacuum pump. Tag and disconnect the wiring from the steering solenoid Tag and disconnect the wiring from the pressure switch Tag and disconnect load sensing hose
• from auxiliary steering priority valve  Install a cap on the elbow and a plug in the hose.  Tag and disconnect load sensing hose from the priority valve  Install a cap on the elbow and a plug in the hose.  Tag and disconnect steering pressure hose  from priority valve
• Install a cap on the fitting and a plug in the hose. Tag and disconnect pressure hose  from priority valve Install a cap on the fitting and a plug in the hose.  Tag and disconnect pressure hose  from priority valve . Install and tighten cap screws. Connect and tighten pressure hose . Connect and tighten pressure hose . Connect and tighten steering pressure hose (1). 5. Connect and tighten steering load sensing hose
• Connect and tighten load sensing hose . Connect electrical connector to the pressure switch  electrical connector to the steering solenoid Start vacuum pump. 10. Connect and tighten tank return tube  Stop vacuum pump. Disconnect vacuum pump from hydraulic reservoir. Install fill cap on hydraulic reservoir.  Put battery disconnect switch in ON position. Start engine and run at low idle for 30 seconds. Stop engine and check for leaks. heck to make sure priority valve operates correctly. See Section 5002. Check fluid level in hydraulic reservoir. Add oil as required. See Section 1002 for specifications.

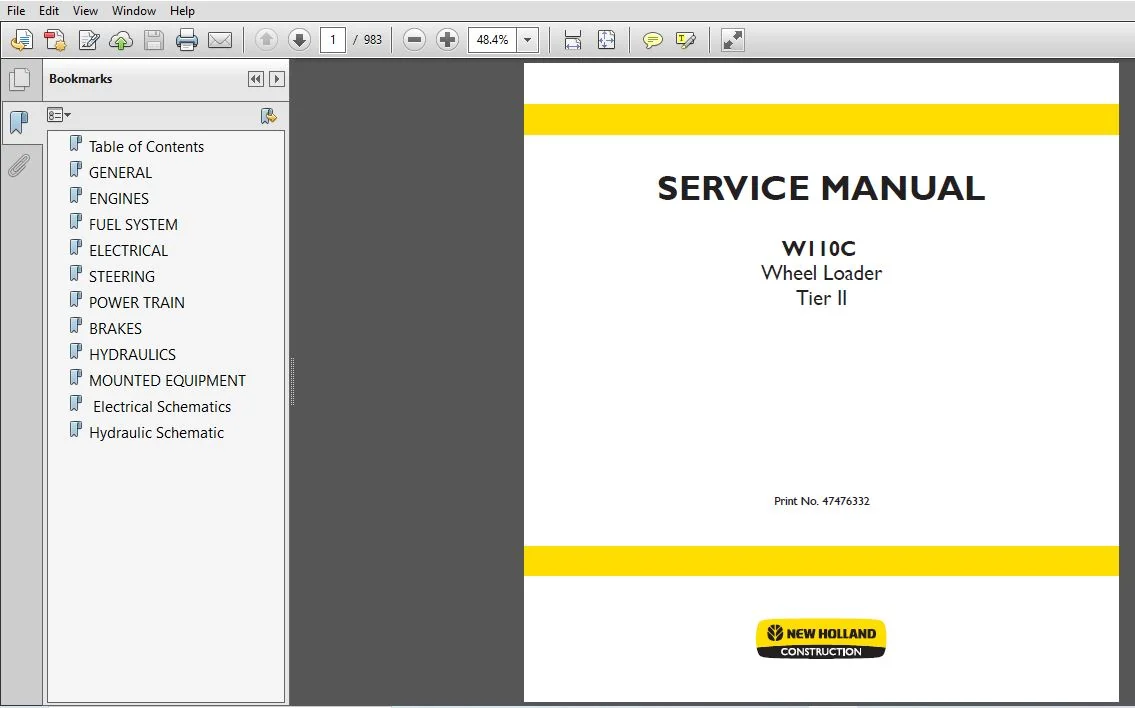

IMAGES PREVIEW OF THE MANUAL:

NEW HOLLAND W110C WHEEL LOADER TIER II REPAIR SERVICE MANUAL 47476332 – PDF DOWNLOAD:

TABLE OF CONTENTS:

NEW HOLLAND W110C Wheel Loader Tier II REPAIR SERVICE MANUAL

General Tab 1
Section Index – General
Standard Torque Specifications 1001
Fluids and Lubricants 1002
Metric Conversion Chart 1003
Engines Tab 2
Section Index – Engines
Engine and Radiator Removal and Installation 2000
Stall Tests 2002
After Cooler 2003
For Engine Repair, See the Engine Service Manual 84392403
Fuel System Tab 3
Section Index – Fuel System
For Fuel System Repair, See the Engine Service Manual 84392403
Electrical Tab 4
Section Index – Electrical
Removal and Installation of Starter and Alternator 4001
Electrical Specifications and Troubleshooting 4002
Batteries 4003
Instrument Cluster 4005
Steering Tab 5
Section Index – Steering
Removal and Installation of Steering Components 5001
Steering Specifications, Pressure Checks, and Troubleshooting 5002
Steering Cylinders 5005
Center Pivot 5006
Auxiliary Steering Motor and Pump 5008
Power Train Tab 6
Section Index – Power Train
Removal and Installation of Power Train Components 6001
Transmission Specifications, Pressure Checks, and Troubleshooting 6002
Transmission 6003
Front Axle 6004
Rear Axle 6004
Drive Shafts, Center Bearing, and Universal Joints 6005
Wheels and Tires 6006
Transmission Control Valve 6007
Brakes Tab 7
Section Index – Brakes
Removal and Installation of Brake Components 7001
Hydraulic Brake Troubleshooting 7002
Brake Pump 7003
Brake Accumulators 7004
Parking Brake 7008
Hydraulics Tab 8
Section Index – Hydraulics
How to Read Hydraulic Schematics 8000
Removal and Installation of Hydraulic Components 8001
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002
Cleaning the Hydraulic System 8003
Loader Control Valve 8005
Cylinders 8006
Coupler Solenoid Locking Valve 8007
Ride Control Accumulator 8013
Ride Control Valve 8014
Mounted Equipment Tab 9
W110C Wheel Loader
Repair Manual
84581910A
Table of Contents
Description Section No.
Section Index – Mounted Equipment
Air Conditioning Troubleshooting and System Checks 9002
Air Conditioner System Service 9003
Removal And Installation Of Air Conditioning And Heater Components 9004
Loader 9006
Roll Over Protective Structure (ROPS), Cab Structural Frame (CSF) 9007
Cab Glass Installation 9010
Electrical Schematic Foldouts and Hydraulic Schematic Foldout
