New Holland W190B Tier 3 Wheel Loader Service Repair Manual (84299253R0) New Holland W190B – PDF Download

Description

New Holland W190B Tier 3 Wheel Loader Service Repair Manual (84299253R0) New Holland W190B

FILE DETAILS:

New Holland W190B Tier 3 Wheel Loader Service Repair Manual (84299253R0) New Holland W190B

• Format: PDF
• Language: English
• Number of Pages: 857 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: W190B Tier 3
• Part No: 84299253R0

NEW HOLLAND W190B TIER 3 WHEEL LOADER SERVICE REPAIR MANUAL (84299253R0) NEW HOLLAND W190B – PDF DOWNLOAD:

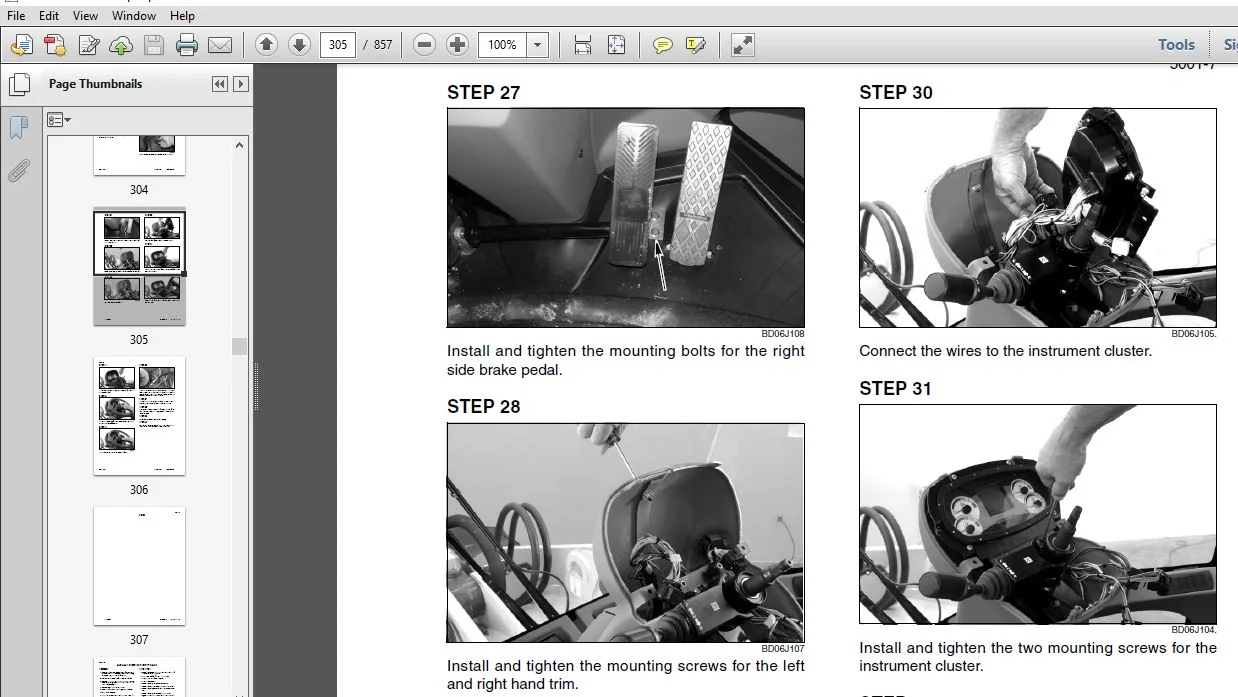

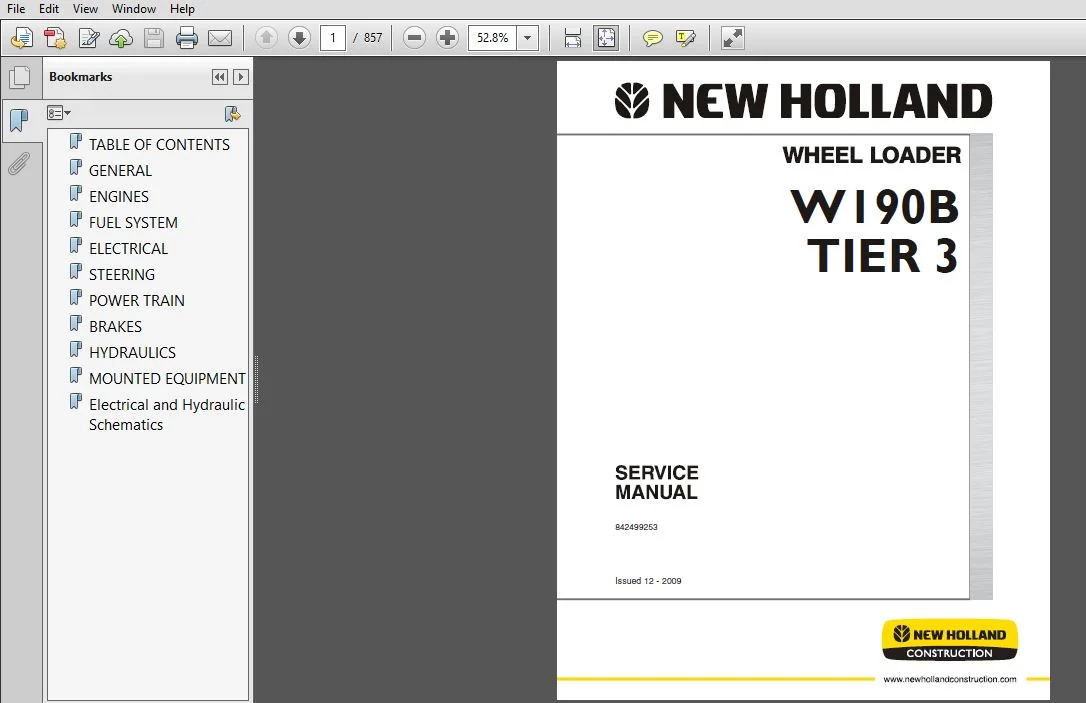

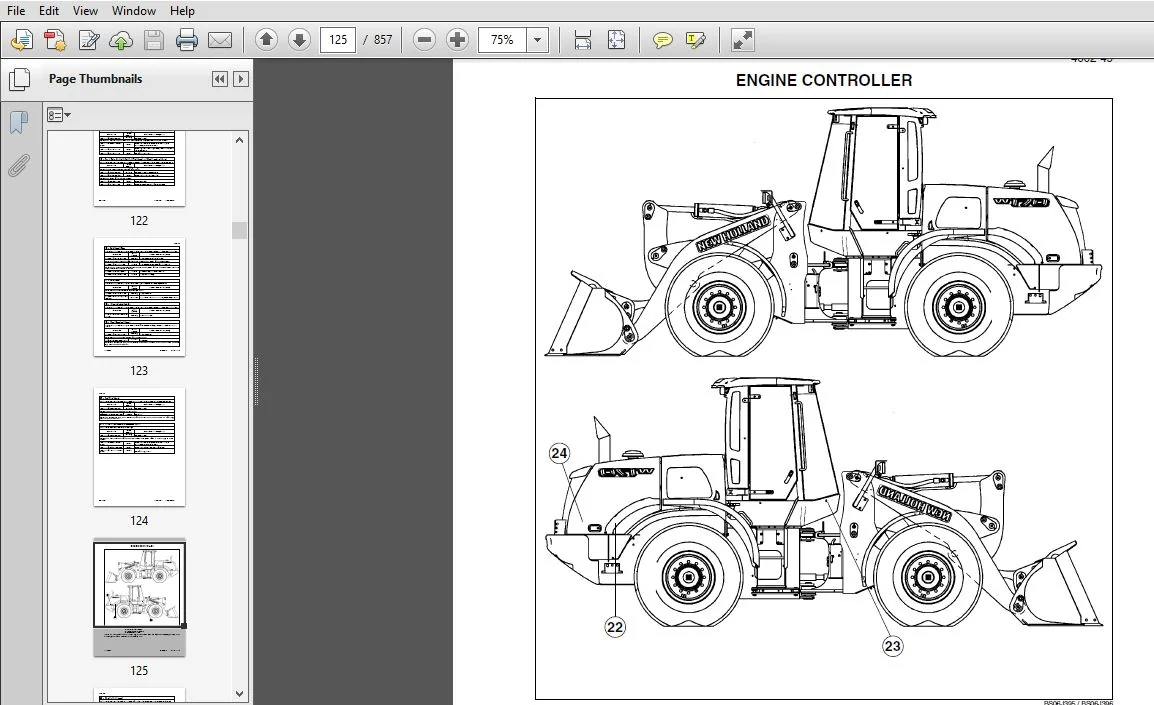

SCREENSHOTS OF THE MANUAL:

SAMPLE PAGE OF THE MANUAL:

New Holland W190B Tier 3 Wheel Loader Service Repair Manual (84299253R0) New Holland W190B

• Only authorized technicians certified by an approved training and certification organization may service or repair motor vehicle or mobile air conditioning systems. It is mandatory that all refrigerant must be RECOVERED and RECYCLED when removed from a system during servicing.
• Refrigerant HFC-134a is the most stable, and easiest to work with of the refrigerants now used in air conditioner systems. Refrigerant HFC-134a does not contain any chlorofluorocarbons (CFC’s) which are harmful to the earth’s ozone layer. Safety procedures must be followed when working with Refrigerant HFC-134a to prevent possible personal injury. 1. Always wear safety goggles when doing any service work near an air conditioner system.
• Liquid refrigerant getting into the eyes can cause serious injury.
• Do the following if you get refrigerant near or in your eyes: A. Flush your eyes with water for 15 minutes. B. See a physician immediately. 2. A drop of liquid refrigerant on your skin may cause frostbite.
• Open the fittings carefully and slowly when it is necessary to service the air conditioner system. Your skin must be treated for frostbite or a physician must be seen if you get refrigerant on your skin.
• Keep refrigerant containers in the correct upright position. Always keep refrigerant containers away from heat and sunlight. The pressure in a container will increase with heat. 4. Always reclaim refrigerant from the system, if you are going to weld or steam clean near the air conditioner system.
• Always check the temperature and pressure of the air conditioner system before reclaiming refrigerant and when you test the system.
• Dangerous gas can form when refrigerant comes in contact with an open flame. Never permit fumes to be inhaled. 7. Never leak test with compressed air or flame testers. Tests have indicated that compressed mixtures of HFC-134a and air can form a combustible gas. 8. Always reclaim refrigerant from the system before removing any air conditioning component.

TABLE OF CONTENTS:

New Holland W190B Tier 3 Wheel Loader Service Repair Manual (84299253R0) New Holland W190B

General Tab 1
Section Index – General 53770
Standard Torque Specifications 1001 6-49790
Fluids and Lubricants 1002 5-3780
Metric Conversion Chart 1003 649810
Engines Tab 2
Section Index – Engines 5-3790
Engine and Ratfiator Removal and installation 2000 5-3370
Stall Tests 2002 53800
Alter Cooler 2003 649850
Engine 87519304
Fuel System Tab 3
Section Index – Fuel System 53810
For Fuel System Repair. See the Engine Service Manual
Electrical Tab 4
Section Index – Electrical 5-3020
Removal and Installation 01 Starter and Alternator 4001 53410
Electrical Specifications and Troubleshooting 4002 5-3420
Batteries 4003 6-49900
instrument Cluster 4005 5-3430
Steering Tab 5
Section Index – Steering
Removal and installation at Steering Components 5001 5-3450
Steering Specifications, Pressure Checks. and Troubleshooting 5002 5-3460
Steering Cylinders 5005 5-3840
Center Pivot 5006 5-3050
Auxiliary Steering Motor and Pump 5007 6-72020
Joystick Steering 5009 55-15950
Power Train Tab 6
Section Index – Power Train 53860
Removal and installation at Power Train Components 6001 5-4000
Transmission Specifications, Pressure Checks. and Troubleshooting 6002 53510
Transmission 6003 53520
Front Axle 6004 53870
Rear Axle 6004 53880
Drive Shafts. Center Bearing, and Universal Joints 6005 5-3890
Wheels and Tires 6006 53900
Transmission Control Valve 6007 672110
Brakes Tab 7
Section Index – Brakes 53910
Removal and Installation 01 Brake Components 7001 53920
Hydraulic Brake Troubleshooting 7002 53930
Brake Pump 7003 53590
Brake Aocumuiators 7004 6’72150
Parking Brake 7008 5-3600
Hydraulics Tab 8
Section Index – Hydraulics 53940
Removal and Installation oi Hydraulic Components 8001 5-4060
Hydraulic Specifications, Troubleshooting. and Pressure Checks 8002 53950
Cleaning the Hydraulic System 8003 6-72200
Hydraulic Pump 8004 53640
Loader Control Valve 8005 53650
Cylinders 8006 5-3960
Coupler Solenoid Locking Valve 8007 6-72240
Ride Control Accumulator 8013 5-3670
Ride Control Valve 8014 53680
Mounted Equipment Tab 9
Section Index – Mounted Equipment 53970
Air Conditioning Troubleshooting and System Checks For Systems with HFC-134a .
Retrigerant 9002 5 4040
Air Conditioner System Service 9003 5—3700
Removal and Installation of Air Conditioning and Heater Components 9004 5-3710
Loader 9006 5-3980
Rollover Protective Structure (ROPS) Cab Slructrual Frame {CSF} 9007 5-4080
Cab Glass Installation 9010 53740
Electrical Schematic Foldouts and Hydraulic Schematic Foldout In Rear Pocket 5.3990

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
