Nilfisk Advance Convertamatic 32/38LX Hydro-Retriever 320/380HD BA 800/BA 1000 Parts Manual – PDF
$16.95
Nilfisk Advance Convertamatic 32/38LX Hydro-Retriever 320/380HD BA 800/BA 1000 Parts Manual – PDF DOWNLOAD
Description
Nilfisk Advance Convertamatic 32/38LX Hydro-Retriever 320/380HD BA 800/BA 1000 Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Nilfisk Advance Convertamatic 32/38LX Hydro-Retriever 320/380HD BA 800/BA 1000 Parts Manual – PDF DOWNLOAD
Language : English
Pages : 56
Downloadable : Yes
File Type : PDF

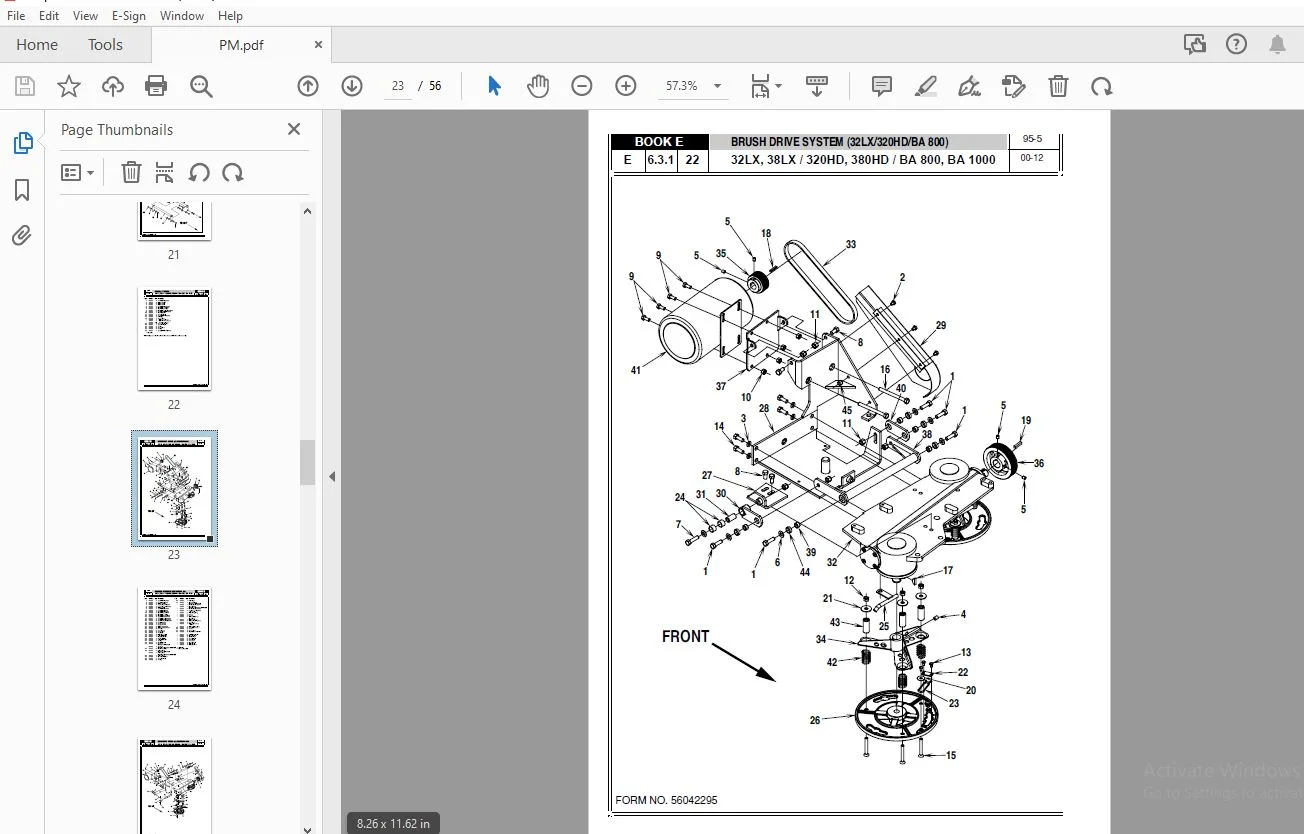

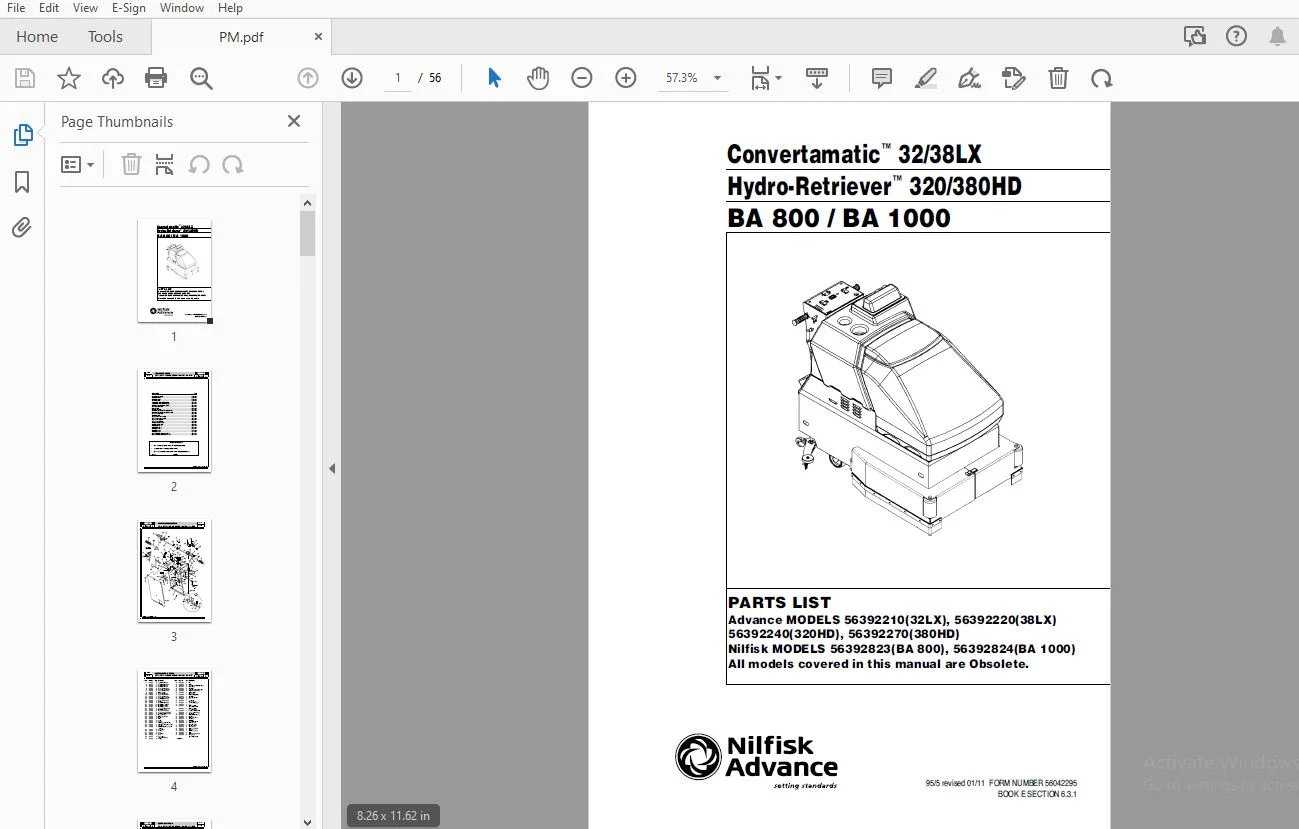

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Nilfisk Advance Convertamatic 32/38LX Hydro-Retriever 320/380HD BA 800/BA 1000 Parts Manual – PDF DOWNLOAD
Control Handle System E-6 3 1-3
Electrical Panel-1 E-6 3 1-5
Electrical Panel-2 E-6 3 1-7
Chassis System E-6 3 1-9
Skirt System (32LX/320HD/BA 800) E-6 3 1-11
Skirt System (38LX/380HD/BA 1000) E-6 3 1-13
HD Bumper System (320HD, 380HD) E-6 3 1-15
Vacuum Motor System E-6 3 1-17
Drive System E-6 3 1-19
Brush Lift System E-6 3 1-21
Brush Drive System (32LX/320HD/BA 800) E-6 3 1-23
Brush Drive System (38LX/380HD/BA 1000) E-6 3 1-25
Recovery Tank System E-6 3 1-27
Solution System E-6 3 1-29
Squeegee Mount Assembly-1 E-6 3 1-31
Squeegee Mount Assembly-2 E-6 3 1-33
Squeegee Assembly-1 E-6 3 1-35
Squeegee Assembly-2 E-6 3 1-37
Decal System (Advance) E-6 3 1-39
Decal System (Nilfisk) E-6 3 1-41
Electrical System-1 E-6 3 1-43
Electrical System-2 E-6 3 1-45
Wiring Diagram-1 E-6 3 1-47
Wiring Diagram-2 E-6 3 1-49
Wiring Diagram-3 E-6 3 1-51
Brush / Disc Selector Guide – BA 800 E-6 3 1-52
Brush / Disc Selector Guide – BA 1000 E-6 3 1-53
