Nilfisk Advance Retriever 2060 SR 1800 Service Manual – PDF DOWNLOAD

Description

Nilfisk Advance Retriever 2060 SR 1800 Service Manual – PDF DOWNLOAD

FILE DETAILS:

Nilfisk Advance Retriever 2060 SR 1800 Service Manual – PDF DOWNLOAD

Language : English
Pages : 184
Downloadable : Yes
File Type : PDF

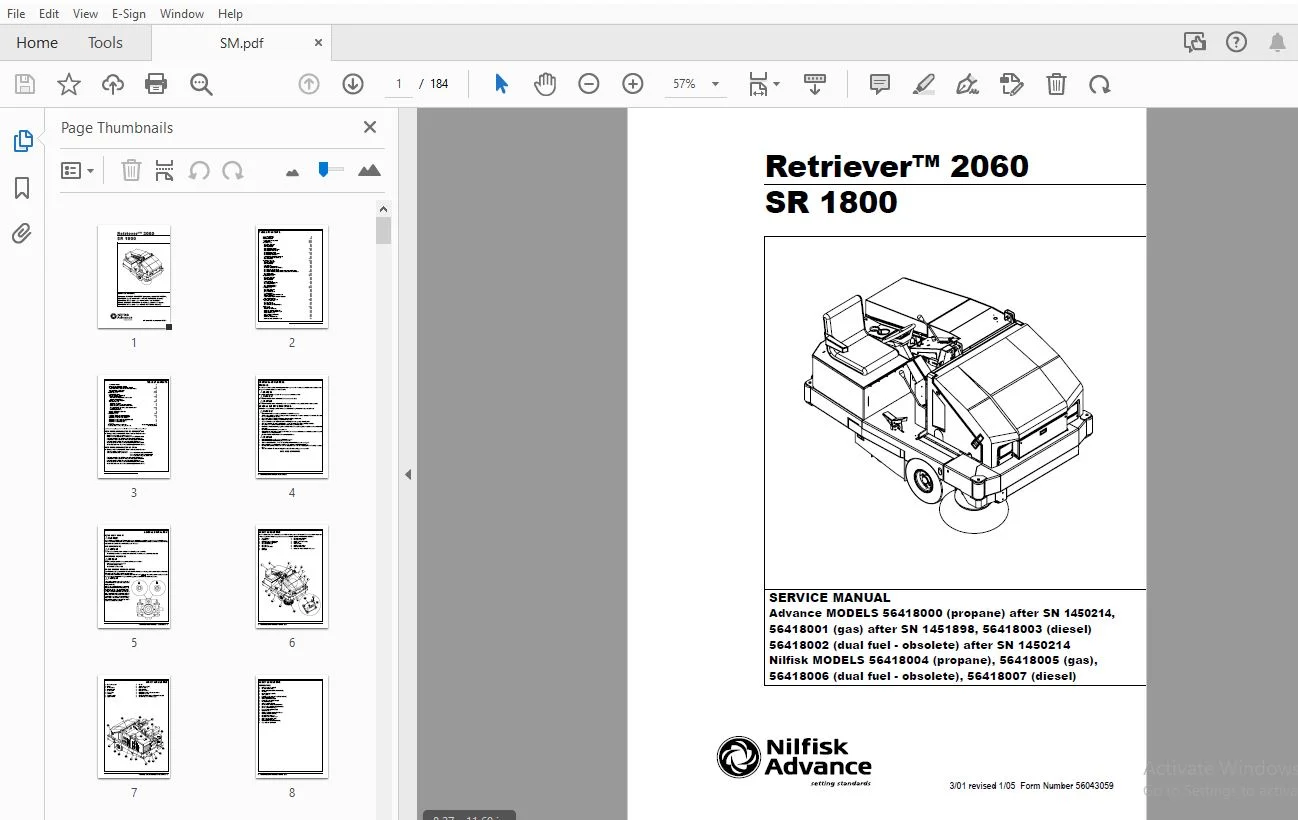

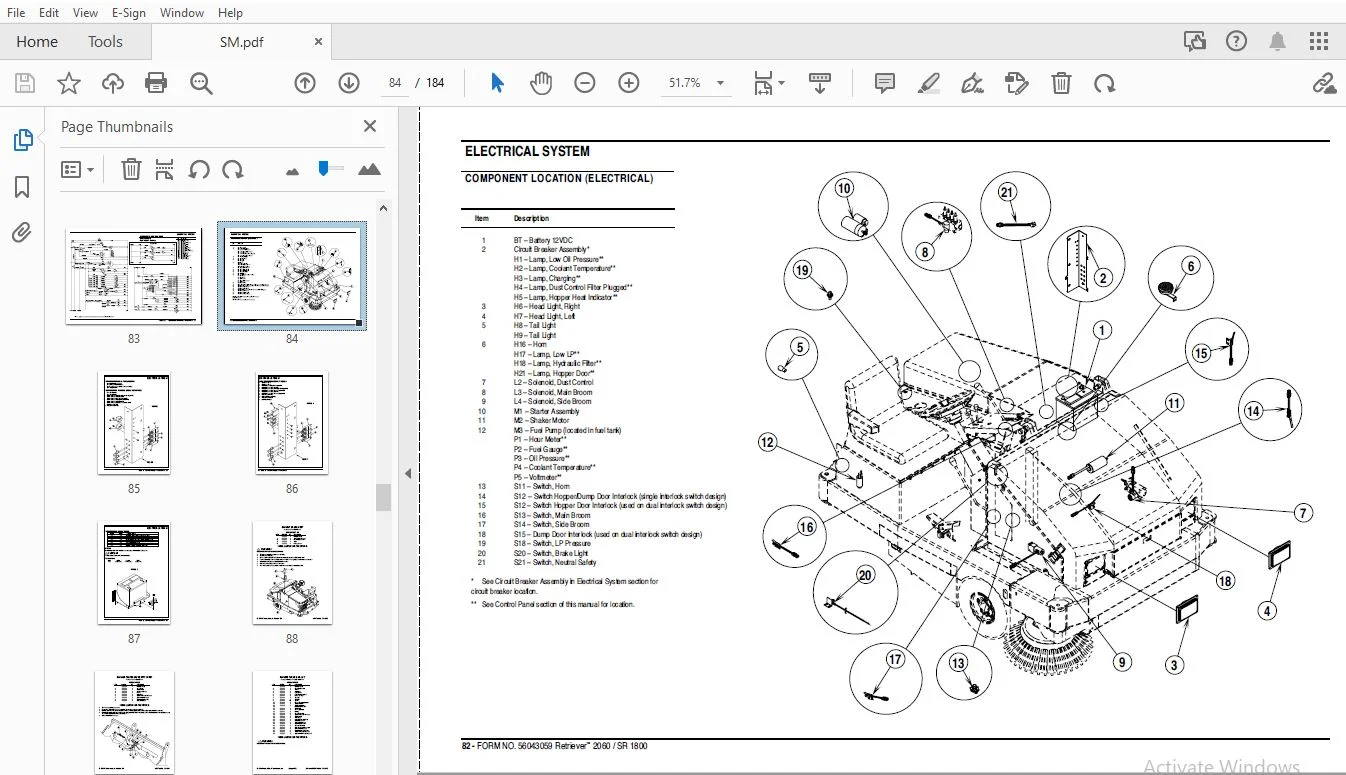

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Nilfisk Advance Retriever 2060 SR 1800 Service Manual – PDF DOWNLOAD

SAFETY INSTRUCTIONS 2
GENERAL INFORMATION 3
KNOW YOUR MACHINE 4-9
SPECIFICATIONS & MAINTENANCE 10-17
PM CHECKLIST 15-16
SWEEPING SYSTEM 18-27
FUNCTIONAL OVERVIEW 18
ELECTRICAL DIAGRAM 18
HYDRAULIC DIAGRAM 19
MAIN BROOM MAINTENANCE 19-20
MAIN BROOM SWITCH ADJUSTMENT 20
MAIN BROOM MOTOR REMOVAL 21
SIDE BROOM MAINTENANCE 21-22
SIDE BROOM SWITCH ADJUSTMENT 23
SIDE BROOM MOTOR REMOVAL 23
SKIRT IDENTIFICATION AND REPLACEMENT 24
SWEEPING PERFORMANCE CHECKLIST 24
TROUBLESHOOTING 25-27
DEBRIS HOPPER SYSTEM 28-37
FUNCTIONAL OVERVIEW 28
ELECTRICAL DIAGRAM 28
HYDRAULIC DIAGRAM 29
SEALS AND SKIRTS 29
DUMP DOOR CYLINDER REMOVAL 30
DIRECTIONAL CONTROL VALVE REMOVAL 30
HOPPER LIFT CYLINDER REMOVAL 31
HOPPER / DUMP DOOR INTERLOCK SWITCH ADJUSTMENT SINGLE SWITCH 32
HOPPER / DUMP DOOR INTERLOCK SWITCHES ADJUSTMENT DUAL SWITCHES 33-34
HOPPER ADJUSTMENT 35
TROUBLESHOOTING GUIDE 36-37
DUST CONTROL SYSTEM 38-44
FUNCTIONAL OVERVIEW 38
ELECTRICAL DIAGRAM 38
HYDRAULIC DIAGRAM 38
SEAL REPLACEMENT 39
HOPPER FILTER MAINTENANCE 39
SHAKER MOTOR REMOVAL 40
IMPELLER MOTOR REMOVAL 41
TROUBLESHOOTING GUIDE 42-44
STEERING SYSTEM 45-49
FUNCTIONAL OVERVIEW 45
HYDRAULIC DIAGRAM 45
TILT STEERING REMOVAL 46
STEER UNIT REMOVAL 47
RACK & PINION BOX MAINTENANCE/REPAIR 47
PINION GEAR REMOVAL 48
SPINDLE REMOVAL AND BEARING REPLACEMENT 49
TROUBLESHOOTING GUIDE 49
BRAKING / FRONT WHEEL SYSTEM 50-51
FUNCTIONAL OVERVIEW 50
BRAKE ADJUSTMENT 50
FRONT WHEEL REMOVAL 51
BRAKE AND WHEEL BEARING REMOVAL 51
ENGINE SYSTEM 52-61
FORD ENGINE SPECS 52
ENGINE OIL (GAS/PROPANE) 52
ENGINE FUEL FILTER (GAS/PROPANE) 52
ENGINE AIR FILTER (ALL ENGINE TYPES) 52
FUEL INJECTION SYSTEM 53
KUBOTA ENGINE SPECIFICATIONS 54
ENGINE OIL (DIESEL) 54
ENGINE FUEL FILTER (DIESEL) 54
ENGINE AIR FILTER (ALL ENGINE TYPES) 54
STARTING THE ENGINE 55
NEUTRAL START SWITCH (ALL MODELS) 56
OIL COOLER/RADIATOR MAINTENANCE (ALL MODELS) 57
THROTTLE CABLE REPLACEMENT AND ADJUSTMENT (DIESEL) 58-59
DIESEL ENGINE IDLE ADJUSTMENT 59
ELECTRICAL ENGINE DIAGRAMS 60-61
HYDRAULIC SYSTEM 62-73
FUNCTIONAL OVERVIEW 62
COMPLETE HYDRAULIC SCHEMATIC 62
TROUBLESHOOTING GUIDE 63-64
ELECTRIC/HYDRAULIC CONTROL VALVE TESTING 65
TROUBLESHOOTING CHART 66
HYDRAULIC FILTER REPLACEMENT 67
DRIVE WHEEL SYSTEM 68-71
FUNCTIONAL OVERVIEW 68
HYDROBACK & CABLE ASSEMBLY REPLACEMENT 68
HYDROBACK DRIVE PEDAL NEUTRAL ADJUSTMENT 68
HOPPER UP CONTROL CABLE REPLACEMENT/ADJUSTMENT 69-70
STEER WHEEL REMOVAL 70
WHEEL MOTOR REMOVAL 71
HYDRAULIC COMPONENT LOCATION 72
HYDRAULIC DIAGRAM 73
ELECTRICAL SYSTEM 74-85
ELECTRICAL SCHEMATIC & WIRING DIAGRAMS 74-81
ELECTRICAL COMPONENT LOCATION DIAGRAM 82
CIRCUIT BREAKER/RELAY PANEL REMOVAL 83
CIRCUIT BREAKER ASSEMBLY (GASOLINE/PROPANE) 83
CIRCUIT BREAKER ASSEMBLY (DIESEL) 84
CIRCUIT BREAKER IDENTIFICATION 85
BATTERY 85
OPTIONS, ACCESSORIES & SERVICE KITS INSERTED INSTRUCTION SHEETS
ZEEMS (Zenith Electronic Engine Management System) INSERTED MANUAL
