Ningbo David YP-2000 Infant Incubator Service Manual – PDF
Original price was: $75.00.$27.95Current price is: $27.95.
Comprehensive Service Manual for Ningbo David YP-2000 Infant Incubator, featuring complete installation, maintenance, calibration, and troubleshooting procedures. Includes detailed technical data, circuit diagrams, and alarm system diagnostics for biomedical engineers and hospital technicians.
Description
Ningbo David YP-2000 Infant Incubator Service Manual – PDF Repair Guide with Technical Specifications
BOOKMARKS / TABLE OF CONTENTS
IMAGES:
1️⃣ GENERAL INFORMATION
Introduction
Description of YP-2000 Incubator
Accessories Overview
System Composition Diagram
2️⃣ INSTALLATION
Unpacking & Handling Precautions
Assembling the Hood on the Cabinet
Installing the Cabinet onto the Stand
Baby Scale & Monitor Shelf Setup
Power Connection & Safety Warnings
General Operation Check Procedure
3️⃣ TECHNICAL INFORMATION
Full Technical Specifications (Electrical, Mechanical, and Environmental)
Temperature, Humidity, Oxygen, and Weight Systems
Alarm System Overview (Overtemp, Sensor Fault, Deviation Alarms)
Controller Operation and Functional Block Diagram
4️⃣ PREVENTIVE MAINTENANCE
Cleaning & Sterilization Instructions
Gas Sterilization Methods
Periodic Inspection Guidelines
5️⃣ SERVICE OPERATIONS
Controller Disassembly
Fuse and Internal Battery Replacement
System Settings & Calibration Procedures
6️⃣ REPLACEMENT PARTS
Spare Parts List and Identification Numbers
7️⃣ DIAGRAMS

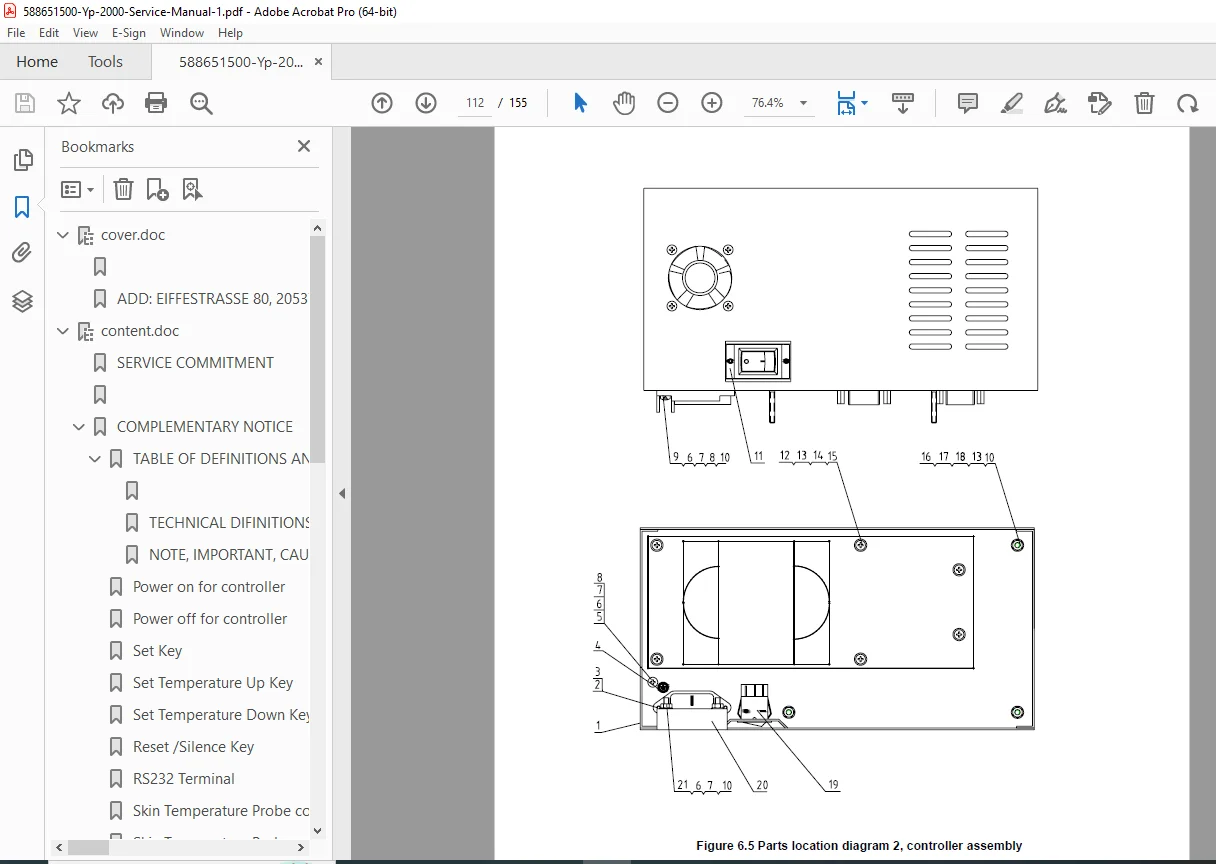

Electrical Circuit Diagrams
Wiring Layouts
Control Board Block Diagrams
8️⃣ DATA PRINTING FUNCTION
Micro-printer Connection
Serial Port Data Transmission (RS232)
Data Logging and Printing Procedures
📈 APPENDICES
Electromagnetic Compatibility (EMC) Test Data
Manufacturer’s Declaration of Conformity
Symbols and Technical Definitions
PRODUCT DESCRIPTION

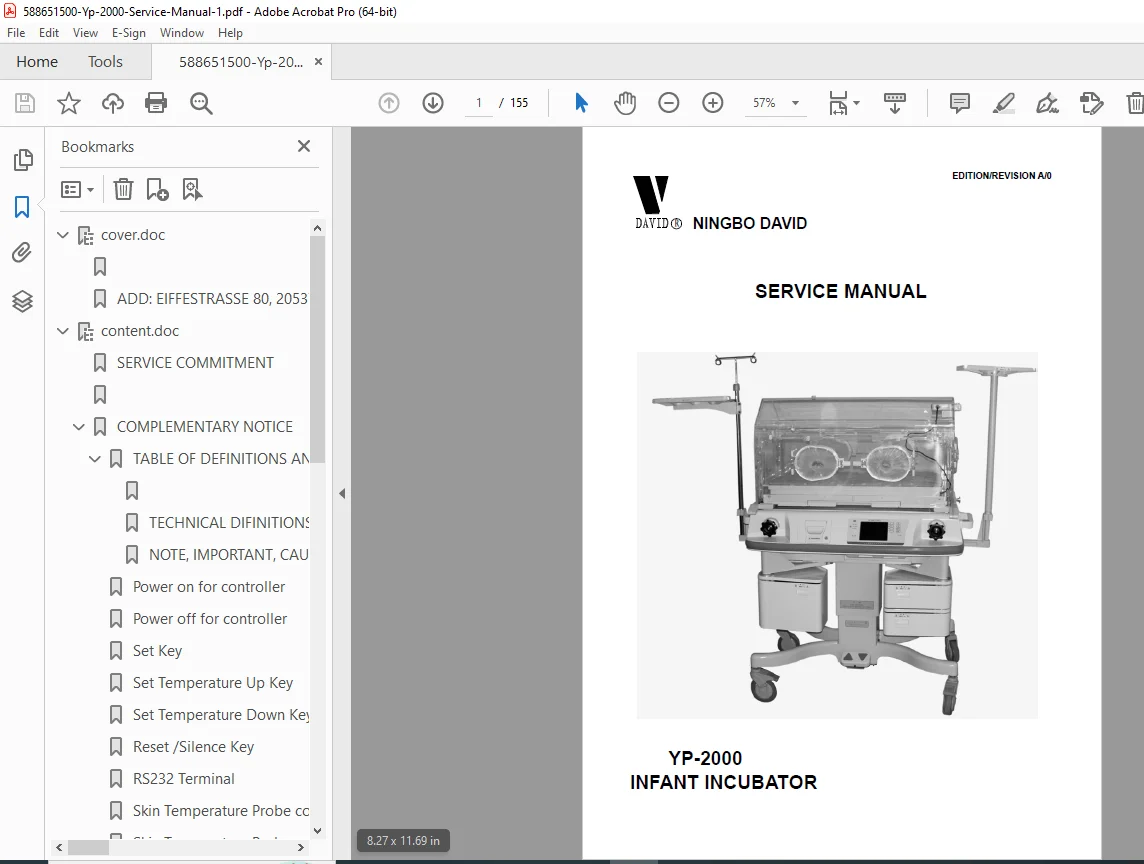

The Ningbo David YP-2000 Infant Incubator Service Manual is the complete factory-issued guide for installation, service, and calibration of the YP-2000 neonatal incubator — a precision-engineered medical device designed for infant thermal and oxygen management.
This comprehensive technical manual provides step-by-step service procedures, wiring schematics, and calibration instructions for biomedical service engineers and maintenance professionals in hospitals and neonatal units.
🩺 Technical Overview
The YP-2000 is a CE-certified infant incubator that maintains stable air and skin temperatures, adjustable humidity, and controlled oxygen concentration for newborn care. Powered by a 1300 VA system, it offers air circulation with PID-based heating control, ±0.5°C temperature stability, and multi-sensor alarm monitoring.
⚙️ Key Systems Covered
Temperature Control System: Air and skin mode regulation with over-temp protection and auto deviation alarms.
Humidity Control: Automatic control from 0–90% RH with ±6% accuracy and water shortage alert.
Oxygen Concentration System: Servo-controlled O₂ regulation from 20–60% with ±3% accuracy.
Weight Monitoring System: Integrated infant scale with 1 g resolution, 0–8 kg range.
Alarm & Safety Systems: Includes power loss, sensor failure, motor fault, and over-temp alarms.
🧰 Included Maintenance Instructions
Controller diagnostics, battery and fuse replacement
Calibration of temperature, humidity, and oxygen sensors
Preventive maintenance schedule and EMC compliance checks
Cleaning and gas sterilization procedures with step-by-step illustrations
🧾 Benefits of This Manual
Official Ningbo David factory documentation
Clear wiring diagrams and system block schematics
Alarm code explanations for precise troubleshooting
Fully searchable and printable PDF
Essential for regulatory compliance, preventive maintenance, and ISO audits
FILE DETAILS
| Field | Information |
|---|---|
| Manual Title | Ningbo David YP-2000 Infant Incubator Service Manual |
| Manufacturer | Ningbo David Medical Device Co., Ltd. |
| Model Covered | YP-2000 Infant Incubator |
| Device Type | Neonatal Care / Infant Incubator |
| Edition / Revision | A/0 |
| Publication Type | Factory Service & Technical Manual |
| Applicable Regions | Global – CE Marked |
| Power Supply | AC 220V ±10%, 50Hz |
| Power Consumption | 1300 VA |
| Temperature Control Range | Air Mode: 25–37°C (override 39°C), Skin Mode: 34–37°C (override 38°C) |
| Humidity Control Range | 0–90% RH (±6% accuracy) |
| Oxygen Control Range | 20–60% O₂ (±3% accuracy) |
| Weight Measurement Range | 100 g – 8000 g (±10 g accuracy) |
| Noise Level | ≤55 dB(A) |
| Mattress Tilt Range | ±8° |
| Dimensions (L×W×H) | 1060 × 680 × 1550 mm |
| Operating Environment | Temp: +20°C to +30°C, Humidity: 30–75%RH |
| Total Weight | ~111 kg (Main Body + Lift Stand) |
| Safety Classification | Class I, Type BF Equipment |
| Service Life | 8 Years (Recommended) |
| File Format | PDF (Searchable, Printable) |
| Language | English |
| Pages | ~155 Pages |
| File Size | Approx. 25 MB |
| Includes | Technical specs, calibration data, maintenance, wiring, alarm functions, and test procedures |
| Manufacturer Address | No.158 Daqing Road, Shipu, Ningbo, Zhejiang, China |
