Normet Alpha 30 D Spare Parts Manual 100101295 EQ#144 – Complete Parts Catalog PDF

Description

Normet Alpha 30 D Spare Parts Manual – Document 100101295 EQ#144

This is the complete illustrated spare parts catalog for the Normet Alpha 30 D, released under document number 100101295 with equipment identifier EQ#144. At just under 590 pages it is one of the most thorough parts references you can hold for this machine, and it is organised the way a workshop actually uses it: every assembly gets its own exploded drawing, every callout carries an item number, and every item number resolves to a part number, description and quantity. If you maintain, rebuild or simply keep an Alpha 30 D running, this is the document that turns a broken part into an orderable part.

File Details

• Manual type: Spare parts manual / illustrated parts catalog
• Brand: Normet
• Model: Alpha 30 D
• Document number: 100101295
• Equipment identifier: EQ#144
• Language: English
• Page count: 586 pages
• File format: PDF
• Delivery: Instant download after payment

Chapters Covered

• Carrier service parts – standard parts
• Service parts and safety symbols
• Symbol plates, warning tapes and tilt meter
• Frame – frame installation, floor plate, battery rack, doors
• Wheel complete – tyre, tube, rim, rim cover
• Support leg installation kit – jack, hydraulic hoses, frame, inner tube, hydraulic cylinder, rocker end, cover plate
• Tanks cover installation
• Hydraulic oil installation kit – hydraulic tank, ball valve, straight thread connectors, lids, return filter, breather, filling cap, level indicator
• Fuel tank installation kit – fuel tank, breather, level sensor, gasket, lid, wall plates
• Spot lights installation kit – spotlight, rear light, triple spotlight rear left/right, engine hood spotlight, reverse alarm, horn, flashing beacon
• Side footstep installation and steps
• Wheel chocks installation (polyurethane)
• Tool box installation – wabes box, shelter plate, door plate, butt hinge, lever lock
• Fire extinguisher assembly – fastening clamp, powder extinguisher 6 kg

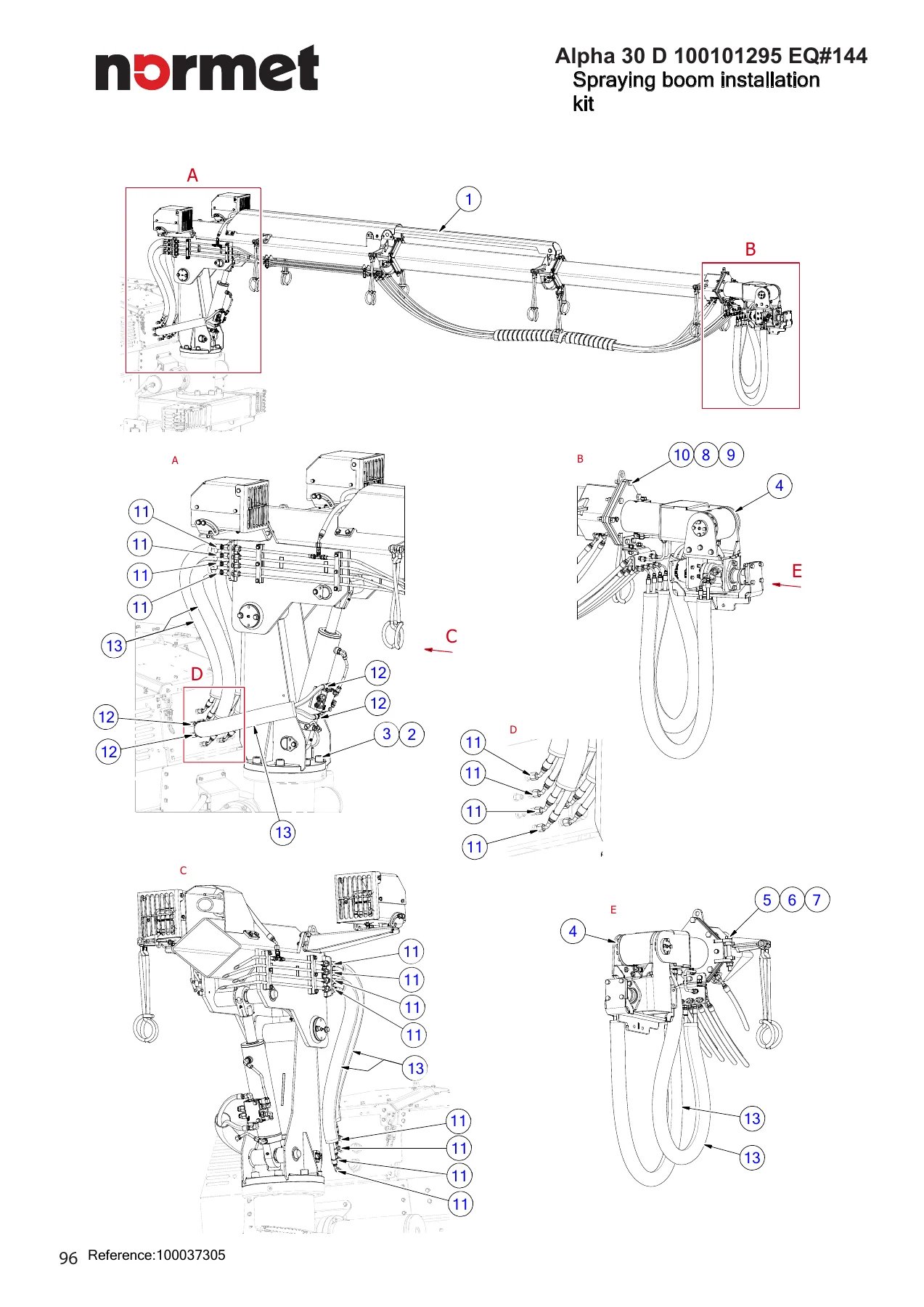

• Spraying Boom SB307 – spraying boom installation kit, spraying head, boom control valve installation, turn table installation
• Spraying boom assembly – telescopic booms, boom base, beams, hydraulic cylinders, joint pins, slings, brackets, scrapers, hydraulic piping, protection covers, rollers, ball bearings
• Boom control valve – hand lever kit, basic modules, main spools, shock valves, electric activation
• Concrete pump – installation kit, mechanical assembly, cylinder cover, vibrator installation kit, hydraulic control block assembly, water manifold assembly, water hose, grease pump installation
• Concrete pump assembly – change over cylinder, piston complete, leverage complete, hopper assembly, limit switch assembly, S-tube valve complete, outlet part complete
• Concrete line – concrete elbows, fastening clamps, hinge plates, concrete tubes, installation supports, pipe supports
• Concrete line installation kit – reduction pipe, nozzle tip, straight thread connectors, hydraulic hose, air hose, concrete hose, spring retainers
• Nozzle tip assembly – air duct, connection flange, nozzle, outer sleeve, mass tube, distributor block
• Accelerator system – additive installation kit, accelerator pump assembly, accelerator tanks, ball valve fittings, bleeding hose, accelerator hose, interconnection hose, throttle check valve fittings
• Accelerator pump – pump body, front cover, hose bracket, hose insert and spare part kits (hose set, rotor set, bearing set, hydraulic motor seal kit, screws/nuts/washers, motor adapter and clutch)

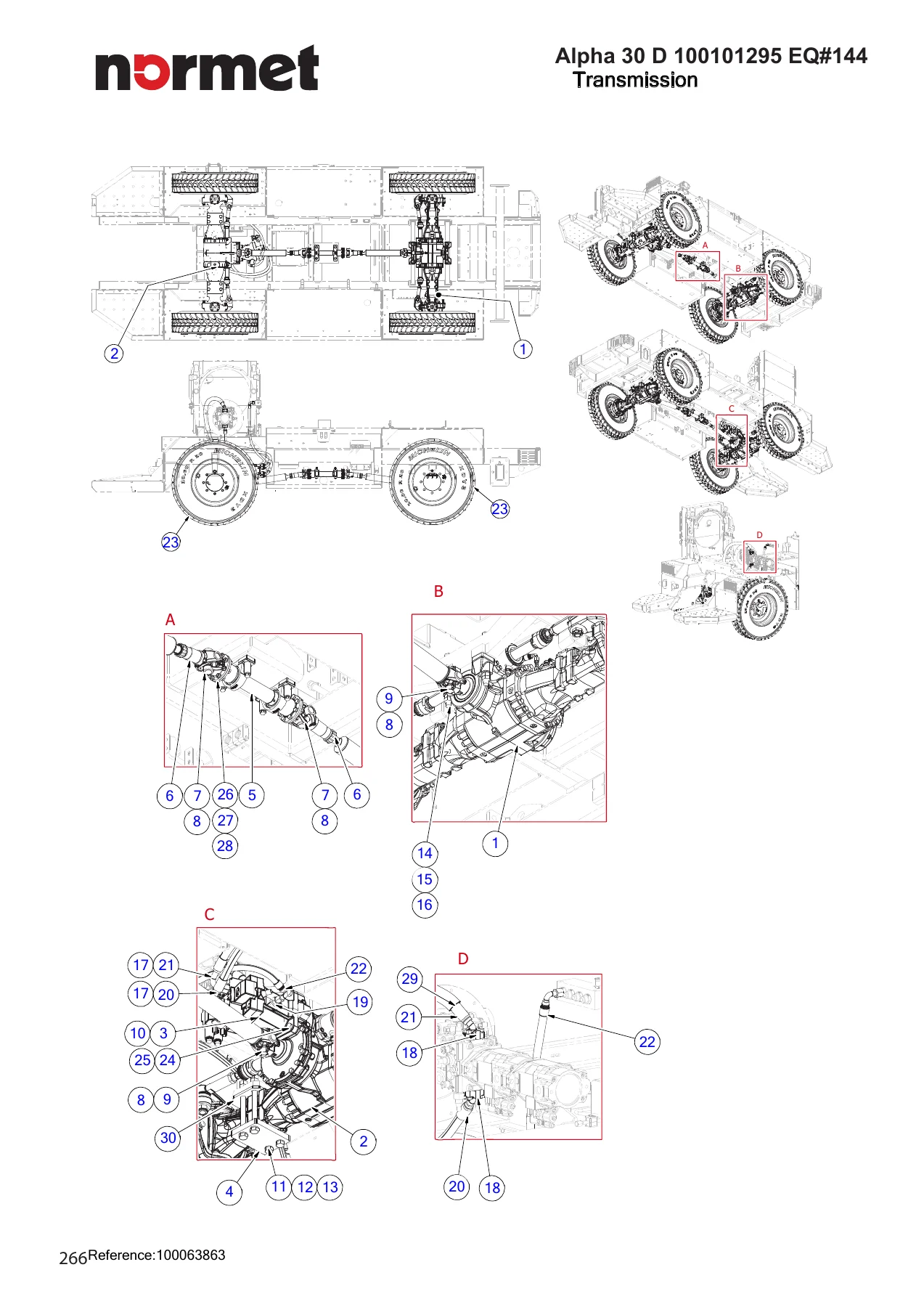

• Transmission – front axle mechanical assembly, rear axle mechanical assembly, central drive shaft, cardan shaft
• Front axle complete – central housing, differential, hub reduction, brakes, steering, trunion
• Hose / cable reels – air hose reel airline, air hose reel assembly, air hose guide roller assembly, air manifold block assembly
• Electrics – dashboard, terminal box installation, terminal boxes TB1 through TB7, emergency push button kit, general electric schema, TB circuit diagrams
• Remote / radio control system – radio remote control pages, receiver support, receiver assembly, battery charger
• Engine installation kit – hydraulic return manifold, pressure filter assembly, directional control valve assembly, power pack installation, air cleaner intake line
• Hydraulic pump assembly and engine assembly
• Exhaust line kit – exhaust pipe installation, exhaust pipe assembly, exhaust purifier
• Engine hood – installation and assembly with noise control material
• Cabin kit – cabin installation kit, red and green spot light assemblies, brake valve fittings, cabin lower door, throttle leverage assembly, pressure accumulator assembly, directional control valve assembly, steering valve fittings, cabin gate, front/rear/side window assemblies, cabin side panel assembly, cabin door with air conditioning
• Fire suppression system – fire extinguisher system, pipe sections 1-5, detector hoses, gas tank, fire detergent bottle, manual actuator
• Reverse camera system – reverse camera installation, reversing sensors, display sensor, power cable, sensor cable
• Air conditioning system – installation, air conditioning device, control panel, compressor assembly
• Safety kit – Codelco safety regulation, first-aid kit, safety whips installation kit, plastic foil

What makes this document genuinely useful is the pairing of illustration and part data. Each exploded view is keyed to a numbered item list that gives the part number, the plain-language description and the quantity required, so you move from a picture of the assembly to a confirmed order line without guesswork. Assemblies are broken down to component level – right down to O-rings, circlips, shims, seals, lock washers, grease fittings and individual DIN-standard fasteners with their sizes and grades. That granularity is what separates a parts catalog from a workshop overview: it lets you identify the exact seal in a hydraulic cylinder, the specific bearing in a hub reduction, or the correct stud bolt for a steering case, rather than replacing a whole assembly because the individual item could not be pinned down.

Machine Systems Covered In Detail

The catalog spans the Alpha 30 D as a whole machine. On the carrier side you get the frame, floor plate, battery rack, doors, footsteps, support legs and the complete wheel assembly including tyre, tube, rim and rim cover. Fluid systems are covered through the hydraulic oil installation, hydraulic tank with its return filter, breather and level indicator, and the fuel tank installation with level sensor and gasket. The electrical section is unusually complete for a parts book – it lists the dashboard components (electric box, ignition switch, signal lights, terminal blocks, blade fuses, toggles, mushroom push button, gauges and timer) and then breaks down each terminal box, TB1 through TB7, with their relays, bases, miniature circuit breakers, connecting plugs, gaskets, ID tags and wire channels.

For the working end of the machine, the SB307 spraying boom is documented through its base, telescopic boom sections, hydraulic cylinders, hydraulic piping, protection covers, slings, scrapers and rollers, with the separate spraying head and the boom control valve broken out into basic modules, main spools, shock valves and electric activation. The concrete pump section covers the mechanical assembly, cylinder cover, vibrator, hydraulic control block, water manifold, water hose and grease pump installation, then goes deeper into the change over cylinder, piston, leverage, hopper assembly, limit switch assembly, S-tube valve and outlet part. The accelerator (additive) system gets its own section covering the tanks, pump assembly, ball valves, hoses and the throttle check valve fittings, plus the accelerator pump itself split into spare part kits for the hose set, rotor set, bearing set, hydraulic motor seal kit, fasteners and the motor adapter and clutch.

The driveline section documents the front and rear axle mechanical assemblies, the central drive shaft and the cardan shaft, and then takes the front axle apart into its central housing, differential, hub reduction, brakes, steering and trunion sub-assemblies – including the bevel gear set, differential side gears and pinions, bearing and ring nut part numbers, brake discs, pistons, levers and springs, and the steering cylinder and articulated tie rods. Engine-side content includes the engine installation kit with its hydraulic return manifold, pressure filter assembly, directional control valve assembly and power pack installation, the hydraulic pump assemblies, the diesel engine assembly with brackets and fuel piping, the air cleaner intake line, the exhaust line kit with exhaust purifier, and the engine hood with its noise control material.

Finally, the cabin and comfort systems are fully listed: cabin installation kit, red and green spot light assemblies, brake valve fittings, cabin lower door, throttle leverage, pressure accumulators, steering valve fittings, cabin gate, front, rear and side window assemblies, the cabin side panel, and the cabin door with air conditioning device including air nozzle, water valve, A/C hoses and control panel. The fire suppression system, reverse camera system with reversing sensors, and the safety kit round out the coverage.

Why This Parts Catalog Belongs In The Workshop

Ordering the wrong part is expensive, and on a machine like the Alpha 30 D it is also avoidable. With this document you can identify a component visually from the exploded view, confirm it against the numbered item list, and hand your supplier an exact Normet part number instead of a description of what you think it looks like. Every standard fastener entry includes its size, material grade and DIN specification, so even consumables like lock washers, hex nuts and socket bolts can be ordered correctly the first time. Sub-assemblies such as hydraulic cylinders, hub reductions, brake units and the accelerator pump are broken down far enough that seals, bearings, circlips and spacer rings can be sourced individually rather than as part of a costly complete unit.

Because the document covers the whole machine rather than a single system, it stays useful across every job – routine servicing, hose and fitting replacement, driveline overhaul, boom and concrete pump repair, electrical fault chasing and cabin refurbishment. The electrical content in particular gives you the terminal box layouts, connector references and circuit diagrams needed to trace a fault to a specific component before you start pulling the machine apart. Sections on the fire suppression system, reverse camera, air conditioning and safety kit mean the auxiliary and compliance equipment is covered too, not just the driveline and hydraulics.

IMAGES PREVIEW

The file is delivered as an instant PDF download – no shipping, no waiting for a printed binder to arrive, and no risk of a workshop copy going missing. Open it on a laptop, tablet or phone in the bay, print only the pages you need for the job in front of you, and keep the complete 586-page reference on hand for everything else. Once payment is complete the download is available immediately.
