Panasonic AG-HPX500 / AG-HPX502EN Service Manual PDF

Panasonic AG-HPX500 / AG-HPX502EN

Memory Card Camera-Recorder

Factory Service Manual – PDF Download

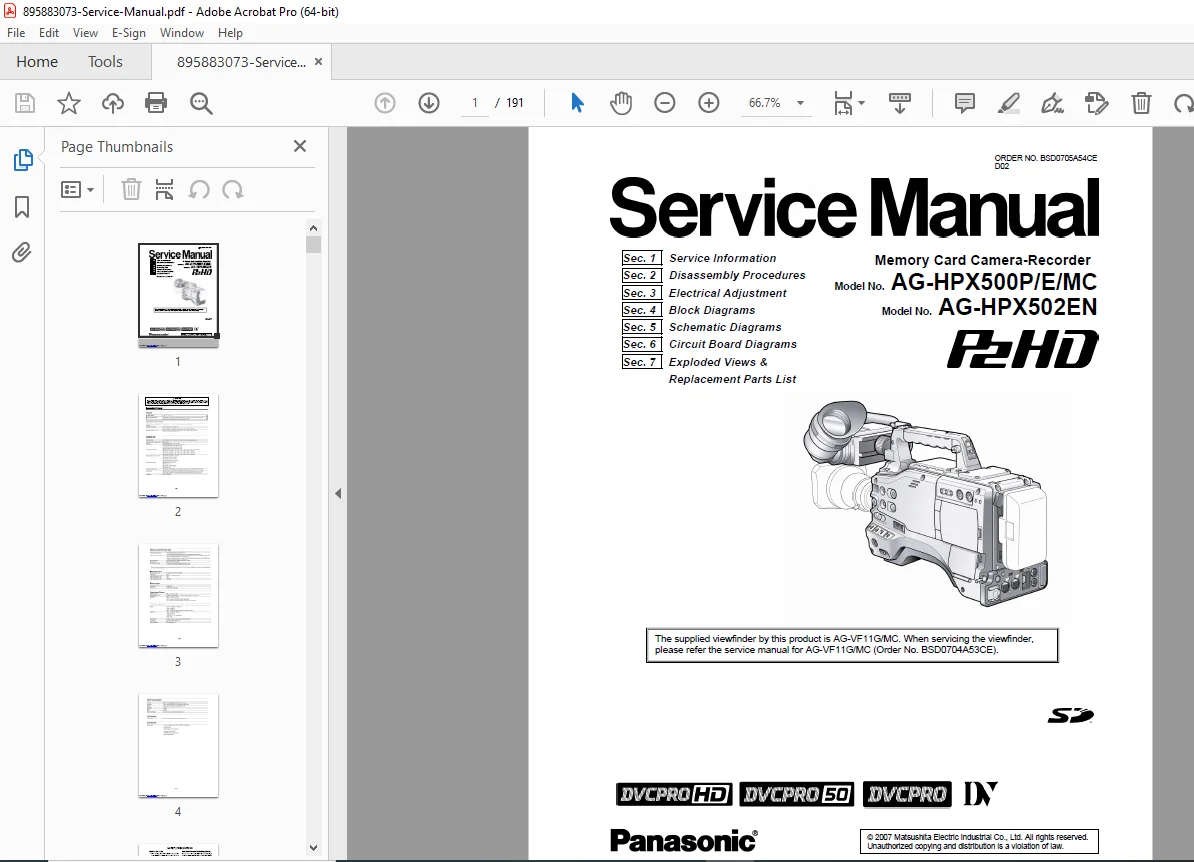

This is the official Panasonic factory Service Manual for the AG-HPX500P/E/MC and AG-HPX502EN P2 HD Memory Card Camera-Recorder

Designed for professional broadcast technicians and authorized service centers, this manual provides complete technical servicing procedures including disassembly, circuit-level diagnostics, firmware updates, and board-level repair guidance.

📑 Manual Structure (Factory Organized Sections)

🔹 Sec. 1 – Service Information

• Specifications (power, video, audio, system formats)

• Safety precautions & leakage current checks

• Electrostatic discharge handling

• X-radiation precautions

• Servicing fixtures & required tools

• Lithium battery replacement procedures

• Service menu access methods

🔹 Sec. 2 – Disassembly Procedures

• Top cover removal

• Board removal steps

• Measuring board installation

• Connection board procedures

• EVR connector access

🔹 Sec. 3 – Electrical Adjustment

• Video output level adjustment (Y/C levels)

• Component output adjustment

• LCD correction settings

• Diagnostic menu calibration

• Factory initialization

🔹 Sec. 4 – Block Diagrams

• Camera microprocessor layout

• CODEC board structure

• FPGA configuration

• System architecture overview

🔹 Sec. 5 – Schematic Diagrams

• Camera board circuits

• CODEC board schematics

• Power supply circuits

• EEPROM configuration

• RS232 communication circuits

🔹 Sec. 6 – Circuit Board Diagrams

• Board layouts

• Component identification

• IC references

• Flash ROM mapping

• EEPROM address mapping

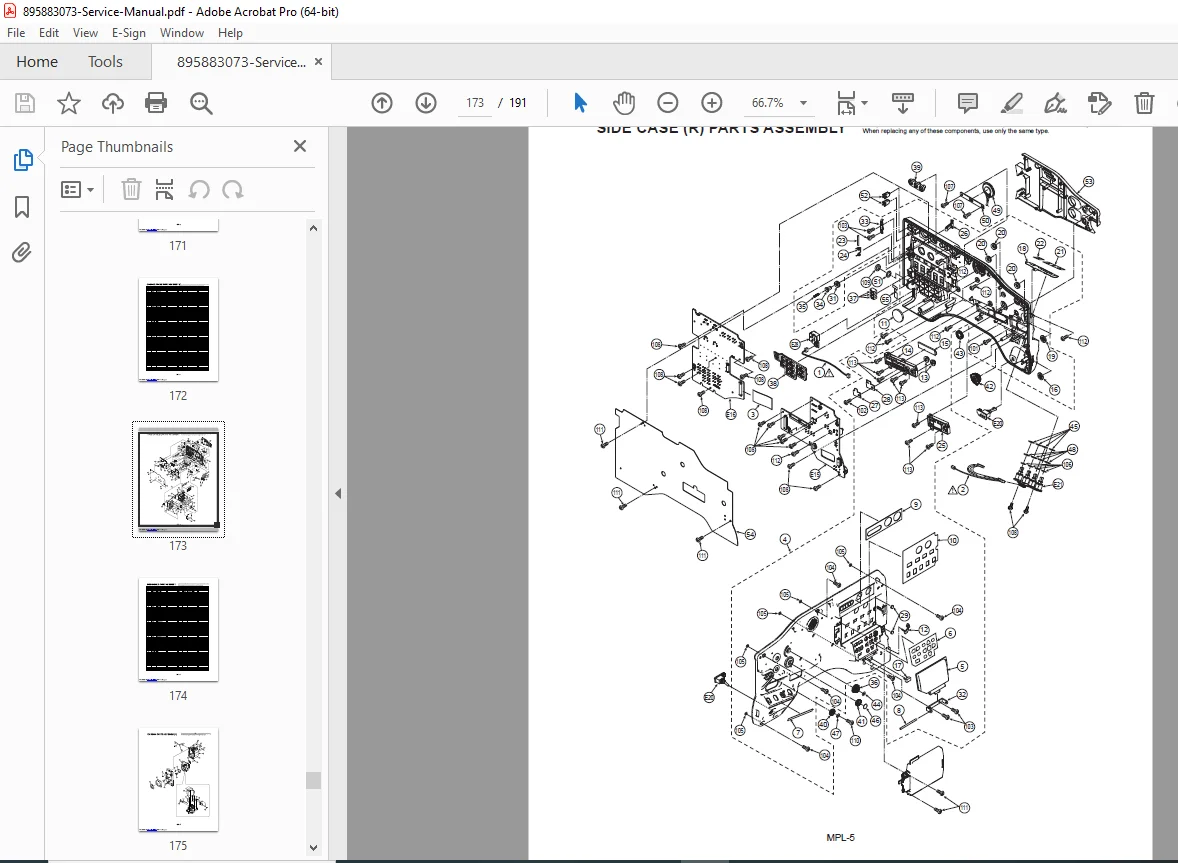

🔹 Sec. 7 – Exploded Views & Replacement Parts List

• Mechanical assemblies

• Camera housing

• Board positioning

• Component replacement references

🔧 Advanced Service Coverage

🛠 Service Menu Access

• OPTION menu

• DIAGNOSTIC menu

• ADJUST menu

• GUI Service Menu via SD card

• Firmware version display

• Hour meter display

• 1394 UID display

💾 Firmware Update Procedure

• SD memory card update process

• Flash & microcomputer update sequence

• BUSY lamp status reference

• Error recovery procedures

• Version confirmation process

🧰 PC EVR Software Integration

• Measuring board setup (VFK1988, VFK1989, VFK2027)

• RS-232 communication setup

• EEPROM data read/write

• UID writing procedure

• Destination setting configuration

• Factory initialization

• Recording format setup (NTSC/PAL)

📄 File Details

🚀 Why Buy This Manual?

Avoid costly broadcast equipment downtime and improper board-level repairs. Get the complete Panasonic factory service documentation used by authorized technicians.

Instant download — service and repair your AG-HPX500 series camera with confidence today.
