DESCRIPTION

Complete Technical Service Manual for Scotsman Prodigy Ice Machines

This comprehensive 127-page technical service manual provides complete repair and service information for the Scotsman Prodigy Series modular cube ice machines. Whether you’re a professional HVAC technician, restaurant equipment service provider, or facility maintenance engineer, this scotsman prodigy ice machine service manual pdf delivers the detailed technical specifications and troubleshooting procedures you need.

FILE DETAILS

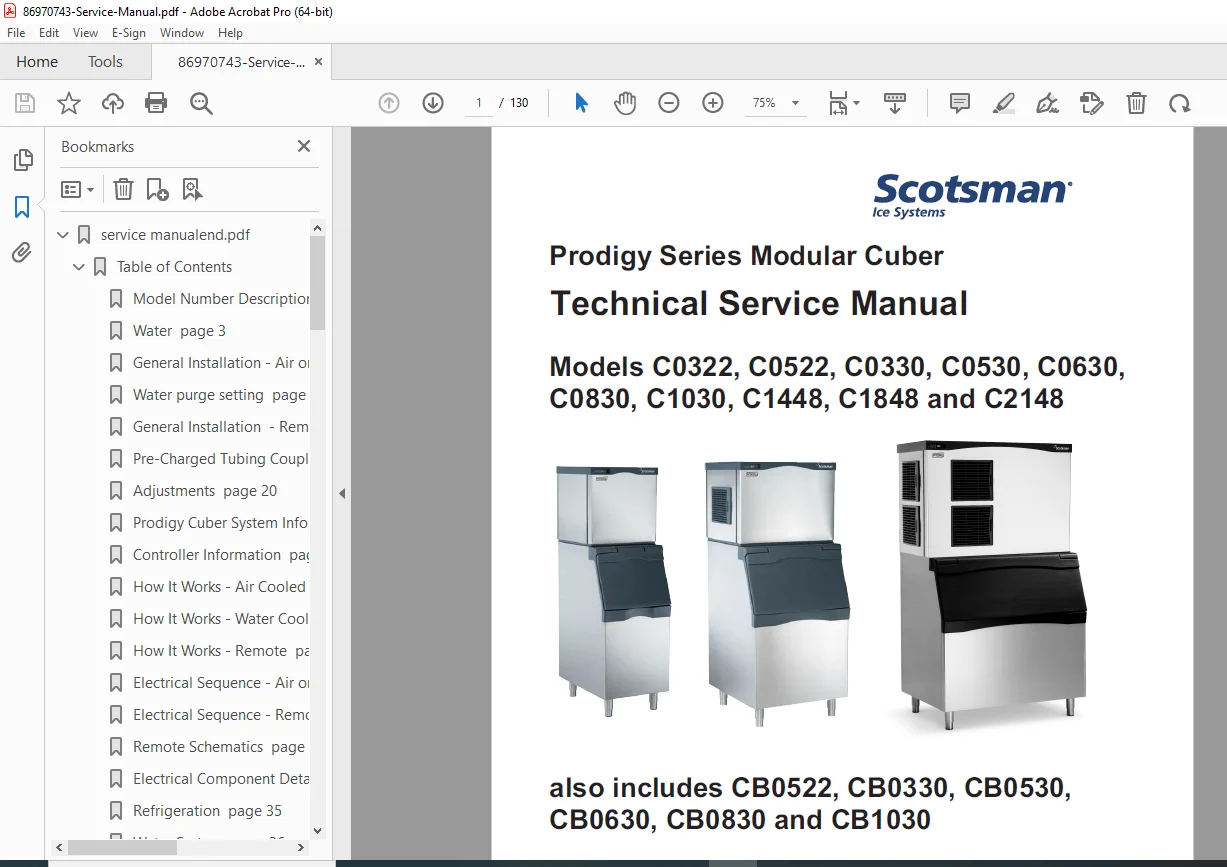

• Manual Name: Prodigy Series Modular Cuber Technical Service Manual
• Models Covered: C0322, C0522, C0330, C0530, C0630, C0830, C1030, C1448, C1848, C2148 (plus CB series variants)
• Configurations: Air-Cooled (A), Water-Cooled (W), Remote (R)
• Publication Date: May 2011
• Pages: 127 pages
• Quality: High-resolution factory original PDF
• Language: English

MODELS COVERED IN DETAIL

This commercial ice maker technical repair guide includes complete service information for:

Small to Medium Capacity Models:

• C0322 (22″ width)
• C0522, CB0522 (22″ width)
• C0330, CB0330 (30″ width)
• C0530, CB0530 (30″ width)

Medium to Large Capacity Models:

• C0630, CB0630 (30″ width)
• C0830, CB0830 (30″ width)
• C1030, CB1030 (30″ width)

High Capacity Models:

• C1448 (48″ width)
• C1848 (48″ width)
• C2148 (48″ width)

All Cooling Configurations:

• Air-Cooled models (suffix A)
• Water-Cooled models (suffix W)
• Remote Condensing models (suffix R)

Voltage Options:

• 115V/60Hz/1-phase (-1)
• 208-230V/60Hz/1-phase (-32)
• 208-230V/60Hz/3-phase (-3)
• 230V/50Hz (-6)

COMPLETE TABLE OF CONTENTS

Installation & Setup Information:

• Model Number Description & Decoding System
• Water Quality Requirements & RO Water Guidelines
• General Installation Procedures (Air/Water/Remote Cooled)
• Location & Space Limitations
• Environmental Operating Specifications
• Plumbing Requirements & Drain Tubing Installation
• Electrical Connections & Power Requirements
• Water Purge Settings & Adjustments
• Ice Bridge Thickness Calibration
• Remote Condenser Installation Guidelines
• Pre-Charged Tubing Coupling Connections

System Operation & Technical Information:

• Prodigy Cuber System Overview
• Controller Information & Indicator Lights
• How It Works – Air Cooled Systems
• How It Works – Water Cooled Systems
• How It Works – Remote Condensing Systems
• Electrical Sequence of Operation
• Remote System Schematics
• Electrical Component Details & Functions

Refrigeration System Specifications:

• R-404A Refrigerant Charges by Model
• Compressor Specifications (Copeland & Tecumseh)
• Expansion Valve Information
• Hot Gas Valve Specifications
• Condenser Specifications & Capacities
• Evaporator Details & Ice Cell Dimensions
• Pressure Switch Cut-In/Cut-Out Settings
• Heat Load & Condenser Water GPM Requirements

Water System Components:

• Water Valve Operation & Testing
• Water Pump Specifications
• Purge Valve Function & Adjustment
• Water Level Sensor Operation
• Water Distributor Design & Maintenance

Control System Information:

• Electronic Controller Functions
• Machine Indicator Lights Explained
• Code Display Reference (Freeze, Harvest, Error Codes)
• Component Indicator Lights
• Control Operation Sequences
• Control Safety Features & Limits
• Automatic Restart Procedures
• Control Button Functions & Programming

Diagnostic Procedures:

• Air-Cooled Models Diagnostics:
  • No Ice Production Troubleshooting
  • Low Ice Making Capacity Analysis
  • Excessive Noise Diagnosis
  • Maximum Freeze Time Shutdowns
  • Maximum Harvest Time Issues
  • Minimum Freeze Time Problems
• Water-Cooled Models Diagnostics:
  • No Ice Production Causes
  • Low Capacity Issues
  • Noise Problems
  • Cycle Time Analysis
• Remote Air-Cooled Models Diagnostics:
  • Remote-Specific Troubleshooting
  • Quick Connect Issues
  • Headmaster Valve Problems
  • Liquid Line Valve Testing

Component Testing Procedures:

• Sensor Testing:
  • Ice Thickness Sensor Testing & Adjustment
  • Water Level Sensor Testing (3-probe system)
  • Temperature Sensor Testing (Thermistor values)
  • Sump Temperature Sensor
  • Discharge Temperature Sensor
  • Curtain Switch Testing
• Load Testing:
  • Compressor Testing (Single & Three-Phase)
  • Compressor Start Component Testing (PTCR, Capacitors)
  • Compressor Electrical Resistance Charts
  • Fan Motor Testing & Diagnosis
  • Water Pump Electrical Testing
  • Purge Valve Testing
  • Inlet Water Solenoid Testing
  • Compressor Contactor Testing
  • Pressure Switch Testing (Fan & High Pressure)
  • Transformer Testing
  • Liquid Line Solenoid Testing (Remote models)
  • Harvest Assist Solenoid Testing
  • Hot Gas Valve Testing

Performance Data Tables:

• Air-Cooled Models: C0322A through C2148A
• Water-Cooled Models: C0322W through C2148W
• Remote Models: C0522R through C2148R
• Cycle Times at Various Ambient & Water Temperatures
• Suction & Discharge Pressure Specifications
• Ice Weight Per Cycle Data
• Performance at Extreme Temperatures (-20°F to +120°F)

Complete Wiring Diagrams:

• C0322, C0522, C0330, C0530, C0630 Single-Phase
• C0530C Air/Water Cooled 60Hz
• C0830, C1030 Single-Phase
• C0830, C1030 Three-Phase
• C0522R-C1030R Remote Single-Phase
• C0530RC Remote Models
• C0522R-C1030R Remote Three-Phase
• C1448, C1848, C2148 Single-Phase
• C1448, C1848, C2148 Three-Phase
• C1448R, C1848R, C2148R Remote Single-Phase
• C1448R, C1848R, C2148R Remote Three-Phase
• 50Hz International Models
• High-Voltage Connection Diagrams

Step-by-Step Repair Procedures:

• Component Replacement:
  • Inlet Water Solenoid Valve Replacement
  • Fan Blade & Motor Replacement

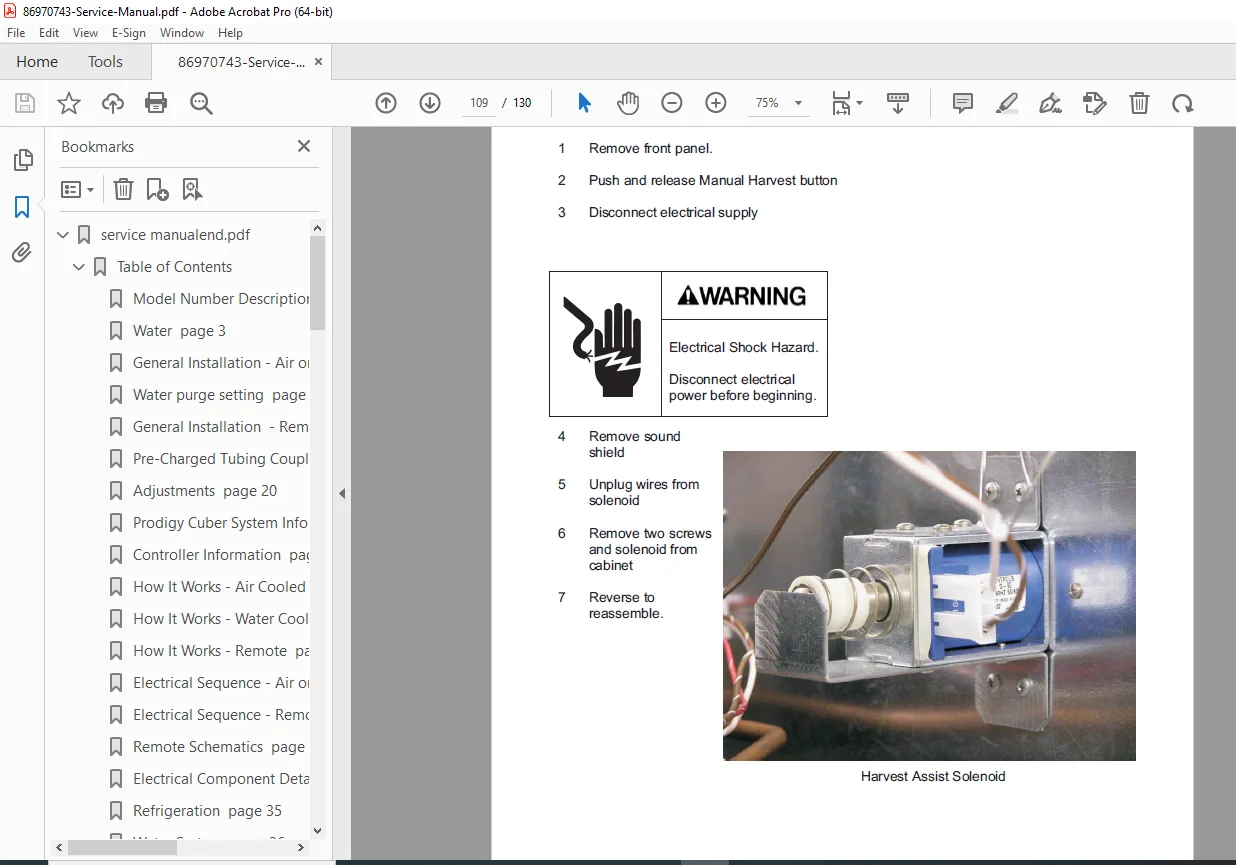

  • Harvest Assist Solenoid Replacement
  • Ice Thickness Sensor Replacement
  • Run Capacitor Replacement
  • Compressor Contactor Replacement
  • Controller Replacement (with selector switch setup)
  • Curtain Replacement
  • Curtain Switch Replacement
  • Purge Valve Replacement
  • Water Level Sensor Replacement
  • Water Pump Replacement
• Refrigeration System Repairs:
  • Evaporator Removal & Replacement
  • Compressor Replacement (Complete procedure)
  • Thermostatic Expansion Valve Replacement
  • Filter Drier Replacement
  • Refrigerant Recovery Procedures
  • System Evacuation Requirements
  • Refrigerant Charging Procedures
  • Nitrogen Purge Procedures
  • Leak Testing Methods

Optional Add-On Controls:

• Vari-Smart™ Adjustable Ice Level Control
  • Installation & Setup
  • Ultrasonic Sensor Operation
  • Adjustment Settings (0-32 inches)
  • Diagnosis & Troubleshooting
• Smart-Board™ Advanced Feature Control
  • Ethernet & USB Connectivity
  • Data Logging Capabilities
  • TechTool Software Integration
  • Alert System Features
• Remote SmartLock (KSL)
  • Remote Lockout System
  • Antenna Installation
  • Connection Procedures

Technical Reference Data:

• Compressor Amp Draw Charts (All Models)
• Thermistor Resistance Values (0°F to 250°F)
• Pressure Switch Specifications Table
• Heat Load & BTU Ratings
• Condenser Water Flow Requirements
• Controller Programming Differences
• Component Indicator Light Reference

Comprehensive Index

• Alphabetical cross-reference of all topics
• Quick-access component location guide
• Troubleshooting quick-reference

KEY FEATURES OF THIS SCOTSMAN ICE MAKER COMPONENT TESTING GUIDE

✅ Complete Coverage: All Prodigy cube ice machine models from 300 to 2,100 lbs/day capacity

✅ Professional Troubleshooting: Systematic diagnostic flowcharts for no-ice, low-capacity, and noise issues

✅ Detailed Wiring Diagrams: Full electrical schematics for every model and voltage configuration

✅ Refrigeration Specifications: Exact refrigerant charges, pressure readings, and superheat settings

✅ Component Testing: Step-by-step procedures with resistance values and voltage specifications

✅ Performance Data: Cycle times and pressures at all operating conditions

✅ Repair Procedures: Illustrated component replacement instructions with safety warnings

✅ Controller Programming: Button sequences, code displays, and setting adjustments

ESSENTIAL TECHNICAL SPECIFICATIONS INCLUDED

Refrigeration System Details:

• R-404A refrigerant specifications
• Copeland & Tecumseh compressor data
• Non-adjustable TXV information
• Hot gas valve pilot operation
• Condenser airflow requirements
• Evaporator unified cell design
• Small cube: 7/8″ × 7/8″ × 3/8″
• Medium cube: 7/8″ × 7/8″ × 7/8″

Electrical Specifications:

• Minimum circuit ampacity by model
• Maximum fuse size ratings
• Compressor resistance values
• PTCR specifications
• Run capacitor ratings
• Voltage range tolerances (104-253V)

Water System Specifications:

• Inlet water pressure: 20-80 PSI
• Water temperature range: 40-100°F
• Purge settings: 1 (minimum) through 5 (maximum) plus Automatic
• Anti-slush cycle timing
• Reservoir fill sequences

Control System Parameters:

• Maximum freeze time: 45 minutes
• Minimum freeze time: 6 minutes
• Maximum harvest time: 3.5 minutes
• Automatic restart intervals: 50 minutes
• Maximum water fill time: 5 minutes
• De-scale notification intervals: 3-12 months

Operating Limits:

• Air temperature: 50-100°F (ice machine)
• Remote condenser: -20°F to +120°F
• Maximum discharge temperature: 250°F
• Continuous run cycles: 200 maximum

PERFECT FOR THESE APPLICATIONS

🔧 HVAC/R Technicians – Complete refrigeration system repair information

🏨 Hotel Maintenance – Keep commercial ice machines running efficiently

🍽️ Restaurant Equipment Service – Professional troubleshooting for foodservice equipment

🏥 Healthcare Facility Engineers – Maintain critical ice production systems

🎓 Technical Training Programs – Comprehensive educational resource

🛠️ Equipment Service Companies – Essential reference for field technicians

WHAT MAKES THIS MANUAL INVALUABLE

This ice machine wiring diagrams refrigeration specs manual provides information you simply cannot find elsewhere:

• Factory-Authorized Information: Official Scotsman technical documentation
• Model-Specific Data: Exact specifications for your equipment
• Complete Electrical Schematics: Professional-quality wiring diagrams
• Troubleshooting Flowcharts: Systematic diagnostic procedures
• Component Testing Values: Precise resistance and voltage specifications
• Remote System Details: Specialized information for remote condensing units
• Safety Procedures: Proper refrigerant handling and electrical safety
• Performance Benchmarks: Know what normal operation looks like

DETAILED DIAGNOSTIC CODE REFERENCE

Main Operating Codes:

• F = Freeze Cycle (F flashes = Pending)
• H = Harvest Cycle (H flashes = Manual Harvest)
• b = Bin Full
• C = Clean Cycle
• L = Board Locked
• d = Test Mode
• O = Off
• E = Self Test Failed

Error Codes Explained:

• 1 (flashing) = Max Freeze – Retrying
• 1 (solid) = Max Freeze Time Shutdown
• 2 (flashing) = Max Harvest – Retrying
• 2 (solid) = Max Harvest Time Shutdown
• 3 = Slow Water Fill
• 4 = High Discharge Temperature
• 5 = Sump Temperature Sensor Failure
• 7 = Discharge Temperature Sensor Failure
• 8 (flashing) = Short Freeze – Retrying
• 8 (solid) = Short Freeze – Thin Ice

Water Purge Settings:

• A = Automatic (factory default)
• 1 = Minimum (RO water, TDS <35)
• 2 = Moderate (Low TDS)
• 3 = Standard (Typical water)
• 4 = Heavy (High TDS)
• 5 = Maximum (Very high TDS >256)

COMPREHENSIVE TROUBLESHOOTING COVERAGE

This prodigy series modular ice machine manual includes complete diagnostic procedures for:

No Ice Production Issues:

• Power supply problems
• Water supply interruptions
• Controller failures
• Sensor malfunctions
• Refrigeration system faults
• Component failures

Low Ice Capacity Problems:

• Long freeze cycles
• Long harvest cycles
• Dirty air filters
• Condenser fouling
• Water leaks
• Refrigerant loss
• Incorrect superheat
• Fan cycling issues

Excessive Noise Troubleshooting:

• Fan blade vibration
• Compressor mounting issues
• Water pump bearing wear
• Panel vibration
• Motor mount failures

Cycle Time Issues:

• Maximum freeze time shutdowns
• Maximum harvest time failures
• Minimum freeze time problems
• Incomplete harvest diagnosis

REMOTE CONDENSING SYSTEM SPECIFICATIONS

Pre-Charged Tubing Kit Information:

• RTE10: 10-foot kit
• RTE25: 25-foot kit
• RTE40: 40-foot kit
• RTE75: 75-foot kit

Installation Limits:

• Maximum rise: 35 physical feet
• Maximum drop: 15 physical feet
• Physical line length: 100 feet maximum
• Calculated line length: 150 feet maximum

Calculation Formula Included:

• Drop calculation: dd × 6.6
• Rise calculation: rd × 1.7
• Horizontal run: hd × 1

Compatible Remote Condensers:

• ERC111-1 (115V models)
• ERC211-1 (115V dual circuit)
• ERC311-32 (208-230V models)
• ERC611-32 (high-capacity models)

SUGGESTED RETAIL PRICE: $24.95

Why This Manual is Worth Every Penny:

Save Hundreds on Service Calls – Diagnose and repair issues yourself instead of waiting for expensive technician visits. One saved service call pays for this manual multiple times over!

Instant Download, Immediate Solutions – No waiting for shipping. Download now and start troubleshooting within minutes. Get your ice machine back online fast and keep your business running smoothly!

Professional-Grade Information – This is the exact same technical documentation used by factory-trained Scotsman technicians, now available for your immediate use at a fraction of the cost of a single service visit!
