Panotec Nextmode 2.5 Automatic Box-Making Machine Operator’s Manual – PDF

Description

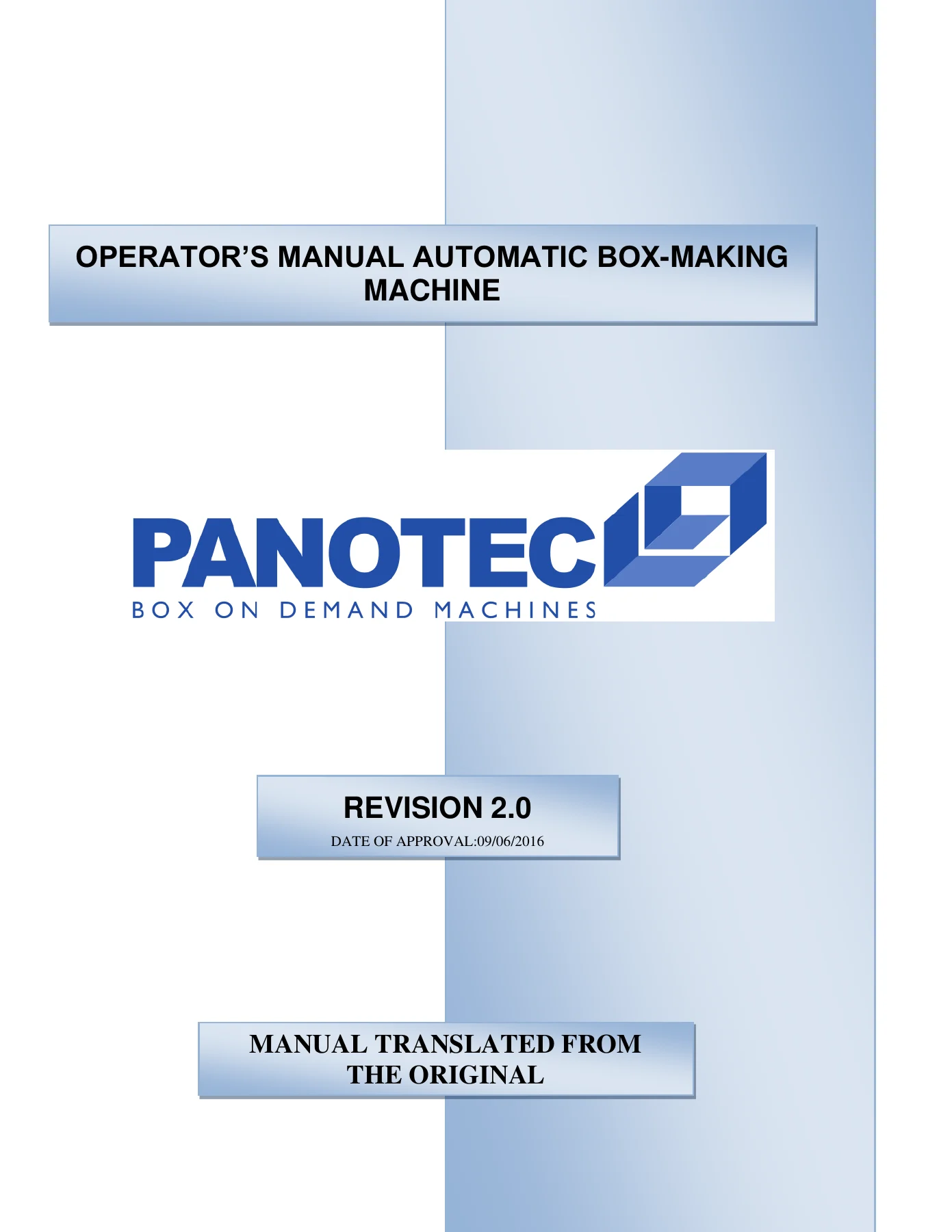

Panotec Nextmode 2.5 Operator’s Manual – Automatic Box-Making Machine

This is the full operator’s manual for the Panotec Nextmode 2.5 automatic box-making machine, the Panotec Box On Demand machine built for flexible on-site production of corrugated packages. The document runs to 103 pages and covers everything an operator or line technician needs to run, set up, troubleshoot and maintain the machine, from the first power-up and axis zero-setting through to production batch scheduling and alarm recovery. It is the revision 2.0 release, approved 09/06/2016 and translated from the original.

The manual is written for the person standing at the machine. Every chapter is organised around what the operator actually has to do: open the gates, load cardboard, synchronise the axes, select a box type, build a batch, run the line in automatic mode, and react correctly when an alarm appears. It combines machine operation with the BoxLink software that drives production planning, so a single document covers both the hardware side and the touchscreen/PC interface.

File Details

• Manual type: Operator’s manual
• Brand: Panotec (Box On Demand Machines)
• Machine: Nextmode 2.5 Inline Box Making Machine
• Revision: 2.0
• Date of approval: 09/06/2016
• Language: English (translated from the original)
• Page count: 103
• File format: PDF

Chapters Covered

• Machine Description

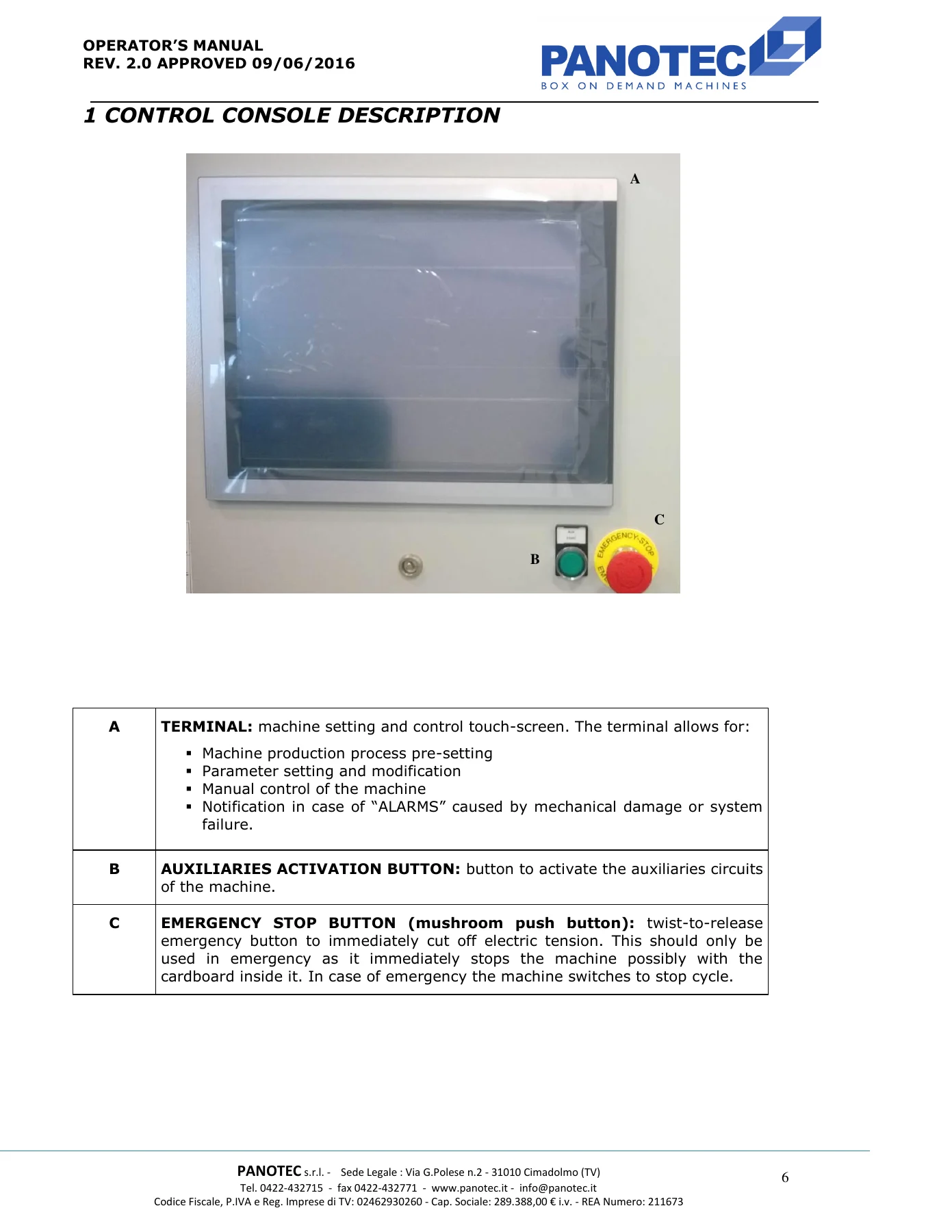

• 1 – Control Console Description
  • Control Terminal Description
  • Machine Status
  • Machine Starting
  • Run Auxiliary Circuits
  • Axes Synchronization (Zero-Setting)
  • Unloading Cardboard for Synchronization Test
  • Manual Mode
  • Automatic Mode
  • Standstill
  • Battery Replacement
• 2 – Cardboard Management
  • Gate Opening
  • Cardboard Loading
  • Single Sheet
  • Cardboard Tray Management
  • Multi-Feeder Management
  • Cut-Off Operation
• 3 – Production
  • Function Menu Software BoxLink
  • Box Archive
  • Add Code and Box Type Selection
  • Special Box Type
  • Assembly Archive, Add Assembly Code, Import Assemblies
  • Production Page
  • Add/Enter Batch, New Assembly Batch, Modify Batch
  • Uploading Codes and Batches From Files
  • Batches Loading Via Database
  • Settings
• 4 – Function
  • Cycle Reset
  • Manual Movement
  • Report
  • Debug
• 5 – Connection to PLC and Machine Configuration
  • Machine Parameters, General Parameters, Box Parameters
  • Cardboard Tray Adjustment, Offsets & Adjustments
  • Ethernet Settings, Box Type Order
  • Axes Parameters (Extractor, Feeder, Trimmer, Lifter)
  • Diagnostics, Password Change
  • Cardboard Consumption Management, USB Management
• 6 – Alarms
  • Self-Hold Alarms, Self-Release Alarms
  • Minor and Major Alarms
  • Full Alarms List

Across those chapters the manual hands the operator a complete working picture of the Nextmode 2.5. You get the control-terminal layout and the meaning of every cycle key; the correct power-up sequence including compressed-air connection, general switch, RCBOS and fuse checks; the auxiliary-circuit activation routine and the conditions that must all be satisfied before the machine will run; the axis zero-setting procedure and the exact rule that it must only be carried out with no cardboard inside the machine; how to unload residual cardboard before synchronisation; and how to move between Manual, Automatic and Standstill states without forcing the machine into an unsafe condition.

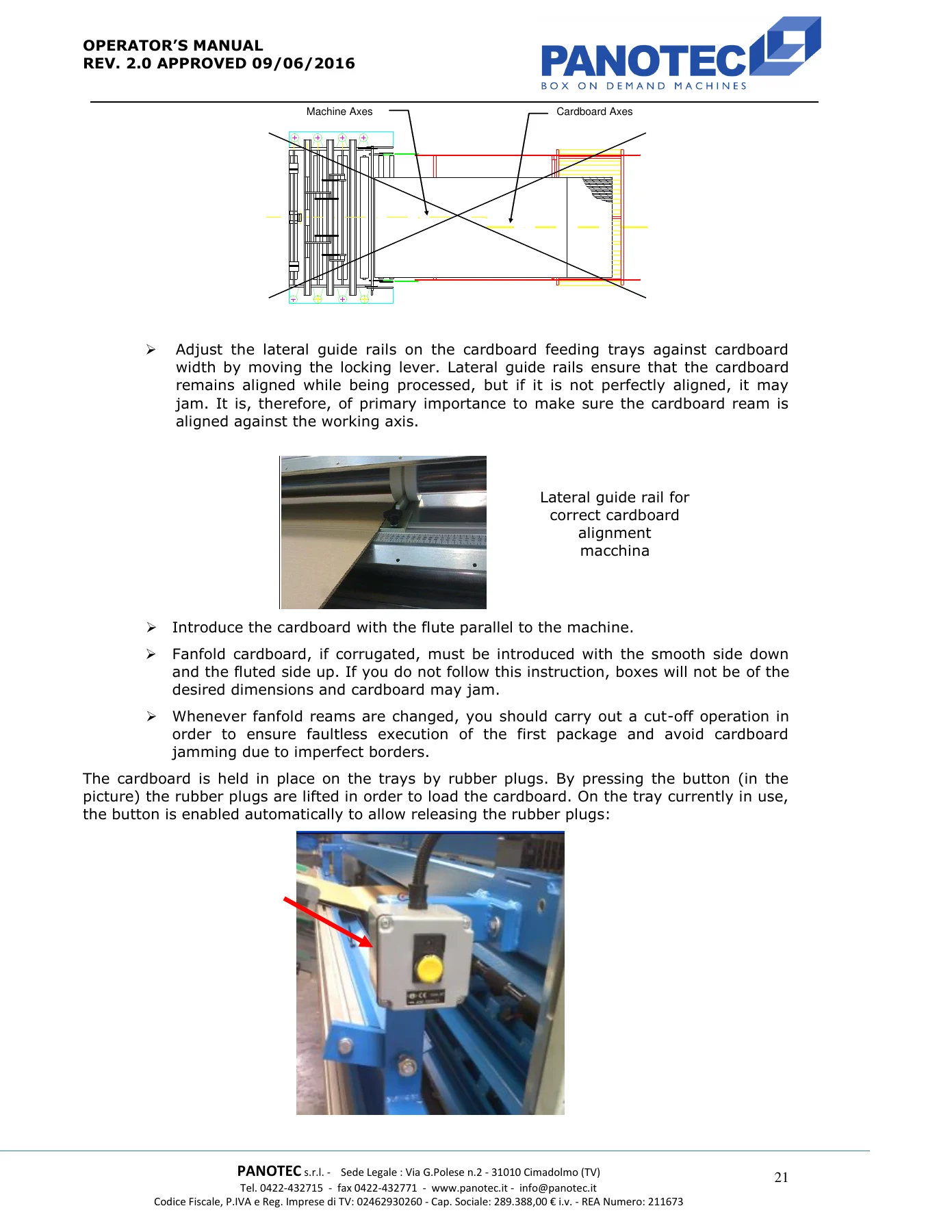

Cardboard management is treated in the same practical detail. The manual explains gate opening and the short release window during which the gate must be physically opened; how to align the ream against the working axis using the lateral guide rails; the correct orientation for fanfold corrugated cardboard (smooth side down, fluted side up); and the rubber-plug release button on the tray in use. The single-sheet configuration gets its own section covering sheet width and length minimums, number of in-line boxes per sheet, cardboard thickness entry, one-side production with right-guide position, right-side trimming, and the head-cut / end-cut / no-cut options for the sheet’s transverse cut. The tray management pages, multi-feeder rollers and cut-off operation are covered with the same operator-level precision.

Production planning is handled through the BoxLink software. The manual walks through the Box Archive, adding and modifying codes, box-type selection from the stored library of slotted, telescope, folder and other FEFCO-style patterns, the Special Box Type designer with incremental and absolute dimension entry, the Assembly Archive for grouping up to ten boxes under one code, batch creation and modification, priority batches, the five production lines, and the file/database import and export routes including the automatic import folder and the SQL Server FlexImport table.

The configuration chapters move into machine parameters, box parameters, tray adjustments, offsets, Ethernet/IP settings, box-type display order, extractor / feeder / trimmer / lifter axis parameters, diagnostics and password levels. The alarm chapter closes the document with the full alarms list, covering auxiliary circuit faults, air pressure, motor thermal protection, cardboard jams, gate and cover safety, X20 IO modules, axis inverters and referencing, feeder and conveyor timeouts, cardboard stock and type alarms, and the CAN / X2X network group alarms, each with a meaning, explanation and solution.

Why This Manual Matters at the Machine

The Nextmode 2.5 is a machine that rewards correct handling. The manual is direct about that: axis zero-setting must never be run with cardboard inside the machine; the STOP CYCLE key must not be used in place of the mushroom emergency button when there is danger or when working inside the machine; the electrical panel may only be opened with the power supply cut off; and manual mode places full responsibility for damage on the operator because the machine cannot detect every dangerous situation. These are not abstract warnings, they are the boundary conditions of daily operation, and they are exactly what a generic machine guide would leave out.

Beyond safety, this operator’s manual is what keeps the machine productive. Box dimensions and cardboard thickness entered wrongly produce defective packaging or jam the ream. The wrong fanfold orientation produces boxes of the wrong size. An incorrect right-guide position in one-side production shifts every working unit. A cardboard type code that does not match a loaded tray stops a batch. The manual explains each of these settings, why they matter and how to enter them, so the operator can set up a new batch correctly the first time instead of recovering from a jam.

Because the BoxLink software controls production planning, batch scheduling and archive management, this manual also doubles as the reference for anyone building and running the production lists, importing batches, or exporting data through the file and database interfaces. The report page, debug messages and password levels are all documented, so a supervisor can use the same document to review output and control access to sensitive parameters.

IMAGES PREVIEW

Instant PDF Delivery

The Panotec Nextmode 2.5 automatic box-making machine operator’s manual is delivered as an instant PDF download. There is nothing to ship and nothing to wait for. Open it on the shop-floor tablet, a laptop in the office, or print the sections you need and keep them at the machine. The full 103-page document comes in a single file, including the complete alarms list so you can look up a fault code directly from the control terminal. Whether you are bringing a new operator up to speed, setting up a fresh box batch, or chasing down an axis referencing alarm, the answer is in the same file.
