Perkins 1204F-E44TA & 1204F-E44TTA Engine Troubleshooting Manual – UENR4469-26 PDF

Description

Perkins 1204F-E44TA and 1204F-E44TTA Engine Troubleshooting Manual

This is the complete troubleshooting manual for the Perkins 1204F-E44TA and Perkins 1204F-E44TTA engines, published under document number UENR4469-26. It is the diagnostic guide a technician reaches for when a 1204F-series engine cranks but will not start, misfires, runs rough, derates, overspeeds, shuts down intermittently, or sets a J1939 or Perkins Data Link code that will not clear. Every procedure is built around real fault isolation: read the code, follow the symptom, test the circuit, replace the failed component.

File Details

• Manual type: Troubleshooting Manual
• Brand: Perkins
• Models covered: 1204F-E44TA, 1204F-E44TTA
• Document number: UENR4469-26
• Language: English
• Page count: 502
• File format: PDF

Chapters Covered

• Introduction
• Electronic System Overview
• Configuration Parameters
• Diagnostic Trouble Codes
• Event Codes
• Symptom Troubleshooting
• Circuit Tests
• Service

Introduction and Electronic Service Tools

Safety information for working on the engine and its electronic systems, welding precautions that protect the ECM, DCU and sensors from damage, and the full list of required and optional service tools. The section covers connecting the Perkins Electronic Service Tool to the ECM through the TIPSS adapter kit or the CA3 kit, including the correct cable connections and keyswitch sequence. It also explains how to read associated codes, which matters because a DEF tank temperature code is often caused by a diverter valve fault that has its own troubleshooting procedure.

Electronic System Overview and Component Location

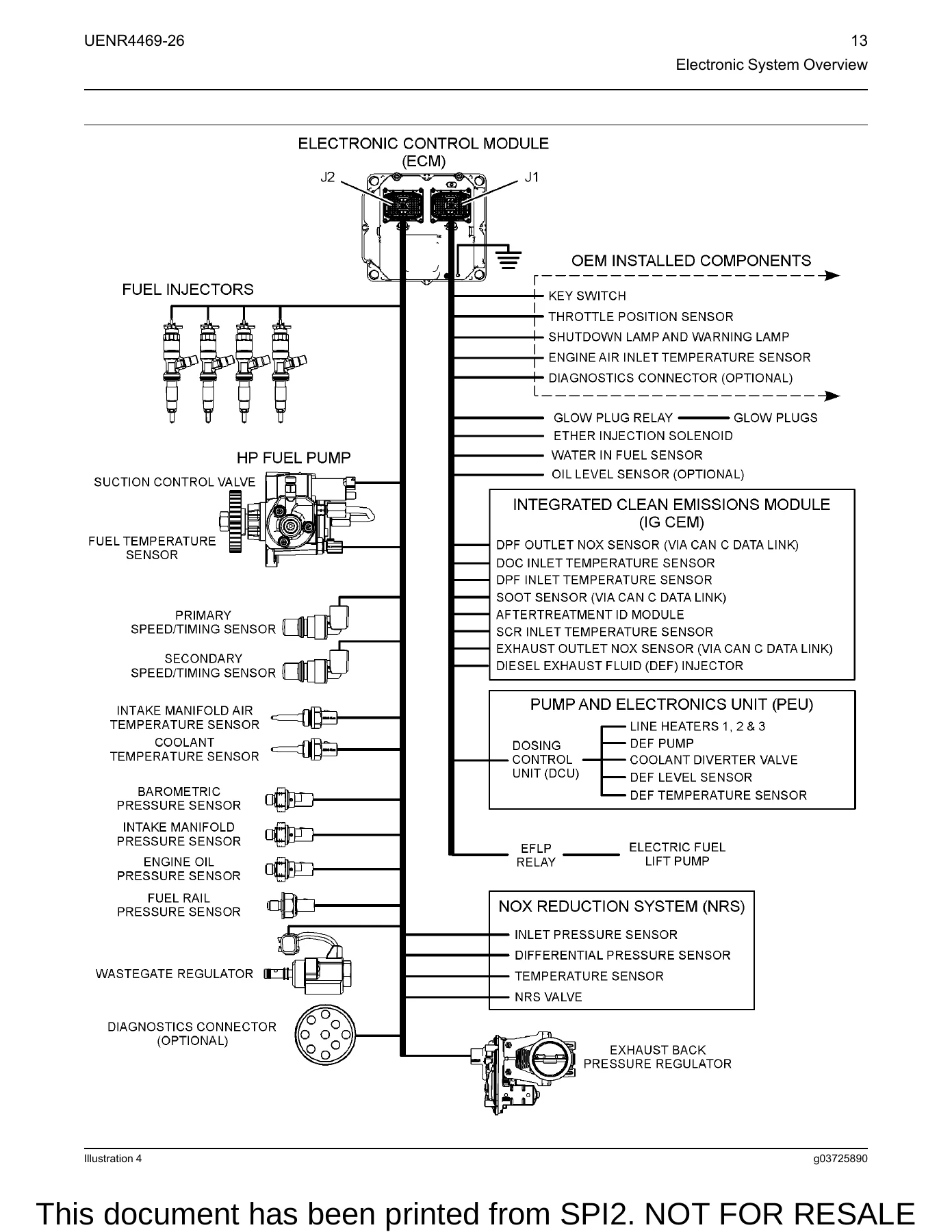

Describes how the engine ECM, Dosing Control Unit (DCU), sensors and actuators work together: engine governing, injection timing, common rail fuel delivery, and aftertreatment control. It includes the electronic control circuit diagram, sensor location illustrations for the left, right and top of the engine, and component views of the DOC, DPF and SCR aftertreatment assembly. The CAN data link layout and ECM connector pin layouts for both J1 and J2 are shown.

Configuration Parameters

Covers programmable parameters, including which are factory-set and which can be changed with customer passwords, and how to check for a 630-2 or 268-2 diagnostic code when a parameter is unprogrammed. The copy configuration procedure for ECM replacement is included here.

Diagnostic Trouble Codes

The full list of J1939 and Perkins Data Link (PDL) diagnostic trouble codes for these engines, cross-referenced to the correct troubleshooting procedure. Each entry gives the code number, the description and the circuit test or test procedure that resolves it. Both code orderings are provided so you can look up a code from either the electronic service tool display or the PDL numbering.

Event Codes

Event codes generated by abnormal operating conditions rather than electrical faults, with severity levels from least severe to most severe. Covers active and logged events, how to clear them, and how the engine monitoring system reacts with warning lamps, derates or shutdown.

Symptom Troubleshooting

The largest section. Each symptom, from poor acceleration and engine cranks but does not start to excessive black or white smoke, low oil pressure, high coolant temperature, DEF pressure problems, excessive soot in the DPF, low NOx conversion and more, has probable causes listed in order of probability and a step-by-step diagnostic table. Fuel supply checks, transfer pump inlet regulator flow tests, cylinder cutout tests and compression tests are all covered here.

Circuit Tests

Individual tests for the engine electrical circuits: sensors (analog active, analog passive, data link type), solenoid valves connected to the engine ECM and to the DCU, motorized valves, injector solenoids, sensor supply voltages, CAN data links, DEF pump, DEF line heaters, tank sensors, glow plug and ether starting aids, and more. Each test includes the required values and expected results so you know when a component has passed or failed.

Service

Service tool features such as overrides, diagnostic tests, calibrations and service procedures. Includes ECM software installation, ECM replacement, injector code calibration, connector inspection, test ECM mode, and the SCR inducement emergency override. Error identifiers for service tool tests are listed with their troubleshooting guidance.

What This Manual Lets You Do

With this manual, you can diagnose and repair the 1204F-E44TA and 1204F-E44TTA engines without guessing. The procedures tell you exactly what value to expect at each pin, which component to disconnect next, and what a passing or failing result means, so you can isolate a no-start, a misfire, a derate or a recurring aftertreatment code and fix the actual cause instead of swapping parts.

The diagnostic trouble code and event code listings save time when the service tool throws a number at you. Look up the code, follow the referenced test, and work through the symptom tables until the fault is found. The circuit tests cover the electrical side thoroughly, and the symptom troubleshooting section covers mechanical and fuel-related issues including low compression checks and injector cutout tests.

IMAGES PREVIEW

Delivered as an instant PDF download. No shipping, no waiting. Open it on a laptop in the shop, a tablet in the field, or print the pages you need for the job. The file is yours to keep and reference whenever a 1204F engine comes in with a problem.
