Perkins 3.152 Series Diesel Engines Workshop Manual
File Details:
Perkins 3.152 Series Diesel Engines Workshop Manual
Language : English
Pages : 102
Size : 22.5 MB
Downloadable : Yes
Format : PDF
Video Preview:
Image Preview:

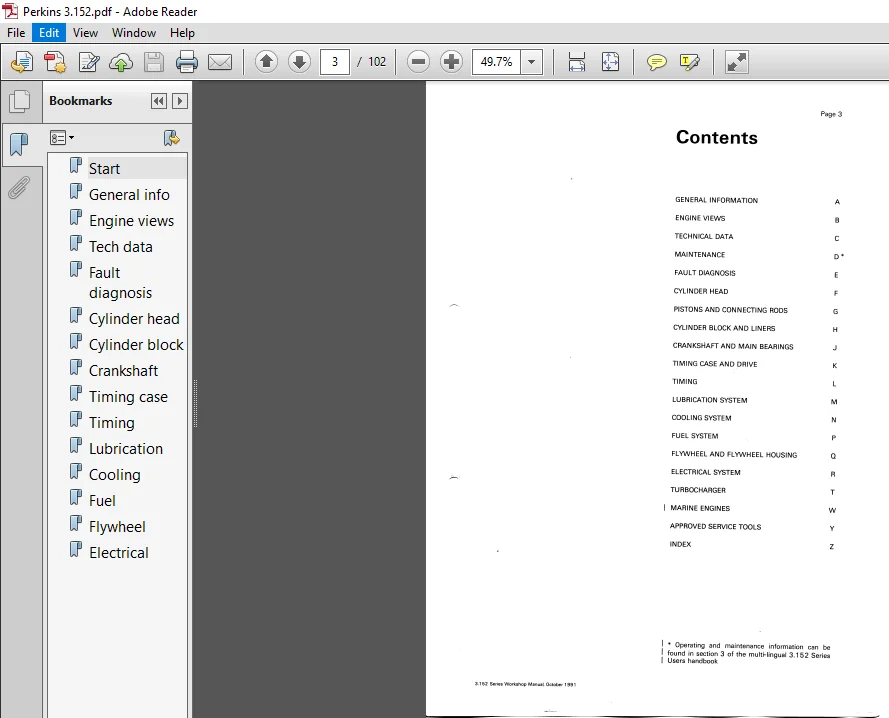

Table Of Contents:
Perkins 3.152 Series Diesel Engines Workshop Manual
GENERAL INFORMATION A
ENGINE VIEWS 8
TECHNICAL DATA 0
MAINTENANCE D ‘
FAULT DIAGNOSIS E
CYLINDER HEAD F
PISTONS AND CONNECTING RODS G
CYLINDER BLOCK AND LINERS H
CRANKSHAFT AND MAIN BEARINGS J
TIMING CASE AND DRIVE K
TIMING L
LUBRICATION SYSTEM M
COOLING SYSTEM N
FUEL SYSTEM P
FLYWHEEL AND FLYWHEEL HOUSING o
ELECTRICAL SYSTEM R
TURBOCHARGER T
I MARINE ENGINES w
APPROVED SERVICE TOOLS Y
INDEX 2
Description:
Perkins 3.152 Series Diesel Engines Workshop Manual
Introduction This manual has been written to give assistance to all personnel engaged in the maintenance and overhaul of Perkins 3.152 Series engines.
Most of the general information which is included in the multi-lingual 3.152 series Users Handbooks has not been repeated in this workshop manual and the two publications should be used together.
i There are five engine types in the 3.152 Series for agricultural and industrial applications.
These are the 3.152, i 03.152. 3.1522. 3.1524 and T3.1524 engines.
information on two marine versions of the D3.152 engine, the i 03.152(M) and the 3HD46 are also included in section W of this manual.
The information applies to all engine i types unless indicated. Where specific information is given for Massey Ferguson engines, A3.152 and ADS.152 l etc. reference is made in the text.
Overhaul of the engine or components must only be done by personnel who have had the correct training.
When setscrews or studs are fitted into holes which are tapped through into the inside of the engine, a suitable sealant must be used on the threads.
Some setscrews already have sealant coated threads. These can be iden- tified by the colour of the threads which will be red or blue etc.
The left and right side of the engine are as seen from the rear. Parts and other services are available from your Perkins distributor.
Read and remember the Safety Precautions. These are given for your protection and must be used at all times.
