Perkins 4.236 Series Diesel Engine Workshop Manual – 4.2482, 4.248, T4.236, 4.236, 4.212 & T4.38

Description

Perkins 4.236 Series Diesel Engine Workshop Manual

This is the complete Perkins 4.236 Series workshop manual covering the 4.2482, 4.248, T4.236, 4.236, 4.212 and T4.38 diesel engines. Compiled for professional technicians and experienced owner-mechanics, it documents every major service and overhaul procedure across the engine family, plus a dedicated marine supplement for the 4.236M, 4HD76 and Range 4 M90 marine diesels. Whether you are timing a fuel injection pump, renewing cylinder liners, setting valve clearances or chasing a low-oil-pressure fault, this Perkins 4.236 Series workshop manual gives you the factory procedures, torque figures and service limits the job demands.

File Details

• Manual type: Workshop Manual
• Brand: Perkins
• Engines covered: 4.2482, 4.248, T4.236, 4.236, 4.212, T4.38
• Massey Ferguson designations: A4.248, A4.236, AT4.236, A4.212
• Marine engines: 4.236M, 4HD76, Range 4 M90
• Language: English
• File format: PDF
• Page count: 168
• Publication: 4.236 Series Workshop Manual, amendments dated 1985-1988 and January 1993

Chapters Covered

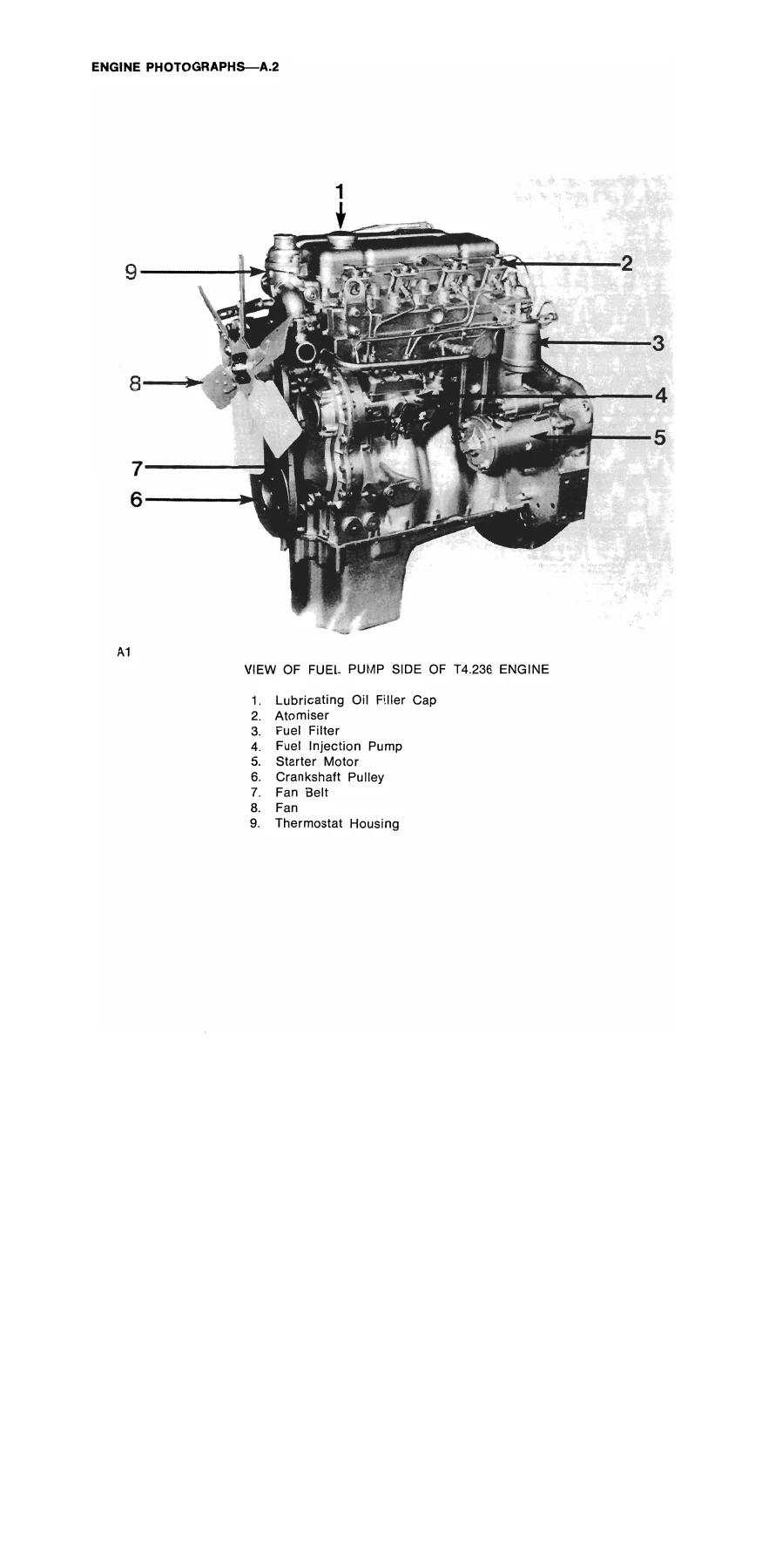

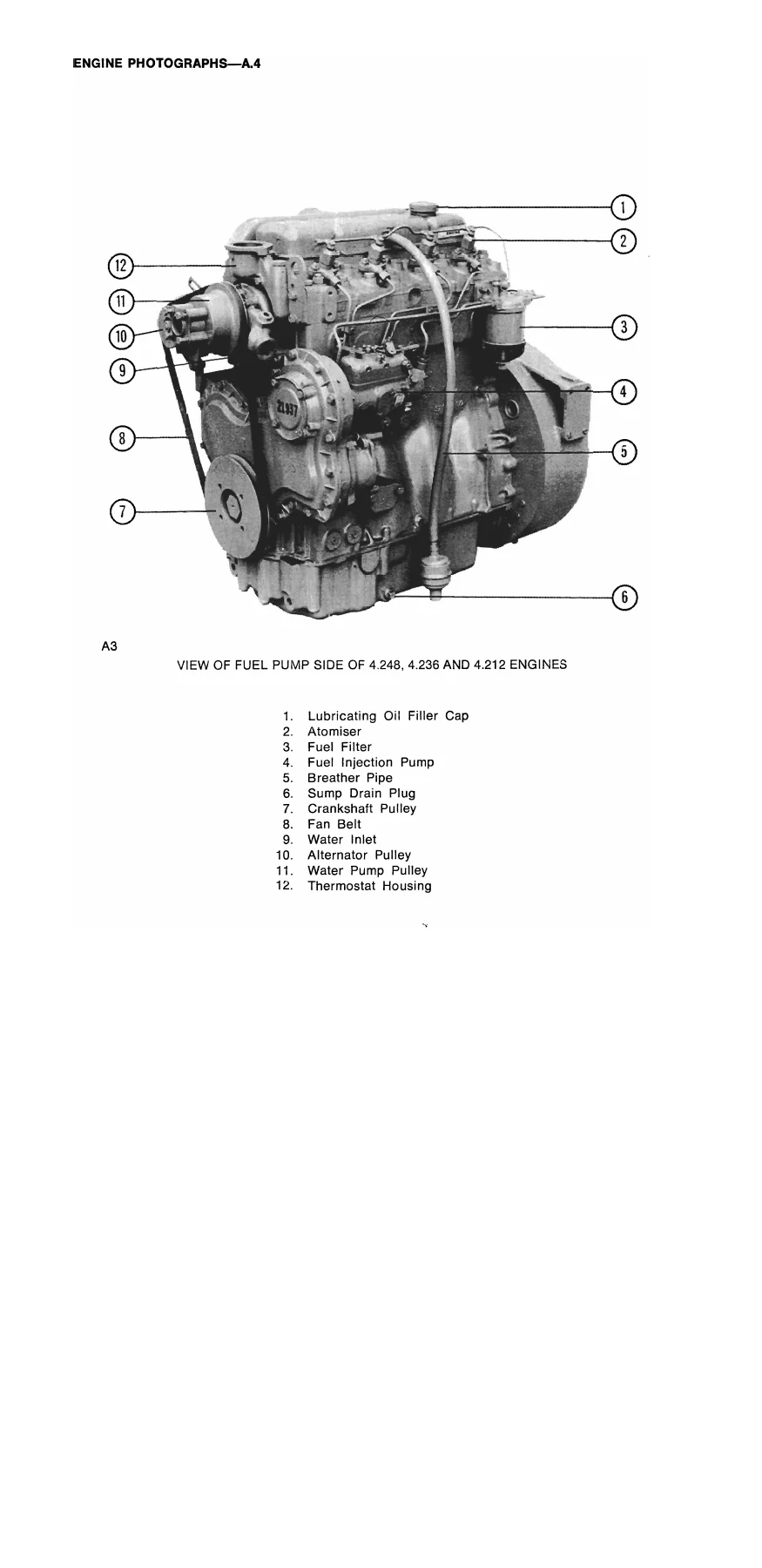

• Engine photographs and identification views
• Technical data – clearances, tolerances, manufacturing dimensions
• Operating and maintenance
• Fault diagnosis – no start, misfire, smoke, low oil pressure, knocking, vibration, overheating
• Cylinder head maintenance – valves, seats, springs, rocker shaft, push rods, valve timing
• Pistons and connecting rods
• Cylinder block and liners
• Crankshaft and main bearings
• Balancer unit – front and centre mounted
• Timing case and drive
• Lubricating system
• Cooling system
• Air filters and fuel system – lift pump, DPA, DPS and Stanadyne injection pumps, atomisers, priming
• Flywheel and flywheel housing
• Exhauster
• Compressor – S.C.6 and Wabco
• Alternator, dynamo and starter motor
• Turbocharger including wastegate calibration
• Approved service tools
• Marine supplement

This Perkins 4.236 Series diesel engine manual is not a generalised engine guide. It is a model-specific workshop publication that walks through the 4.236 family system by system – cylinder head, pistons and rods, block and liners, crankshaft and bearings, balancer, timing case, lubrication, cooling, fuel, flywheel, exhauster, compressor, charging and starting, and turbocharger. Each section gives the dismantling sequence, inspection criteria, wear limits, reassembly order and torque tensions needed to put the engine back into service correctly. The fault diagnosis chapter maps symptoms such as no start, difficult starting, misfiring, lack of power, black exhaust, blue or white exhaust, low oil pressure, knocking, vibration and overheating to a numbered list of possible causes, so you can work from symptom to fix without guesswork.

Engines and Applications Covered

The manual covers all standard variants of the 4.236 Series: 4.2482, 4.248, T4.236, 4.236, 4.212 and T4.38. Engines built for Massey Ferguson applications are designated A4.248, A4.236, AT4.236 and A4.212, and where information is specific to those builds the manual gives the appropriate engine designation. For T4.38 engines the workshop manual directs the reader to the T4.236 information unless otherwise stated. The marine supplement adds the 4.236M, 4HD76 and Range 4 M90 marine diesel engines, covering the fresh and raw water cooling circuits, heat exchanger, oil cooler, gearbox, flywheel and flywheel housing.

Engine number location and identification is covered in detail – early 4.236 Phase I stamped above the tappet cover, later 4.236 Phase II, earlier 4.248 and 4.212 stamped above the dynamo or alternator, and current engines stamped on a label above the fuel injection pump. The manual explains the numbering combinations (for example 236U251, 248U251, 212U251 and the current format LD21498U510256D) and what letters such as “C” for chrome plated cylinder liners indicate.

Technical Data Highlights

Bore is given as 3.975 in (100.96 mm) nominal, stroke 5 in (127 mm), with displacements of 248 cu in (4.06 litres), 236 cu in (3.86 litres) and 212 cu in (3.47 litres) depending on model. Compression ratios, firing order 1,3,4,2, four-stroke direct injection, and minimum oil pressure figures for naturally aspirated and turbocharged engines are all listed. The technical data chapter also covers cylinder block dimensions, liner parent bore diameters, liner protrusion heights, gudgeon pin fits, connecting rod alignment, crankshaft regrind undersizes, main and connecting rod bearing clearances, camshaft journal data, valve clearances, timing gear backlash, oil pump clearances, relief valve settings, cooling system capacity, thermostat opening temperatures and fuel injection pump marking angles for every prefix letter code. Torque tensions for cylinder head nuts and setscrews, connecting rods, main bearings, flywheel, camshaft gear, rocker shaft brackets and more are given on the recommended torque tensions page.

Typical Jobs This Manual Supports

• Cylinder head removal, valve removal, valve seat inspection and valve seat insert fitting
• Skimming the cylinder head and checking nozzle protrusion
• Removing and refitting pistons, connecting rods, rings and small end bushes
• Renewing flange less, flanged and chrome plated cylinder liners
• Regrinding the crankshaft, including Tufftriding identification and rear lip seal fitment
• Servicing front and centre mounted balancer units, including needle race bearings and reversed balance weights
• Timing case, idler gear, camshaft gear and fuel pump gear removal and refit
• Setting fuel injection pump timing on DPA, DPS and Stanadyne pumps using tool MS67B
• Overhauling the lubricating oil pump and pressure relief valve
• Water pump strip and rebuild – earlier and latest types
• Fuel lift pump testing, cleaning and rebuilding
• Turbocharger removal, inspection and wastegate calibration
• S.C.6 and Wabco compressor overhaul and fault diagnosis
• Flywheel ring gear renewal and flywheel housing alignment
• Marine cooling system, heat exchanger and oil cooler servicing

Why This Manual Matters

Perkins diesel engines are built to tight tolerances and specific assembly sequences. Getting a liner protrusion wrong, mis-timing a fuel injection pump, or using the wrong torque on a cylinder head can turn a straightforward repair into a repeat failure. The Perkins 4.236 Series workshop manual gives the figures and procedures the factory used – manufacturing clearances, service limits, torque tensions, injection pump marking angles, static timing and piston displacement values – so that a rebuild or repair is done once and done correctly. This is the reference used in professional workshops and is equally valuable to a competent owner-mechanic working on a tractor, generator, marine engine or industrial application built around a 4.236 Series diesel.

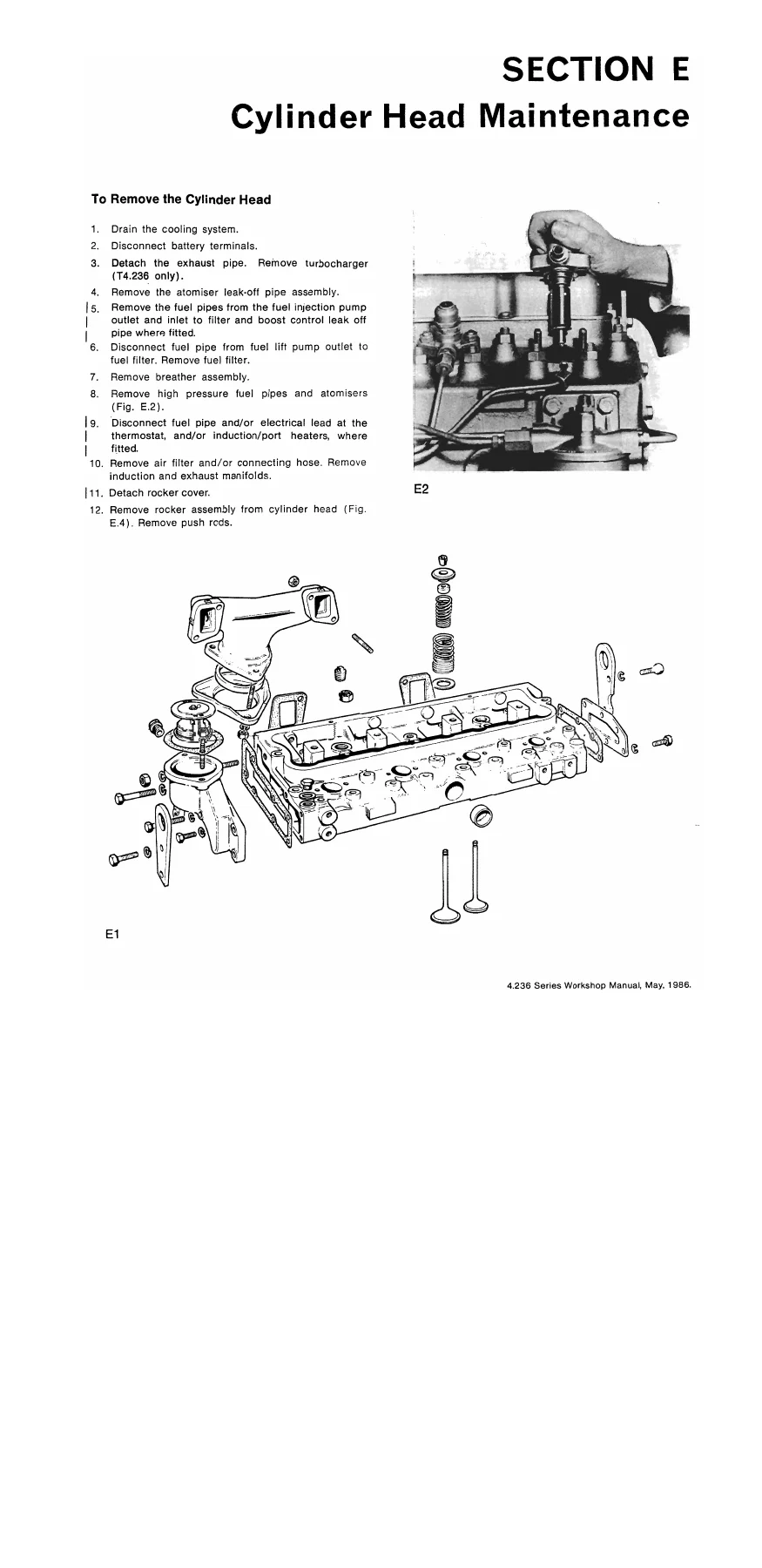

IMAGES PREVIEW

Instant PDF Delivery

The Perkins 4.236 Series diesel engine workshop manual is supplied as a PDF download, available immediately after payment. There is no shipping and no waiting. The file can be viewed on any device – laptop, tablet or smartphone – and individual pages or sections can be printed for use in the workshop. Keep a copy on the bench, in the office or on the machine.
