Philips MRI Planned Maintenance Manual

This 109-page Philips MRI planned-maintenance compilation brings together multiple PM sections covering system-level inspection, electrical safety, gradient hardware, liquid cooling, refrigeration, magnet systems, patient support, system measurements and image quality. The document contains procedures for Ingenia and dStream configurations and also includes section-specific coverage for Intera, Achieva and Multiva systems.

Applicability Shown in the Document

This PDF is modular, so applicability varies by section rather than every procedure applying to every machine. The document specifically references Ingenia, Achieva dStream, Intera, Achieva and Multiva. System-performance material includes Ingenia and Achieva dStream 1.5T/3.0T references, while the refrigerator PM section explicitly applies to Intera/Achieva/Multiva systems equipped with CDAS.

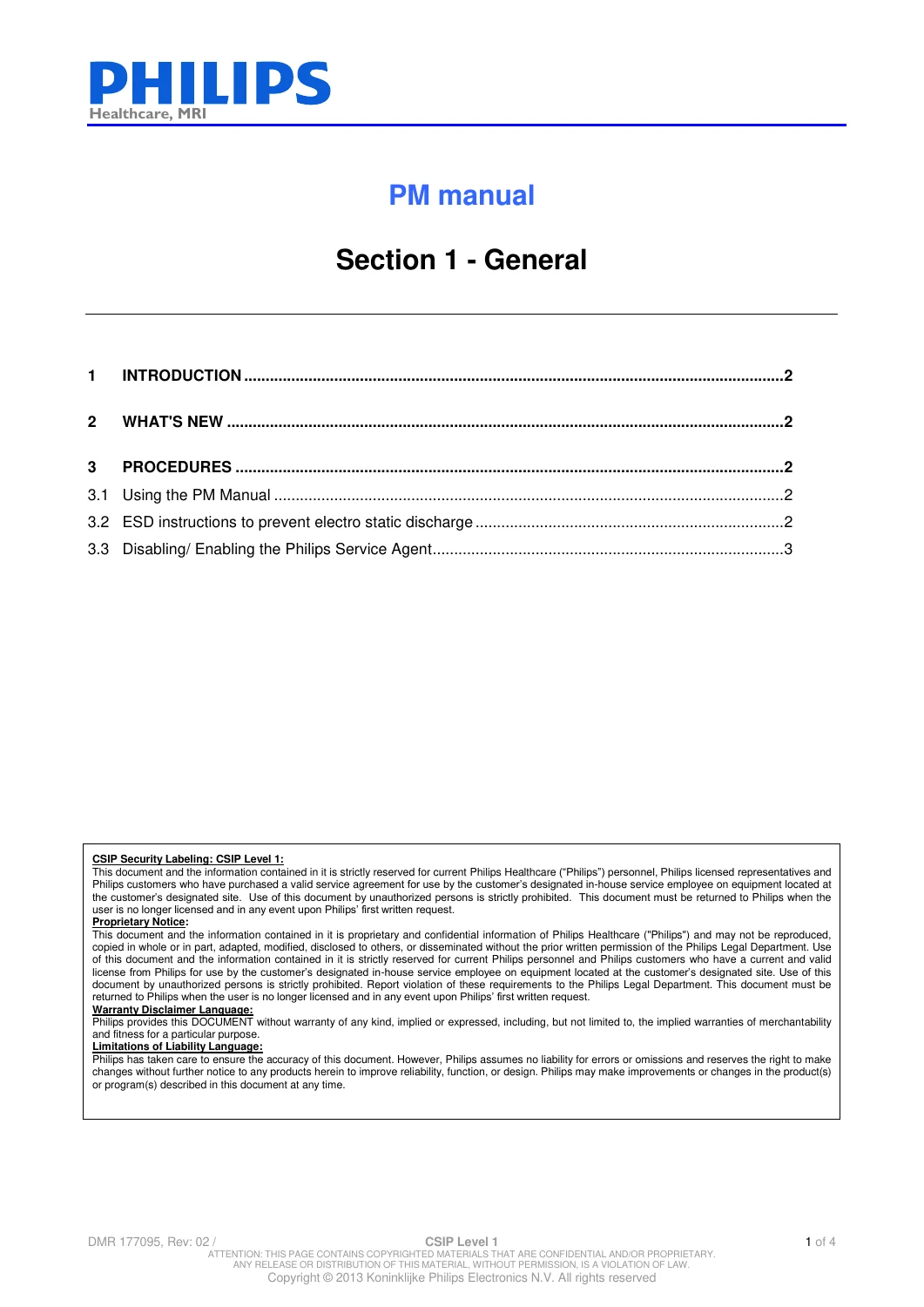

General PM Structure

The general section explains how to use the PM timetable. Tasks are scheduled at four-month intervals or multiples of four months, with the timetable controlling which inspections/tests are required. It also covers ESD precautions for electronics service and procedures for disabling and re-enabling the Philips Service Agent during maintenance.

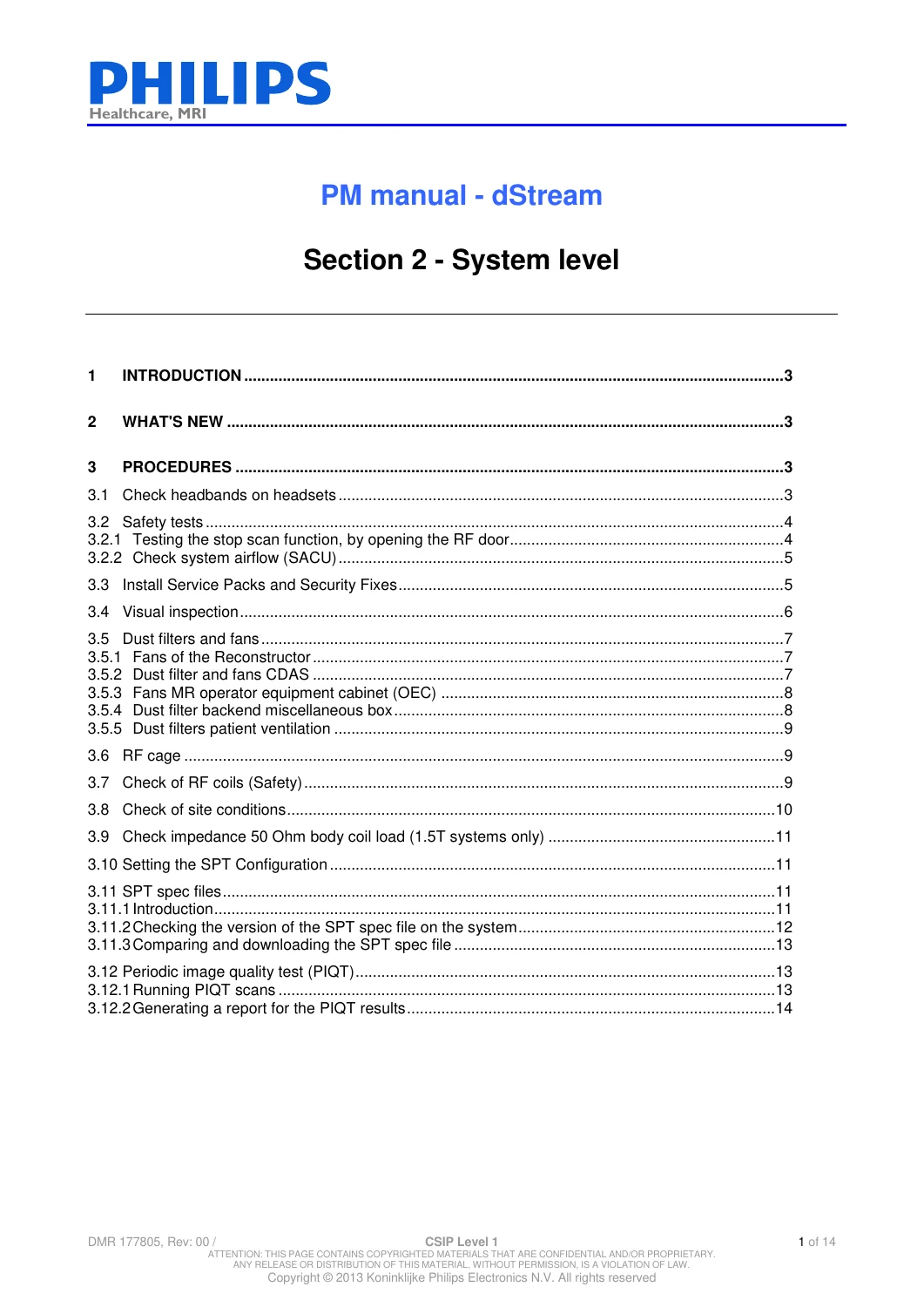

System-Level Planned Maintenance

• Headset checks
• RF-door stop-scan safety test
• System airflow/SACU check
• Service Packs and Security Fixes
• Visual inspection
• Reconstructor and CDAS fans/filters
• Operator-equipment and backend filters
• Patient-ventilation filters
• RF cage inspection
• RF-coil safety checks
• Site-condition checks
• 50-ohm body-coil load check for 1.5T systems
• SPT configuration and specification files
• Periodic Image Quality Test (PIQT)

Mains, Gradient and Cooling Maintenance

• Mains distribution: earth-bonding and leakage-current safety measurements for Ingenia.
• Gradient System 78x: gradient-coil temperature-sensor detection and inner-front-cover interlock safety checks.
• Liquid Cooling LCC2(A): water-hose inspection, LCCII/LCC2A procedures, filling, flushing, draining, pump/flow checks, pressure checks and LCC interlock verification.
• Refrigerator system: compressor pressure, water flow, boil-off and cryogenic-performance-related maintenance for applicable Intera/Achieva/Multiva CDAS systems.
• Magnet system: Ingenia magnet planned-maintenance items including helium over-pressure detection and vent/water-drain checks.

Patient Support and Image Quality

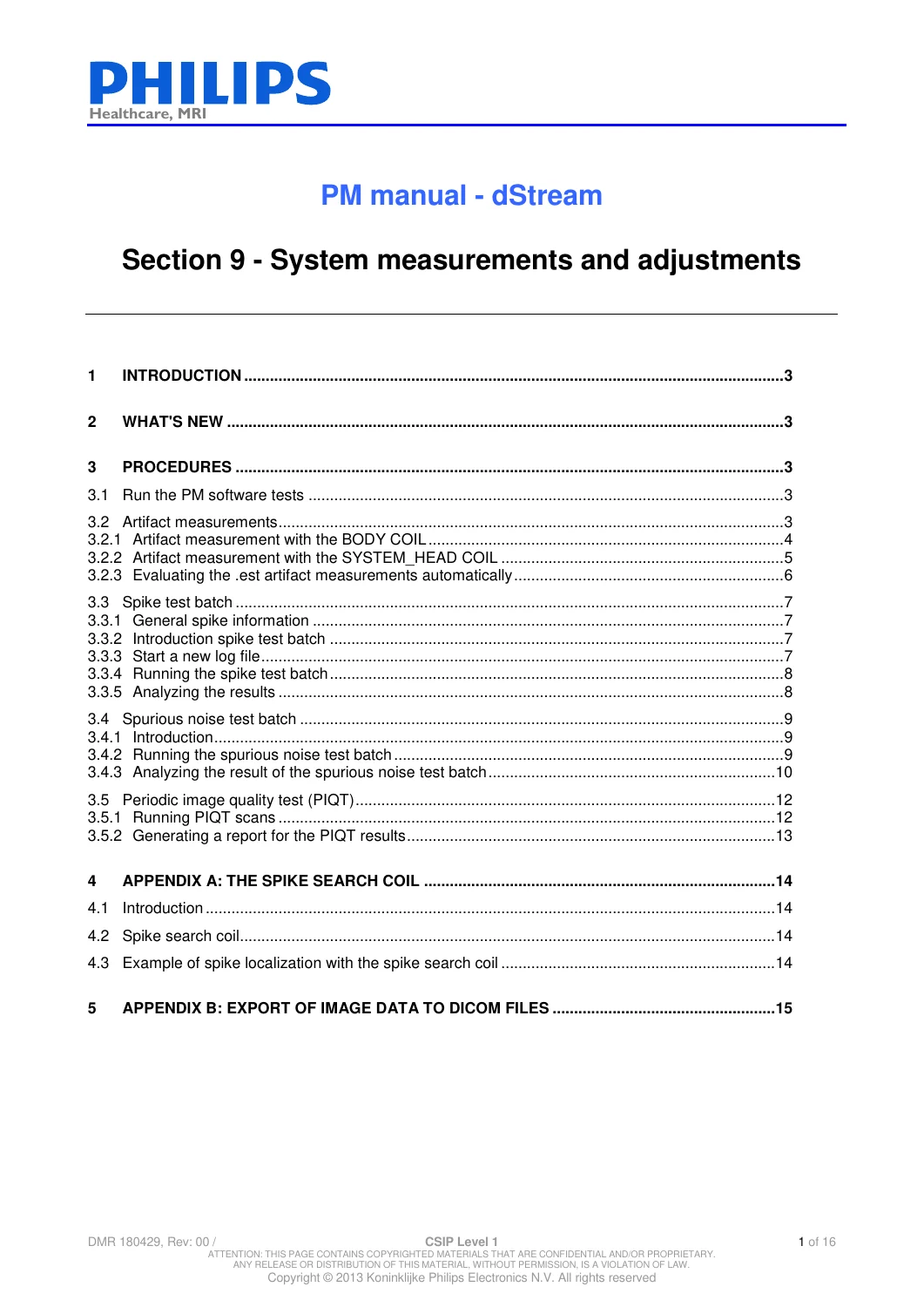

The patient-support dStream section covers console and magnet stop functions, emergency-stop circuitry, DCI RF-coil connector cleaning, patient-support cleaning and alignment-related checks. The system-measurements section covers PM software tests, artifact measurements, spurious-noise/spike investigation, PIQT procedures and use of a spike-search coil. It explains that instability in the received MR signal can produce image artifacts and provides procedures for investigating those conditions.

Why This Manual Is Useful

This is a useful maintenance reference when you need more than a simple checklist. It combines scheduled inspections with the actual safety tests, cleaning procedures, cooling checks, service-software steps and image-quality verification used across several Philips MRI subsystems. Because applicability is stated within each section, technicians can identify which PM procedure belongs to the hardware and software configuration in front of them.

Instant PDF Download

Delivered as an instant downloadable PDF, ready for reference on a service computer, tablet or other PDF-capable device immediately after payment.
