Polaris 2005 sportsman 400 Parts manual – PDF Download

Description

📘 DOCUMENT OVERVIEW

This detailed Polaris Sportsman 400 Parts Manual (2005) 🚜 is your indispensable guide to the intricate components of the Polaris Sportsman 400 ATV models #A05MH42AB, #A05MH42AG, and #A05MH42AH. This isn’t just a list; it’s a comprehensive parts catalog meticulously designed to aid both professional mechanics 🔧 and serious DIY enthusiasts in identifying and ordering replacement parts. The manual is structured for easy navigation, utilizing a table of contents that clearly outlines each section and its corresponding page number. This allows quick and efficient access to the specific part you need.

Key Features and Content:

• Comprehensive Parts Listing: The manual offers a detailed breakdown of every component within the specified Polaris Sportsman 400 models. Each part is clearly identified with its unique reference number, part number, and a concise description. This allows for accurate ordering and avoids confusion.

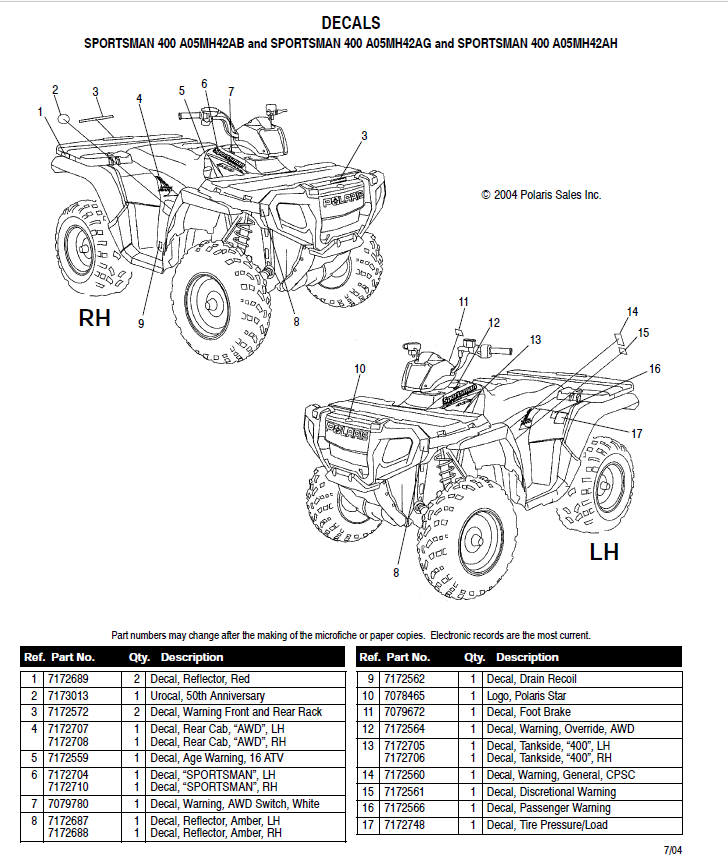

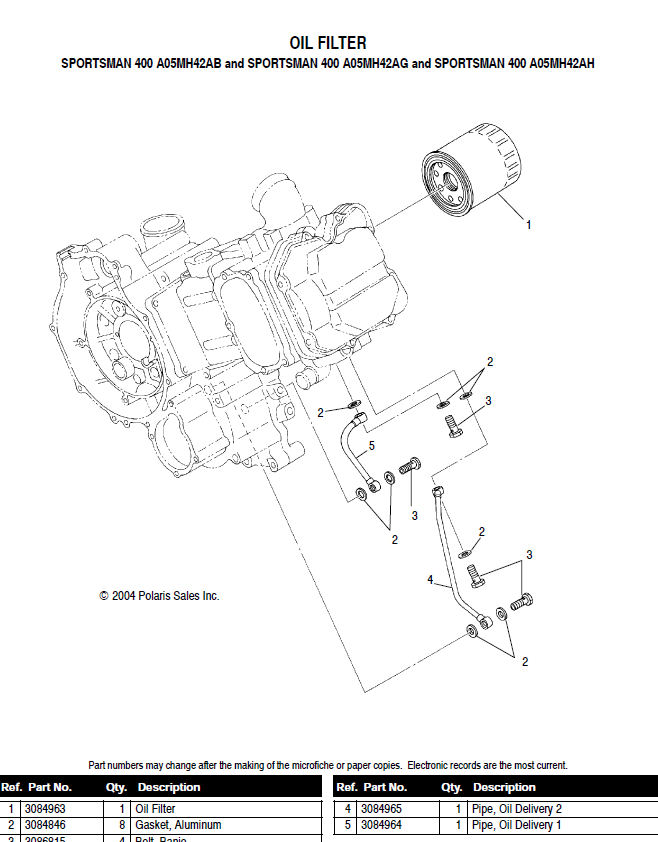

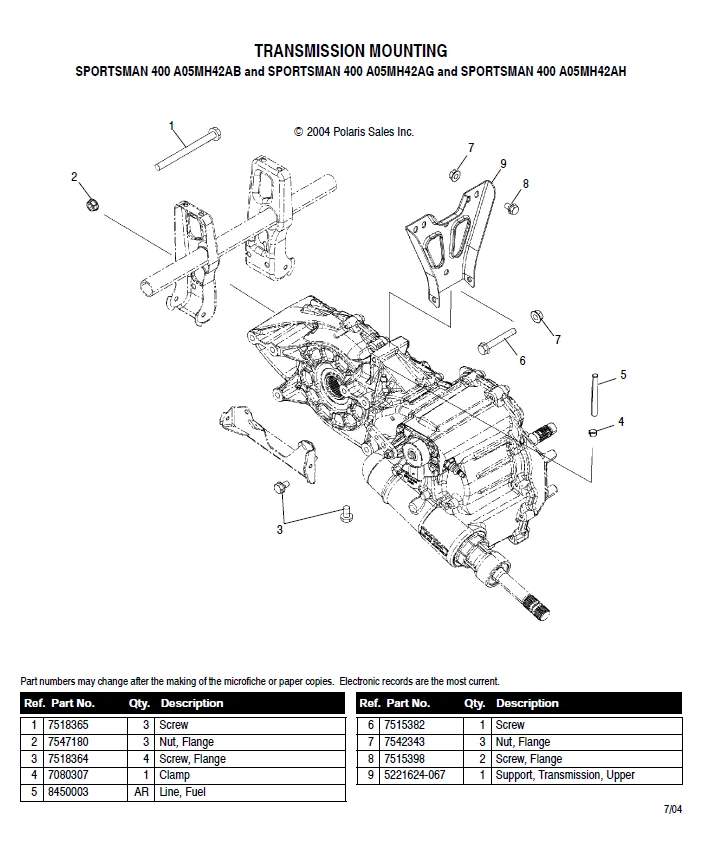

• Clear Illustrations: High-quality diagrams and illustrations accompany each section, providing a visual representation of the part’s location and assembly within the ATV. These visuals significantly aid in identification and understanding.
• Organized Structure: The parts are categorized logically by system (e.g., rear cab and seat, cooling system, engine mounting, electrical system, etc.), making it easy to find the specific part you need. This structured approach simplifies the search process.
• Model Specificity: The manual explicitly covers three specific 2005 Polaris Sportsman 400 models, ensuring precision in part identification. This eliminates the risk of selecting incorrect parts for your ATV.
• Technical Specifications: While not explicitly stated, the detailed part numbers and descriptions suggest sufficient technical information is provided to aid in proper component selection and maintenance.
• Easy-to-Use Format: The PDF format ensures that this manual is easily accessible, printable, and searchable. This allows for a convenient and efficient reference experience.

This Polaris Sportsman 400 Parts Manual is an essential tool for anyone involved in maintaining, repairing, or restoring their Polaris Sportsman 400 ATV. Its comprehensive nature, clear visuals, and organized structure make it an invaluable resource for both professionals and experienced DIYers. ⚠️ Always ensure you are working in a safe environment and following proper safety protocols when servicing machinery.

❌ WHAT’S NOT INCLUDED

• Assembly instructions are excluded.
• Troubleshooting or repair guidance.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

Q: What models does this manual cover?

This manual covers the 2005 Polaris Sportsman 400 models #A05MH42AB, #A05MH42AG, and #A05MH42AH.

Q: What type of procedures are included?

This is a parts manual, so it doesn’t include repair procedures. However, it provides detailed part diagrams and lists with part numbers and descriptions for easy identification and ordering of replacement components across various systems of the ATV.

Q: Is this suitable for DIY mechanics?

Yes, but prior mechanical experience is recommended. The manual is highly detailed, requiring some technical understanding.

Q: What format is this manual in?

This manual is provided as a digital PDF download.

Q: Are there any language requirements?

The manual appears to be in English.

Q: What if I need a part not listed?

Contact Polaris directly or a Polaris dealer for assistance with parts not listed here.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent; comprehensive and well-organized.
• Content Type: Parts Catalog
• Language: English
• Technical Level: Professional/Intermediate
• Recommended For: Professional mechanics and experienced DIY users working on the specified Polaris Sportsman 400 models.
• Page Count: Approximately 60 pages
• Image Quality: Good; clear diagrams and illustrations support part identification.

📋 Original Product Description:

Polaris 2005 sportsman 400 Parts manual

TABLE OF CONTENTS:

A–ARM C4
AIR BOX B1
BRAKE LINES, FRONT B6
BUMPER MOUNTING A7-8
CALIPER, REAR B7
CARBURETOR D7-8
CLUTCH COVER C9
CONTROLS B4
CONTROLS — THROTTLE ASM /CABLE B9
COOLING SYSTEM A11
CRANKCASE D4
CRANKSHAFT and PISTON D6
CYLINDER D5
DECALS A10
DRIVE CLUTCH C7
DRIVE SHAFT, FRONT B10
DRIVE SHAFT, REAR B11
DRIVEN CLUTCH C8
ELECTRICAL/TAILLIGHT C13
ENGINE MOUNTING A13-14
EXHAUST SYSTEM A12
FOOT PEDAL B8
FRONT CAB A5
FRONT HOUSING D3
FUEL PUMP D11
FUEL TANK B2
GEAR SELECTOR C6
GEARCASE D1-2
HANDLEBAR C1-2
HEADLIGHT POD C1-2
HEADLIGHTS C3
INTAKE and EXHAUST D9
MAGNETO E2
MASTER CYLINDER, REAR B8
OIL FILTER D13
OIL PUMP D12
OIL TANK B3
PROP SHAFT B12
RACK MOUNTING FRONT A8
REAR CAB and SEAT A3 -4
REAR RACK MOUNTING A6
REAR SUSPENSION C11-12
REAR WHEEL DRIVE C10
RECOIL STARTER D14
STARTING MOTOR E1
STEERING POST C5
STORAGE BOX, REAR A9
STORAGE, FRONT A7-8
STRUT MOUNTING C4
STRUT, FRONT B13
TAILLAMPS C3
TOOL KIT E3
TRANSMISSION MOUNTING C14
WATER PUMP D10
WHEEL, FRONT B14
WORKLAMPS C3
