Polaris Ranger 6X6 800 Service Repair Manual 2013-2015 (Full Workshop PDF)
Original price was: $75.00.$29.95Current price is: $29.95.
Official Polaris service manual covering the Ranger 800 6×6 (model years 2013–2015). Includes specs, maintenance intervals, lubrication, drivetrain, transmission (6×6), cooling, brakes, electrical, torque charts, and troubleshooting. Searchable, printable PDF—ideal for workshop repairs and field diagnostics.
Description
Polaris Ranger 6X6 800 Service Repair Manual 2013-2015 (Full Workshop PDF) DOWNLOAD
What this manual covers

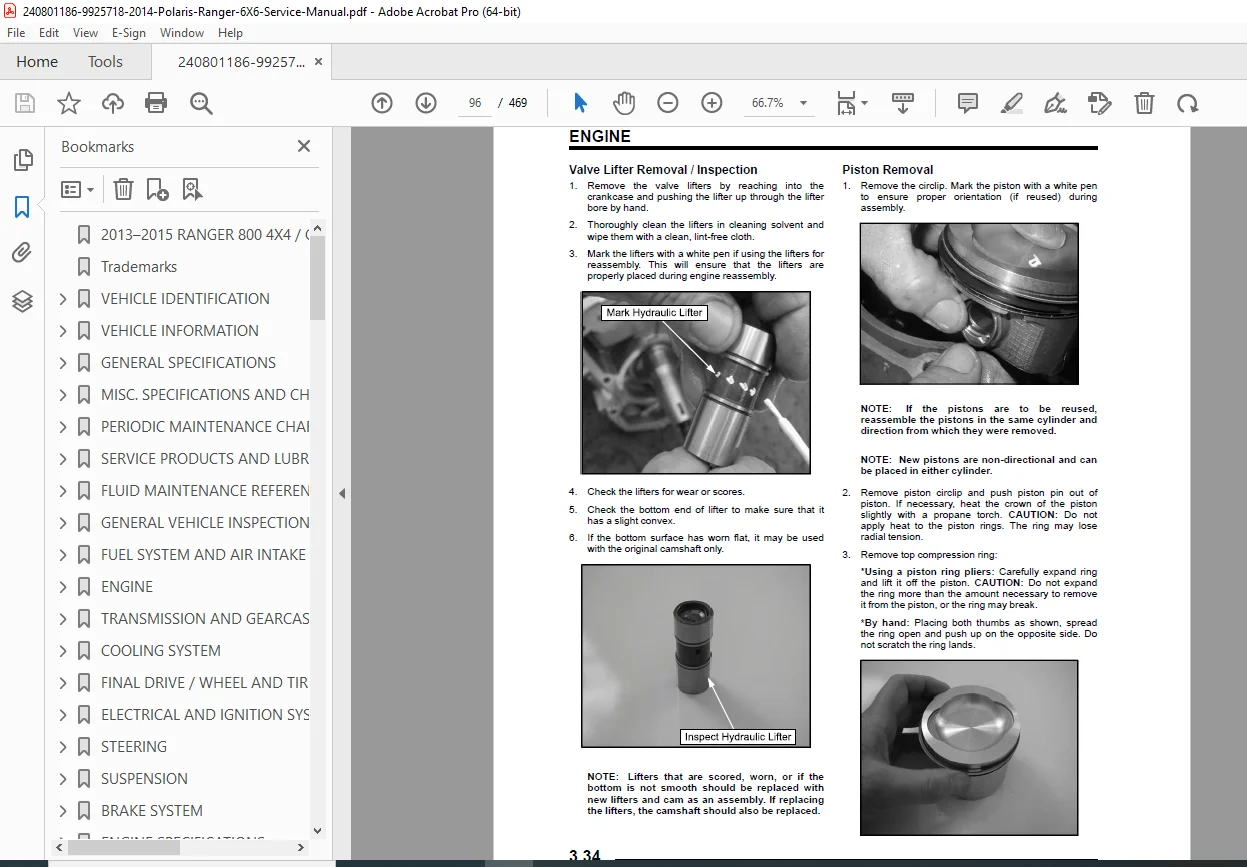

Chapters: General Info, Maintenance, Engine, Fuel System, Body/Steering/Suspension, Clutching, Final Drive, Transmission – 6×6, Brakes, Electrical.

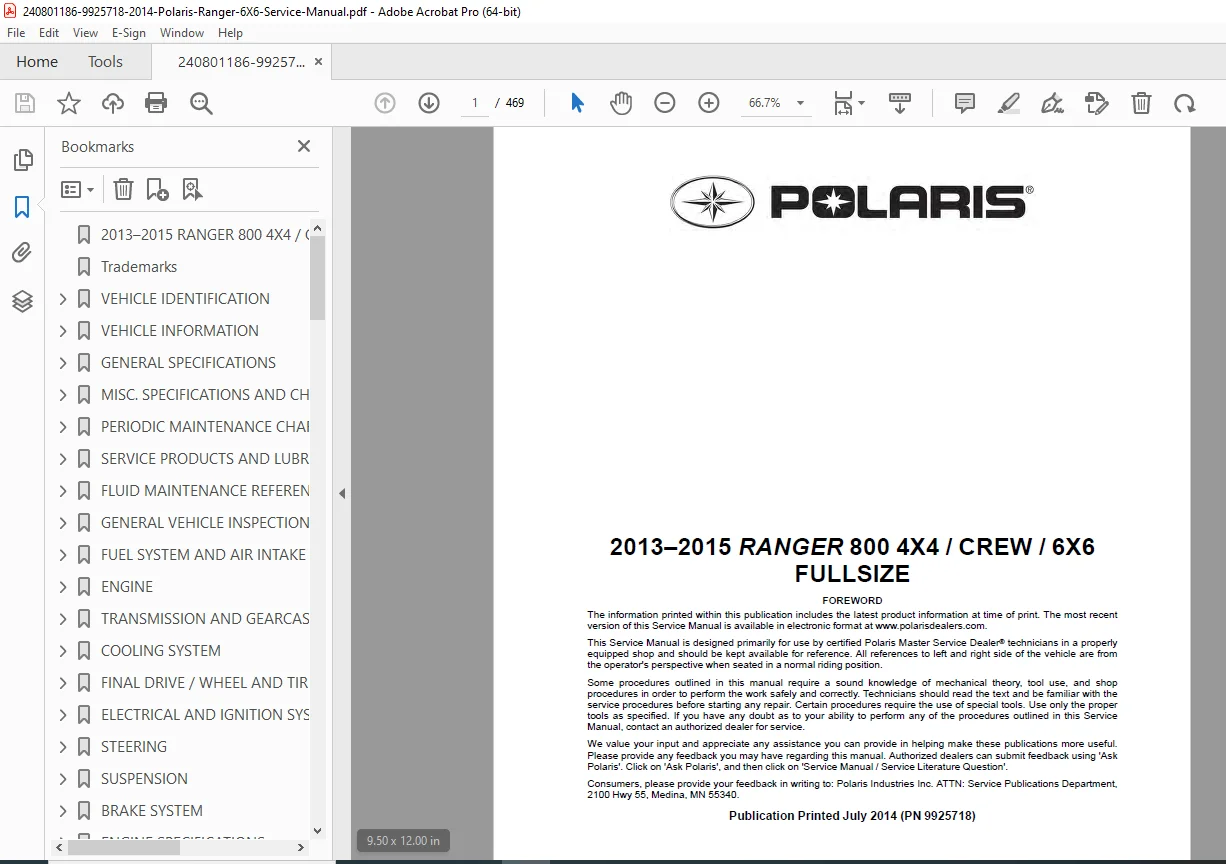

Model coverage: Ranger 800 6×6 2013–2015 (also references 800 4×4 & Crew where procedures overlap). Publication PN 9925718, printed July 2014.
Key specs (6×6): 760 cc twin, Bosch M17 EFI (58 ± 2 psi), 500 W stator @ 3000 rpm, PVT drive, 10.05″ center distance, GVW 3701 lb, payload 2000 lb, cargo box 1250 lb, towing 2000 lb.
Fluids & capacities (6×6):
Engine oil: 2 qts PS-4 / Extreme Duty; Coolant: ~3.25 qts; Fuel: 9 gal.
Front gearcase: Demand Drive 9 oz; Transmission: AGL 43.6 oz; Mid gearcase: Angle Drive 6.75 oz; Rear gearcase: Angle Drive 18 oz.
Torque & charts: Standard/metric torque specs, SAE/metric tap & drill sizes, conversion tables, clutch calibration by altitude.
Detailed contents (bookmark-style)
1. General Information – VIN & engine ID decoding, model codes, specs tables for 4×4/Crew/6×6, torque specs, conversions.
2. Maintenance – Periodic service chart (pre-ride/25h/50–100h/100–300h), lubrication points, fluid references, air intake/PVT intake checks.
3. Engine – Compression/leak-down, oil/filter change, breather and exhaust inspections.
4. Fuel System – Lines, venting, in-tank pump & filters, throttle pedal/freeplay.
5. Body/Steering/Suspension – Dual A-arm, IRS setup, alignment (toe-out 1/8–1/4″).
6. Clutching – PVT service, belts (3211133), altitude weights/springs chart.
7. Final Drive – Wheels/tires (AT489), tire pressures, CV boot inspection.
8. Transmission – 4×4 – Gear ratios, service procedures (cross-reference when shared).
**9. Transmission – 6×6 – 6×6-specific gear reductions (High 3.85:1; Low 8.71:1; Rev 7.91:1), front/mid/rear driveline service.
10. Brakes – 4-wheel hydraulic disc, DOT 4 service.
11. Electrical – Battery (Yuasa YB30L-B, 30 Ah), fuses/relays map, charging, lighting values.
Why this manual is valuable
Factory procedures with correct specs & torque—reduce guesswork and repeat jobs.
Full fluid map for the 6×6 (front, mid, rear gearcases + transmission) so nothing is missed during services.
Searchable PDF to jump straight to torque charts, wiring/electrical, or 6×6 transmission sections.
File details
| Field | Value |
|---|---|
| Manual name | 2013–2015 Polaris Ranger 800 4×4 / Crew / 6×6 Service Manual |
| Publication / PN | 9925718 (Printed July 2014) |
| Models covered | Ranger 800 6×6 (2013–2015); references 800 4×4 & Crew where applicable |
| Format | PDF, searchable/printable |

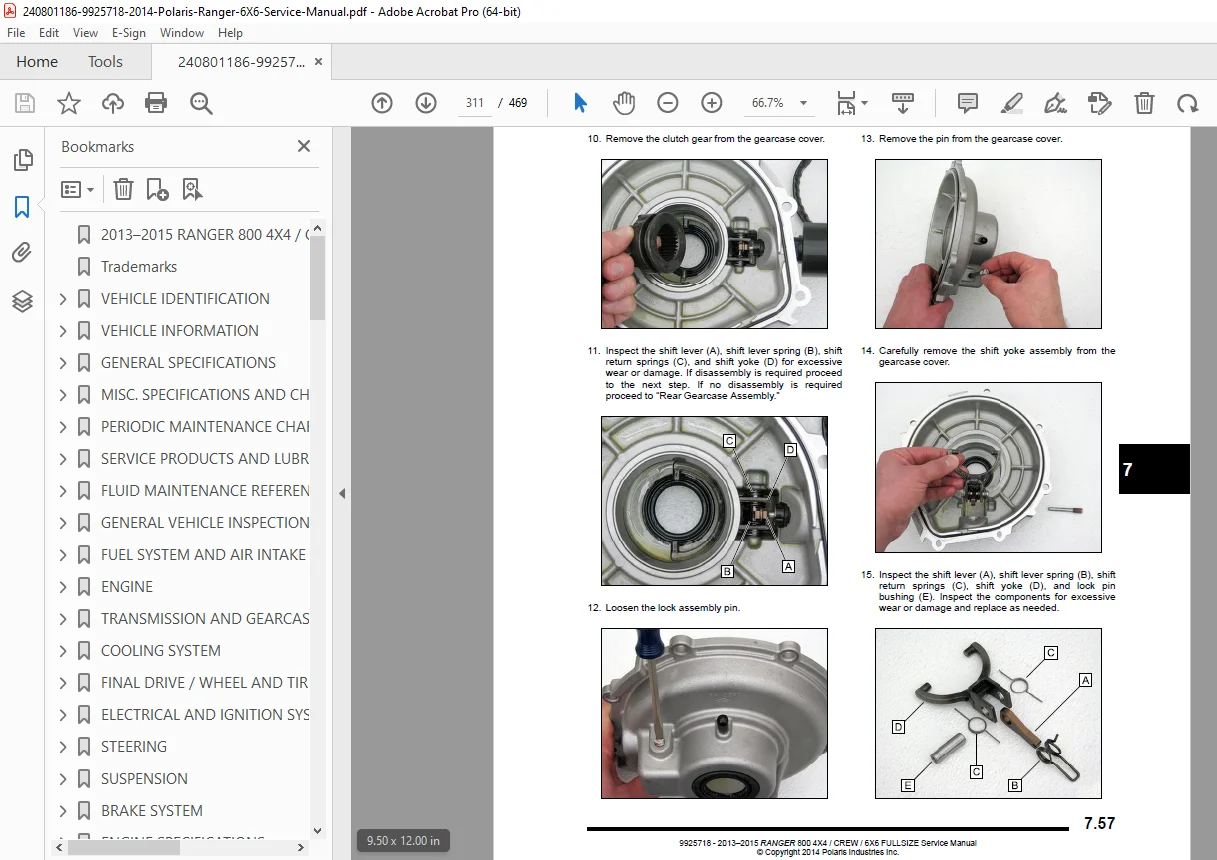

| Quality | OEM source scan / digital print, clear diagrams & tables |
| Pages | Noted as full multi-chapter book (typical full OEM length) |
