Ponsse H8 HD Harvester Spare Parts Catalog D010010 – Portuguese English PDF

Description

Ponsse H8 HD Harvester Spare Parts Catalog D010010

The Ponsse H8 HD Spare Parts Manual D010010 is the bilingual Portuguese-English catalog that workshops, parts managers and machine owners use to identify, order and replace every serviceable component on the Ponsse H8 HD harvester. It pairs numbered exploded illustrations with the matching parts list pages so each item can be traced directly from diagram to order code.

File Details

• Manual type: Spare Parts Catalog / Catálogo de Sobressalentes
• Brand: Ponsse
• Machine: H8 HD
• Document number: D010010
• Languages: Portuguese and English (side-by-side)
• File format: PDF
• Page count: 228

Chapters Covered

• 41 Chassi, adesivos / Chassis, decals
• 42 Quadro articulado / Articulated frame
• 43 Sistema hidráulico base / Base hydraulic system
• 44 Equipamento elétrico / Electrical equipment
• 45 Dispositivo de medição / Measuring device
• 46 Lâminas desgalhadoras / Delimbing knives
• 47 Serra / Saw
• 48 Roletes alimentadores / Feed rollers
• 49 Suporte, rotator / Support, rotator
• 50 Equipamento extra / Extra equipment

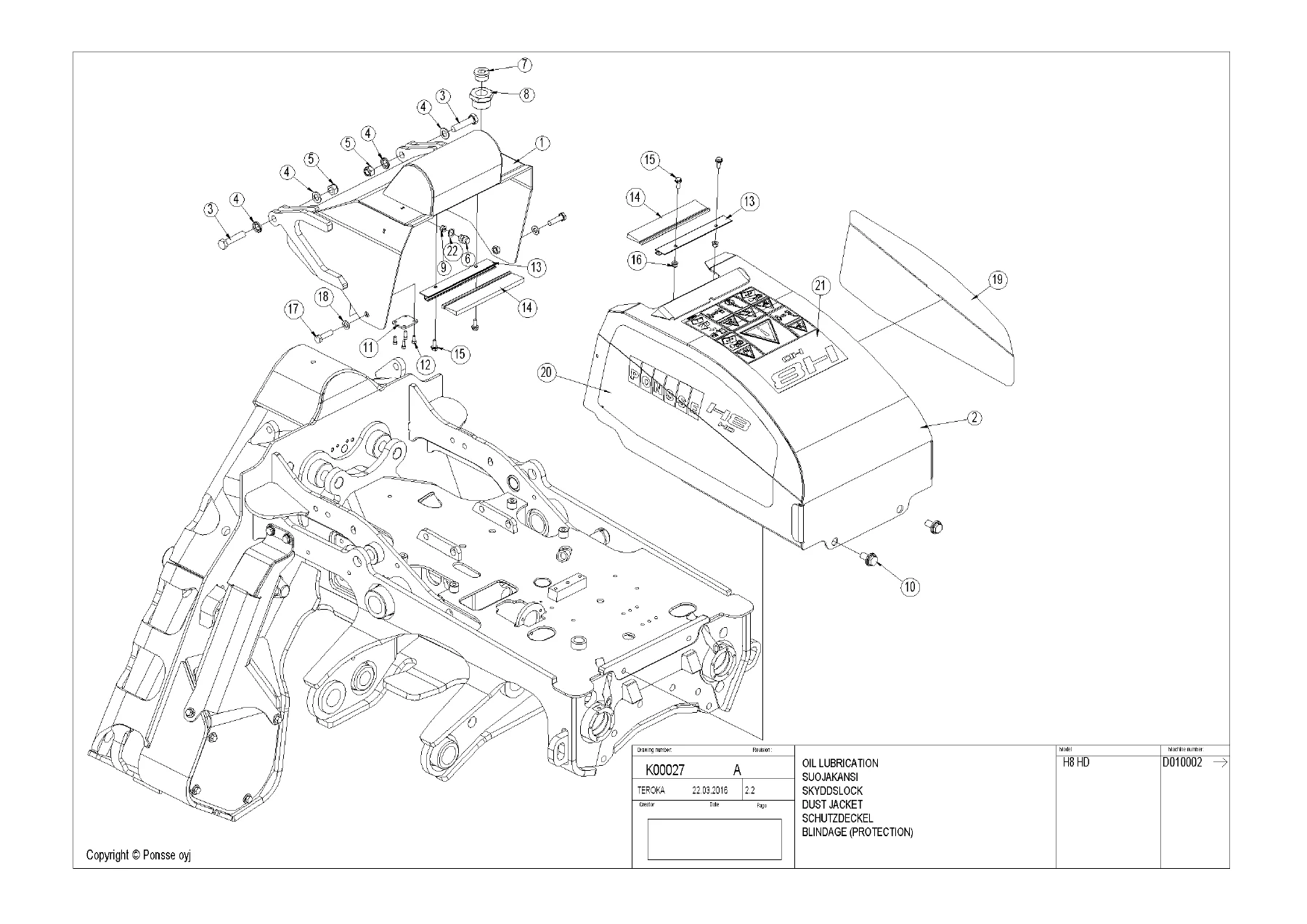

Each chapter opens with a numbered drawing followed by an itemised parts table giving position number, part number, revision, quantity, description and technical information. The saw chapter is split into tensioner hydraulics, bar and chain and drive sprocket, complete saw assembly, and lubrication, so every wear part on the cutting head can be located at a glance. The feed roller chapter breaks down into hydraulics, chassis and rollers, and the delimbing knife chapter separates upper front knife, rear knives and their cylinders.

How the Catalog Is Organised

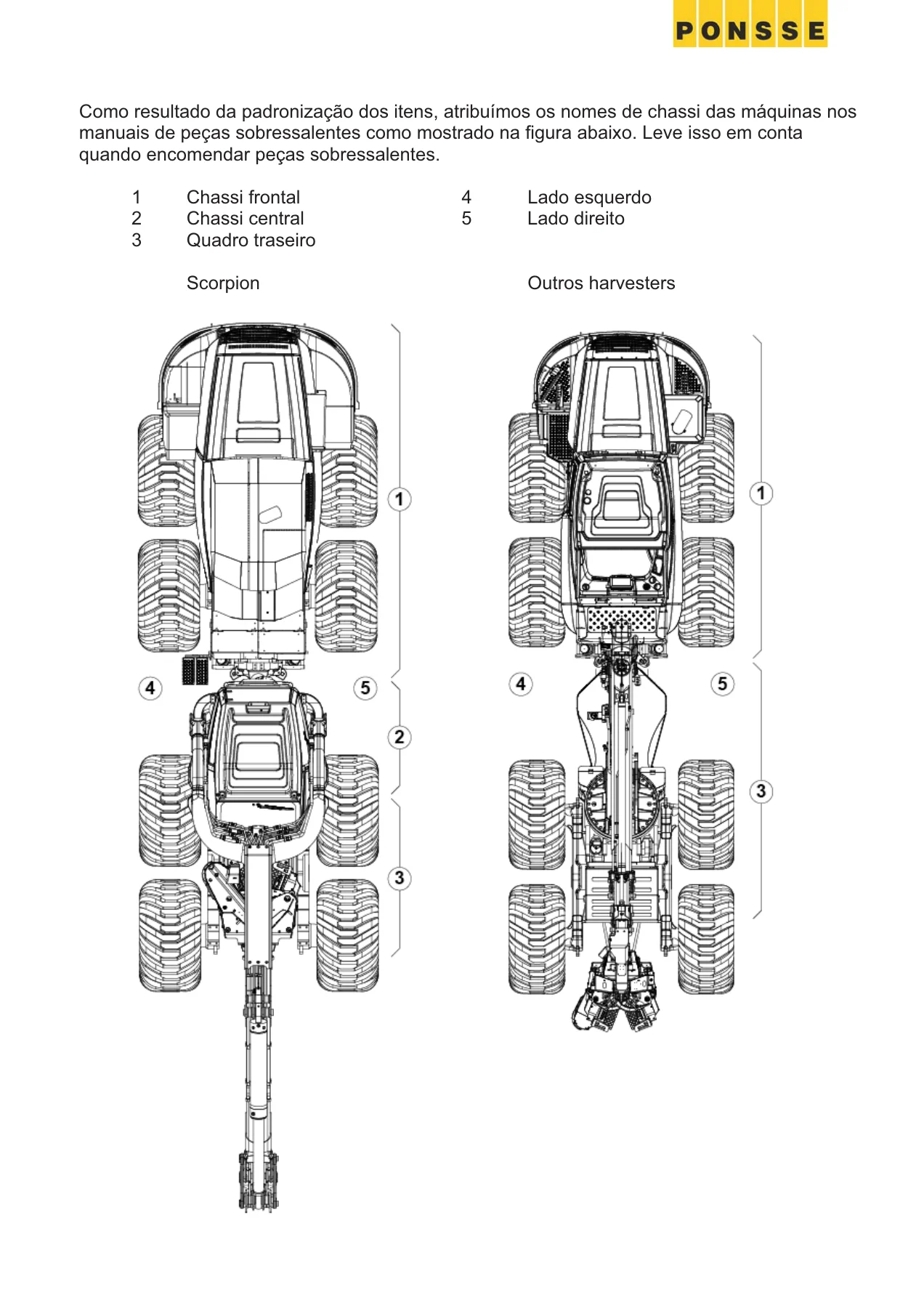

Every illustration carries a drawing number, revision letter, section number, applicable machine model and a starting machine number, so parts can be matched precisely to the correct production range. The opening pages explain this referencing system in both Portuguese and English, and the ordering page lists exactly what information should be quoted when placing a spare parts order – machine model, product identification number, order number, item name, quantity, invoice payer and delivery address.

The catalog also includes a complete hose-code section. Standard hoses are described field by field: hose size and number of weaves, cutting length, connector angle and type, and the rotation angle between connectors. Separate code formats are given for special hoses and for L2000-series hoses, and dedicated tables cover fire-extinguishing system hoses, fuel system hoses, refrigerant hoses, centralised lubrication textile hoses and the letter markings used on connectors, banjos, ORFS, JIC, metric and SAE flange fittings. A full cross-reference table lists connector part numbers with their size, angle and thread type.

What This Spare Parts Catalog Enables

With the Ponsse H8 HD Spare Parts Catalog D010010 in hand you can rebuild and service the harvester accurately. Typical jobs covered include replacing hydraulic cylinders (tilt cylinder, saw cylinder, rear knife cylinder, feed roller cylinder), swapping pressure and return hoses on the articulated frame and harvester head, replacing proportional lubrication pump components, servicing the saw chain tensioner, renewing feed roller housing and bearings, restoring rotator mounts and hooks, and replacing the tool or valve blocks in the base hydraulic system.

Choosing the correct part number matters because the H8 HD shares hardware families across sections – a wrong connector angle, banjo size or weave count will not seal or fit. This catalog ties each part number to a specific drawing position and machine number, removing the guesswork that comes from ordering by description alone.

IMAGES PREVIEW

Delivery is instant. The PDF is available for immediate download after purchase, there is no shipping and no waiting for a printed copy, and you can open it on a laptop, tablet or phone in the workshop and print only the pages you need for the job in front of you.
