Porsche 928s Model 1985 Wiring Diagram

PORSCHE 928S MODEL 1985 WIRING DIAGRAM – DOWNLOAD:

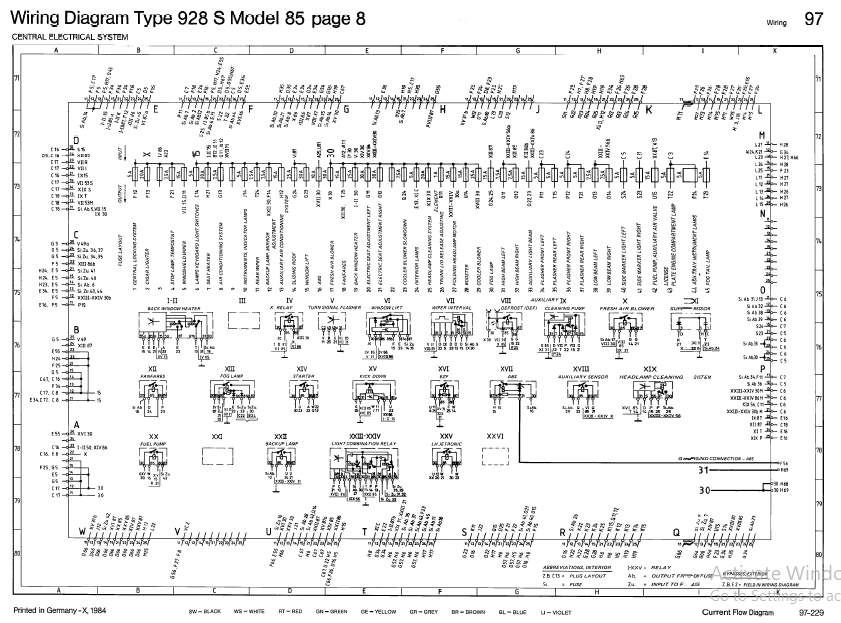

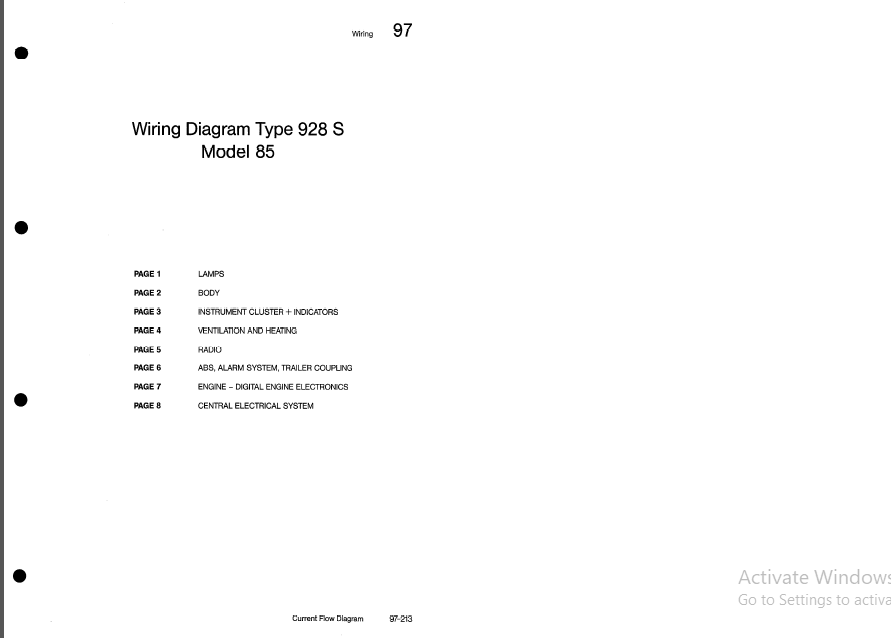

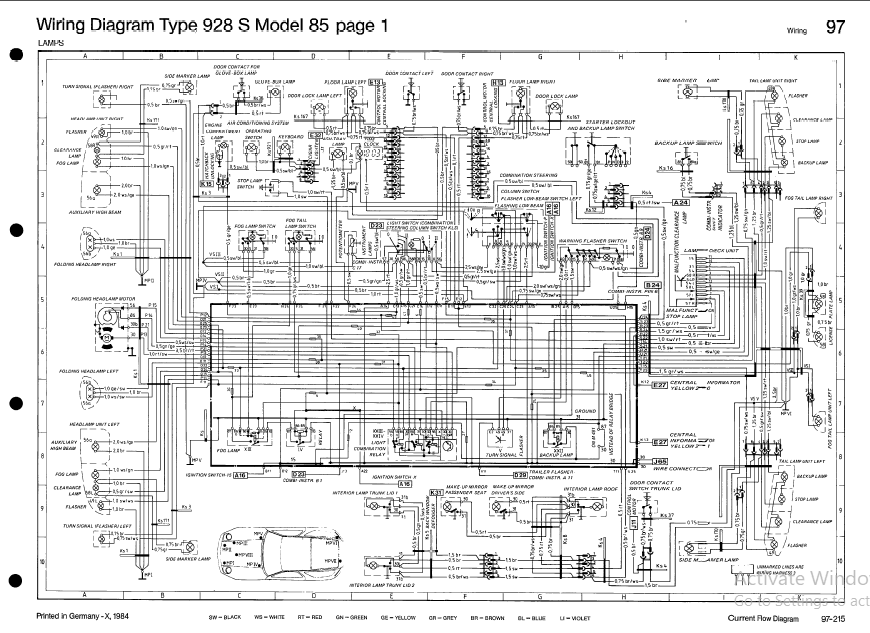

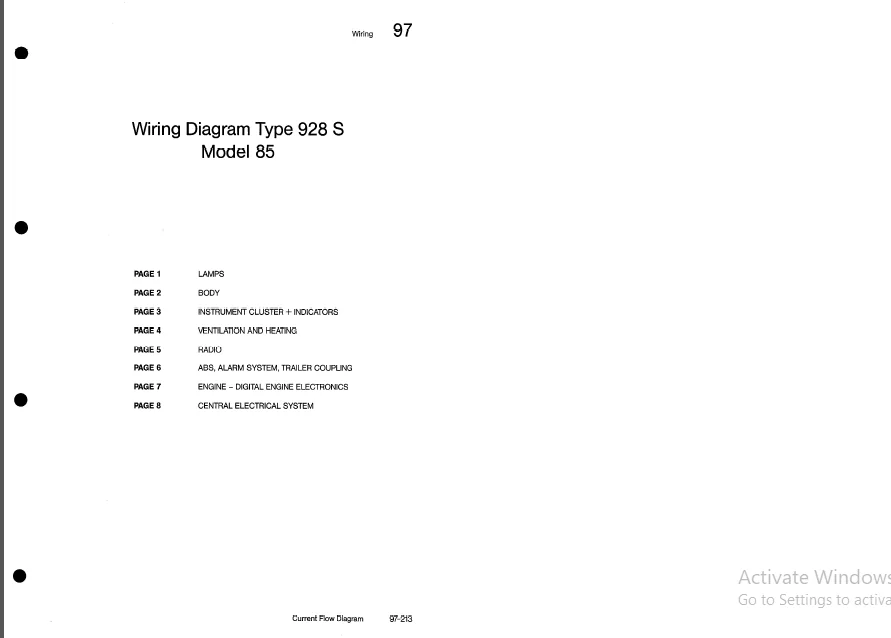

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

• The wiring diagram comprises eight individual wiring diagrams and one legend. They are subdivided into coordinate fields.
• Each individual wiring diagram comprises a part of the central electrical-system within a dash-dot frame.
• This part of the central electrical system shows all the lines and relays required for individual wiring diagram.
• The ground-connecting points are designated with “MP” and their location is shown in a vehicle diagram.
  The 1 O-pole plugs on central electrical system are new. They are clipped together from 3 parts.
  Part 1, with the cast-on fastening pin, is the “initial element”.
  Part 2 is the “module element”.
  Both parts are identified by the digits 1 . . . 5.
  Part 3 is a “coding element”.
  The designations of the plug connections in wiring diagram for central electrical
  system refer .
• The manual what will be send to you will contain all the necessary needed instructions for solving electrical problems of your car The same manual is used by your garage or workshop to solve Electrical Problems.
• So you could save you a lot of money with this manual, it will give you all the technical information what is needed solve electrical problems.
• You will find illustrations, diagrams, even if you dont have much knowledge about electronics this could be understood with some basic electronic knowledge to safety and easily repairing your car.

FILE FORMAT:

LANGUAGE:ENGLISH
PAGES:18
DOWNLOADABLE:YES
FILE TYPE:PDF
